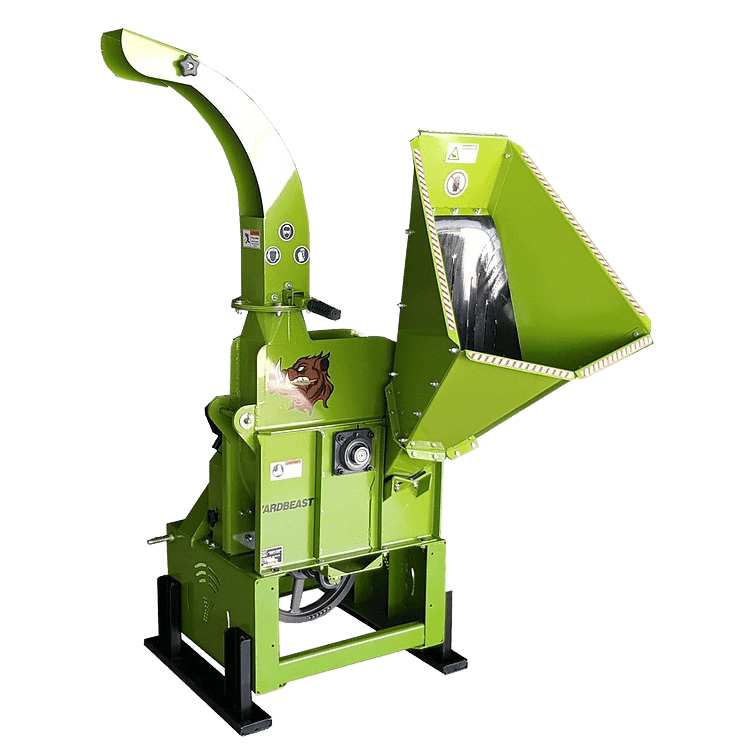

Cat 1 PTO Chipper Tractor powered
Chips up to 4.5' tru-feed capacity with exceptional self-feeding capability
CAT 1 standard frame (CAT 2 frame available for 540/1000 RPM tractors)
Belt transmission assembly for smoother and safer operation
6-spline 18-33' adjustable PTO driveshaft included
Features
- POWER IT ON CAT 1 TRACTOR-Â The 4500 is built for CAT 1 tractors up to 45HP. The frame is ribbed and sturdy to maximize rigidity. Want this chipper but have a CAT 2 tractor with 540/1000 RPM swappable PTO shaft? No problem we also have a CAT 2 frame ready for this chipper
- BELT TRANSMISSION-Â A belt transmissions is smoother and safer to operate than direct drive options. This transmission runs on a 540 RPM PTO output from the tractor. The size ratio between pulleys elevate the rotor RPMS up to 2,000RPM giving you up to 65 cuts/second
- 6-spline CAT 1 PTO shaft is included with the chipper. Expandable from 18 to 33 inches
- HANDY FRAME DESIGN AND ROTOR-Â The chipper 4500 presents a pivotal half frame which allows a swift checkup of the components prior to operation. The rotor is made of 3/4" steel and sports 2- double edged blades made of A8 specialty steel
- ADJUSTABLE BASE-Â Skids are adjustable up to 3 inches in height . Belt guard is quickly detached by 3 knobs. Steel handles
- Big wide hopper, 10-position rotational discharge, improved air intake suction
Specifications
PACKAGE CONTENTS
YARDBEAST 4500 PTO
Operating Manual
What Our Experts Think
-
Commercial-Grade Power: The YARDBEAST 4500 PTO is a heavy-duty, tractor-powered chipper that connects directly to your tractor's PTO, providing robust power for large-scale operations and demanding commercial tasks.
-
4.5-Inch Chipping Capacity: With a 4.5-inch chipping capacity, it effortlessly handles large branches, logs, and other tough debris, making it ideal for farms, estates, and professional landscapers.
-
Chipping & Shredding Dual Functionality: This model offers both chipping and shredding capabilities, breaking down tough wood and smaller debris into mulch, compost, or easy-to-dispose-of material.
-
Durable & Built to Last: Constructed with high-quality, heavy-duty materials, the YARDBEAST 4500 PTO is built for commercial use and designed to withstand frequent, rigorous work.
-
Efficient PTO Operation: The PTO drive ensures maximum efficiency, transferring power directly from your tractor to the chipper for fast, reliable operation without the need for additional fuel.
-
Easy to Transport & Set Up: Designed for ease of use, the chipper is simple to attach to your tractor and transport across large properties, making it convenient for a variety of tasks.
Q&A
Q: What is the YARDBEAST 4500 PTO Wood Chipper Shredder?
A: The YARDBEAST 4500 PTO (Power Take-Off) Wood Chipper Shredder is a commercial-grade machine designed to handle large yard and forestry debris. Powered by your tractor's PTO system, it features a 4.5-inch chipping capacity, making it ideal for clearing heavy brush, branches, and wood with ease. This heavy-duty machine is built to withstand demanding jobs, offering powerful performance for both residential and commercial applications.
Q: What are the key features of the YARDBEAST 4500 PTO Wood Chipper Shredder?
A:
-
PTO Powered: The chipper is powered through the PTO system of a compatible tractor, providing consistent and reliable power for heavy-duty chipping tasks.
-
Chipping Capacity: Capable of chipping branches up to 4.5 inches in diameter, making it perfect for handling larger, tougher wood.
-
Heavy-Duty Construction: Built with durable materials to withstand extensive use and heavy-duty operations, ensuring longevity and reliability in tough conditions.
-
Shredding Functionality: In addition to chipping, it can also shred smaller yard debris and leaves into mulch for added versatility.
-
Efficient Blades: Features robust steel blades that provide clean and efficient chipping, reducing waste and minimizing clogging.
-
PTO Compatibility: Designed to work with most tractors equipped with a PTO system, offering flexibility for various tractor types.
-
Easy to Operate: User-friendly design with simple controls and easy attachment to your tractor’s PTO system for quick setup and operation.
-
High Performance: Built for high-volume, commercial use, making it ideal for landscapers, contractors, and property owners with large properties.
-
Versatile Design: Perfect for both residential and commercial land clearing, yard maintenance, and forestry work.
Q: What are the specifications of the YARDBEAST 4500 PTO Wood Chipper Shredder?
-
Engine Type: PTO powered (compatible with most tractors)
-
Chipping Capacity: Up to 4.5 inches in diameter
-
Blades: Heavy-duty steel blades for efficient chipping
-
Shredding Capacity: Suitable for small branches, leaves, and other yard debris
-
Fuel Type: Powered by tractor PTO (no separate fuel required)
-
Weight: Approx. 700 lbs (subject to variations)
-
Wheel Type: Large wheels for mobility on rough terrain
-
Dimensions: Commercial-sized design for heavy-duty use
Q: Who is the YARDBEAST 4500 PTO Wood Chipper Shredder best suited for?
A: The YARDBEAST 4500 PTO is perfect for homeowners with large properties, landscapers, contractors, and forestry professionals who need to clear large amounts of wood, branches, and debris efficiently. Its commercial-grade performance makes it ideal for land clearing, forestry management, and high-volume yard maintenance. The PTO-powered system offers flexibility, making it compatible with most tractors.
Q: Why choose the YARDBEAST 4500 PTO Wood Chipper Shredder?
A: The YARDBEAST 4500 PTO offers unmatched power and performance, making it the ideal choice for heavy-duty wood chipping and shredding. With its 4.5-inch chipping capacity, PTO-powered operation, and durable construction, this machine is built to tackle the toughest outdoor tasks. It is designed for professionals and large-property owners who need a reliable, high-performance chipper that delivers results with ease and efficiency. Whether you’re clearing large branches or shredding yard waste, the YARDBEAST 4500 PTO is the perfect solution for your commercial and residential needs
Maintenance Tips
-
Engine Oil & Filter Change: Regularly check and change the oil and filter according to the manufacturer’s schedule. Use the correct oil type to maintain engine health and optimize performance.
-
PTO Shaft Maintenance: Inspect the PTO shaft and its connection to the tractor to ensure it's securely attached and free from damage. Lubricate the shaft as needed to prevent wear and maintain smooth operation.
-
Air Filter Care: Clean or replace the air filter regularly to ensure proper airflow. A clogged filter can decrease engine performance and fuel efficiency.
-
Fuel System Inspection: Check for fuel leaks or cracks in the fuel lines, and replace the fuel filter periodically to avoid fuel system issues. Use fresh, clean fuel to prevent engine problems.
-
Spark Plug Maintenance: Inspect the spark plug for wear and buildup. Clean or replace the spark plug as necessary to ensure smooth engine startup and operation.
-
Lubricate Moving Parts: Regularly lubricate the hopper, chipper blades, and other moving parts with the recommended grease to reduce friction and extend the life of these components.
-
Chipper Blades Inspection: Check the chipper blades for sharpness, wear, and damage. Sharpen or replace the blades to ensure efficient chipping and to minimize strain on the engine.
-
Hydraulic System Check (If Applicable): If the chipper features hydraulic components, inspect fluid levels, hoses, and fittings for leaks. Replace any damaged parts to ensure smooth hydraulic operation.
-
Tire & Hitch Inspection: For models with a towing trailer, check tire pressure, wear, and any damage. Ensure that the hitch is secure and fully operational for safe towing.
-
Cooling System Maintenance: Regularly clean cooling fins and air vents to prevent overheating, especially during extended use. This ensures the engine stays cool and operates efficiently.
-
Post-Use Cleaning: After each use, clean the hopper, chipper blades, and chute to remove debris and wood chips. This helps prevent clogs and ensures smooth performance the next time it's used.
-
Storage Care: If storing the chipper for an extended period, drain the fuel tank to prevent fuel degradation, clean the unit thoroughly, and store it in a dry, sheltered location to protect it from the elements.
