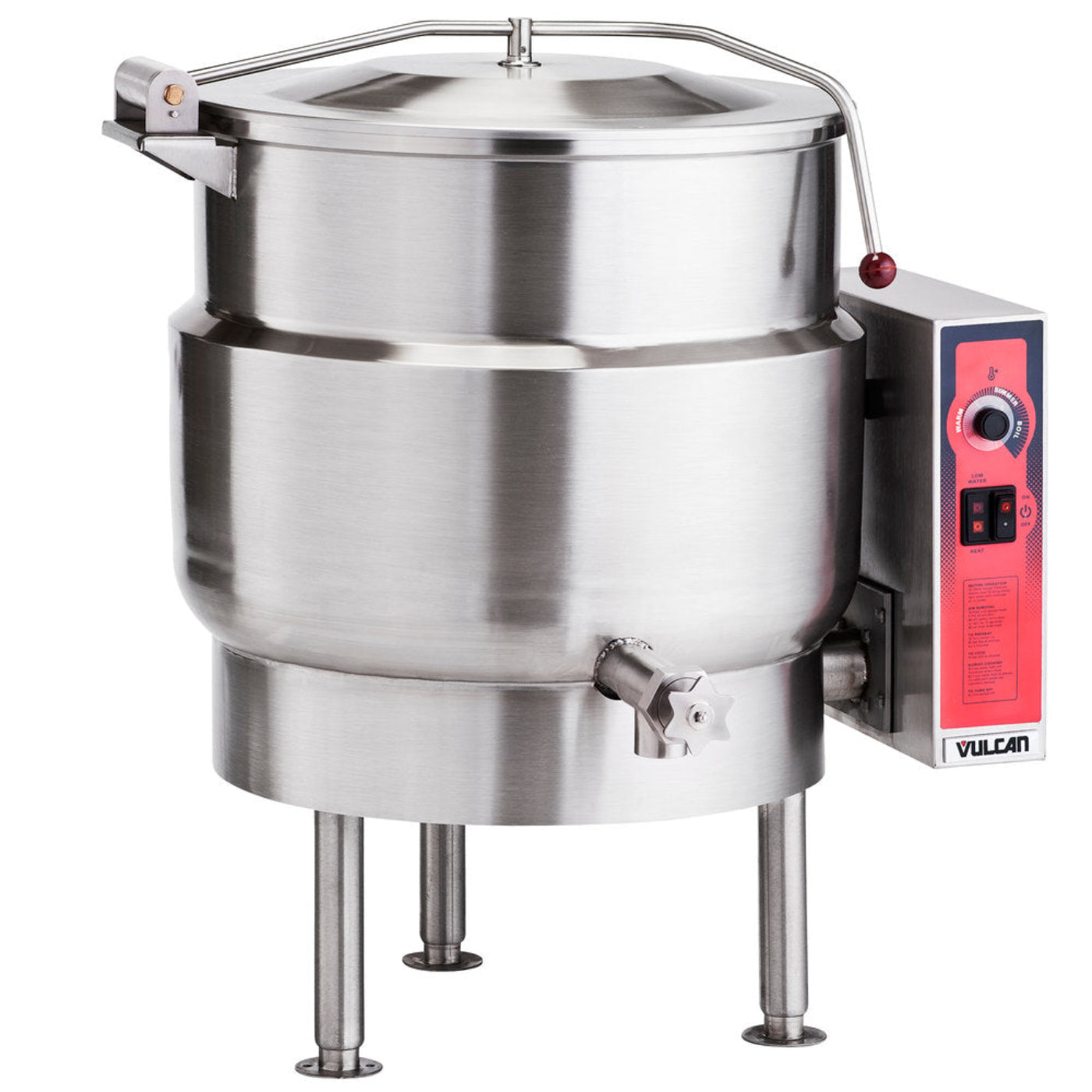

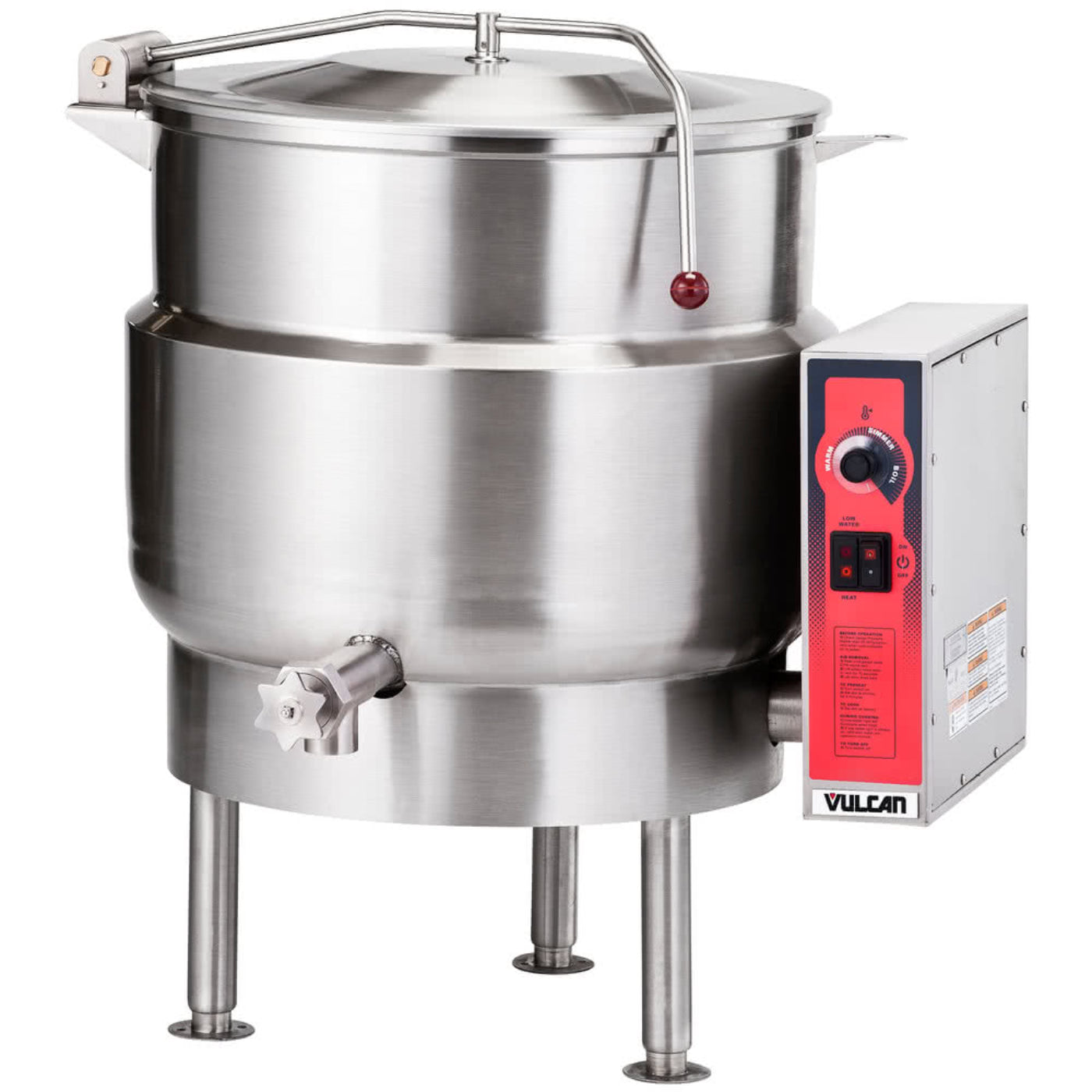

Vulcan K40EL 40-Gallon Stationary Electric Steam Jacketed Kettle - 208V - K40EL-208V

Cook meals faster and waste less product with the precise and efficient Vulcan K40EL 40-Gallon Stationary Electric Steam Kettle.

This kettle is ideal for restaurants, hotels, and other large commercial establishments because of its ability to quickly and carefully heat up large volumes of liquid. Steam kettles are the perfect appliance for cooking soup, delicate sauces, gravies, rice, meat, and much more.

High Capacity and Efficiency

The Vulcan K40EL has a True Working Capacity of 40 gallons, allowing you to cook and serve a total of 640 (8 oz) bowls of your signature soup or special. With embossed gallon and litre markings that won’t fade or wear off, you’ll know exactly how much product you’re making and how much you have left, significantly improving your business’ accuracy.

Unlike with using a stock pot and range where heat is only emitted from the bottom, steam jacketed kettles feature a cooking surface that covers two-thirds of the pot allowing much more of the product to come into contact with the heat source. This provides you with much faster cooking times while using a lot less energy. By using a kettle, you’re also preventing hot spots and scorched soups resulting from range cooking that must be done at much higher temperatures.

Durable and Practical Design

The Vulcan 40-gallon steam kettle features an ellipsoidal-shaped bottom that offers better heat transfer. The liner is formed from a fully welded type 316 stainless steel that provides superior protection against corrosion over time. The exterior is made from type 304 stainless steel that will easily stand up in high traffic kitchens.

The kettle comes equipped with a spring assist hinged cover with a condensate ring to prevent injury from hot condensation when opening the lid. Three sturdy tubular stainless steel legs put the unit at a working level and feature flanged feet that can be easily bolted to the floor for added security.

Simple and Accurate Controls

The Vulcan K40EL has stainless steel, watertight controls that feature a power switch, solid state temperature control, indicator light, vacuum/pressure gauge, pressure relief valve, low water light and low water shut-off.

Features

• 40-gallon (152 litre) capacity
• Steam jacket design on lower 2/3 of the kettle
• Embossed gallon/litre markings
• Spring assist hinged stainless steel cover with condensation ring
• Type 304 stainless steel interior and 316 stainless steel exterior
• Tubular stainless steel legs with flanged feet
• 208V / 60 Hz / 3 phase

Specifications

What Our Experts Think

• Large 40-Gallon Capacity – Ideal for high-volume cooking, perfect for soups, sauces, and stews.
• Efficient Electric Heating – 208V power ensures consistent steam cooking without an open flame.
• Steam Jacketed Design – Provides even heat distribution for precise temperature control.
• Durable & Reliable – Heavy-duty stainless steel construction ensures long-lasting performance.
• Easy Operation & Maintenance – Smooth interior simplifies cleaning, and a convenient draw-off valve allows efficient serving.

Q&A

Q: What is the Vulcan K40EL 40-Gallon Stationary Electric Steam Jacketed Kettle?
A: The Vulcan K40EL is a 40-gallon stationary electric steam jacketed kettle designed for high-capacity boiling, simmering, and steaming in commercial kitchens.

Q: What are the key features of the K40EL?
A: It operates on 208V power, features a full steam jacket for even heat distribution, a durable stainless steel construction, manual controls for precise operation, and a faucet bracket for easy water access.

Q: Is this steam kettle suitable for commercial kitchens?
A: Yes, it’s ideal for restaurants, institutional kitchens, and food production facilities that require large-scale cooking efficiency.

Q: What type of heating system does it use?
A: The K40EL is an electric steam jacketed kettle, providing uniform heating with a self-contained steam source.

Q: Is the K40EL easy to clean and maintain?
A: Yes, it features a smooth stainless steel interior, a stationary design for stability, and a drain valve for efficient cleaning.

Maintenance Tips

• Daily Cleaning: Wipe the interior and exterior with a soft cloth; avoid abrasive cleaners.
• Descale Regularly: Use a manufacturer-approved descaling solution to prevent mineral buildup.
• Water Level Maintenance: Ensure the kettle has proper water levels for efficient steam generation.
• Inspect Seals & Valves: Check gaskets, safety valves, and steam traps for leaks or wear.
• Electrical Safety: Verify secure connections and schedule periodic professional inspections.
