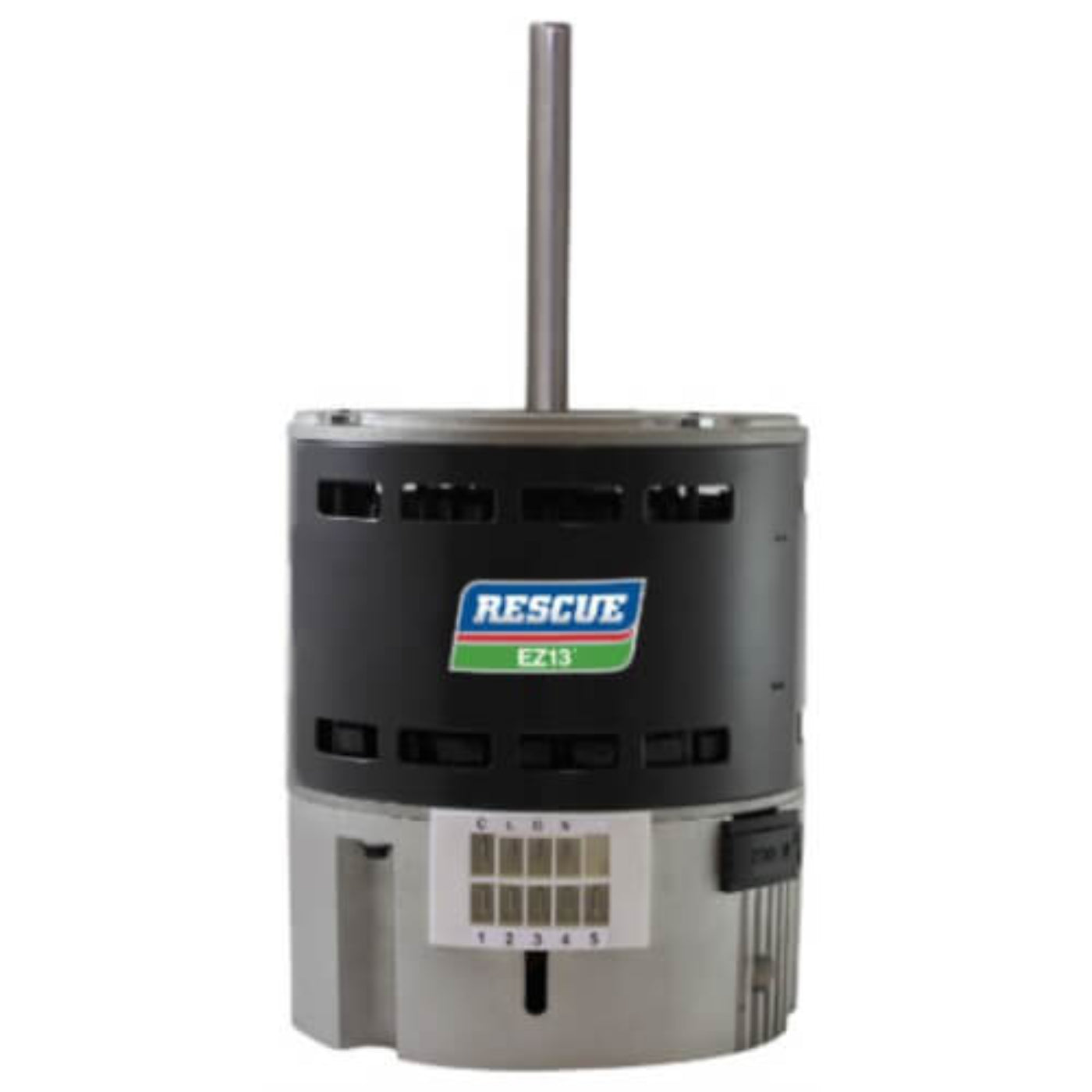

U.S. Motors 5634 | 119292241 RESCUE EZ13 OAO ECM Direct Drive 460V Blower Motor (1/2 HP, 1050 RPM) - 5634

U.S. Motors 5634 | 119292241 RESCUE EZ13 OAO ECM Direct Drive 460V Blower Motor (1/2 HP, 1050 RPM) - 5634

The U.S. Motors 5634 is designed for high efficiency and reliability. This direct drive blower motor operates on 460 volts and is ideally suited for HVAC applications. It is a quick and easy replacement for existing ECM motors in furnaces and air handlers. This model does not require any programming, making it user-friendly for installers.

Product Highlights

This U.S. Motors blower motor offers a simple installation and dependable performance, making it a go-to choice for HVAC service professionals.

Features

• Built-in six thousand Volt surge protection.
• Industry-leading moisture protection for durability.
• Variable speeds with reversible rotation

Specifications

What our Experts Think

• Efficient Performance: The U.S. Motors 5634 offers 1/2 HP at 1050 RPM with high efficiency, ensuring energy savings in HVAC systems.

• Direct Drive Design: This ECM motor provides reliable direct drive operation, ideal for blowers in furnaces and air handlers.

• Durable Construction: Built with enhanced moisture protection and surge protection, this motor is designed for long-term, dependable use.

• Versatile Operation: Features variable speeds and reversible rotation, making it adaptable for various system configurations.

• Easy Installation: The motor is designed for simple replacement, with a belly-band mount and standard NEMA 48 frame for quick integration into existing units.

Q&A

Q: What applications is the U.S. Motors 5634 motor suitable for?
A: This motor is ideal for HVAC systems, specifically as a replacement for furnaces and air handlers.

Q: What are the key specifications of this motor?
A: It delivers 1/2 horsepower at 1050 RPM, operates on 460V single-phase power, and features a 48Y frame with a Totally Enclosed Air Over (TEAO) enclosure.

Q: What are the electrical characteristics of this motor?
A: The motor operates at 1.2 amps and has a service factor of 1.0.

Q: What are the mounting and shaft details?
A: It includes a belly band mount and a shaft measuring 1/2" in diameter by 5" in length with a flat.

Q: What are its construction and protection features?
A: Built with a durable frame, the motor includes ball bearings and is designed for continuous duty in ambient temperatures up to 40°C.

Q: Why choose the 5634 model?
A: This motor offers reliable performance, robust construction, and is designed for demanding HVAC applications, ensuring longevity and efficiency.

Maintenance Tips

• Regular Inspection: Check for unusual vibrations, overheating, or noise before each use.

• Keep Clean: Ensure the motor is free from dust and debris to maintain proper ventilation.

• Lubricate Bearings: Apply the recommended lubricant to the bearings as per the manufacturer's instructions.

• Electrical Connections: Inspect all wiring and connections for signs of wear or corrosion.

• Monitor Load & Voltage: Ensure the motor is not overloaded and that the voltage is within the specified range.

• Proper Storage: If not in use, store the motor in a dry, clean, and well-ventilated area.
