U-Line - 36" 3000 Series Beverage Center - U-3036BVWC - U-3036BVWCINT-00B

U-Line - 36" 3000 Series Beverage Center - U-3036BVWC - U-3036BVWCINT-00B

A favorite of cocktail enthusiasts, wine lovers, and beer drinkers alike, the 36" 3000 Series Beverage Center is the ultimate home bar companion. This product features convection cooling for quick and consistent temperatures. Sleek and sophisticated, the 3000 Series boasts black interiors with bright white LED theater lighting, full-text read out U-Select Controls, and limitless integration capabilities with an articulating door hinge. The door finishes are available in stainless steel or integrated panel-ready, and the fully adjustable toe-kicks can accept a custom panel to match your surrounding cabinetry.

Features

Cooling System:

• Convection cooling system: Provides a quick cool down and consistent temperature.
• Independently controlled dual-zones: Temperature range left: 38°F - 65°F / right: 34°F - 70°F.

Interior and Lighting:

• Black interior: Illuminated with LED theater lighting, can be set to stay on for 3, 6, or 24 hours.
• LowE coated, argon gas filled, double thermopane glass door: Provides protection from harmful UV light.

Shelving and Storage:

• Three adjustable tempered glass shelves.
• Wine racks: Accommodate a variety of bottle shapes and sizes; the fourth and fifth racks allow for larger diameter wine and champagne bottles.
• Full-extension black coated wine racks.
• Full-extension, slide-out crisper drawer: Removable for easy cleaning.
• Volume: 7.0 cu ft holds up to 31 wine bottles (750 ml) and 79 bottles (12 oz) or 123 cans (12 oz).

Controls and Display:

• U-Select Control: Digital OLED display.

Design and Build:

• Stainless steel handles: 7⁄8" diameter.

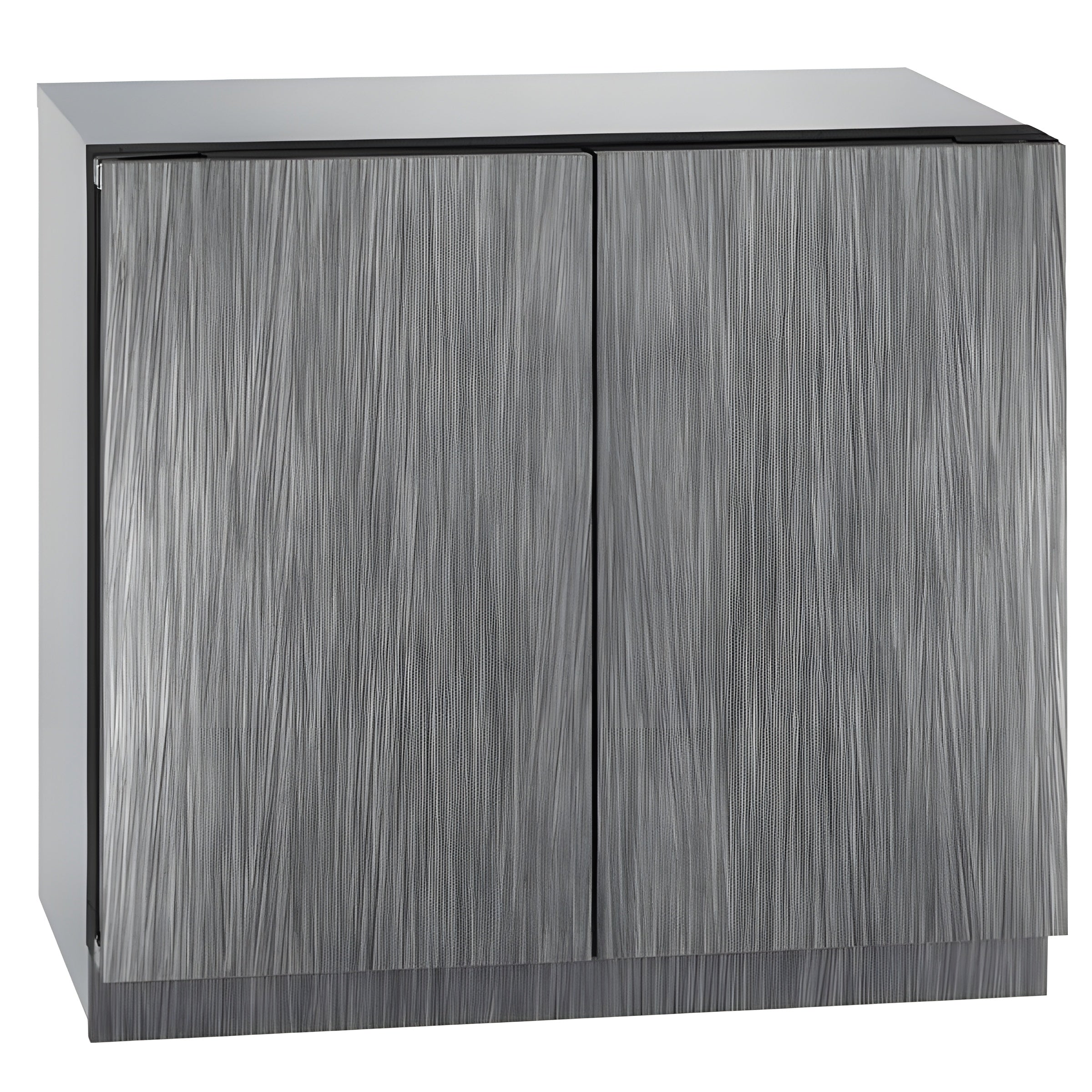

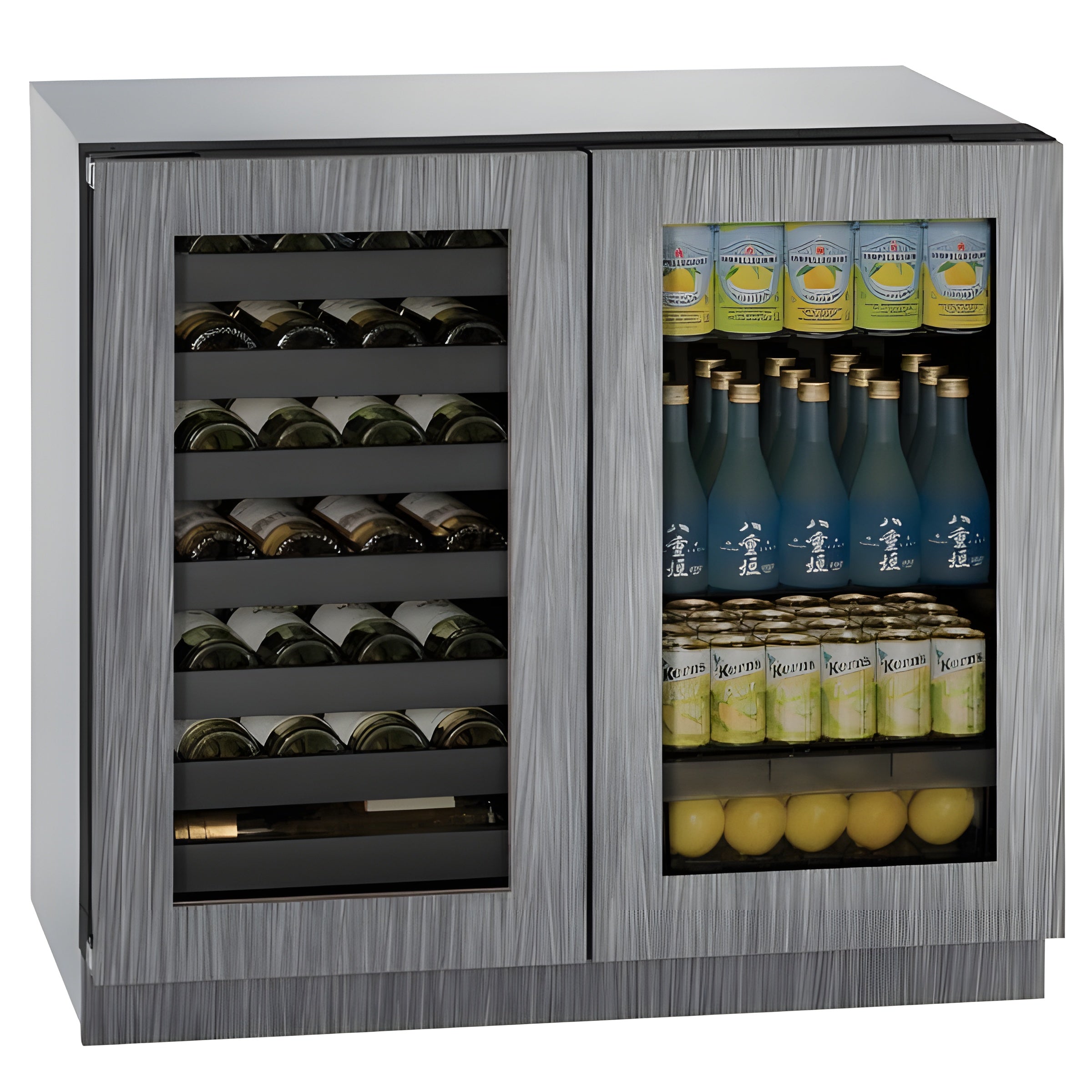

• Integrated model: Requires 3⁄4" custom door panel and handle (not supplied).
• Built-in design: Galvanized exterior cabinet.
• Four adjustable leveling legs.
• Articulating door hinges.
• Adjustable grille: Can be shifted front-to-back and up-and-down, and can accept an integrated toe-kick.

Specifications

• Model U-3036BVWCS-00B
• Voltage / Hz: 115 V/60 Hz
• Finish: Stainless Frame
• Lock: No
• Shipping Weight: 244 lb (111 kg)

Downloads

• CAD-2D (DWG)
• CAD-3D (DWG)
• Compliance
• Current Product Warranty
• Energuide (Canada)
• Energy Guide (US)
• Expanded View of Parts
• Quick Start Guide
• Spec Sheet
• User Guide & Service Manual

What Our Experts Think

• Dual-Zone Cooling – Separate temperature zones for wine and beverages.
• Spacious 7.0 Cu. Ft. Capacity – Holds up to 79 bottles or 123 cans for ultimate convenience.
• Smooth-Glide Shelving – Provides easy access without disturbing contents.
• Digital Touch Controls – Precise temperature management for ideal drink preservation.
• UV-Protected Glass Doors – Tinted glass shields contents from harmful light exposure.
• Energy-Efficient Cooling – Maintains stable temperatures while minimizing energy use.

Q&A

Q: What is the capacity of this beverage center?
A: It holds up to 79 bottles of wine or 123 beverage cans, offering ample storage for entertaining.

Q: Does it have dual temperature zones?
A: Yes, it features independently controlled zones for wine and beverages, ensuring optimal storage conditions.

Q: What is the temperature range?
A: The adjustable temperature range is 34°F to 70°F, allowing customized cooling for various drinks.

Q: Is this unit designed for built-in or freestanding use?
A: It supports both built-in and freestanding installations for versatile placement.

Q: Does it have a glass door?
A: Yes, it features a UV-resistant glass door to protect wine from harmful light exposure.

Q: What type of shelving does it include?
A: It comes with adjustable full-extension wine racks and glass shelves for flexible storage.

Q: Is there interior lighting?
A: Yes, it has soft LED lighting with brightness control to showcase your collection.

Q: Does it have a door lock?
A: Yes, a door lock is included for added security.

Maintenance Tips

• Clean the Exterior – Use a soft cloth with mild soap; for stainless steel, apply a stainless steel cleaner to maintain shine and prevent corrosion.
• Wipe Interior & Shelves – Clean spills and dust monthly with a mild detergent and dry thoroughly to prevent odors.
• Inspect & Clean Door Seals – Regularly check the gasket for debris and wipe it down to ensure a tight seal for maximum cooling efficiency.
• Monitor & Adjust Temperature – Set the ideal temperature to keep beverages at their best taste and freshness.
• Vacuum Condenser Coils – Every 6 months, remove dust from the coils to ensure optimal cooling performance and energy efficiency.
• Ensure Proper Ventilation – Keep vents clear to allow proper airflow and prevent overheating.
• Defrost if Necessary – If ice buildup occurs, unplug the unit and allow it to defrost completely before restarting.
• Check Glass Door Clarity – Use a glass cleaner to maintain a clear, streak-free view of your beverages.
