U-Line - 24" 5 Class Dual-Zone Wine Refrigerator - HWD524 - UHWD524-SG01A

U-Line - 24" 5 Class Dual-Zone Wine Refrigerator - HWD524 - UHWD524-SG01A

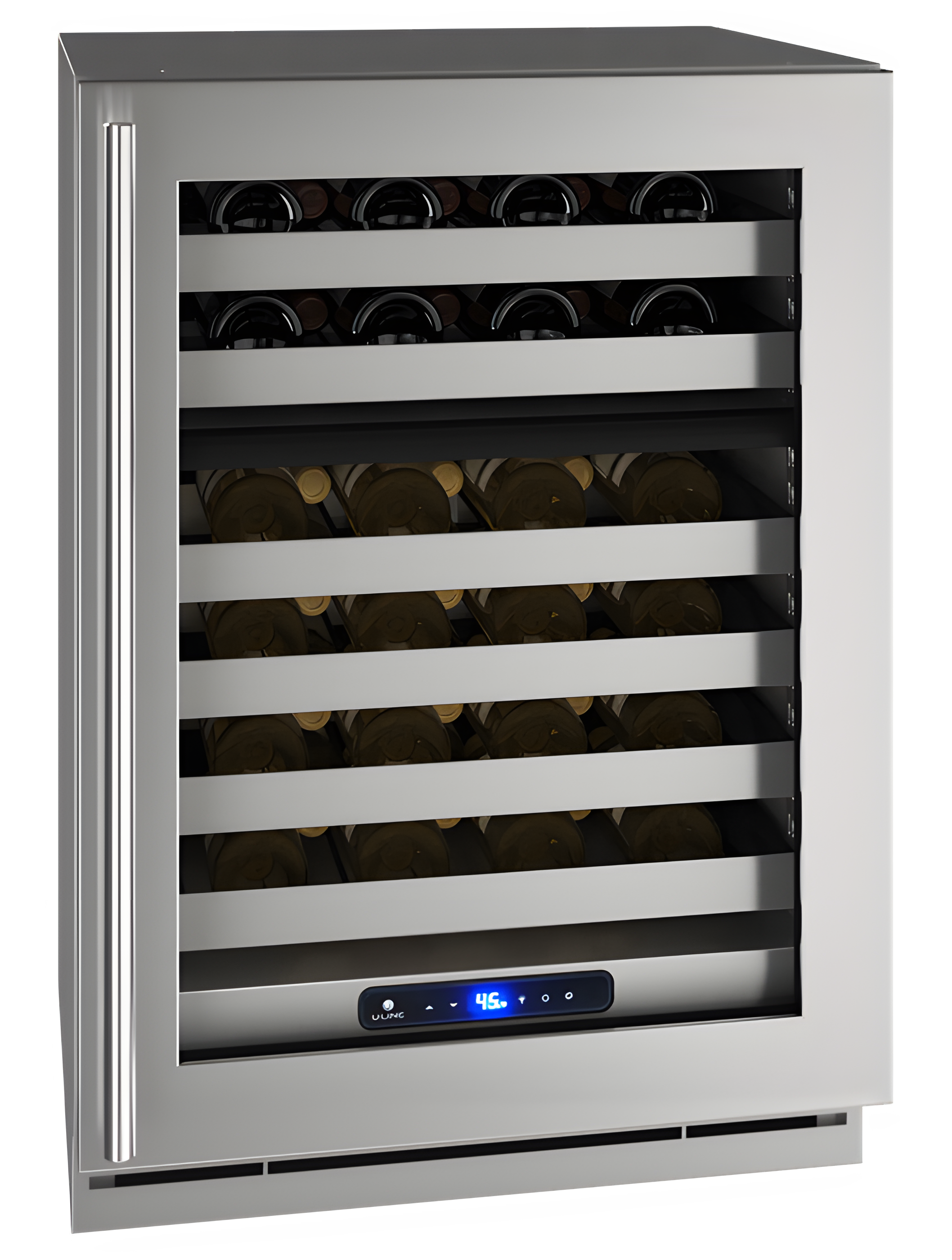

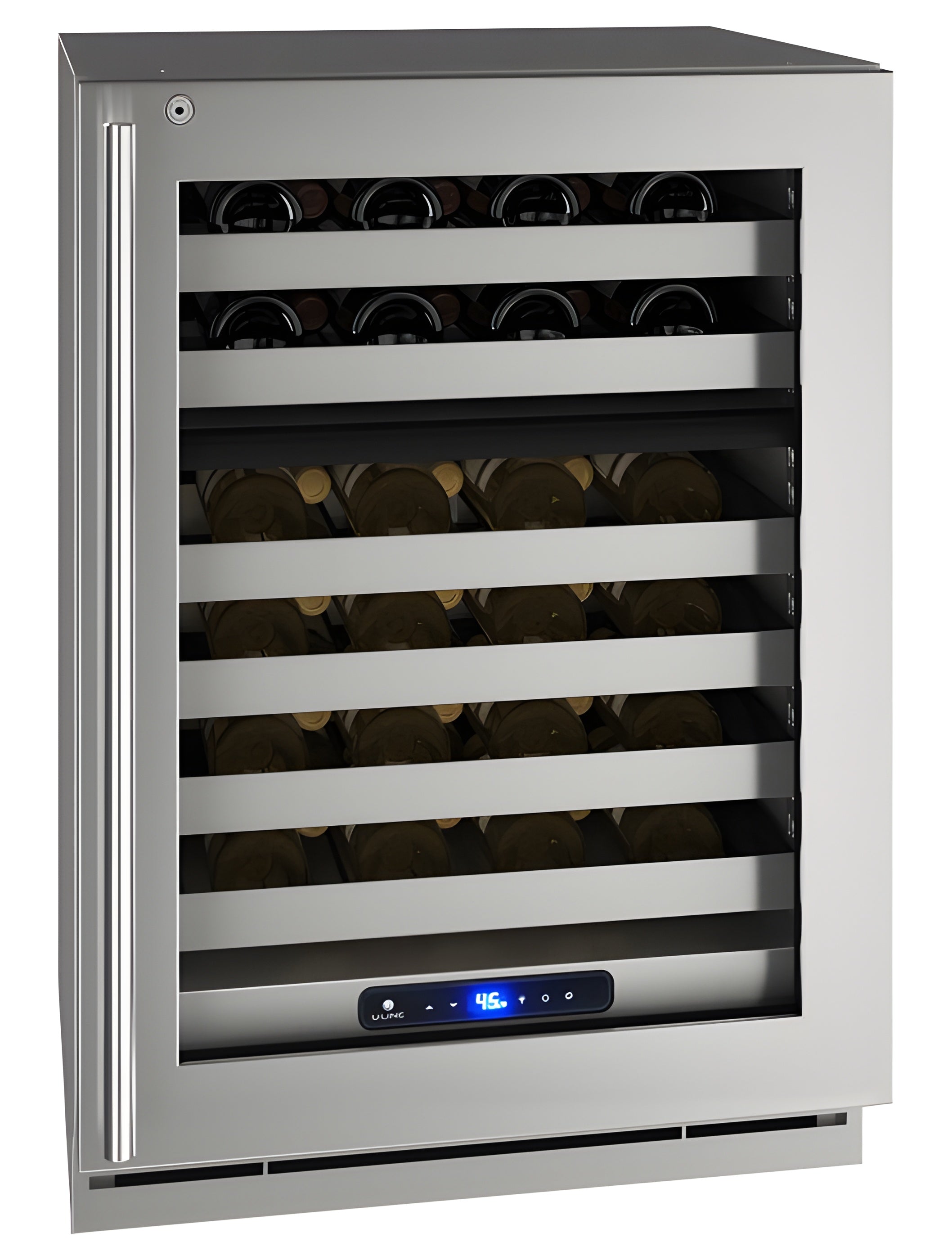

Store red and white wines in a single unit at their optimal temperature with this 24" 5 Class Dual-Zone Wine Refrigerator. Featuring stainless steel inside and out, it offers convection cooling for quick and consistent temperatures, and a state-of-the-art variable speed compressor. The robust and refined design includes an industry-exclusive full-depth lower interior to maximize storage space, adjustable blue and white LED lighting, and U-Adjust™ 17 position adjustment for full extension wine racks. This model can be built-in or used freestanding and is available with stainless steel or integrated door finishes that accept a custom door panel to match your surrounding cabinetry.

Features

Temperature Control:

• Independently controlled dual-zones
• Temperature range: Upper compartment 38°F - 65°F; Lower compartment 38°F - 65°F (Upper temperature must be ≥ lower temperature, maximum 20° higher)
• Convection cooling system: Provides quick cool down and consistent temperature

Interior and Storage:

• Industry Exclusive: Full-depth lower interior maximizes storage options
• U-Adjust™ Interior: 17 adjustable positions

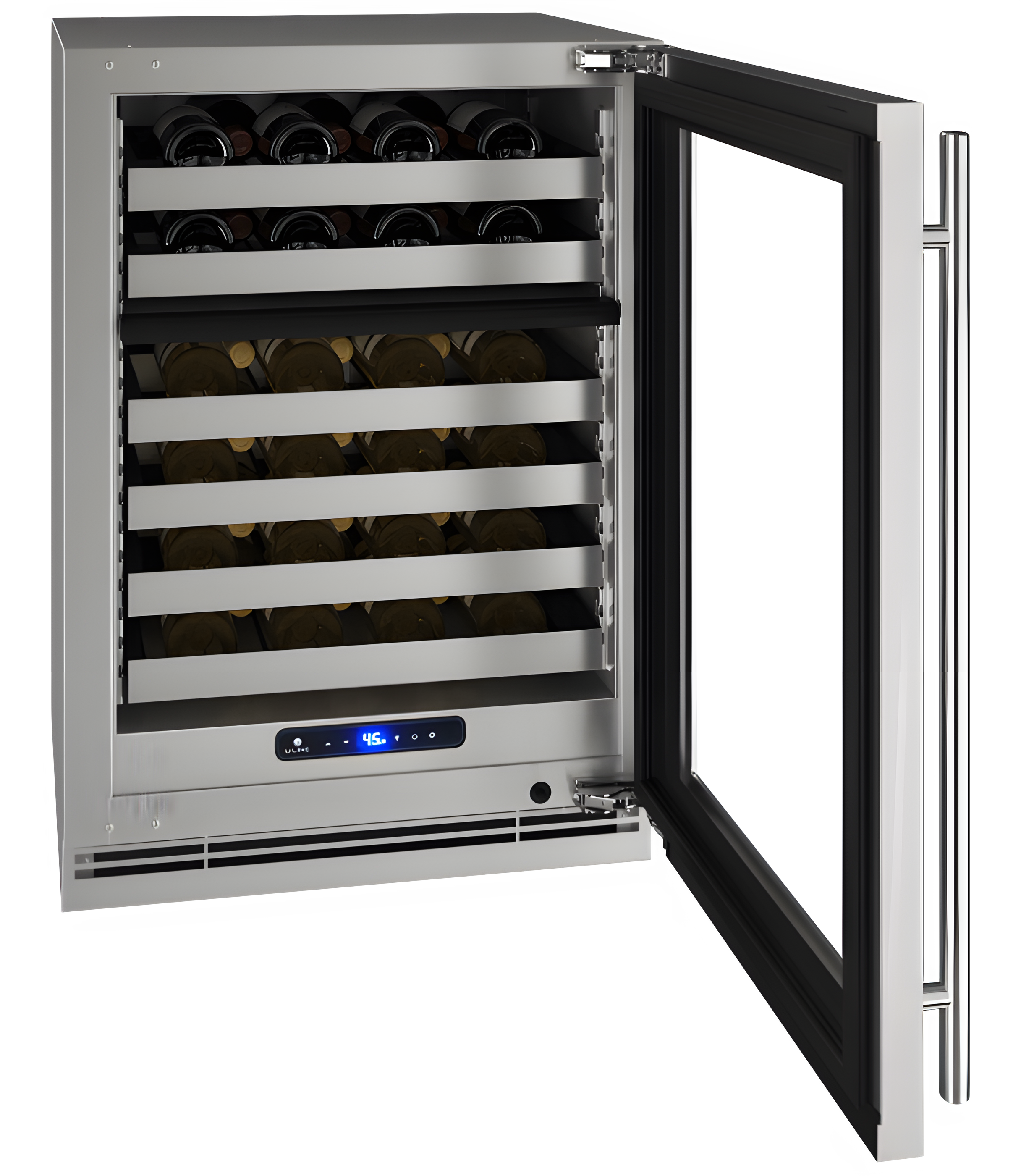

• Six removable, full-extension wine racks
• Wine racks accommodate a variety of bottle shapes and sizes, including champagne and magnum bottles
• Volume: 5.1 cu ft holds up to 42 wine bottles (750 ml)

Design and Build:

• Stainless steel: Interior, cabinet, grille, and accents
• Stainless steel handle: 7⁄8" diameter
• Soft close door: With articulating hinges
• Field reversible door: Shipped right-hand hinged
• Built-in or freestanding: Can be used in either configuration

Lighting and Controls:

• Adjustable LED lighting: Bright white or blue
• Digital touch pad control: For easy temperature adjustments

Energy Efficiency:

• Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation

Customization:

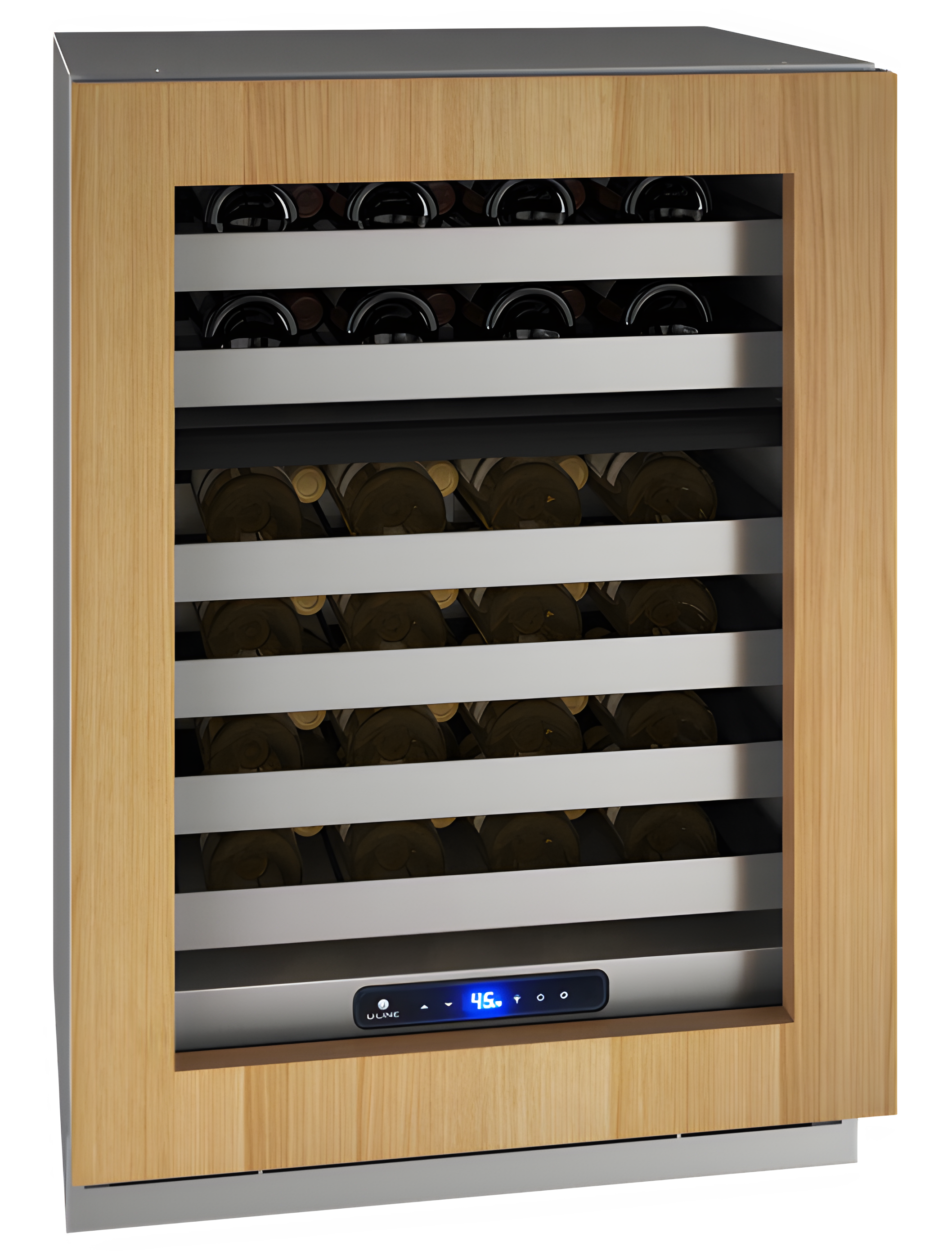

• Integrated model: Requires 3⁄4" custom door panel and handle (not supplied)

Model Details

Model UHWD524-SG01A:

• Voltage / Hz: 115 V/60 Hz
• Finish: Stainless Frame
• Door Swing: Field Reversible
• Lock: No
• Shipping Weight: 163 lb (74 kg)

Downloads

• CAD-2D (DWG)
• CAD-3D (DWG)
• CAD-3D Studio Max (3DS)
• CAD-3D Studio Max (MAX)
• CAD-ArchiCAD (GSM)
• CAD-AutoCAD (DXF)
• CAD-REVIT (RFA)
• CAD-SketchUp (SKP)
• CAD-Wavefront 3D (OBJ)
• Compliance
• Current Product Warranty
• Energuide (Canada)
• Energy Guide (US)
• Quick Start Guide
• Spec Sheet
• User Guide & Service Manual

What Our Experts Think

• Clean Interior & Shelves – Wipe down with a mild cleaner regularly to prevent dust and odors.
• Inspect & Clean Door Gasket – Keep the seal clean and intact to ensure proper insulation and efficiency.
• Maintain Proper Ventilation – Ensure at least 2 inches of clearance around the unit for optimal airflow.
• Clean the Condenser Coils – Every 6 months, vacuum or brush off dust to prevent overheating.
• Monitor Temperature Settings – Set upper and lower zones accordingly (typically 45-65°F for optimal wine storage).
• Check for Excess Moisture – Wipe away condensation to prevent mold or mildew buildup.
• Avoid Overloading – Store bottles properly to maintain airflow and consistent cooling.
• Use UV-Resistant Glass & Proper Lighting – Limit light exposure to protect wine quality.
• Power Down for Extended Storage – If unused for a long period, turn off, clean, and leave the door slightly open to prevent odors.

Q&A

Q: What is the U-Line 24" 5 Class Dual-Zone Wine Refrigerator designed for?
A: It is a high-performance undercounter wine refrigerator with dual temperature zones, ideal for preserving both red and white wines at their optimal temperatures.

Q: What is the capacity of the U-Line HWD524?
A: It can store up to 49 standard 750ml wine bottles.

Q: What is the model number of this wine refrigerator?
A: The model number is UHWD524-SG01A.

Q: What is the temperature range for each zone?
A: The upper zone ranges from 38°F to 65°F, while the lower zone ranges from 38°F to 65°F, allowing customized storage for different wine types.

Q: Is the U-Line HWD524 suitable for built-in or freestanding installation?
A: Yes, it is designed for both built-in and freestanding installations.

Q: What type of door does this wine refrigerator have?
A: It features a stainless steel-framed glass door with UV protection to prevent light damage to wines.

Q: Does this unit have interior lighting?
A: Yes, it includes LED interior lighting to beautifully showcase your wine collection.

Q: Is the U-Line HWD524 energy-efficient?
A: Yes, it is engineered for energy efficiency while maintaining precise temperature control.

Q: Does it feature adjustable shelving?
A: Yes, it includes slide-out wine racks to accommodate different bottle sizes.

Maintenance Tips

• Dual-Zone Cooling: Independently controlled temperature zones ensure ideal storage for both red and white wines.
• Spacious & Customizable Storage: Adjustable racks accommodate various bottle sizes while maximizing capacity.
• Sleek & Premium Design: Stainless steel construction with a glass door enhances durability and modern aesthetics.
• Precise Temperature Control: Digital touch controls allow easy adjustments for optimal wine preservation.
• Quiet & Energy-Efficient: Advanced cooling technology ensures low noise operation and minimal energy consumption.
