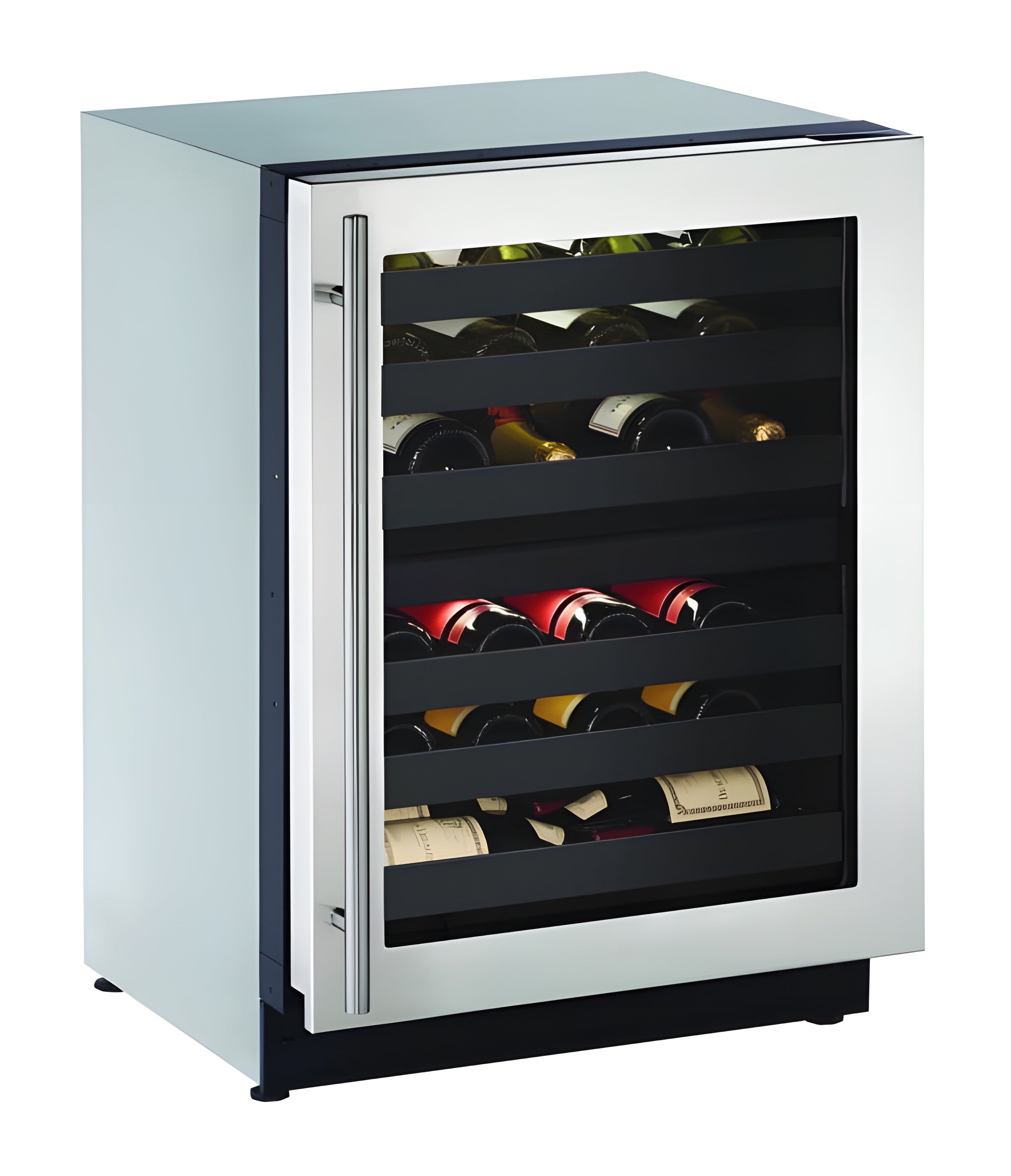

U-Line - 24" 2000 Series Dual-Zone Wine Refrigerator - 2224ZWC - U-2224ZWCS-00B

U-Line - 24" 2000 Series Dual-Zone Wine Refrigerator - 2224ZWC - U-2224ZWCS-00B

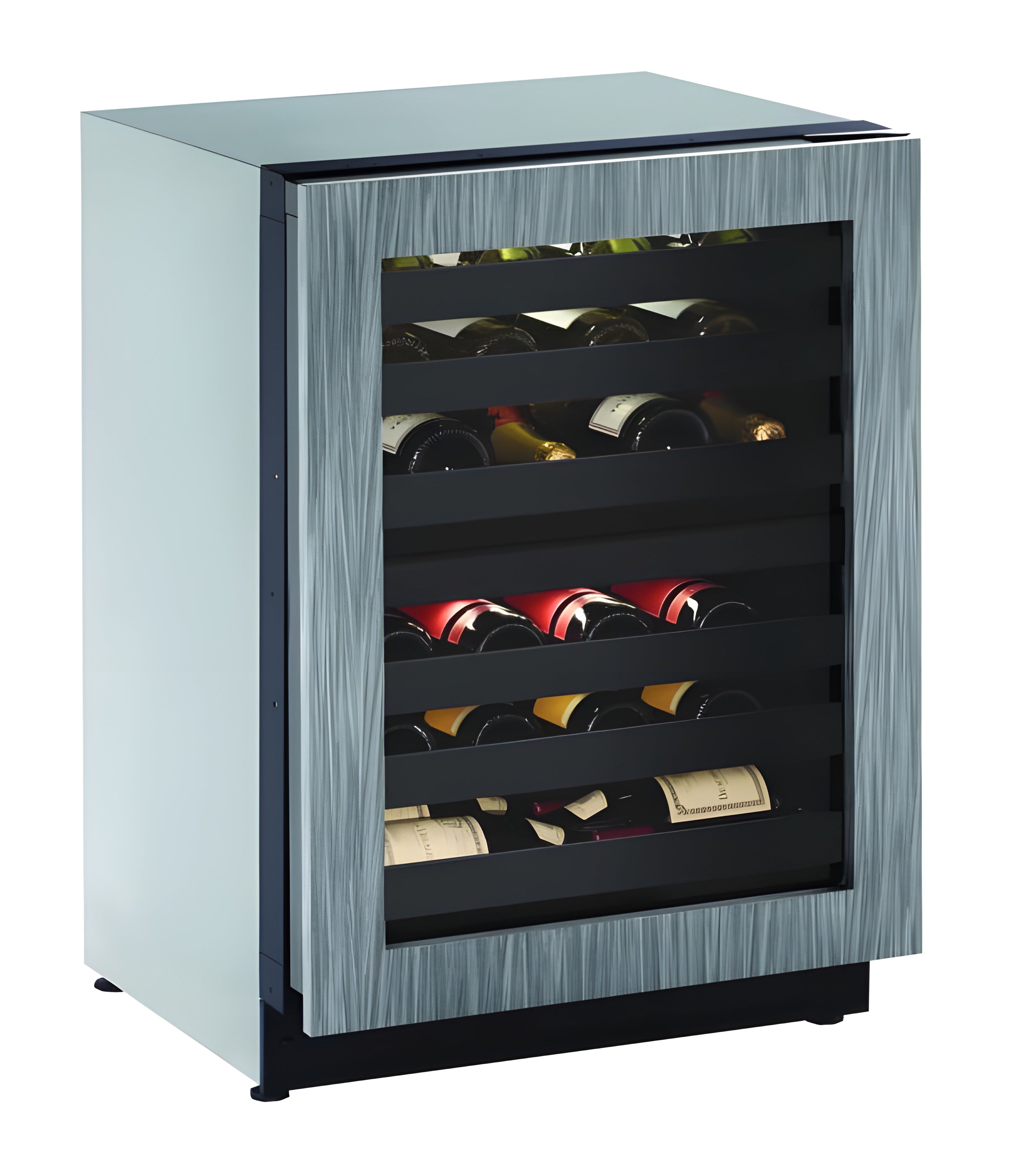

Our 24" 2000 Series Dual-Zone Wine Refrigerator is a wine lover’s dream. This product features two independently controlled temperature zones for optimal storage. The 2000 Series boasts black interiors with bright white LED lighting, digital controls, and seamless integration capabilities. It includes an articulating door hinge, door finishes in stainless steel or integrated panel-ready, and toe-kicks that can accept a custom panel to match your surrounding cabinetry.

Features

Interior:

• Black interior illuminated with LED lighting (can be set to stay on for 3 hours)
• Full-extension black coated wine racks accommodating various bottle shapes and sizes
• Third and sixth racks allow for larger diameter wine and champagne bottles

Door:

• LowE coated, argon gas filled, double thermopane glass door providing protection from harmful UV light
• Stainless steel handle (7⁄8" diameter)
• Field reversible door shipped right-hand hinged
• Articulating door hinges

Control:

• Digital touch pad control
• Independently controlled dual-zones
• Temperature range: 38°F to 65°F

Capacity:

• Volume: 4.7 cu ft holds up to 43 wine bottles (750 ml)

Installation:

• Integrated model requires 3⁄4" custom door panel and handle (not supplied by U-Line)
• Four adjustable leveling legs
• Designed for built-in applications (galvanized exterior cabinet)
• Grille can accept an integrated toe-kick

Lock:

• Lock models must be ordered right-hand or left-hand hinged

Model Details

U-2224ZWCS-00B

• Voltage / Hz: 115 V/60 Hz
• Finish: Stainless Frame
• Door Swing: Field Reversible
• Lock: No
• Weight: 143 lb (65 kg)

Downloads

• CAD-2D (DWG)
• CAD-3D (DWG)
• Compliance
• Current Product Warranty
• Energuide (Canada)
• Expanded View of Parts
• Quick Start Guide
• Spec Sheet
• User Guide & Service Manual

What Our Experts Think

• Dual-Zone Cooling – Separate temperature zones for red and white wines.
• 48-Bottle Capacity – Ideal for wine collectors and entertainers.
• UV-Protected Glass Door – Stainless steel frame with clear glass to preserve wine integrity.
• Digital Touch Controls – Set precise temperatures for optimal storage.
• Smooth-Glide Shelving – Easy access without disturbing bottles.
• Energy-Efficient Performance – Maintains consistent cooling with minimal power use.

Q&A

Q: How many bottles can this wine refrigerator hold?
A: It accommodates up to 43 standard 750ml wine bottles.

Q: What is a dual-zone wine refrigerator?
A: It features two independent temperature zones, allowing you to store red and white wines at their ideal serving temperatures.

Q: What is the temperature range for each zone?
A: The upper zone can be set between 38°F – 65°F, while the lower zone also ranges from 38°F – 65°F.

Q: Can this wine refrigerator be built into cabinetry?
A: Yes, it is designed for both built-in and freestanding installations.

Q: What type of lighting does it have?
A: It features soft LED interior lighting, providing clear visibility without UV exposure.

Q: Are the shelves adjustable?
A: Yes, it includes adjustable beech wood-trimmed racks, designed to securely hold bottles while optimizing space.

Maintenance Tips

• Clean the Exterior – Wipe with a soft cloth and mild detergent; use a stainless steel cleaner for a polished finish.
• Wipe Down Interior & Shelves – Monthly, clean shelves and interior surfaces with a damp cloth and mild soap to prevent residue buildup.
• Inspect & Clean the Door Seal – Regularly clean the gasket to maintain a tight seal and prevent temperature fluctuations.
• Monitor & Adjust Temperature Settings – Keep both zones at their ideal temperatures for red and white wines.
• Vacuum the Condenser Coils – Every 6 months, clean dust from the coils to maintain efficient cooling.
• Ensure Proper Airflow & Ventilation – Keep vents unobstructed to prevent overheating and maintain performance.
• Defrost if Necessary – If ice buildup occurs, unplug and allow the unit to defrost completely before restarting.
