Pioneer Mini Split 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Kits - WYT030GLHI22M3-18W-9W-16

Pioneer Mini Split 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Kits - WYT030GLHI22M3-18W-9W-16

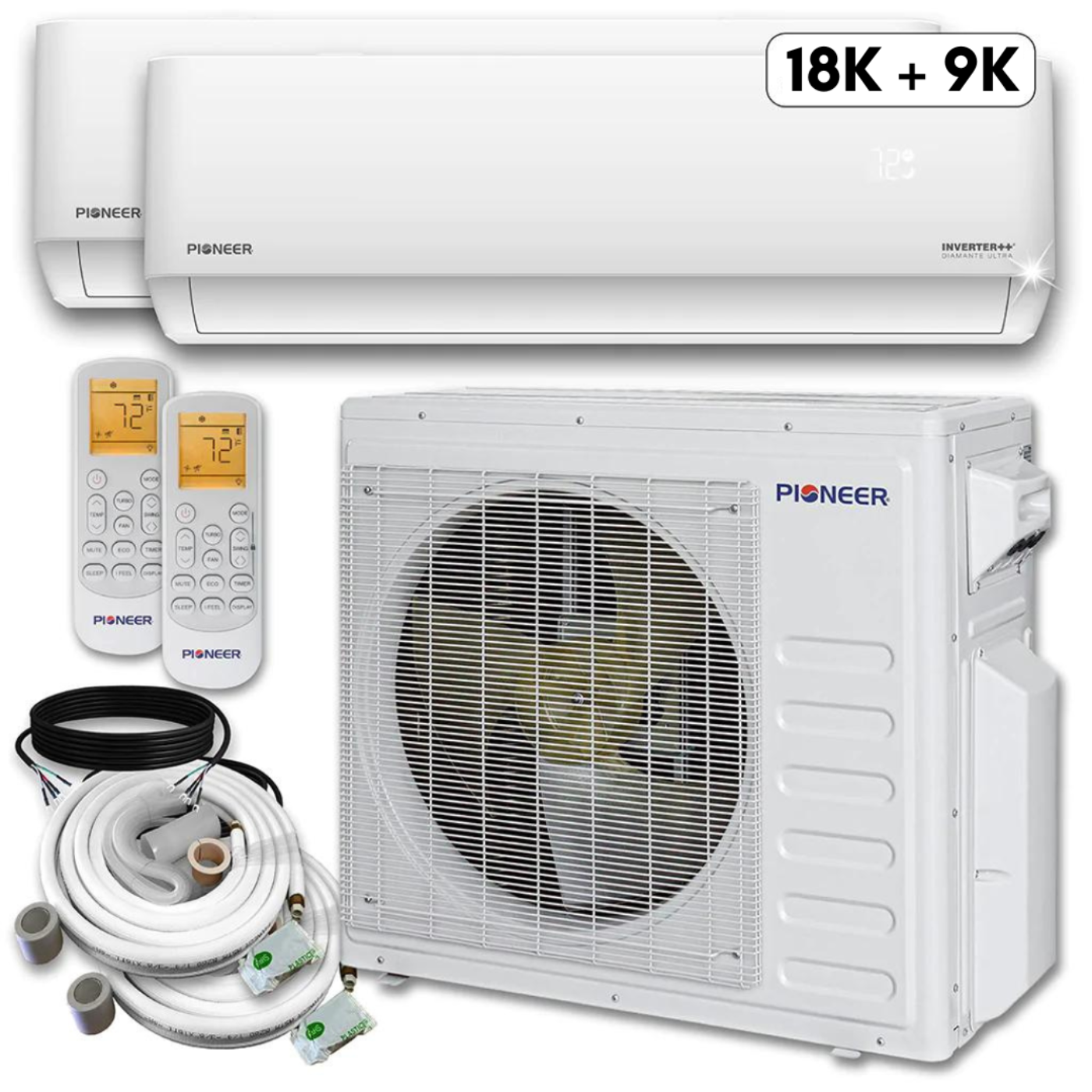

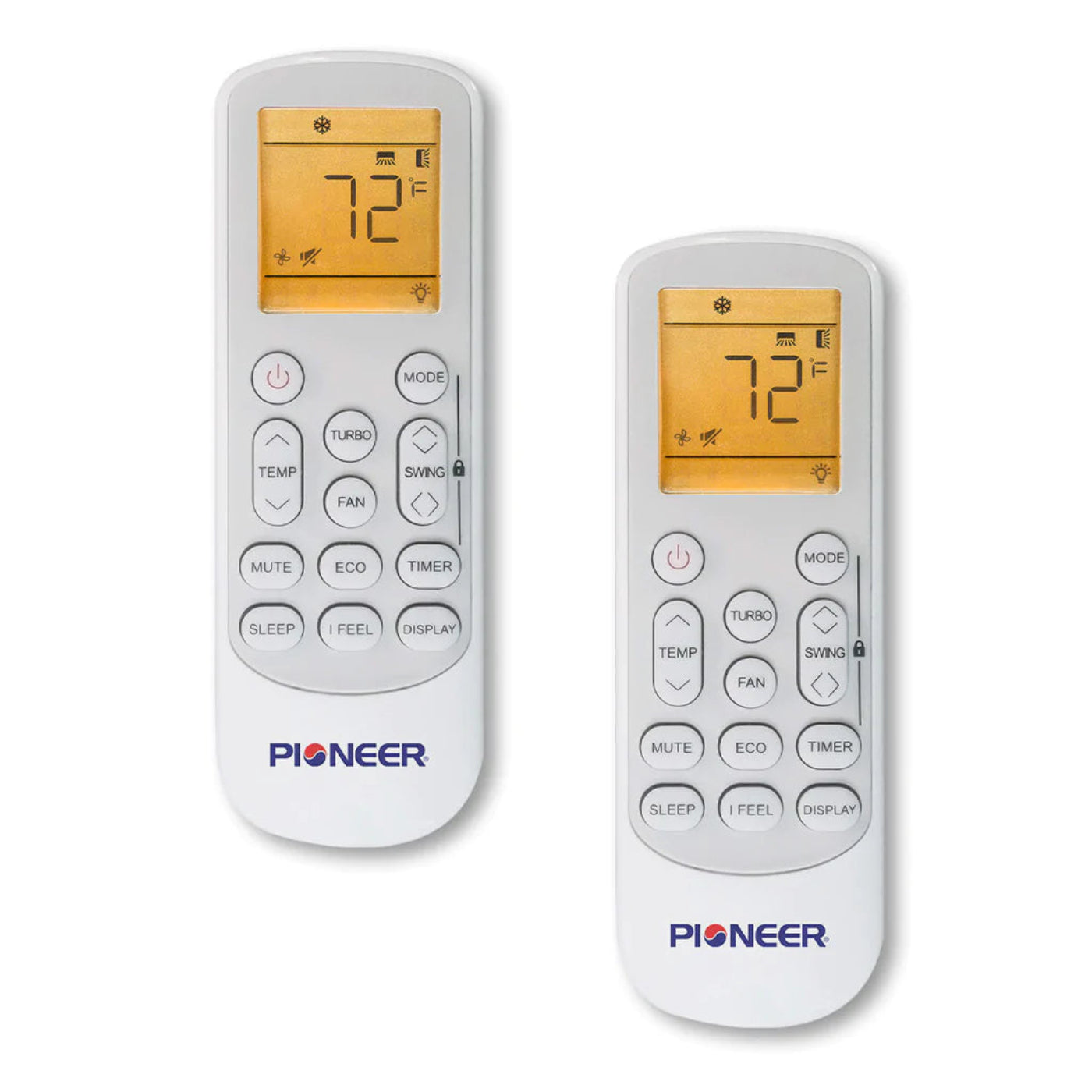

Meet the Pioneer Diamante Mini Split System to cool and heat two different rooms. You'll be sent:  27,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler, two Remotes, and two 16 ft. Installation Kits.

System Includes

• Pioneer Diamante Ultra Series 22 SEER Triple Zone Air Conditioner and Heat Pump, YN030GLFI22M3D
• Pioneer 9,000 BTU Diamante Ultra 23 SEER Air Handler, WT009GLFI22HLD-25
• Pioneer 18,000 BTU Diamante Ultra 21.5 SEER Air Handler, WT018GLFI22HLD-25
• Pioneer 16 ft. Lineset for Diamante 9K and 12K Indoor Unit, WYT-0912-16
• Pioneer 16 ft. Lineset for Diamante 18K Indoor Unit, WYT-18-16

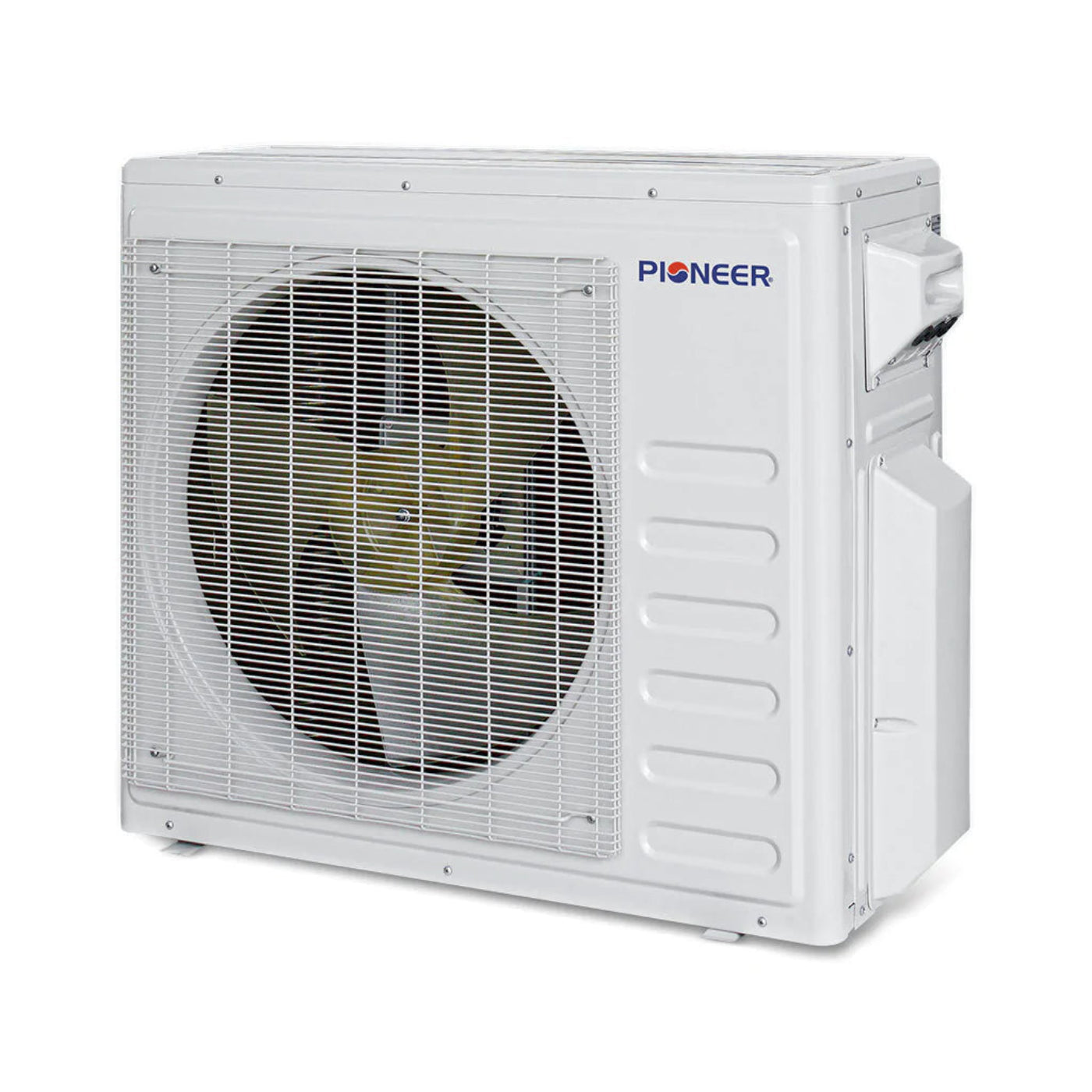

Condenser

• Energy Efficient. This 3 Zone condenser, when paired with select Pioneer air handlers, is capable of producing up to an impressive 22 SEER efficiency rating.
• Works In All Environments. The ability to heat even when temperatures drop to -4°F and cool up to 122°F
• Iron-Clad Warranty. For added peace of mind, this condenser comes with a 5 Year Warranty. Simply register within 90 days and you'll be covered!

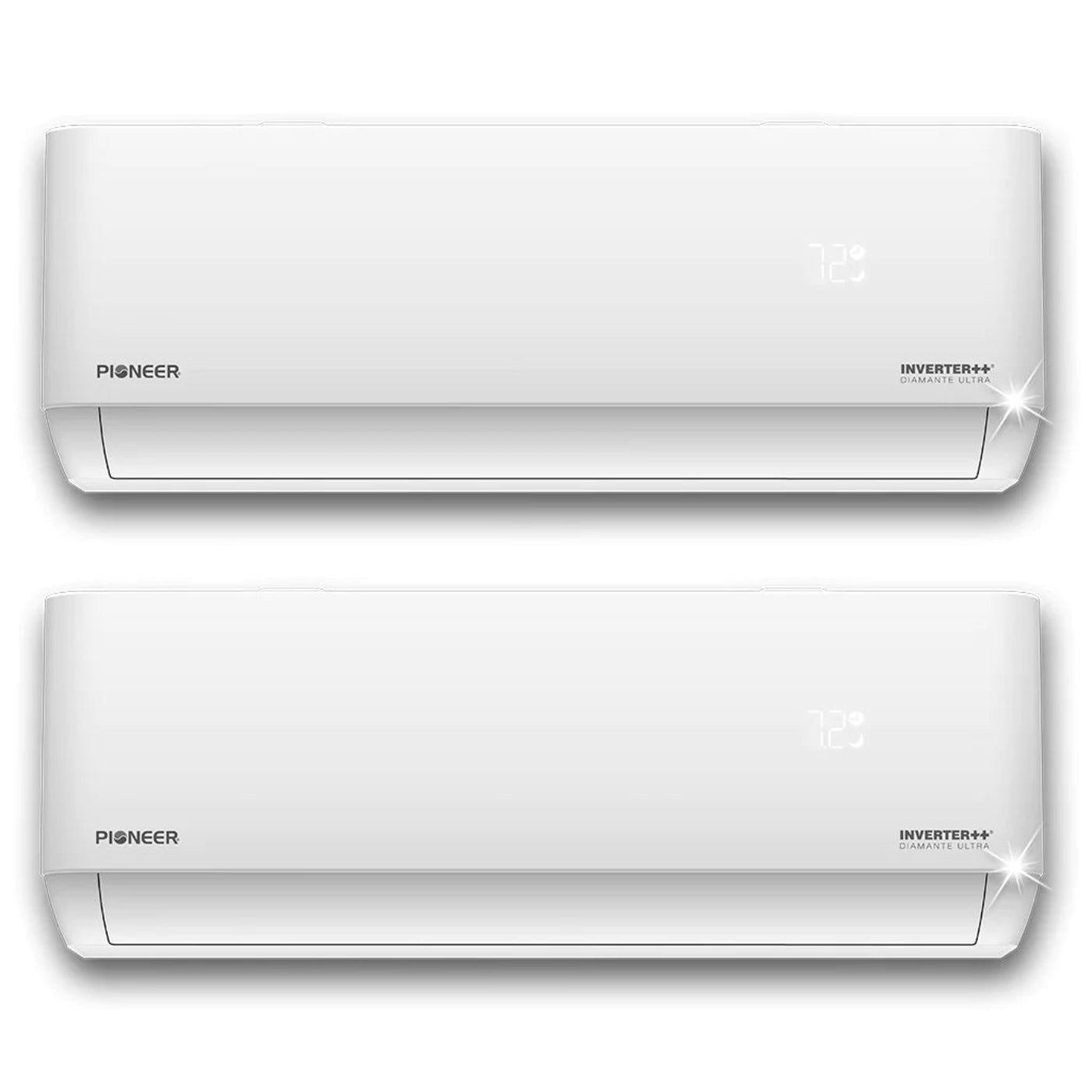

Air Handler, 9K BTU, Quantity 1

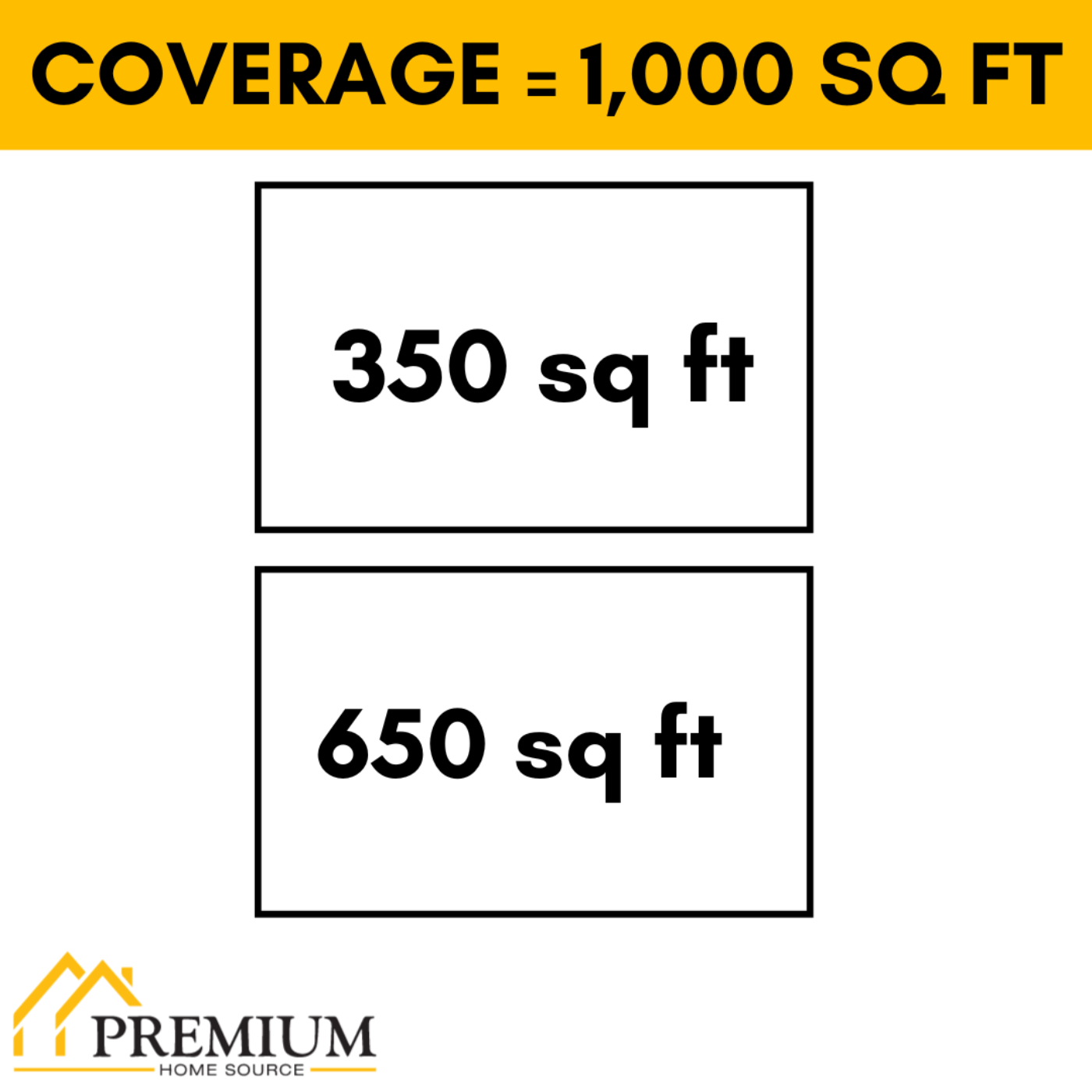

• Large Coverage Area. Handler covers an area of up to 350 sq. ft
• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, TURBO, ECO and SLEEP.
• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 18K BTU, Quantity 1

• Large Coverage Area. Handler covers an area of up to 650 sq. ft
• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, TURBO, ECO and SLEEP.
• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

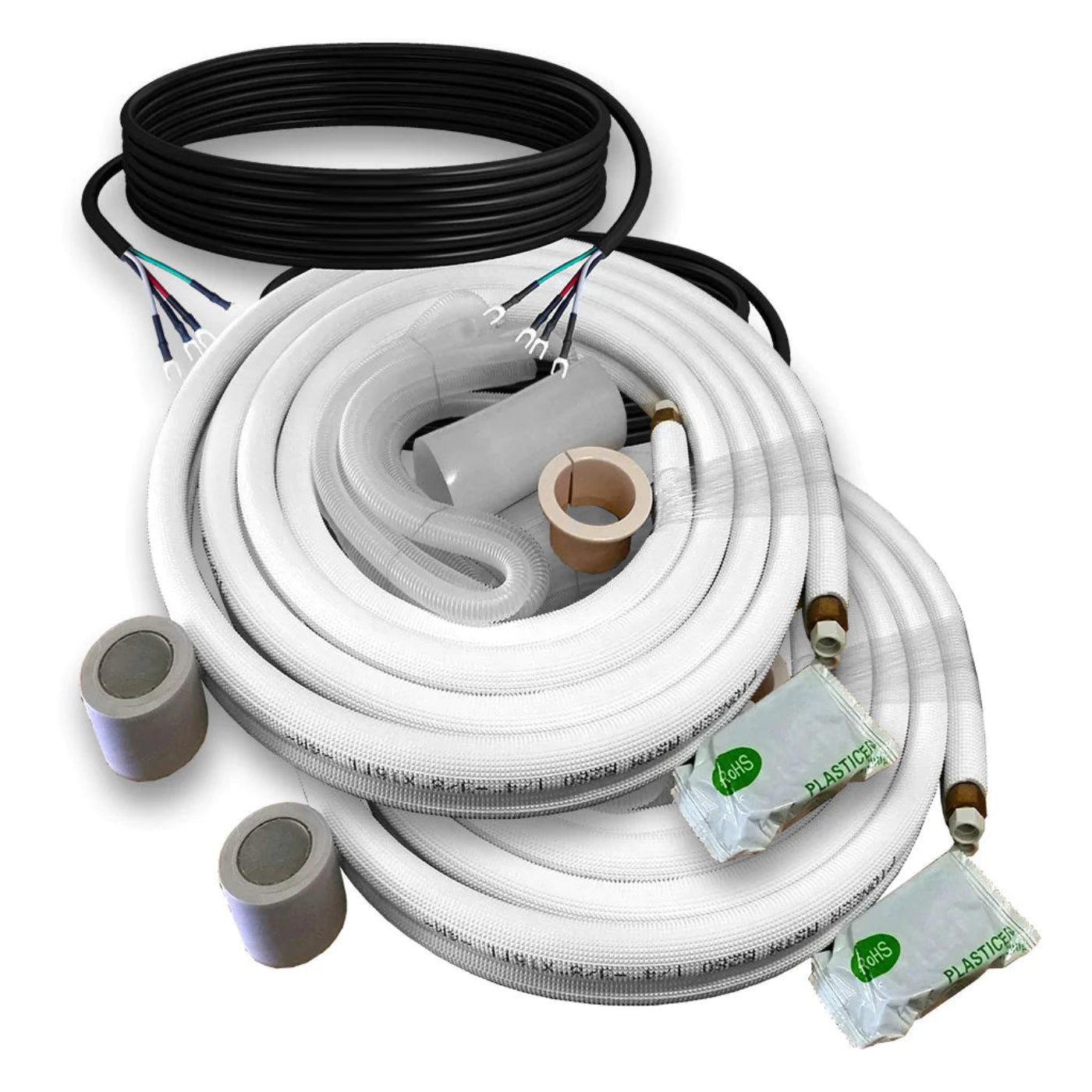

Line Set 16 ft., Quantity 1

• This 16 ft. copper line set connects the Pioneer Diamante Series Condenser to the 9K and 12K Air Handlers

Line Set 16 ft., Quantity 1

• This 16 ft. copper line set connects the Pioneer Diamante Series Condenser to the 18K Air Handlers.

What's Not Included and Required for Installation

• Electrical Requirements, such as Disconnect Box or Electrical Whip
• Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

Specifications

INSTALLATION & GUIDES

• Technical Brochure

• Installation Manual

• Service Manual

• Energy Guide

What Our Experts Think

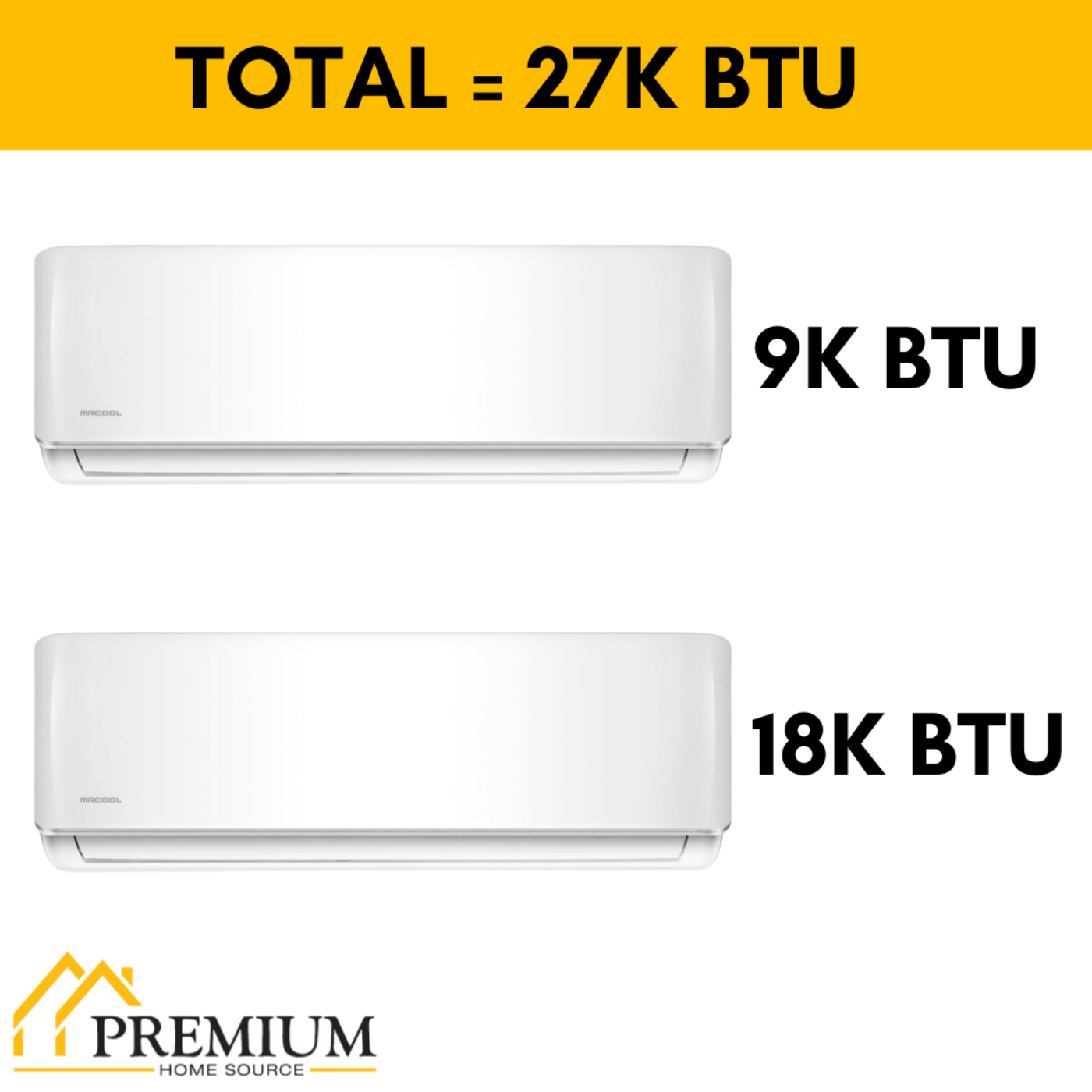

• 27,000 BTU Capacity: Perfect for large spaces or multi-room setups, delivering efficient heating and cooling for two separate zones.
• 2 Zone Capability: Independently control temperatures in two different rooms, ideal for multi-room homes or offices with varying temperature needs.
• Inverter Technology: Ensures precise temperature regulation, quieter operation, and improved energy efficiency, providing consistent comfort without high energy costs.
• Ductless Design: No need for complicated ductwork, offering a cleaner, more flexible installation process for a variety of spaces.
• 16 ft. Line Sets Included: Comes with a 16 ft. pre-charged refrigerant line set, simplifying installation and providing the necessary length for proper setup in most room configurations.
• Heat Pump Functionality: Dual heating and cooling capability, making it a reliable solution for year-round climate control, no matter the weather outside.
• Quiet Operation: Designed for minimal noise, ensuring a peaceful environment in bedrooms, living rooms, or offices where quiet operation is a priority.

Q&A

Q: What is the cooling capacity of the Pioneer 27,000 BTU 2 Zone Mini-Split system?
A: This system provides 27,000 BTU of cooling power, making it ideal for larger spaces or two rooms up to 1,100 sq. ft. combined.

Q: Does the Pioneer 27,000 BTU 2 Zone Mini-Split system provide both cooling and heating?
A: Yes, it works as both an air conditioner and a heat pump, providing year-round comfort with energy-efficient heating and cooling.

Q: What is the SEER rating of the Pioneer 27,000 BTU 2 Zone Mini-Split system?
A: The system has a 22 SEER rating, ensuring high energy efficiency and helping reduce your electricity bills.

Q: What is included in the installation kit for the Pioneer 27,000 BTU 2 Zone Mini-Split system?
A: This system comes with 16 ft. of line sets, making it ideal for medium-sized spaces and straightforward installations.

Q: What are the key features of the Pioneer 27,000 BTU 2 Zone Mini-Split system?
A: It features inverter technology for enhanced energy savings, quiet operation, dual-zone capability, and advanced air filtration for improved indoor air quality.

Q: Is the Pioneer 27,000 BTU 2 Zone Mini-Split system easy to install?
A: Yes, with the included 16 ft. line sets, installation is simple and offers flexibility for various room layouts.

Maintenance Tips

• Clean or Replace Filters: Wash the air filters every 2-4 weeks to maintain airflow and system efficiency. Replace them annually or if they become excessively dirty or damaged.
• Clean the Coils: Clean the evaporator and condenser coils at least once a year to remove dust and debris, which can affect the system's performance.
• Inspect the Drain Line: Regularly check the condensate drain line for blockages and clear any clogs to prevent water leaks, mold buildup, and damage to the system.
• Monitor Refrigerant Levels: Ensure that the refrigerant levels are adequate for optimal cooling and heating. If performance drops, consult a professional to inspect and recharge the system if necessary.
• Clear Airflow Paths: Keep both the indoor and outdoor units free from obstructions (such as furniture, leaves, or debris) to ensure proper airflow and prevent strain on the system.
• Check for Proper Distribution: Verify that both zones are receiving balanced cooling and heating. If one zone is underperforming, check for any blockages or issues with the system’s components.
• Schedule Annual Professional Maintenance: Have a professional technician perform an annual inspection, including checking refrigerant levels, cleaning components, and ensuring everything is running efficiently.
