Pioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - UYB018GMFILCAD-50

Pioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - UYB018GMFILCAD-50

Pioneer Mini Split offers a wide selection of flexible floor-ceiling mount ductless mini splits that are ideal for homes and commercial properties. These Flex Mount systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; you can mount these in ceiling-suspended positions as well. Our floor and ductless air conditioning ceiling mount mini split systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of floor-ceiling flex mount ductless mini splits!

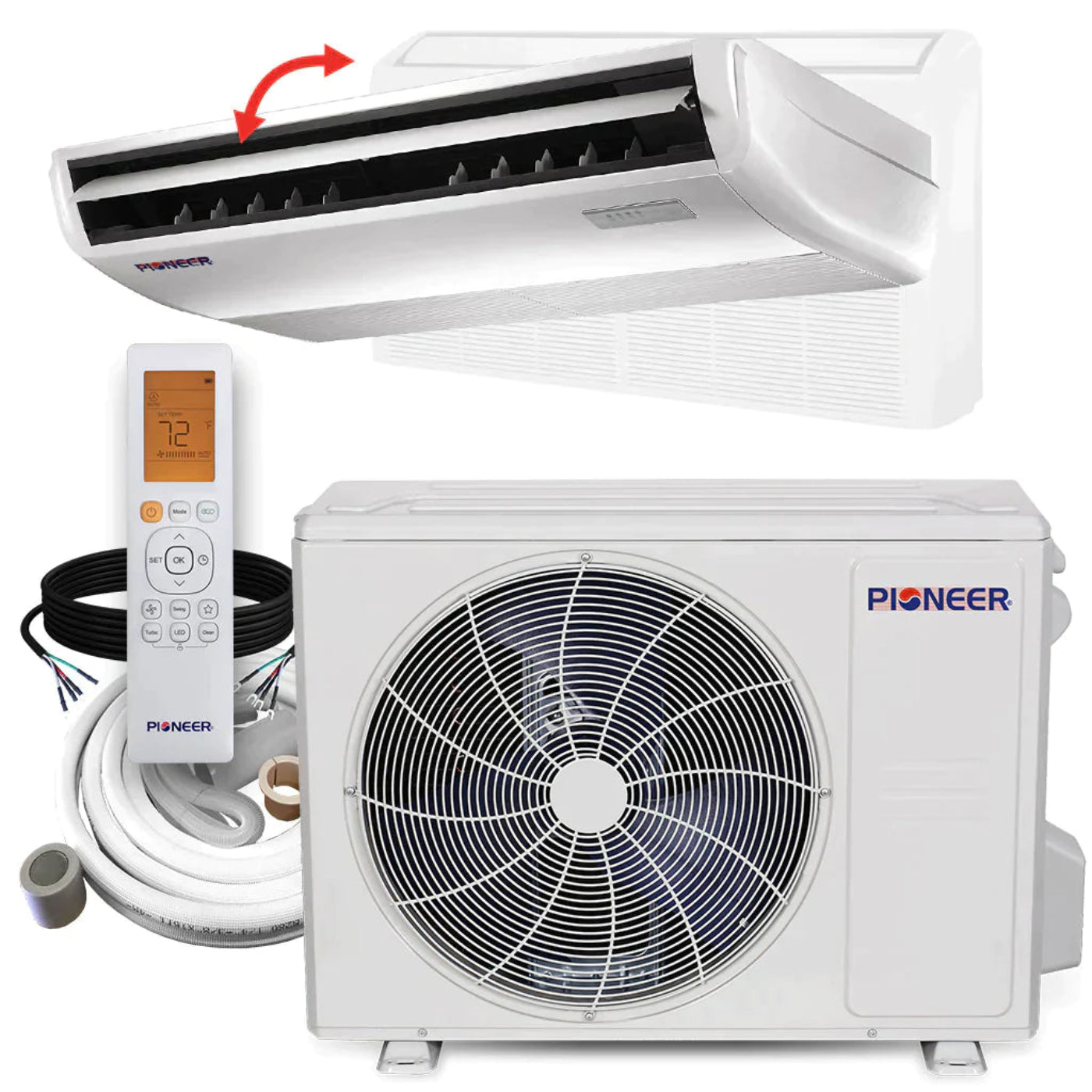

Mini Split Includes

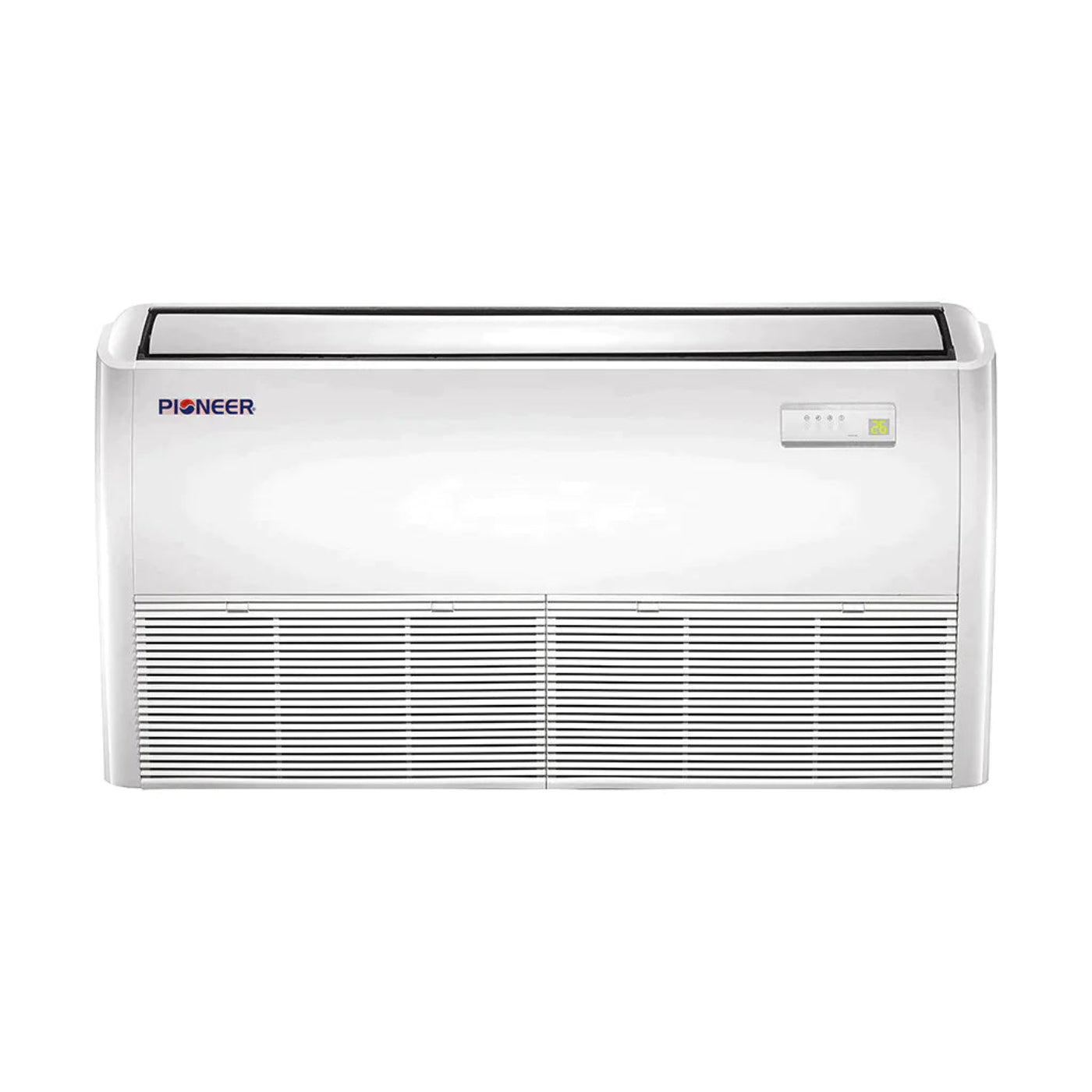

• Indoor Unit

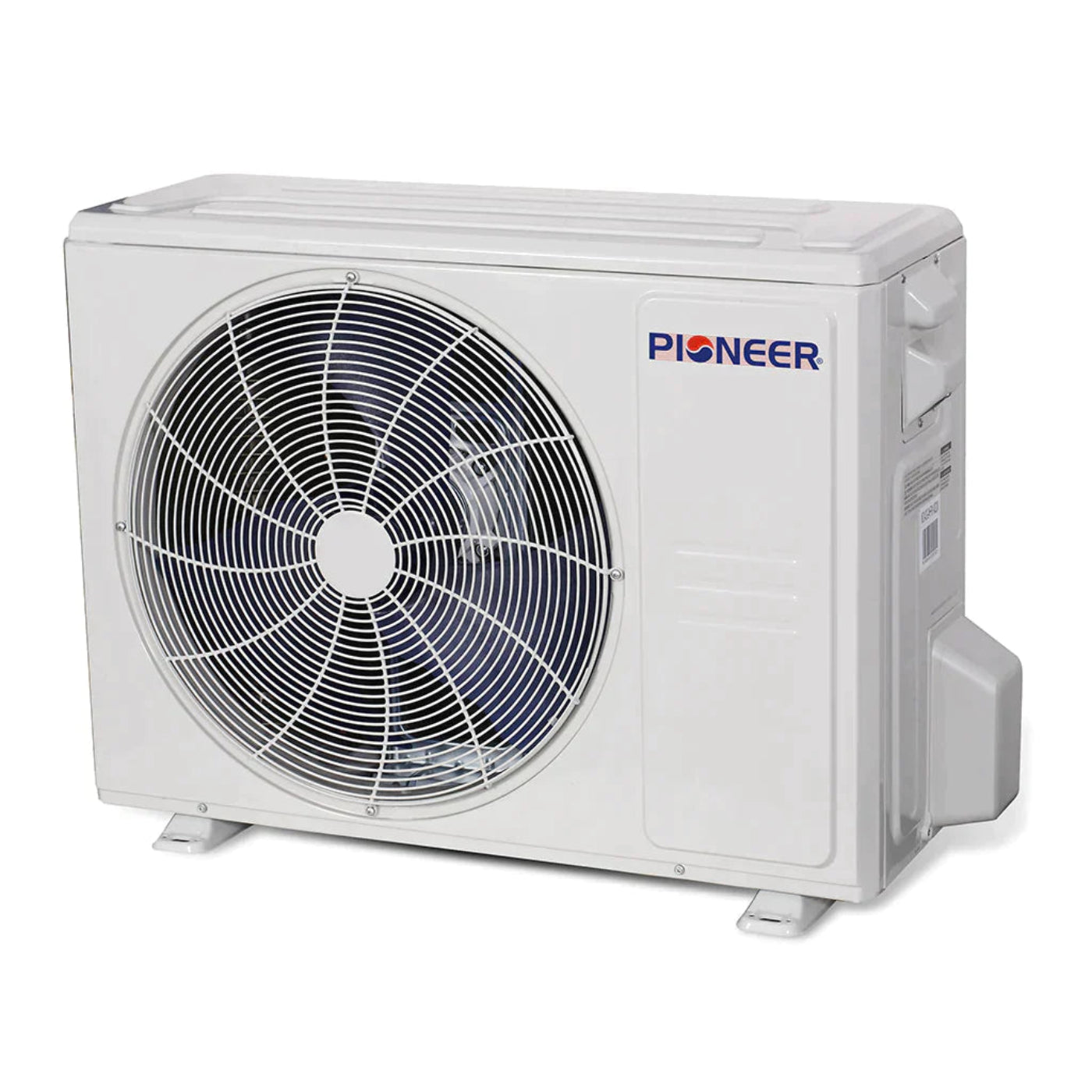

• Outdoor Unit

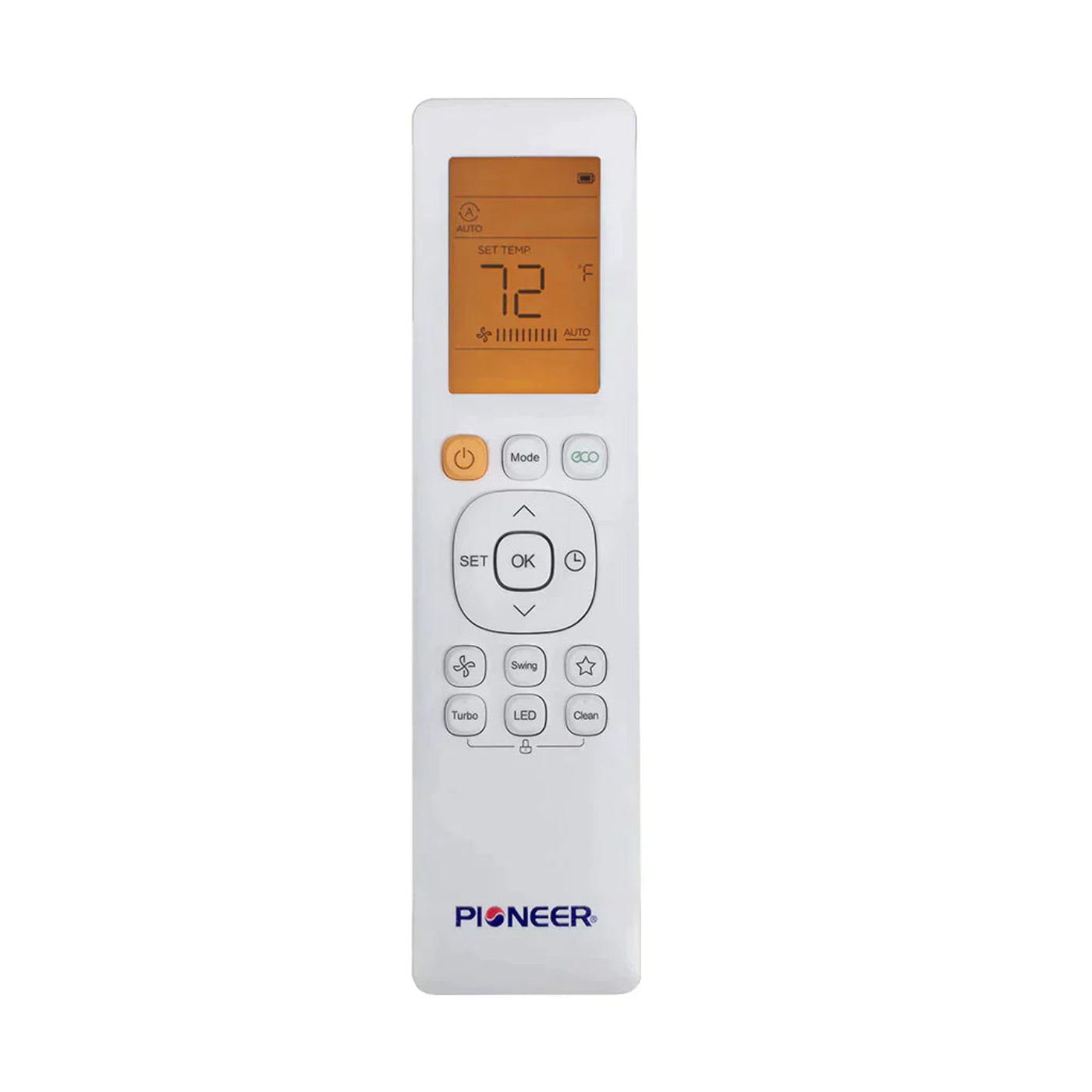

• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Features

• Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
• Cooling capacity: 18,000 BTU/H with 20.0 SEER efficiency
• Heating capacity: 18,000 BTU/H with 10.5 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor/Ceiling Flex Mount Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $113.00
• Heating: $346.00
• Front Desk Control
  With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• 46° F Heating
• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
• Follow Me
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Optional

• Wired Controller
  Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode


• Central Control Management
  The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

IMPORTANT

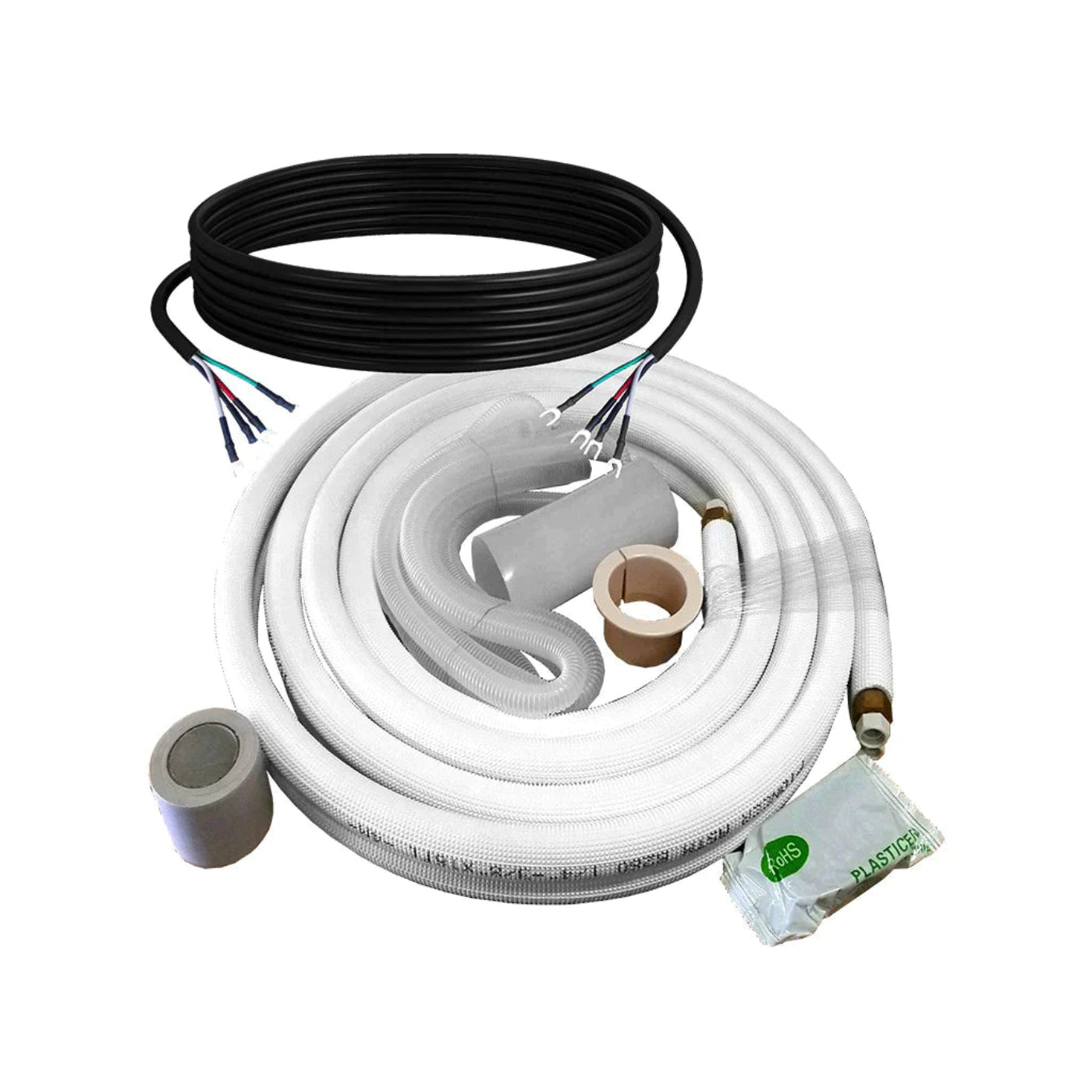

The installation kit is: 50 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Specifications

INSTALLATION & GUIDES

• Technical Brochure
• User Manual
• Installation Manual

What Our Experts Think

• Efficient Cooling & Heating: 18,000 BTU with a 20 SEER rating delivers effective climate control for medium to large-sized rooms, providing cooling in the summer and heating in the winter.
• Flexible Floor/Ceiling Mounting: The versatile design allows for installation on either the floor or ceiling, offering more placement options to fit different room configurations.
• Enhanced Airflow: Ensures consistent and even airflow across the entire space, making it ideal for rooms that need uniform temperature distribution.
• Inverter Technology: Dynamically adjusts compressor speed to maintain precise temperature control while optimizing energy efficiency for year-round savings.
• Longer Line Set Flexibility: Includes 50 ft. line sets, offering extended reach for larger spaces or installations with greater distance between the indoor and outdoor units.
• Quiet Operation: Features noise-reduction technology, ensuring the system operates quietly without disturbing the environment, ideal for bedrooms, offices, or commercial spaces.

Q&A

Q: What is the Pioneer 24,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System?
A: This system provides both cooling and heating with a 20 SEER rating. It features a floor/ceiling design for flexible installation and comes with 50 ft. line sets, offering versatility in room setup and installation.

Q: How does the floor/ceiling design improve installation options?
A: The floor/ceiling design allows for installation in various orientations, making it adaptable to different room layouts, whether mounted on the floor or ceiling.

Q: What room size is this system suitable for?
A: This system is ideal for large rooms, efficiently cooling and heating spaces up to 1,000 sq. ft.

Q: Is this system suitable for residential or commercial use?
A: Yes, it is suitable for both residential and light commercial applications, providing powerful and efficient climate control.

Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure optimal performance and proper setup with the included 50 ft. line sets.

Maintenance Tips

• Clean Filters Regularly – Wash or replace filters every 2-4 weeks to maintain airflow and system efficiency.
• Inspect and Clean Coils Annually – Clean the evaporator and condenser coils at least once a year to prevent dirt buildup that can affect cooling and heating performance.
• Check Refrigerant Levels – Ensure the refrigerant is at the optimal level for effective cooling and heating. If low, consult a technician to refill it.
• Clear the Condensate Drain – Regularly inspect and clean the condensate drain to avoid blockages, mold, and water damage.
• Keep the Outdoor Unit Free of Debris – Remove leaves, dirt, and other obstructions from the outdoor unit to maintain proper airflow and prevent overheating.
• Schedule Annual Professional Maintenance – Have a technician inspect and service the system annually to ensure it is running efficiently and to identify any potential issues.
