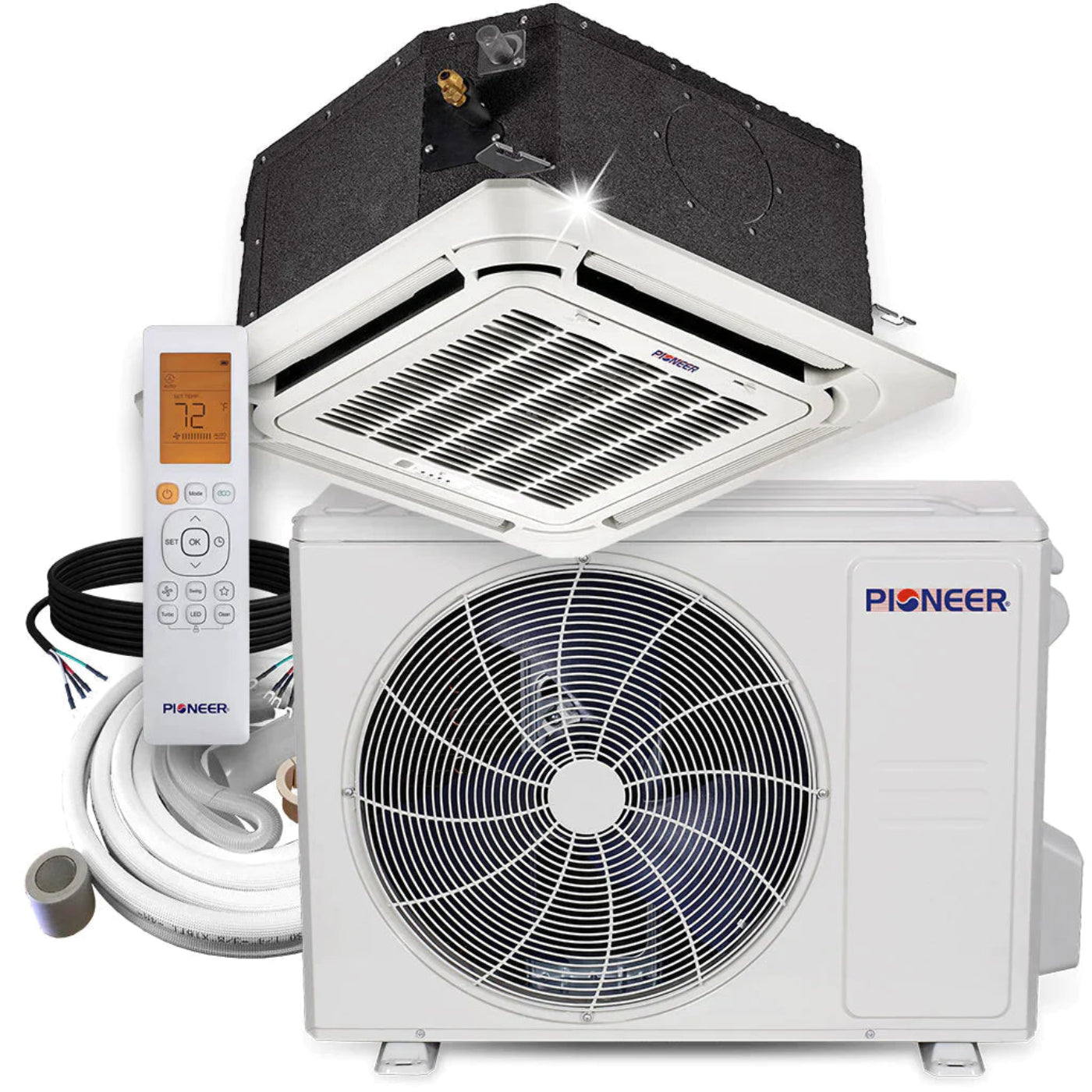

Pioneer 18,000 BTU 20.5 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - CYB018GMFILCAD-50

Pioneer 18,000 BTU 20.5 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - CYB018GMFILCAD-50

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

Features

• Cooling capacity: 18,000 BTU/H with 20.0 SEER efficiency
• Heating capacity: 18,000 BTU/H with 10.3 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $103.00
• Heating: $356.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

What's Included

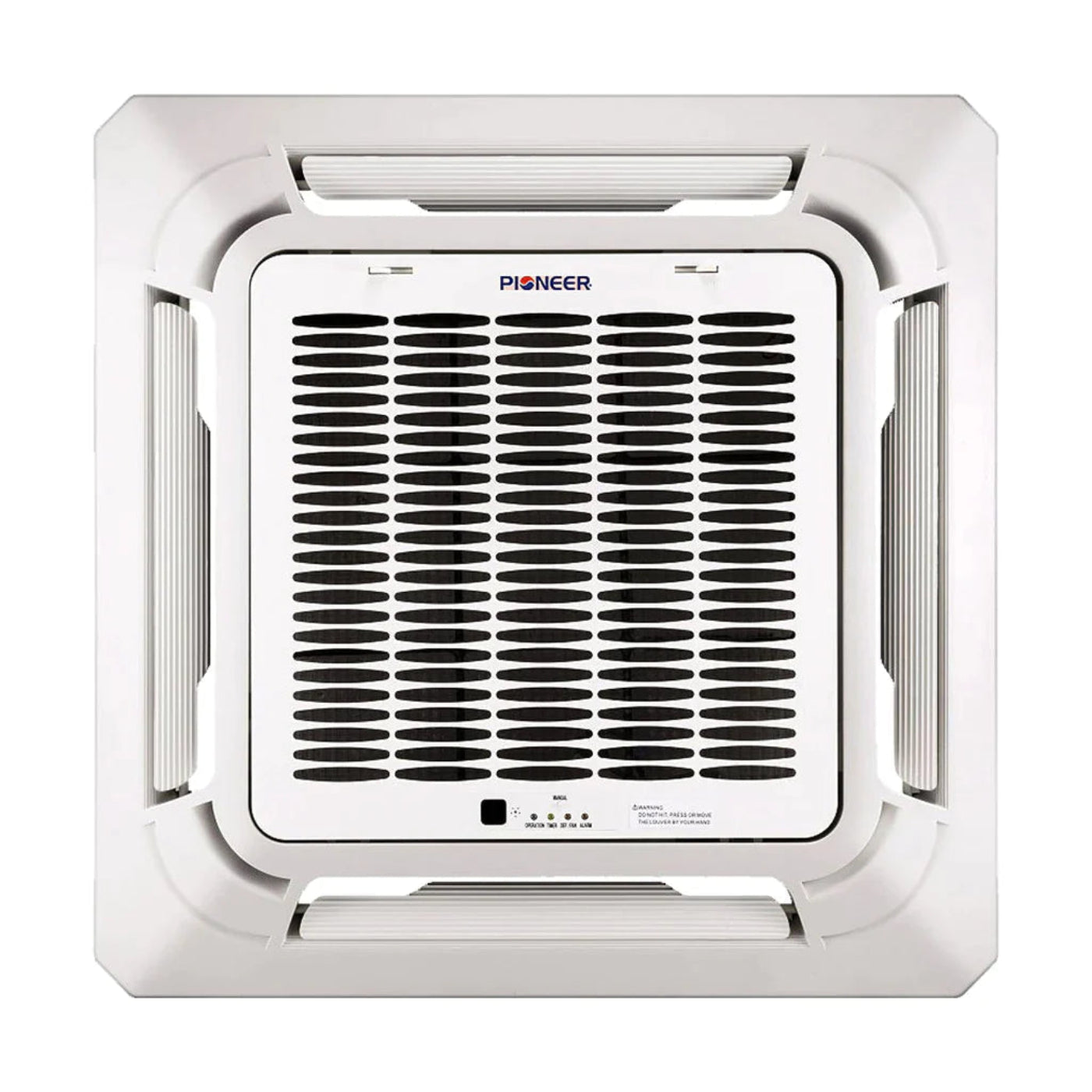

• Indoor Unit

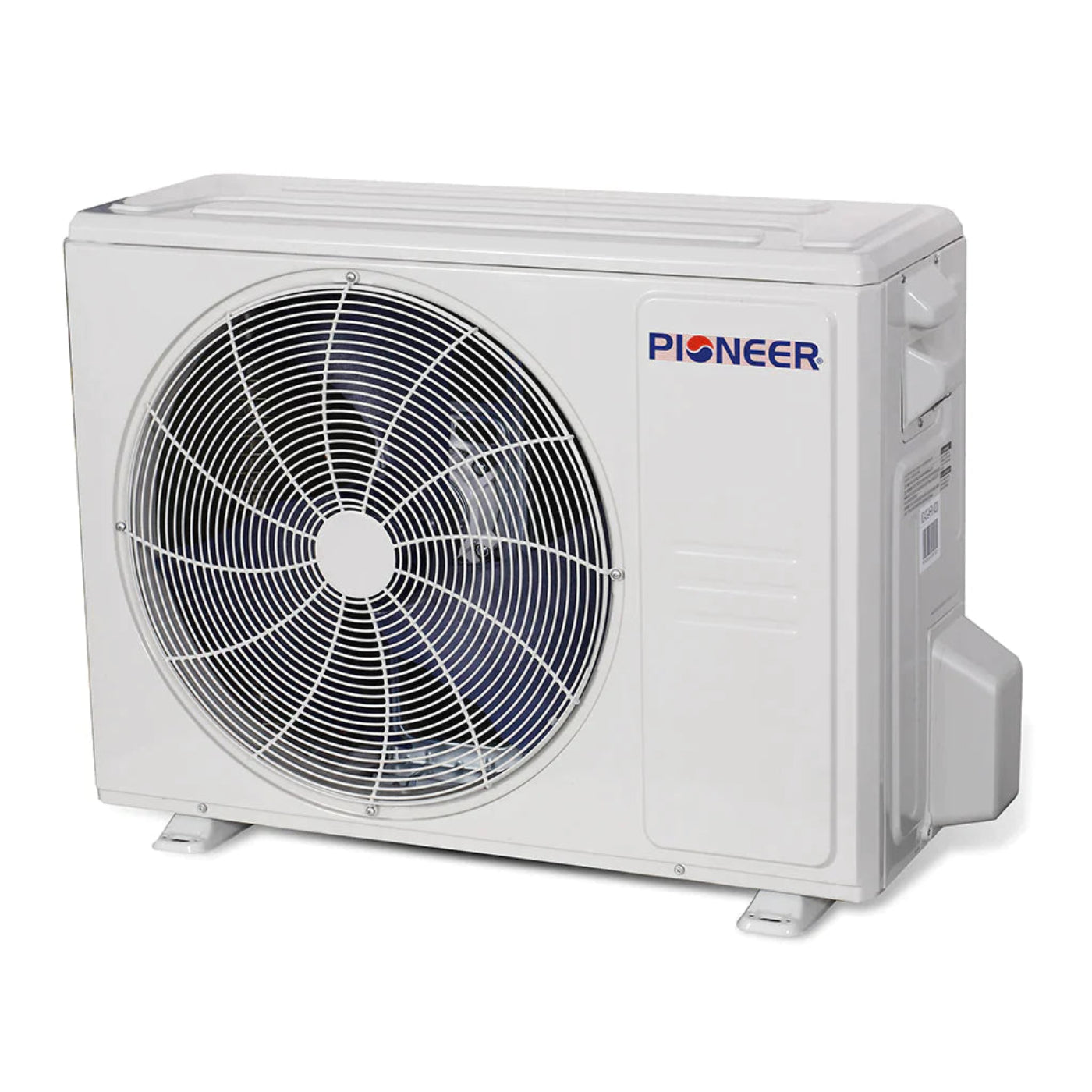

• Outdoor Unit
• Panel

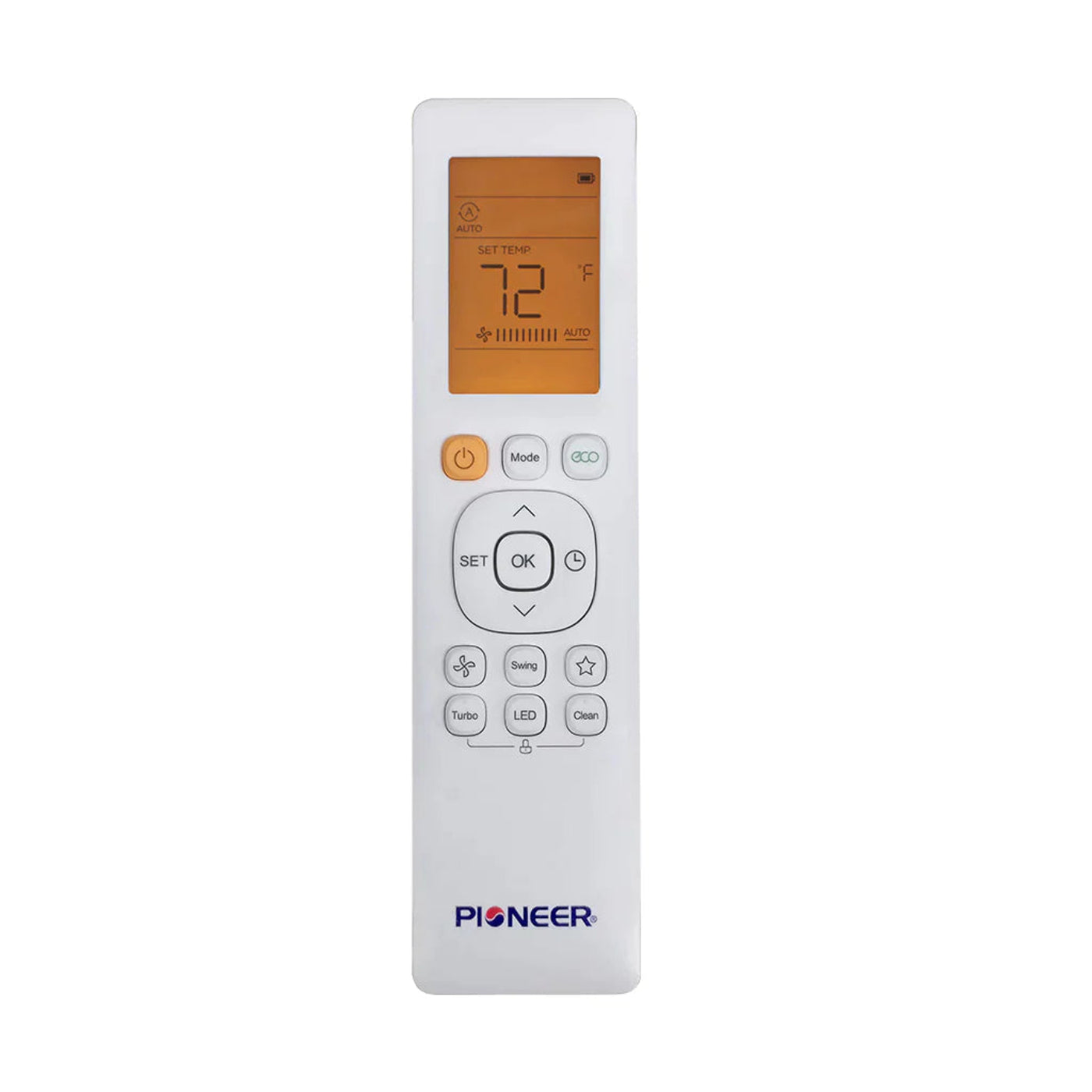

• Wireless Remote Control

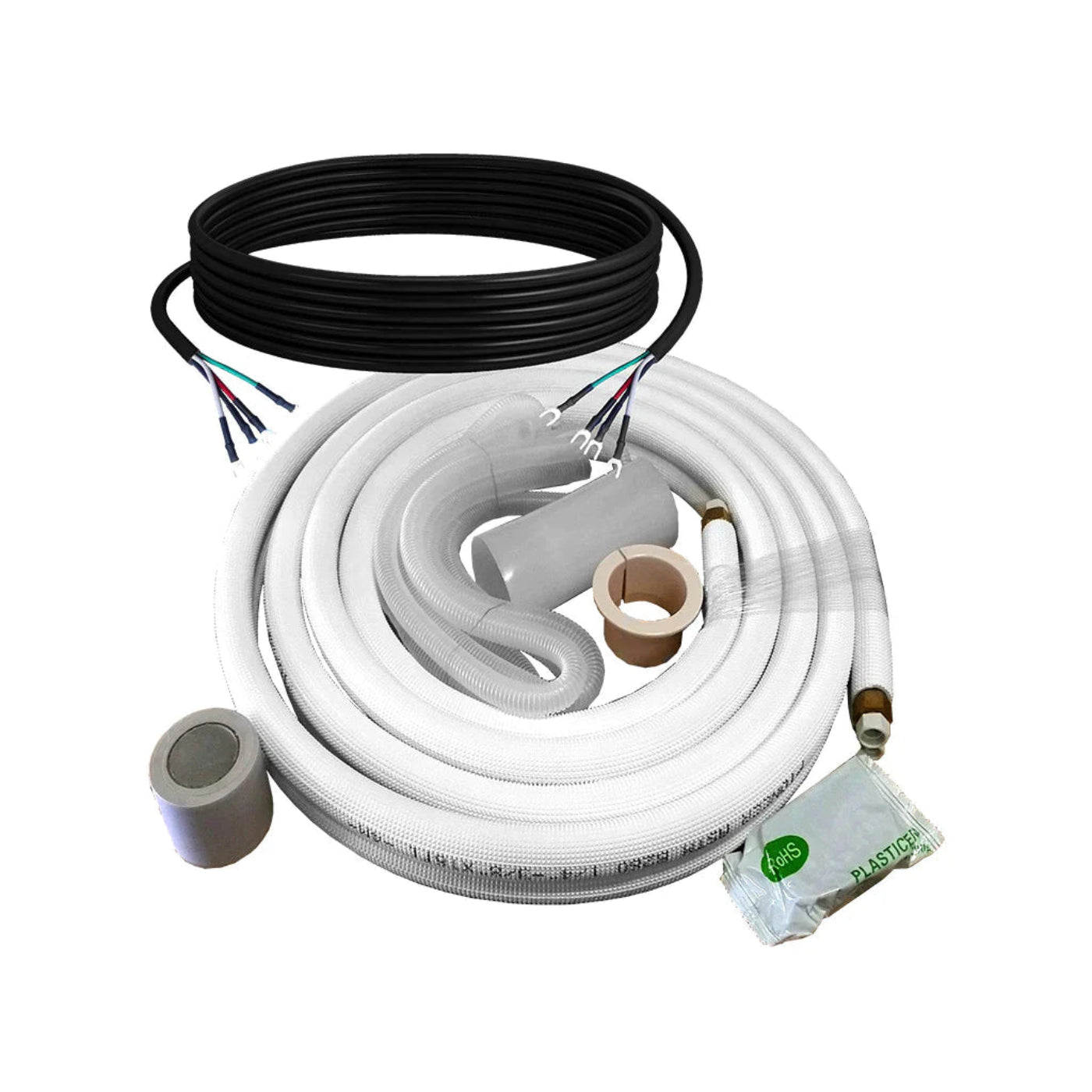

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Specifications

INSTALLATION & GUIDES

• Technical Brochure
• User Manual
• Installation Manual

What Our Experts Think

• High-Efficiency Performance: 18,000 BTU with a 20.5 SEER rating offers reliable cooling and heating for larger spaces while ensuring energy efficiency.
• 8-Way Airflow: The compact cassette design with 8-way airflow ensures even temperature distribution across the room, providing consistent comfort throughout the space.
• Long Line Set Reach: Equipped with 50 ft. line sets, this system is perfect for installations requiring extended reach, offering flexibility for larger or more complex spaces.
• Discreet & Space-Saving: Ceiling-mounted design saves floor space while maintaining a sleek and modern appearance, blending seamlessly into the room's décor.
• Quiet Operation: Features advanced noise-reduction technology for minimal disruption, ensuring a quiet and comfortable environment.
• All-Season Comfort: Efficiently handles both cooling in the summer and heating in the winter, offering year-round climate control.

Q&A

Q: What is the Pioneer 18,000 BTU 20.5 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System?
A: This system offers both cooling and heating with a 20.5 SEER rating. It features an 8-way compact cassette design that distributes air evenly throughout the room for optimal comfort. It comes with 50 ft. line sets, offering flexibility in installation.

Q: How does the 8-way cassette design benefit the system?
A: The 8-way cassette design ensures even distribution of cool or warm air, eliminating hot or cold spots in the room and providing consistent temperature control for better comfort.

Q: What room size is this system suitable for?
A: This system is ideal for larger spaces, effectively cooling and heating areas up to 1,000 sq. ft.

Q: Is it suitable for residential use?
A: Yes, this system is perfect for residential spaces, offering reliable, energy-efficient climate control with quiet operation.

Q: Does it require professional installation?
A: While the system includes 50 ft. line sets for flexibility, professional installation is recommended to ensure optimal setup and performance.

Maintenance Tips

• Clean Filters Regularly: Wash or replace filters every 2-4 weeks to prevent dust buildup and ensure proper airflow.
• Inspect and Clean Coils: Clean both the evaporator and condenser coils annually to avoid dirt buildup and maintain system efficiency.
• Check Refrigerant Levels: Ensure refrigerant is at the correct level for optimal cooling and heating. If low, contact a professional to refill.
• Clear the Drain Line: Inspect and clean the condensate drain to prevent blockages and mold growth, which could cause water damage.
• Keep the Outdoor Unit Free of Debris: Clear leaves, dirt, and other obstructions from the outdoor unit to maintain proper airflow and prevent overheating.
• Schedule Annual Professional Maintenance: Have a technician inspect and service the system yearly to check for potential issues and optimize performance.
