Pioneer 12,000 BTU 22 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - CYB012GMFILCAD-50

Pioneer 12,000 BTU 22 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - CYB012GMFILCAD-50

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

Features

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 12,000 BTU/H with 22 SEER/14 EER efficiency
• Heating capacity: 12,000 BTU/H with 10.6 HSPF/3.37 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

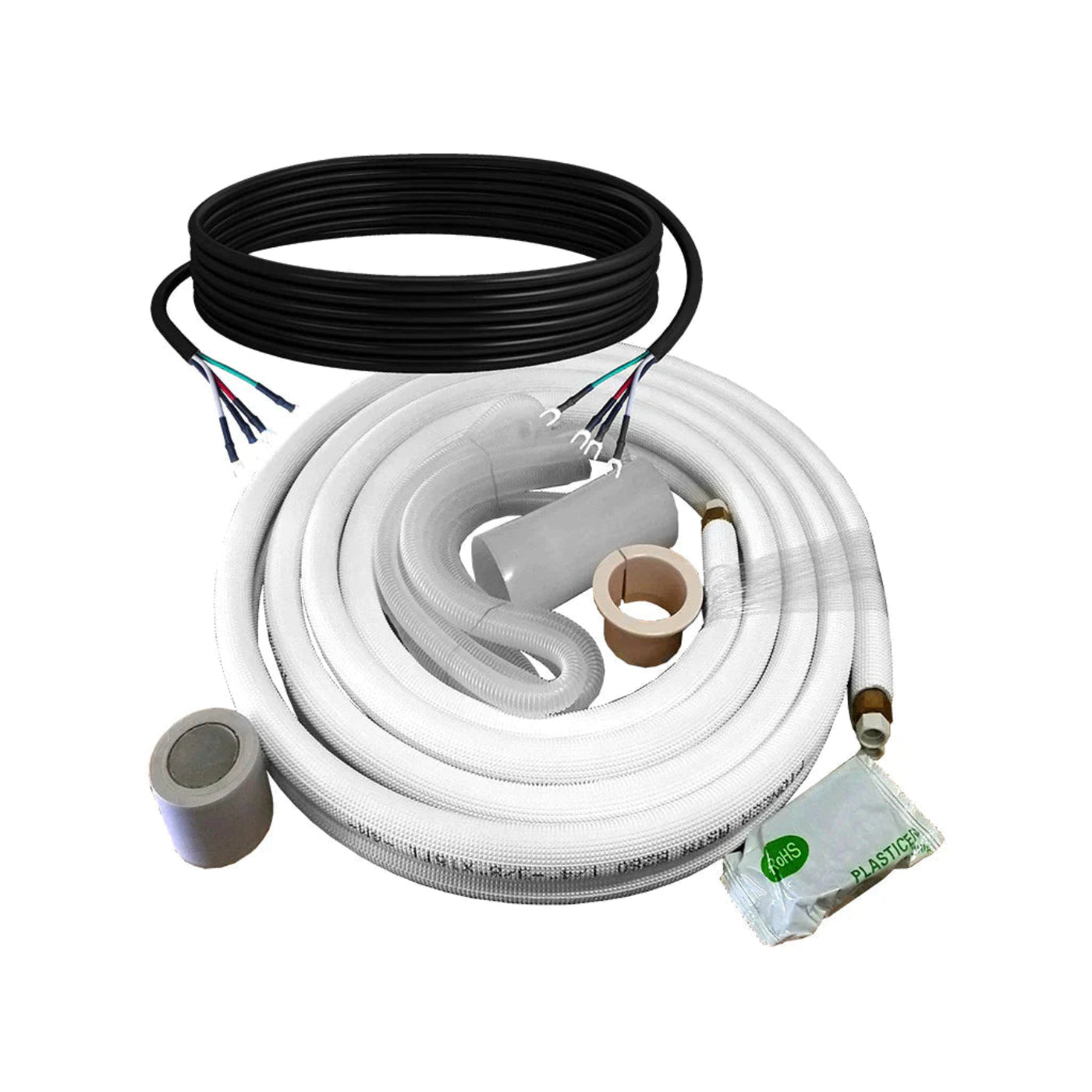

• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $72.00
• Heating: $239.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

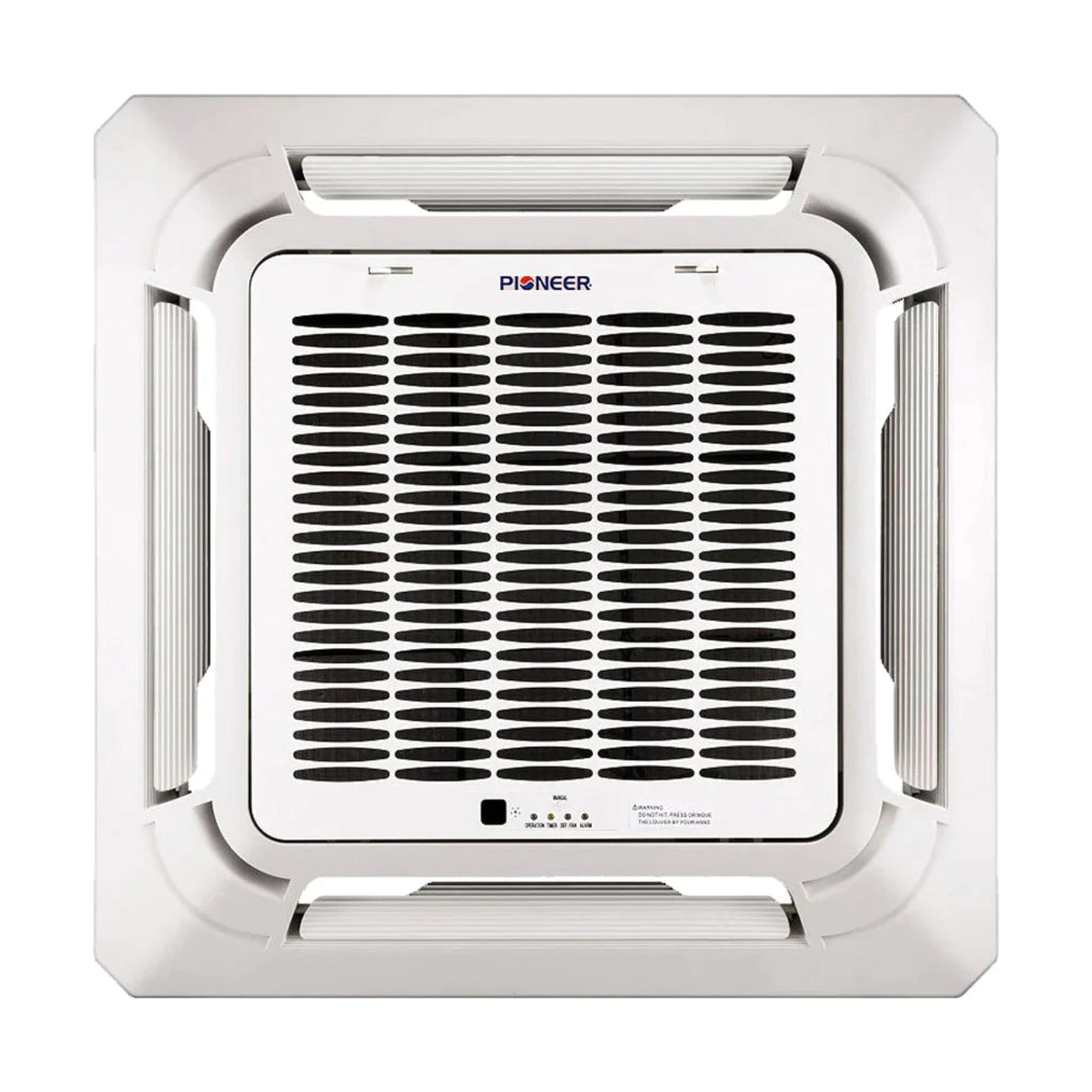

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

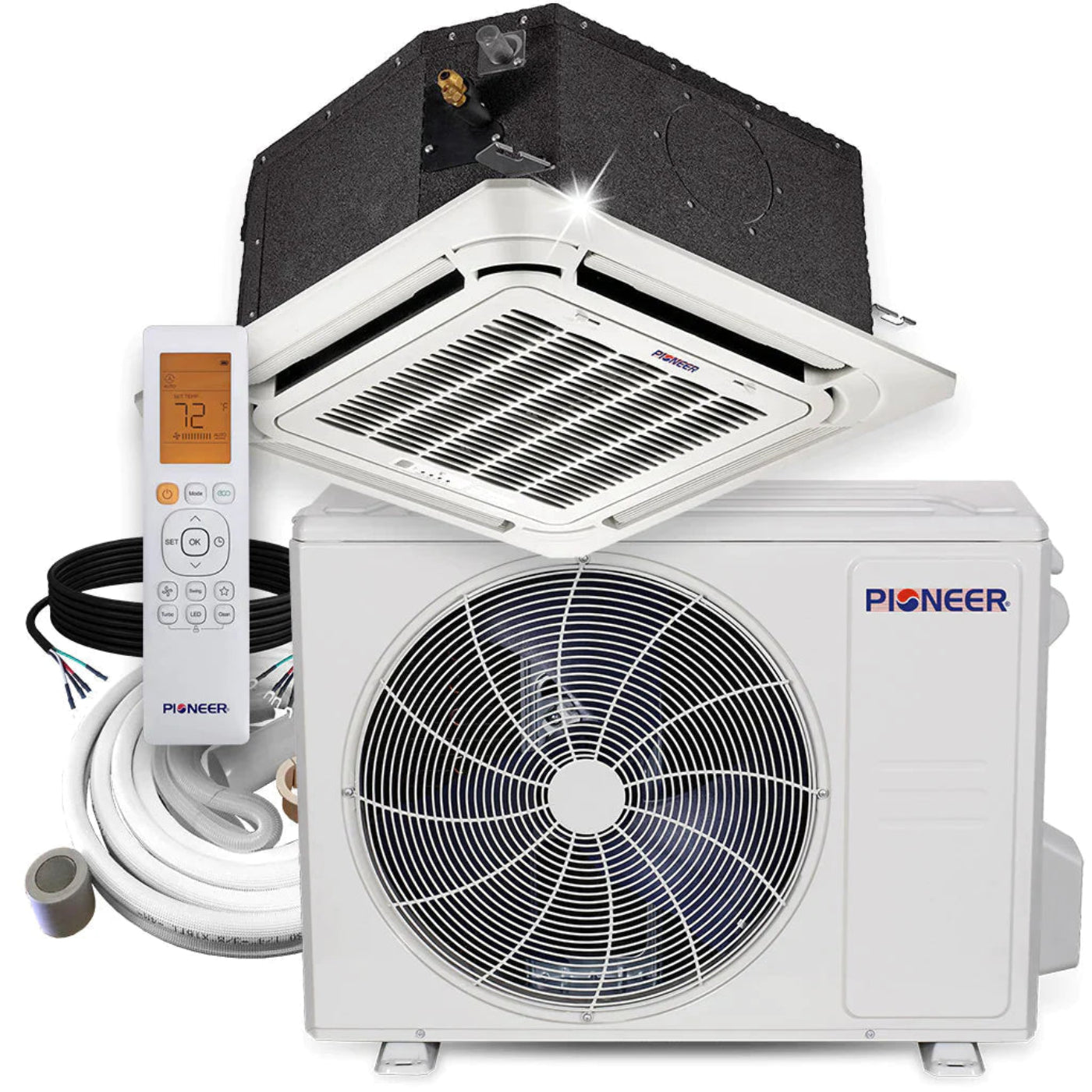

What's Included

• Indoor Unit
• Outdoor Unit
• Panel
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Specifications

INSTALLATION & GUIDES

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Energy Guide
• Submittal Sheet

What Our Experts Think

• Powerful & Energy-Efficient: 12,000 BTU capacity with 22 SEER rating ensures cost-effective heating and cooling.
• 8-Way Airflow System: Delivers uniform temperature distribution for maximum comfort.
• Extended Installation Flexibility: Includes 50 ft. line sets, ideal for large spaces or long-distance connections.
• Ultra-Quiet Operation: Advanced noise-reduction technology keeps sound levels low.
• Year-Round Performance: Reliable heating and cooling for consistent indoor comfort in any season.

Q&A

Q: What is the Pioneer 12,000 BTU 22 SEER Mini-Split Air Conditioner Heat Pump System?
A: This high-efficiency mini-split system provides both cooling and heating with a 22 SEER rating. Its 8-way compact cassette design ensures even airflow, and it includes 50 ft. line sets for extended installation flexibility.

Q: How does the heat pump function?
A: The integrated heat pump delivers both cooling and heating, making it ideal for year-round climate control.

Q: What size room does this system cover?
A: It efficiently cools and heats rooms up to 450 sq. ft.

Q: Is it suitable for residential use?
A: Yes, it’s designed for residential and light commercial spaces, offering quiet operation and energy efficiency.

Q: Does it require professional installation?
A: While it comes with 50 ft. line sets for maximum placement flexibility, professional installation is recommended for optimal performance.

Maintenance Tips

• Clean the Air Filters Regularly: Wash or replace filters every 30 days to maintain airflow and efficiency.
• Inspect and Clean the Drain Line: Prevent clogging by flushing the condensate drain line periodically.
• Dust the Cassette Panel & Vents: Wipe with a soft cloth to ensure unobstructed airflow and optimal performance.
• Monitor Refrigerant Levels Annually: Low refrigerant affects cooling efficiency—schedule professional checks if needed.
• Maintain Outdoor Unit Clearance: Keep at least 2 feet of space around the condenser for proper ventilation.
