Pioneer 12,000 BTU 22 SEER 230V Ductless Mini-Split Inverter++ Air Conditioner Heat Pump System with 10 ft. Line Sets - WYS012GMFI22RL-10

Pioneer 12,000 BTU 22 SEER 230V Ductless Mini-Split Inverter++ Air Conditioner Heat Pump System with 10 ft. Line Sets - WYS012GMFI22RL-10

At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!

Features

• Ultra-High Efficiency Inverter++ ductless mini split heat pump system
• Cooling capacity: 12,000 BTU/H with 22 SEER/12.5 EER efficiency
• Heating capacity: 12,000 BTU/H with 10.8 HSPF/3.5 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $72.00
• Heating: $235.00
• Sleep Mode
  The function enables the air conditioner to automatically increase cooling or decrease heating 1°C per hour for the first two hours, then holds steady for the next 5 hours, after that it will switch off. This function maintains both energy savings and comfort at night.
• Temperature Compensation
  Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency start
• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run heating operation even when the outdoor ambient temperature is down to -13°F.
• 1W Standby
  Intelligent on-off technology enables Pioneer products automatically  enter energy-saving mode when standby, cut energy consumption from normal 5W to 1W or 0.5W per hour which counts 80%~90% of saving.
• 2-way Draining
  Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose for easy installation.
• Follow Me (Remote Thermostat)
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
• 46°F Heating
  In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.
• Chassis Heating Belt
  Heating belt is fitted on the base plate of the outdoor unit to prevent defrosting water accumulation, which improves heat transfer efficiency.

Optional

• High Density Filter. Compared with ordinary dust filter, the anti-dust effect of this high density filter can increase more than 50%, it can clean dust, pollen up to 80%.
• Wireless Control. With the Wireless control, you can easily turn off each indoor unit that it is paired, outside your home via your smart phone. Furthermore, you can turn it on before you come back.
• Remote in Engineer Mode

What's Included

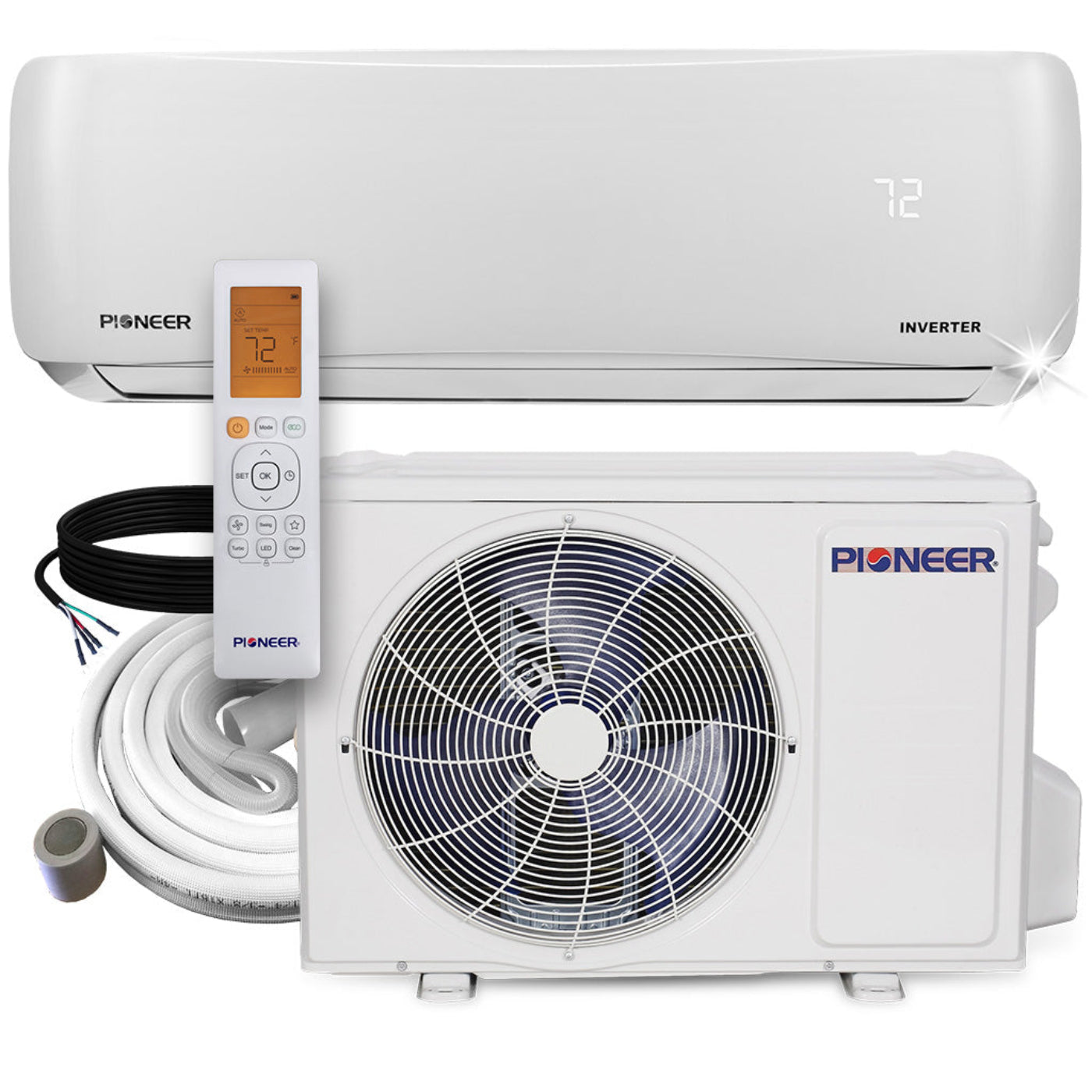

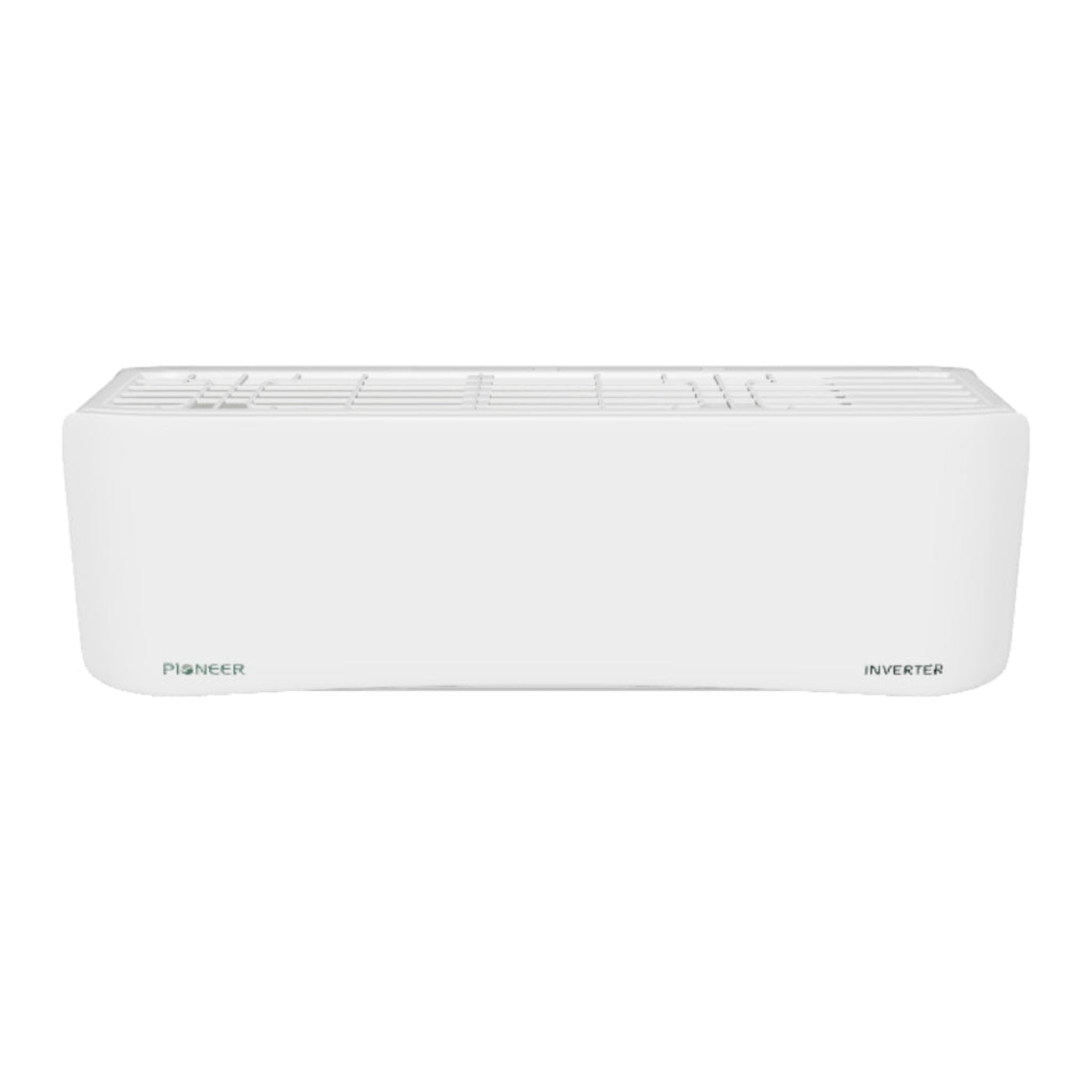

• Indoor Unit

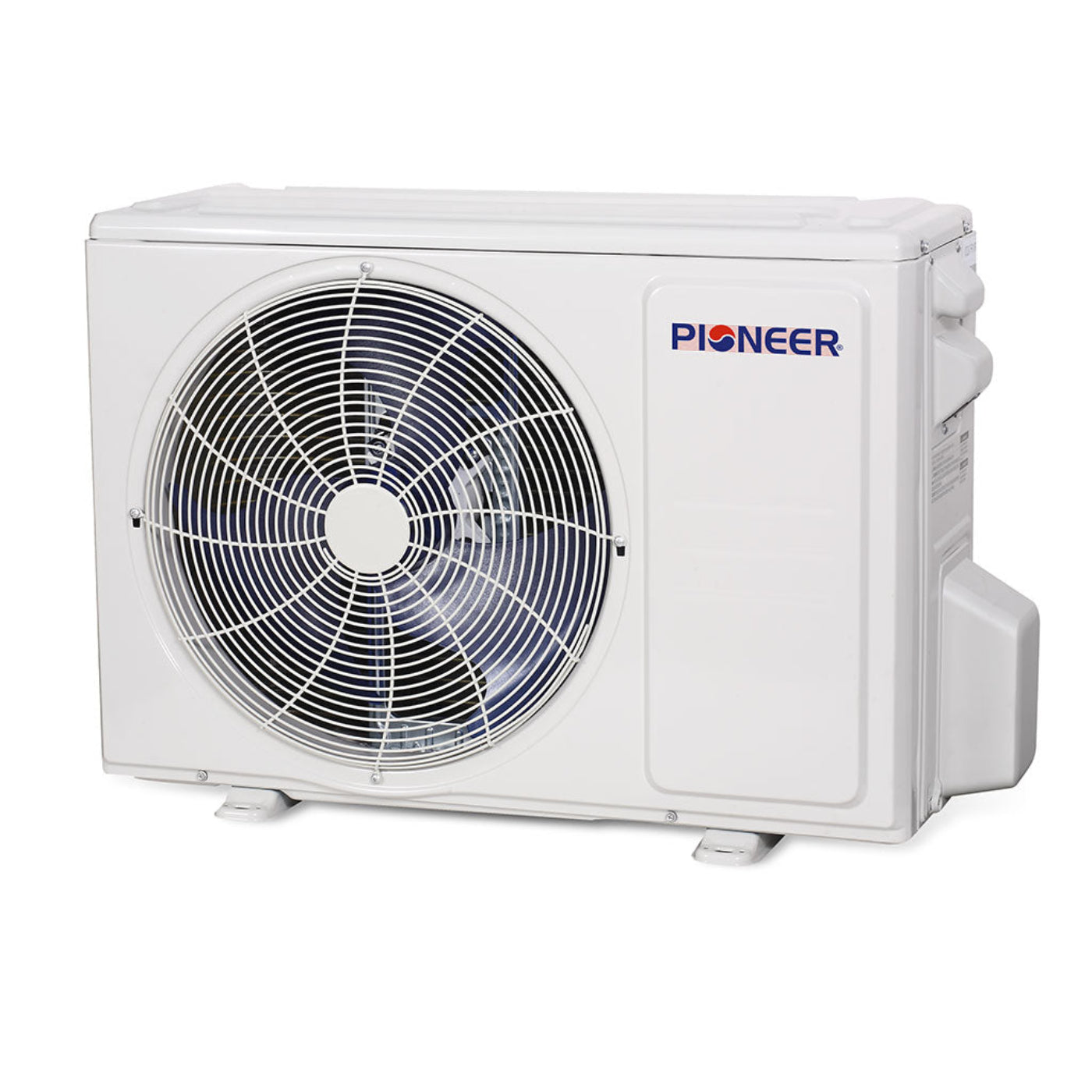

• Outdoor Unit

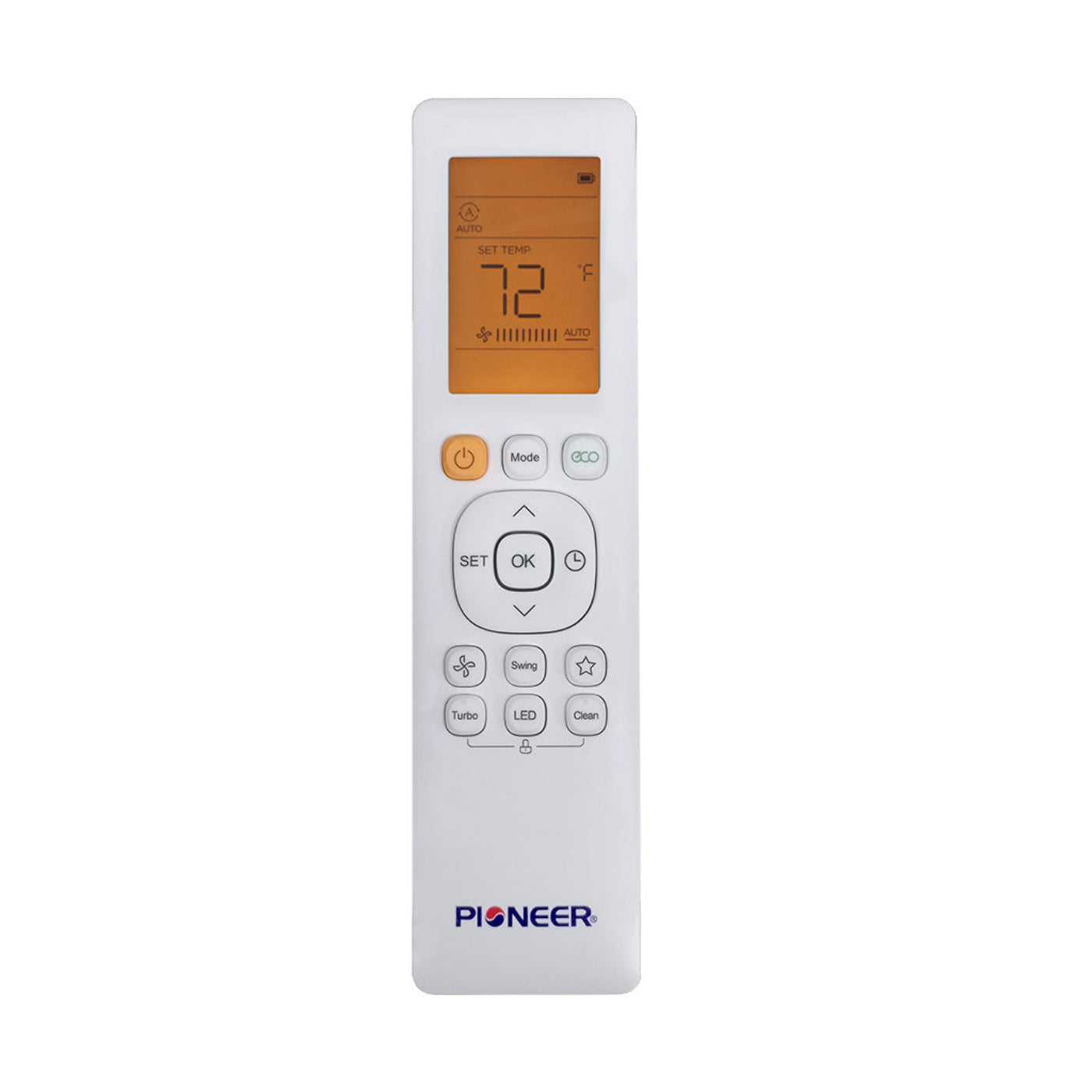

• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit

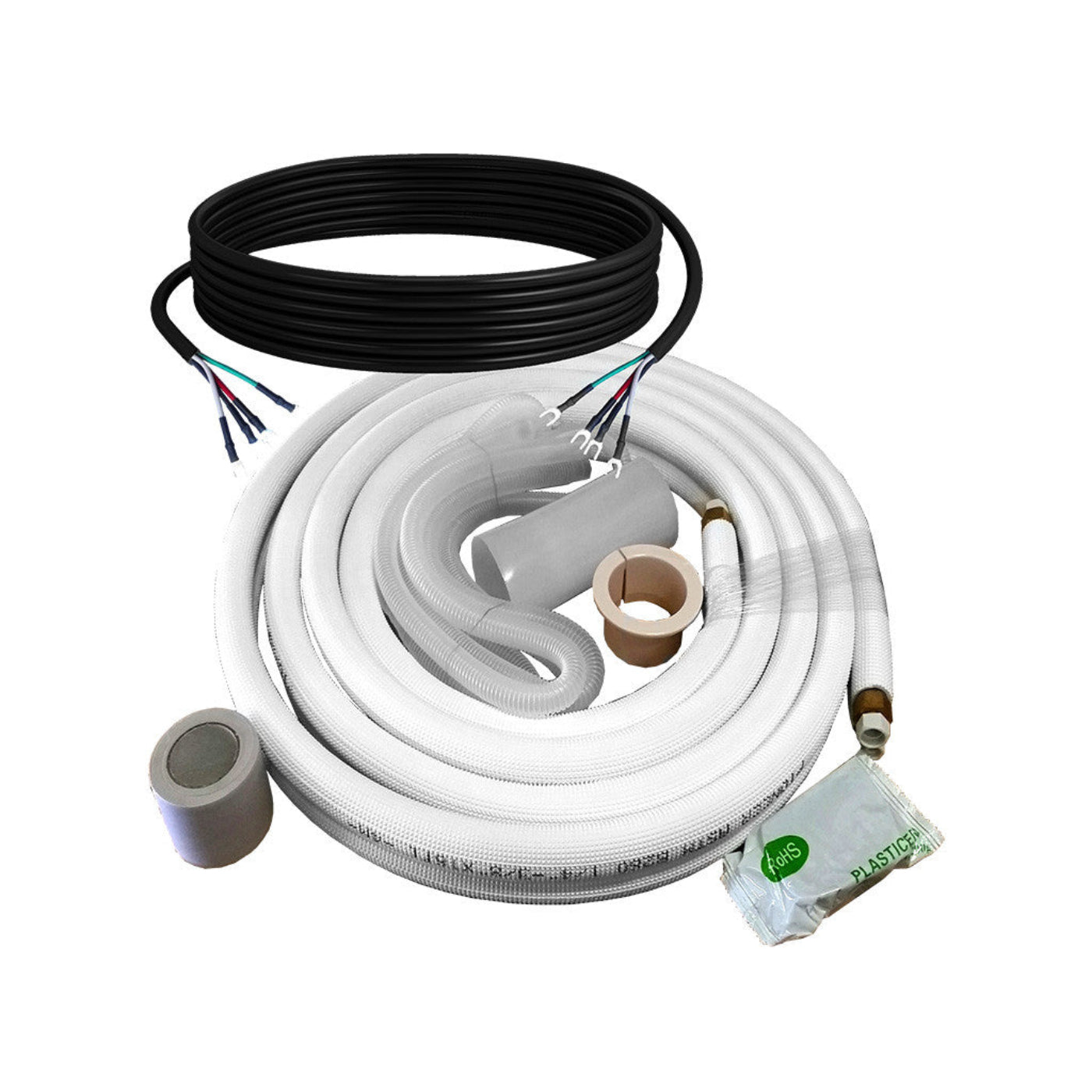

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Specifications

INSTALLATION & GUIDES

• Series Technical Brochure

• Series User Manual
• Series Installation Manual
• Series Service Manual

What Our Experts Think

• Energy-Efficient Performance: 12,000 BTU with a 22 SEER rating ensures effective cooling and heating with low energy consumption, ideal for cost savings.
• Inverter++ Technology: Automatically adjusts compressor speed based on temperature needs, enhancing efficiency and maintaining consistent comfort.
• Compact & Versatile Design: Comes with 10 ft. line sets, perfect for smaller to medium spaces or installations with limited line set requirements.
• Whisper-Quiet Operation: Features noise-reduction technology for smooth, quiet operation, ensuring a peaceful indoor environment.
• Year-Round Comfort: Efficiently handles both cooling during hot weather and heating in colder months, offering flexible climate control throughout the year.

Q&A

Q: What is the Pioneer 12,000 BTU 22 SEER Ductless Mini-Split Inverter++ Air Conditioner Heat Pump System?
A: This high-efficiency mini-split system offers both cooling and heating with a 22 SEER rating. Featuring Inverter++ technology, it ensures quiet, energy-efficient operation and precise temperature control. It includes 10 ft. line sets for easy installation.

Q: How does Inverter++ technology enhance the system's performance?
A: Inverter++ technology adjusts the compressor speed to match real-time temperature demands, resulting in better energy efficiency, quieter operation, and more consistent comfort.

Q: What size room can this system cover?
A: This system is ideal for cooling and heating rooms up to 450 sq. ft.

Q: Is it suitable for residential use?
A: Yes, this system is perfect for residential settings, offering reliable comfort with minimal noise and energy savings.

Q: Does it require professional installation?
A: While the unit includes 10 ft. line sets for convenience, professional installation is recommended to ensure optimal performance and longevity.

Maintenance Tips

• Clean the Air Filters Regularly: Air filters should be cleaned every 1-2 months to prevent the buildup of dust and dirt, which can reduce airflow and efficiency. Use a vacuum or wash the filters with mild soap and warm water, allowing them to dry completely before reinstalling.

• Check for Ice Build-Up: Inspect the evaporator coil and air handler for ice during operation. Ice buildup can be a sign of restricted airflow, low refrigerant, or a malfunctioning component. If you notice ice, switch the unit off and contact a technician for a thorough inspection.

• Clear the Drain Line: Ensure the condensate drain line is free from clogs, as a blocked drain can cause water damage or mold growth. Clear the line periodically to allow water to flow freely and keep your system working efficiently.

• Clean the Coils and Fins: Dust and dirt can accumulate on both the evaporator and condenser coils, affecting heat exchange efficiency. Clean the coils and fins with a soft brush or compressed air every few months to maintain proper airflow and efficiency.

• Check Refrigerant Levels: Low refrigerant can lead to reduced cooling or heating performance and may cause further damage to the compressor. Have a licensed technician check the refrigerant level regularly to ensure the system is operating at peak efficiency.

• Inspect the Outdoor Unit: Keep the outdoor unit free from debris such as leaves, twigs, and dirt. Make sure there's at least 2-3 feet of clearance around the unit to ensure proper airflow and prevent overheating.

• Ensure Proper Insulation: Check the insulation on refrigerant lines for any signs of wear or damage. Proper insulation reduces energy loss and improves the efficiency of your system.

• Inspect the System's Performance: Periodically check the system's overall performance. If you notice decreased airflow, unusual noises, or inconsistent temperatures, it's important to consult a technician to address any potential issues before they worsen.

• Schedule Annual Professional Maintenance: To ensure long-term reliability and optimal performance, schedule an annual professional inspection and maintenance. A technician will clean internal components, check refrigerant levels, and perform any necessary repairs.
