PCE 0 - 30,000G Portable AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter - PCE-MFM 3000

PCE 0 - 30,000G Portable AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter - PCE-MFM 3000

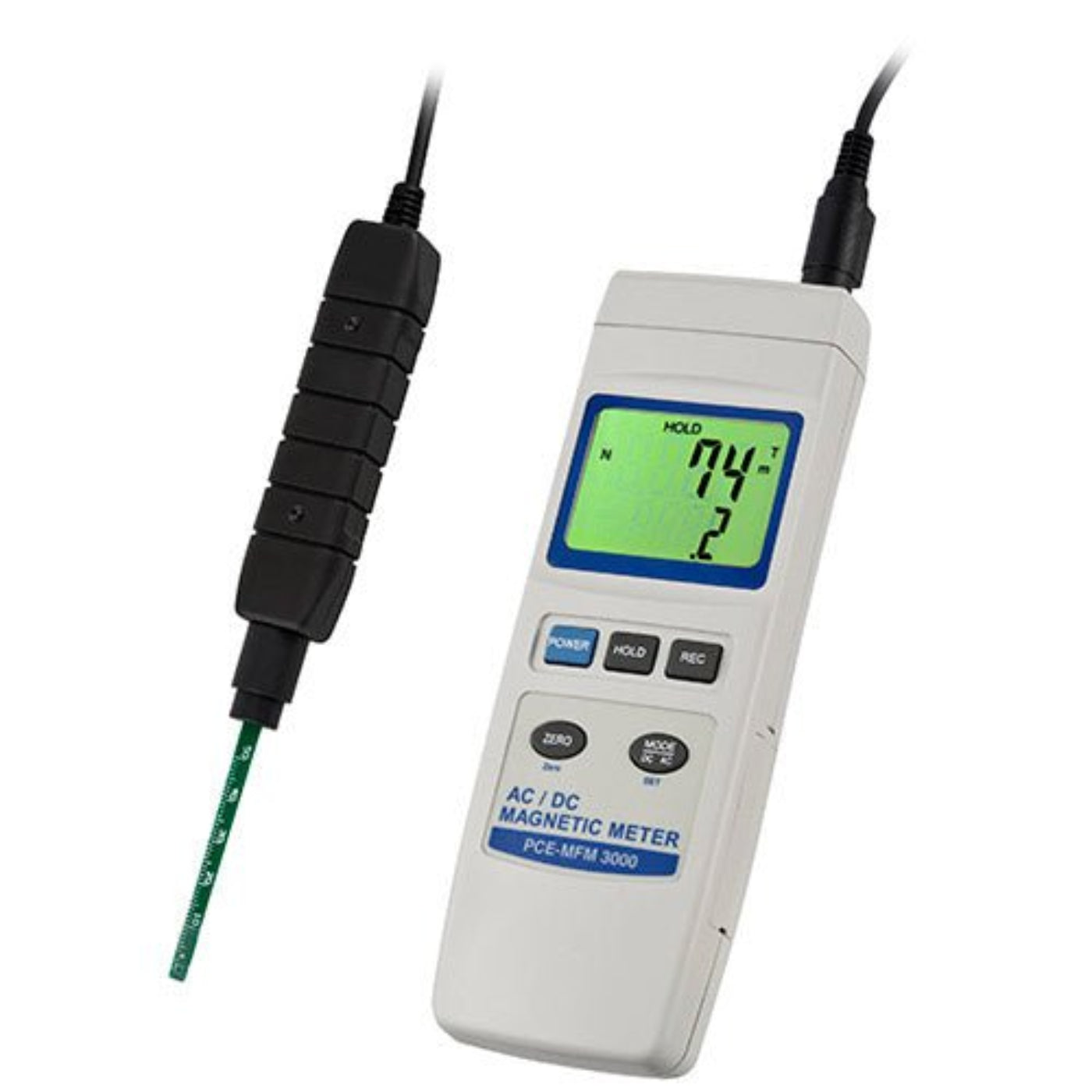

PCE 0 - 30,000G Portable AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter detects both static (DC) permanent magnet (rare earth) magnetic and dynamic (AC) electromagnetic fields (EMFs) and displays measurement results in gauss (G) or milli Tesla (mT). This portable magnetometer comes with an external sensor and features an RS-232 port for downloading data to a PC.

Highlights

• Portable
• Handheld
• AC / DC magnetic field detector

Features

• Measurement range: 0 - 30000 G / 0 - 3000 mT
• Accuracy: ± 5%; + 20 digits (static) / + 10 digits (dynamic)
• Resolution: 0.1 G / 0.01 mT
• Detects both static (DC) permanent magnetic and dynamic (AC) electromagnetic fields (EMFs)
• Displays measurement results in gauss (G) or milli Tesla (mT)

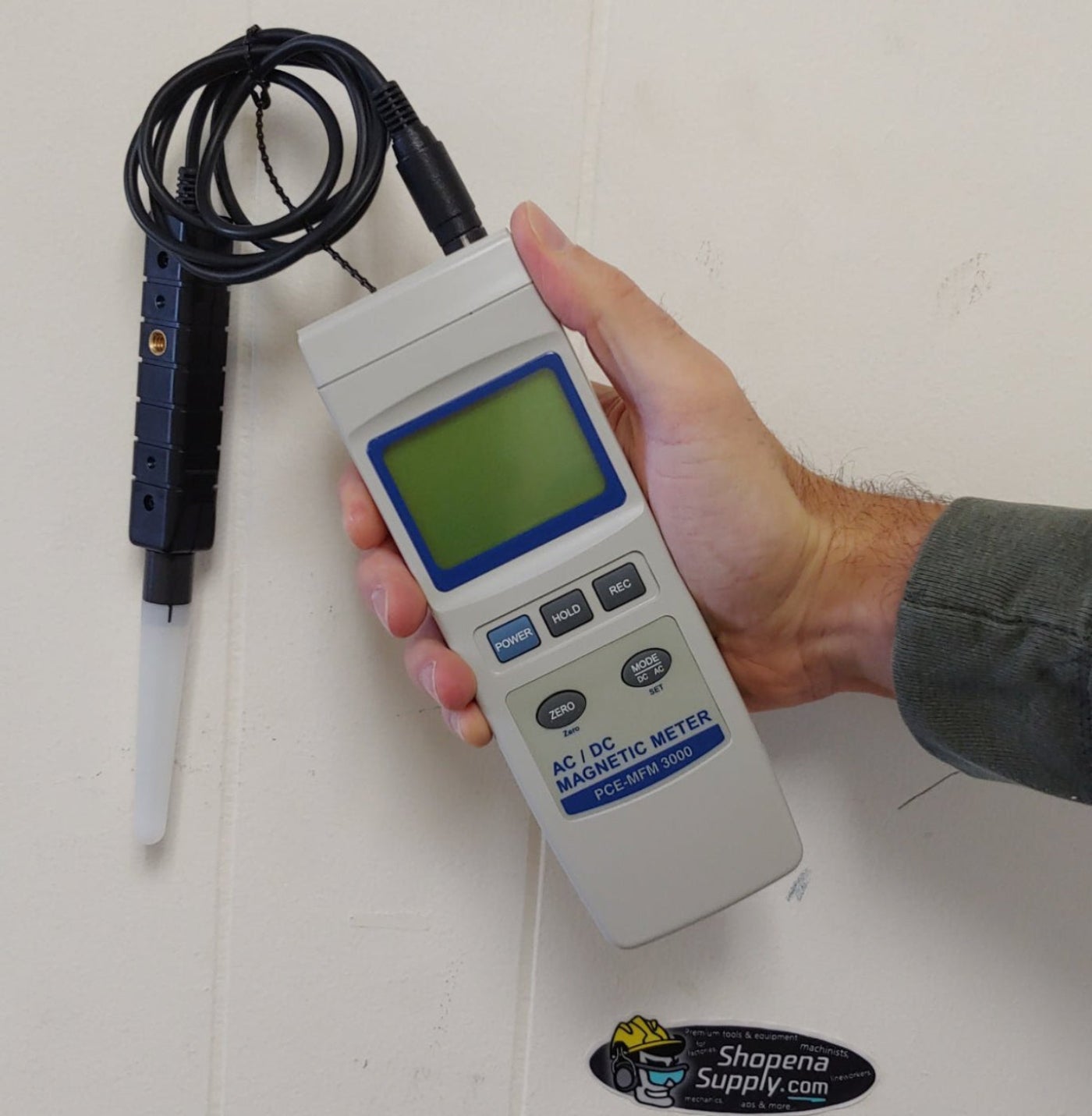

• Comes with an external sensor

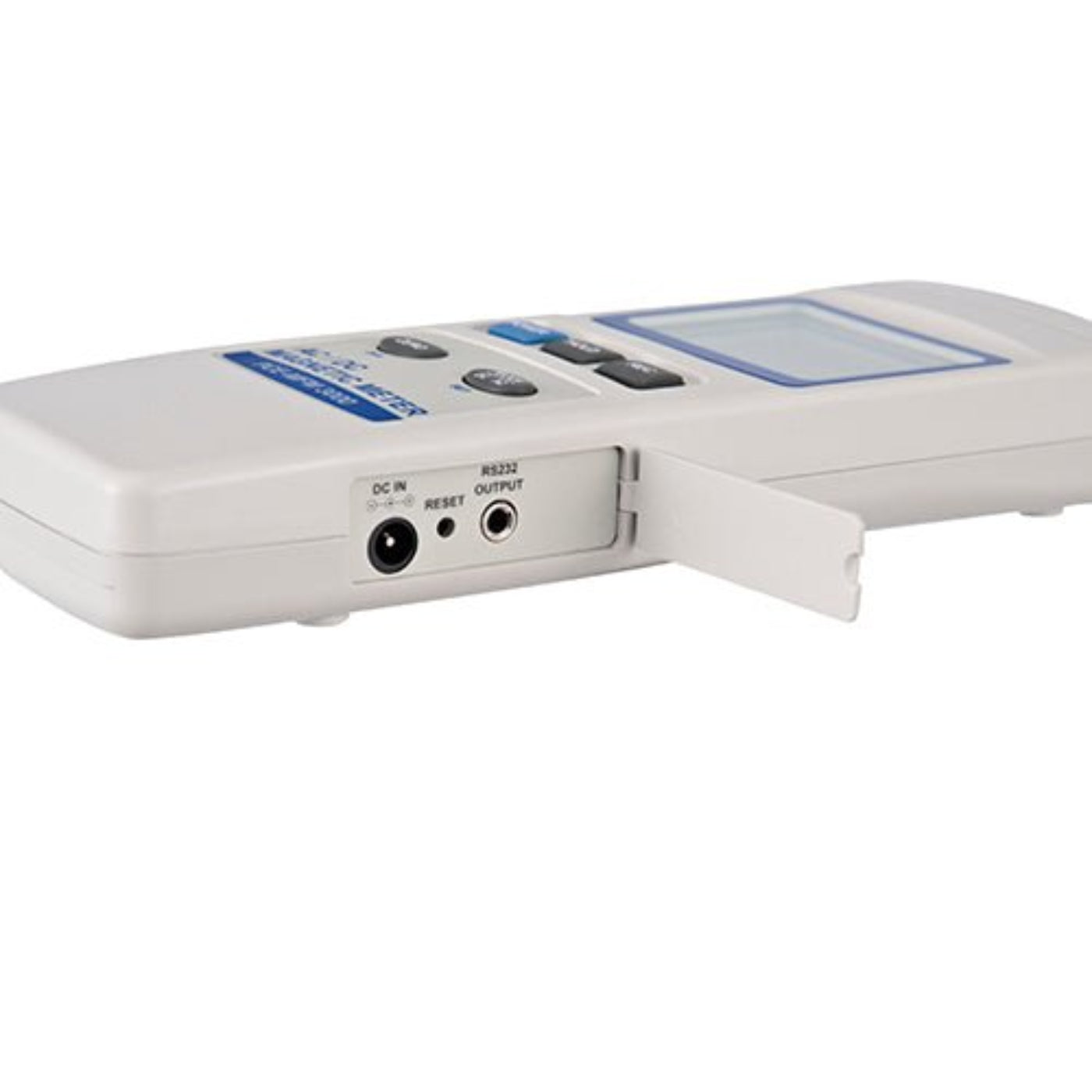

• Features an RS-232 port for downloading data to PC
• Max, min, data hold and auto shutdown power-saving functionality
• Ideal tool for checking magnetic valves, relays and air-core transformers
• Useful for assessing permanent magnets and rare earth magnets made of Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Alnico and Ferrite (also known as ceramic)

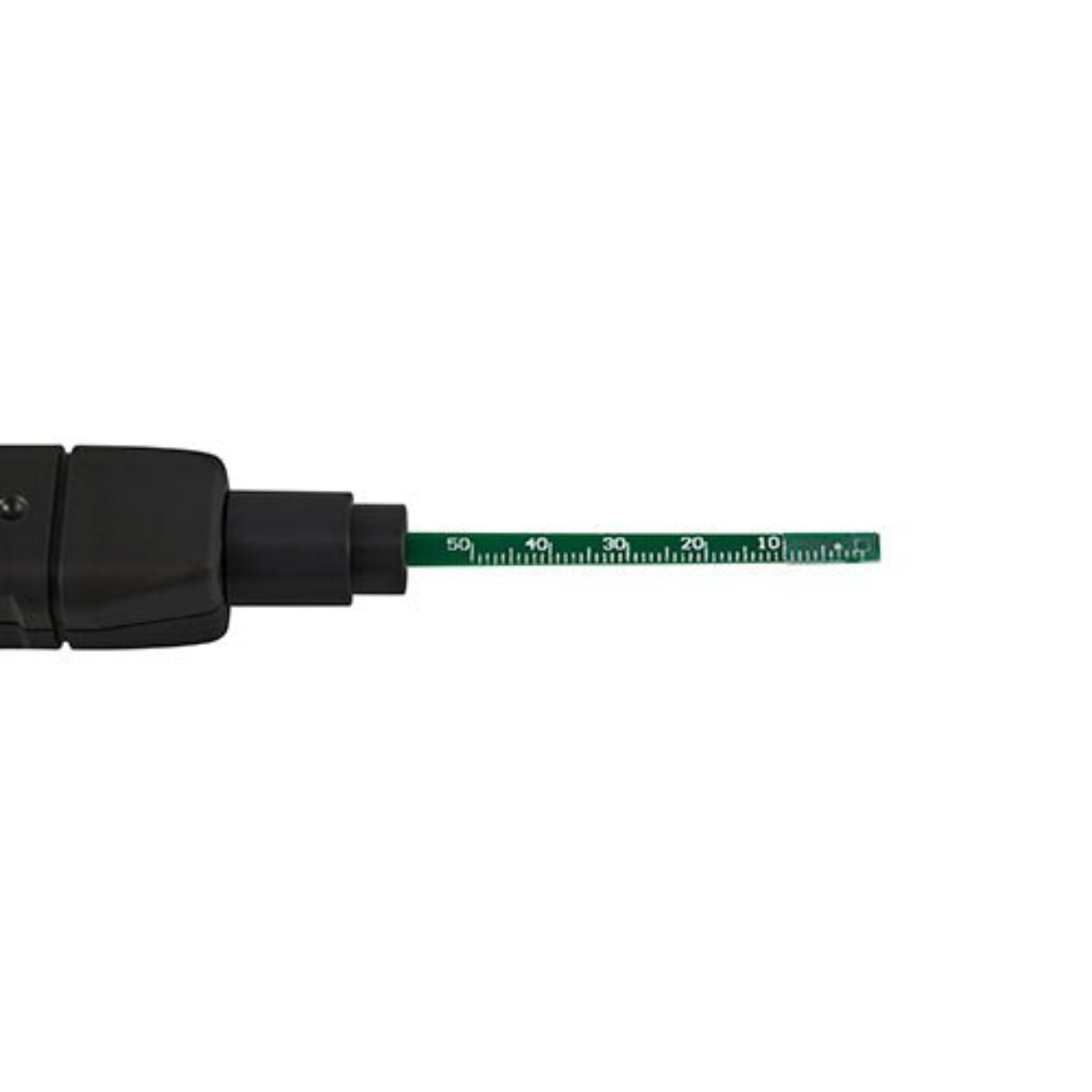

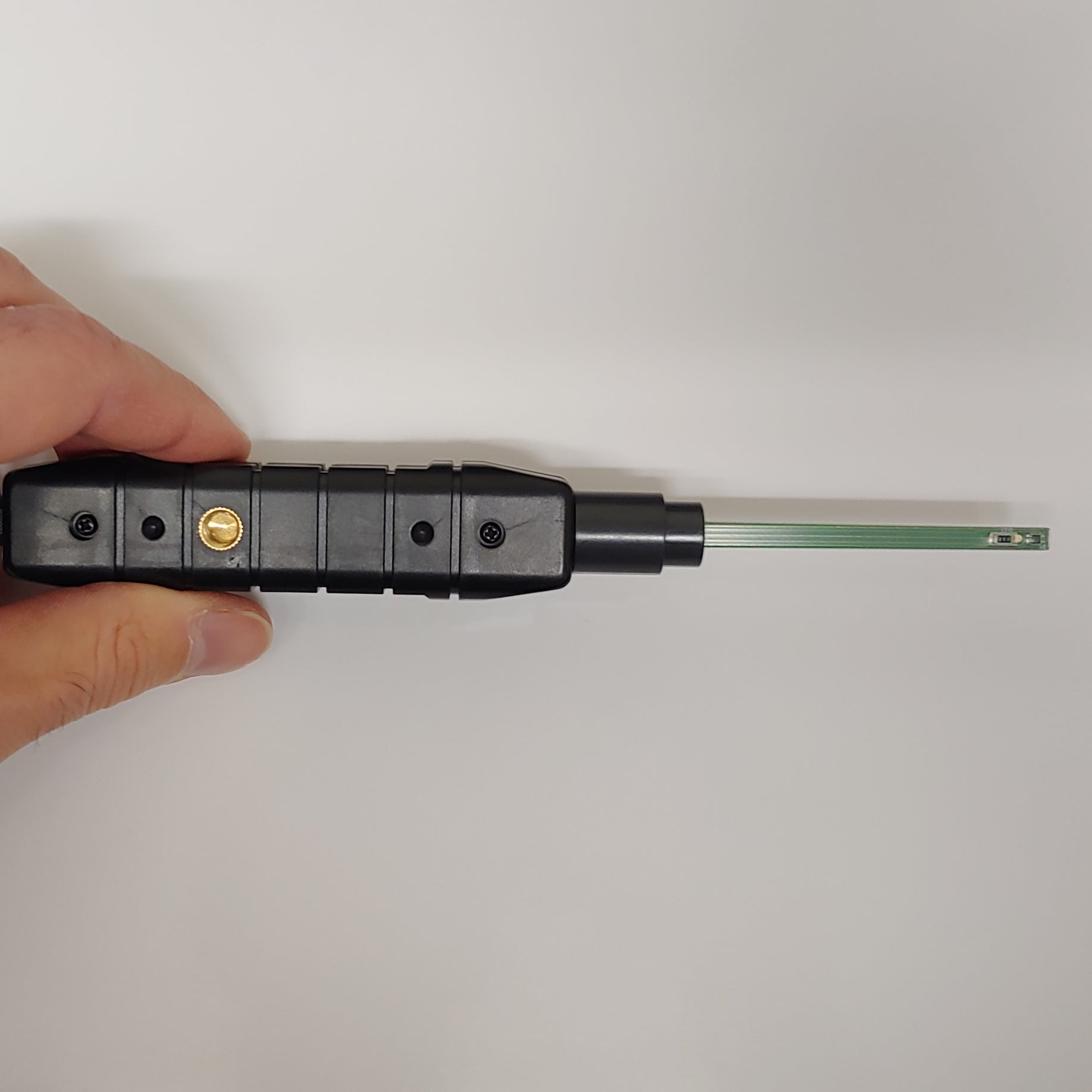

• The external sensor's small, flat tip allows easy access through gaps and into tiny spaces
• Measures through casings, coverings and housings, eliminating the need to dismantle parts for inspection

Specifications

• Static (DC) electromagnetic field (EMF) measurements:
• Measurement range:
• Range 1: 0 - 300 mT / 0 - 3000 G
• Range 2: 0 - 3000 mT /0 - 30000 G
• Resolution:
• Range 1: 0.01 mT / 0.1 G
• Range 2: 0.1 mT / 1 G
• Accuracy: ± 5 % + 10 digits
• Measurable frequencies: 50 Hz / 60 Hz
• Dynamic (AC) electromagnetic field (EMF) measurements:
• Measurement range:
• Range 1: 0 - 150 mT / 0 - 1500 G
• Range 2: 0 - 1500 mT /0 - 15000 G
• Resolution:
• Range 1: 0.01 mT / 0.1 G
• Range 2: 0.1 mT / 1 G
• Accuracy: ± 5 % + 20 digits
• Measurement rate: 1 second

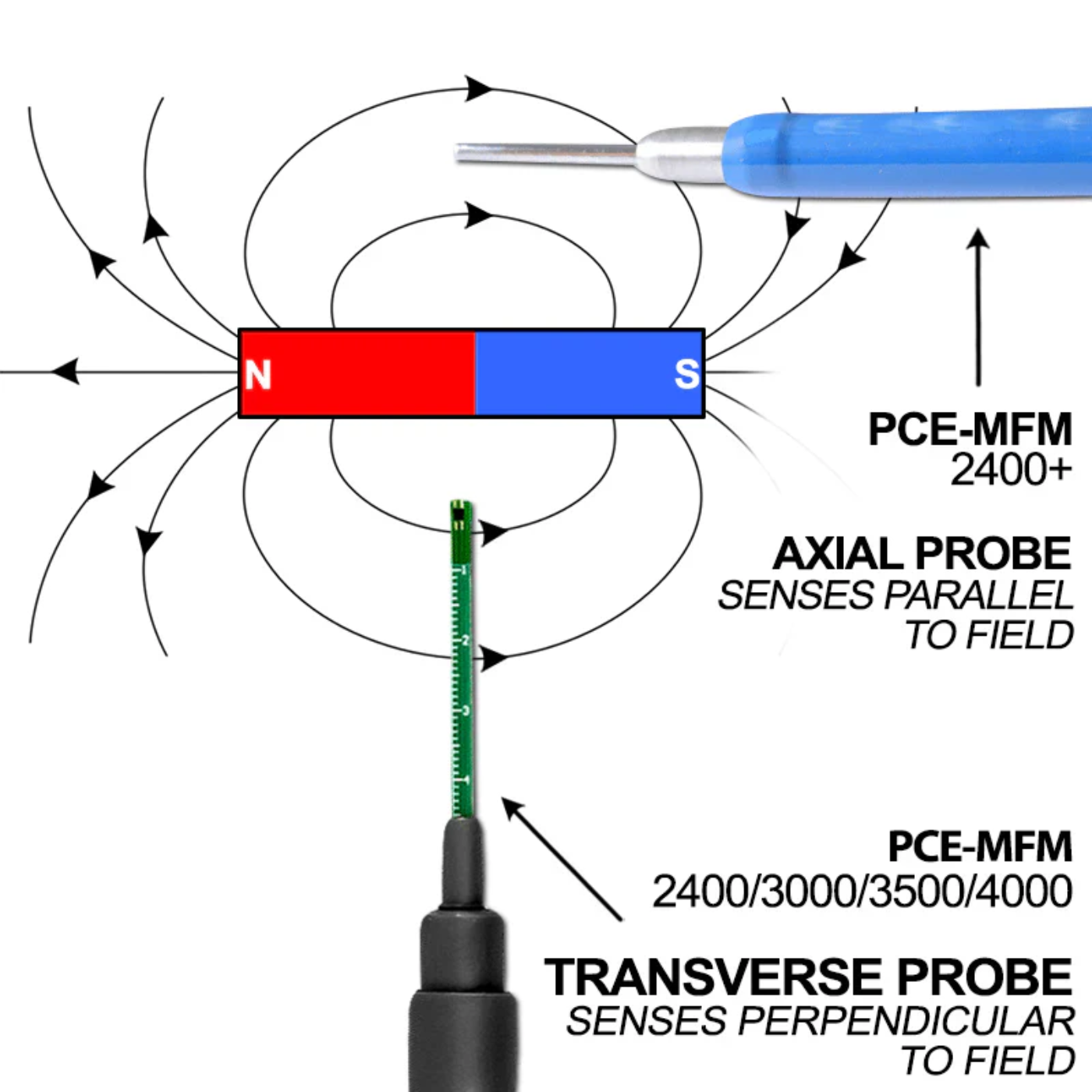

• Measurement direction: uniaxial
• Display two-line LC display
• Functions: Data hold / Max.- Min.- values
• Operating conditions: 0 - 50 °C / +32 - +122°F / max. 85 % RH
• Power supply: 9 V block battery. optional 9 V mains power adapter
• Input current: ca. 15 mA
• Meter dimensions: 198 x 68 x 30 mm / 7.80 x 2.68 x 1.18"

• Sensor dimensions: 195 x 25 x 19 mm / 7.68 x 0.98 x 0.75"
• Weight: 275 g / 0.61 lb

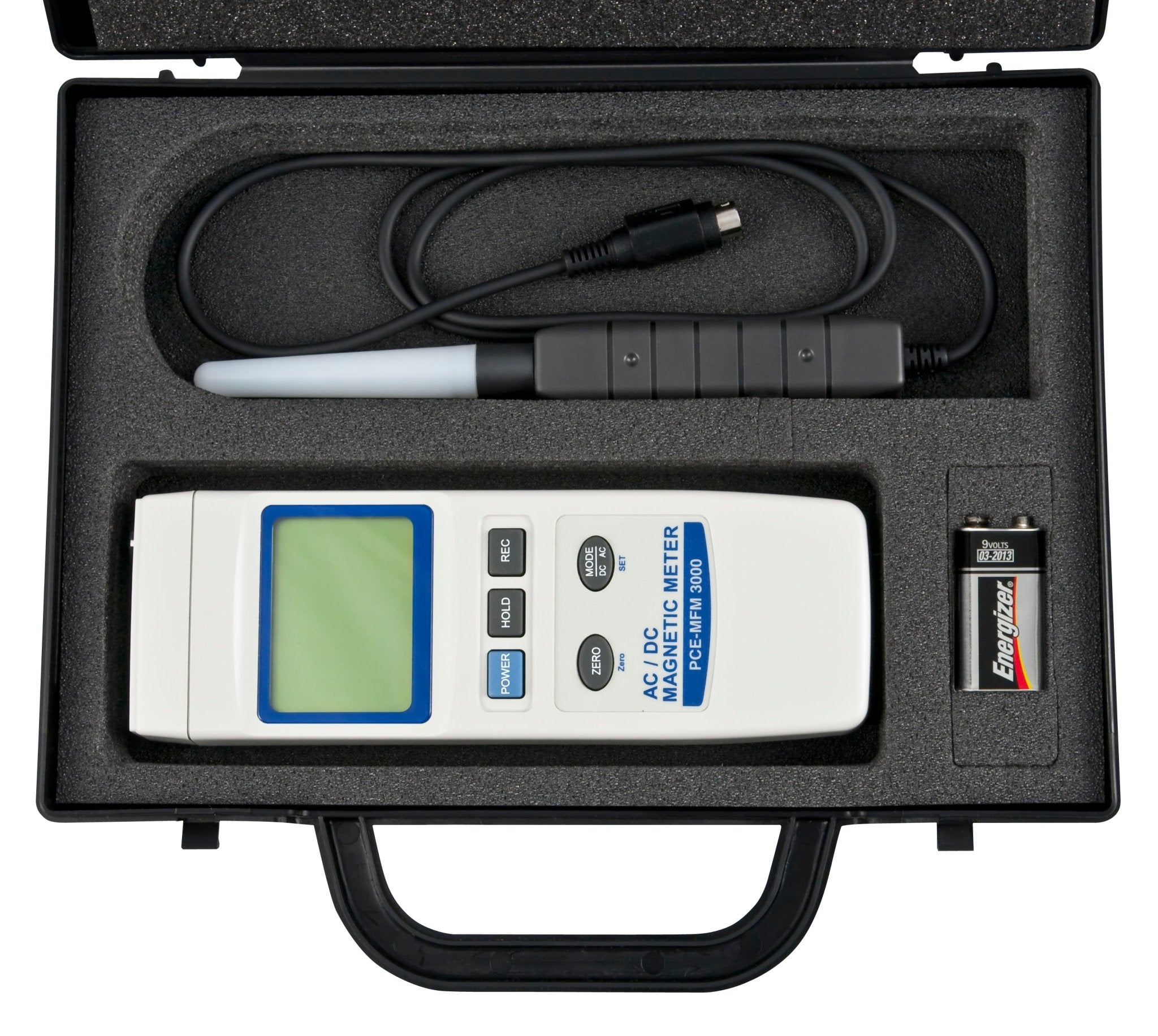

What’s Included

• 1 x Magnetometer PCE-MFM 3000
• 1 x External sensor
• 1 x 9V battery

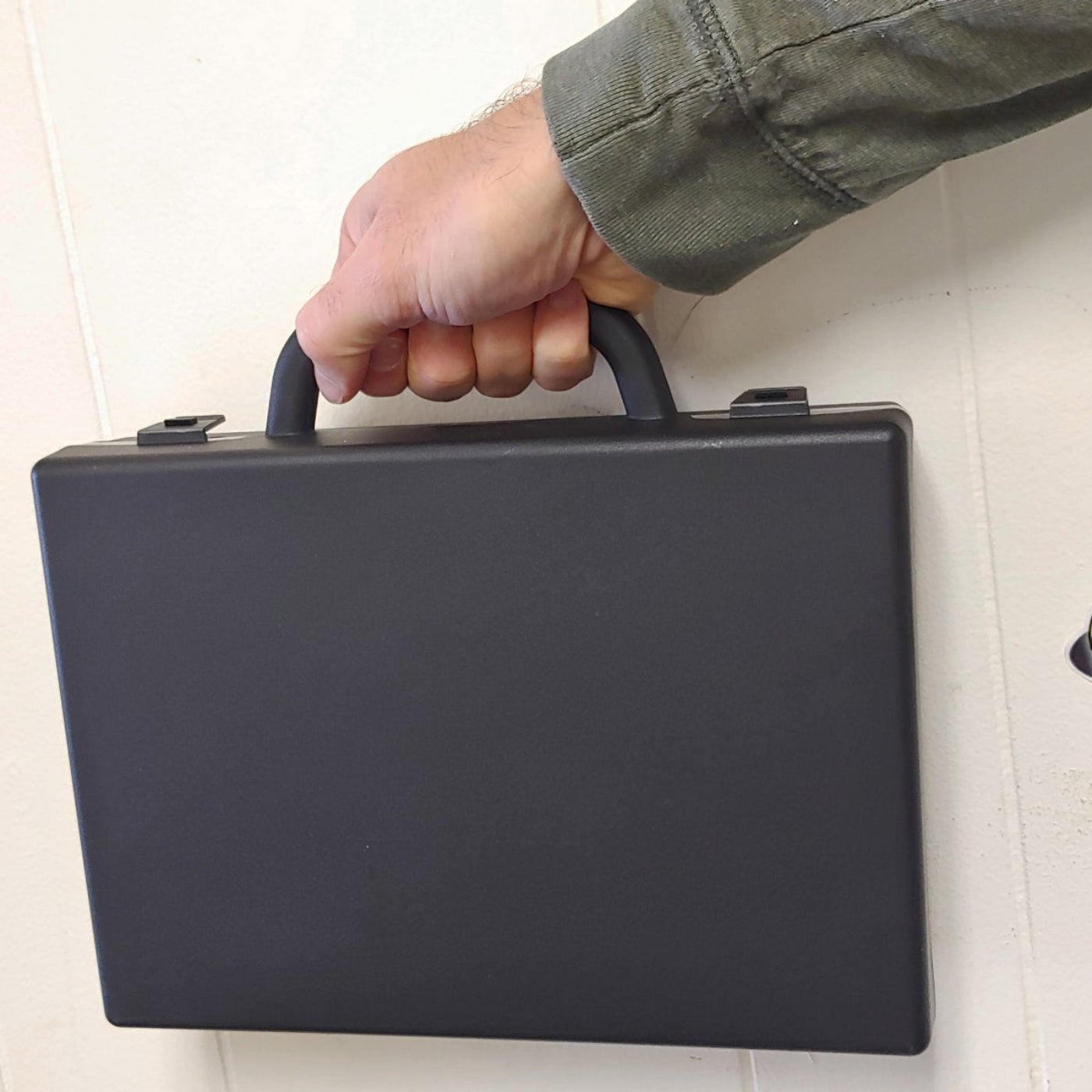

• 1 x Carrying case
• 1 x User manual

Manual

PCE-MFM 3000 User Manual

PCE-MFM 3000 Data Sheet

What Our Experts Think

• Precision & Versatility: The PCE-MFM 3000 offers exceptional accuracy with a wide measurement range, from static to dynamic magnetic fields. This makes it an ideal tool for both basic and advanced applications in industries like manufacturing, electronics, and research.

• User-Friendly: With its portable design and external sensor, it’s easy to carry around and use in various environments, including confined spaces or hard-to-reach areas. The external sensor ensures flexibility without compromising on accuracy.

• Data Connectivity: The RS-232 port for PC data transfer is a significant advantage, enabling seamless integration into existing data logging or analysis systems. It’s perfect for users who need to monitor and store measurements over time for reporting or compliance purposes.

• Durability: Built to withstand challenging environments, this magnetometer is robust enough for fieldwork while offering precise measurements. It’s an excellent tool for quality control, production processes, and any application requiring magnetic field assessment.

Q&A

Q: What types of magnetic fields can the PCE-MFM 3000 detect?
A: The PCE-MFM 3000 detects both static (DC) magnetic fields from permanent magnets (including rare earth magnets) and dynamic (AC) electromagnetic fields (EMFs).

Q: In what units does the PCE-MFM 3000 display magnetic field measurements?
A: The PCE-MFM 3000 displays magnetic field measurements in gauss (G) or milliTesla (mT), which are standard units for magnetic field strength.

Q: How is the PCE-MFM 3000 powered?
A: The PCE-MFM 3000 is portable and typically powered by a battery, making it suitable for both field and laboratory use.

Q: Does the PCE-MFM 3000 include a data logging feature?
A: Yes, the PCE-MFM 3000 comes with an RS-232 port for downloading measurement data to a PC for further analysis or record-keeping.

Q: Is the sensor for the PCE-MFM 3000 built-in or external?
A: The PCE-MFM 3000 comes with an external sensor, allowing for flexible and precise measurements in various environments and orientations.

Q: What are the key applications of the PCE-MFM 3000?
A: This magnetometer is commonly used in quality control, production processes, and electromagnetic field studies, as well as for testing permanent magnets, electrical devices, and measuring EMFs in various industries.

Maintenance Tips

• Regular Cleaning: Use a soft, lint-free cloth to clean the device, especially the external sensor, to avoid dust and debris buildup.

• Calibration: Calibrate the magnetometer regularly to ensure accurate detection of both AC and DC magnetic fields.

• Inspect External Sensor: Check the external sensor for any damage or wear and replace it if necessary to ensure precise measurements.

• Store Properly: Keep the device in a cool, dry place, away from extreme temperatures and moisture to prevent damage to internal components.

• Battery Care: Charge the device regularly and avoid letting the battery completely discharge for extended battery life.

• Data Management: Use the RS-232 port to transfer and back up data periodically to prevent loss and ensure accurate record-keeping.
