New Age 1306 Mobile 20.375"W x 69.75"H x 26"D Universal Pan Rack - NW1306

New Age 1306 Mobile 20.375"W x 69.75"H x 26"D Universal Pan Rack - NW1306

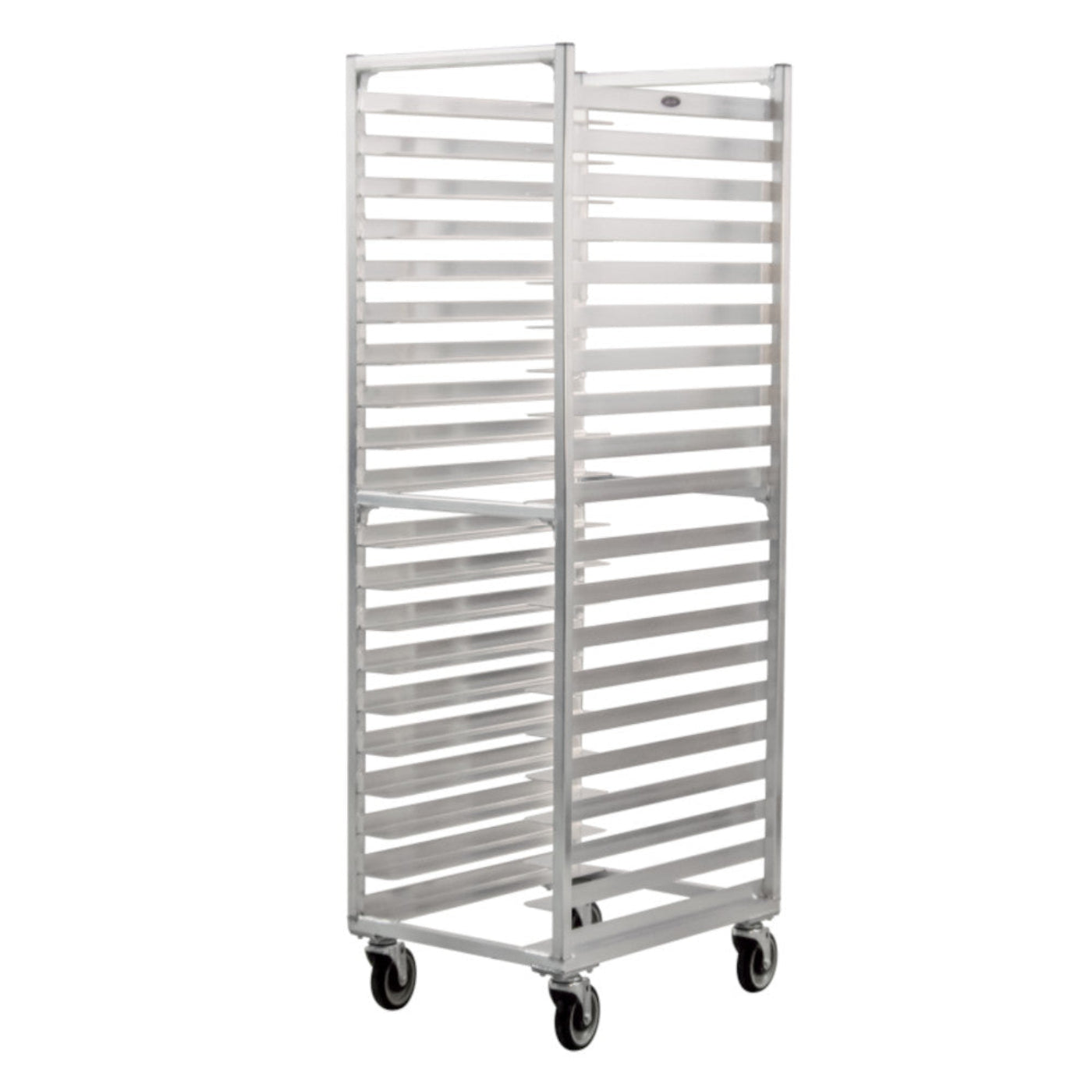

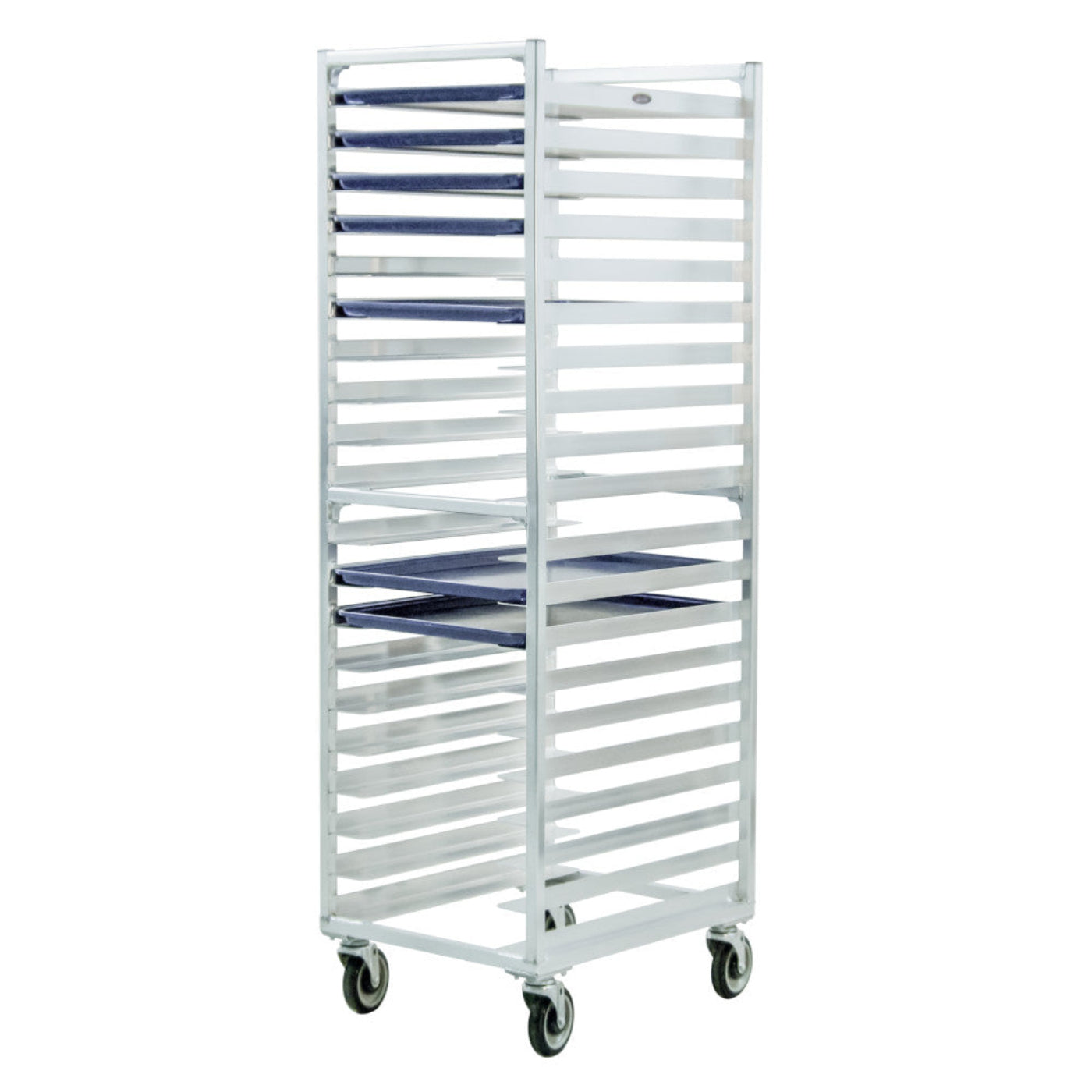

This New Age 1306 is a mobile universal pan rack. With the ability to store a variety of pans and trays, it is ideal for transferring food from one area to another. It has a durable construction. Being made from all welded aluminum, it has heavy-duty aluminum tubes and angle slides for maximum strength. It has an all welded rectangular frame with caster plates pre-tapped for caster bolts. The casters are 5" and are designed for heavy-duty use. This 1306 is guaranteed for life against rust and corrosion and has a five-year warranty against material defects.

Features

• Open frame design
• Square tube construction
• 3" centers
• All-welded aluminum construction
• Extremely versatile
• Extra wide 3-1/4" angles are welded to the heavy duty frame giving you the freedom to mix–and–match pans and trays of mixed sizes on one rack
• Designed to hold trays by the bottom to ensure equal load distribution for easy handling
• Heavy duty aluminum tube and angle slides maximize strength and durability
• Equipped with four 5" heavy duty platform type casters
• Non-marking wheels protect floors and minimize noise
• All heli-arc welded with all seams welded and sealed (no rivets)
• Each side had two vertical posts of 1" x 1" x .070" wall tube

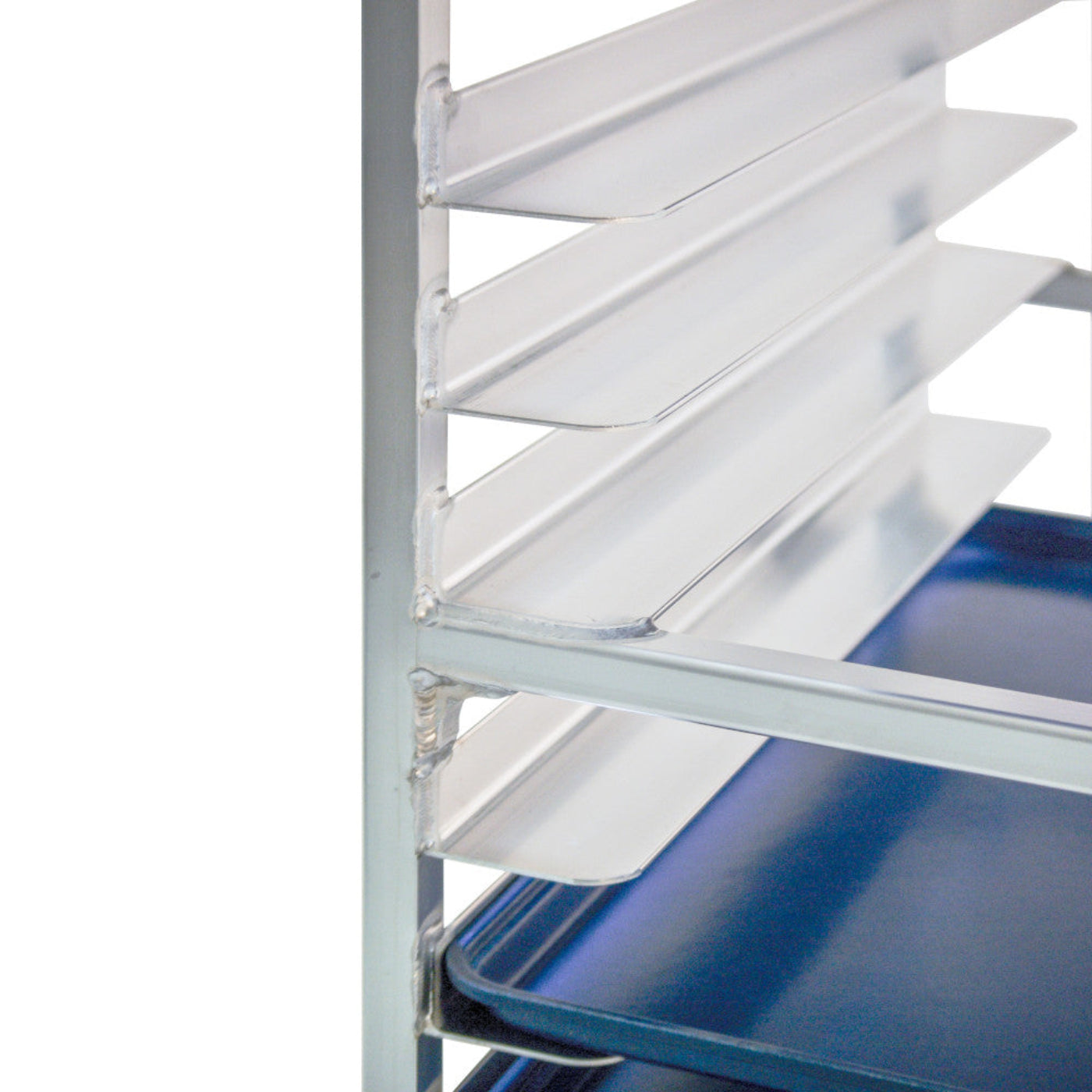

• Welded to each side are angle runners of 1-1/2" x 3-1/4" x .100" wall aluminum angle, spaced on 3" or 5" centers
• Each rack has (4) horizontal supports located at the top and center. These supports are 1" x 1" x .070" wall tube
• Gussets of 1-1/2" x 1-1/2" x 5/8" thick angle are welded to the inside angles (bottom side) where horizontal cross bracing meets vertical uprights
• All welded rectangular frame with caster plates pre-tapped for caster bolts welded to each corner
• Lifetime guarantee against rust and corrosion
• Five-year guarantee against material defects and workmanship

Specifications

What Our Experts Think

• Versatile Storage: Designed with 20 universal slides spaced 3 inches apart, this rack can hold various pan sizes, offering flexibility for different kitchen needs.

• Durable Build: Made with all-welded aluminum, it’s resistant to rust and corrosion, ensuring long-lasting performance in demanding environments.

• Easy Mobility: The four 5-inch swivel casters make the rack easy to move, facilitating efficient transport of pans between kitchen stations.

• Space-Efficient Design: With dimensions of 20.375" in width, 69.75" in height, and 26.375" in depth, the rack provides ample storage without taking up too much space.

Q&A

Maintenance Tips

• Regular Cleaning:

• After Each Use: Wipe down the rack with a damp cloth to remove any food particles or spills.

• Deep Cleaning: Periodically, disassemble any removable parts and wash them with warm, soapy water. Rinse and dry thoroughly before reassembling.

• Operational Maintenance:

• Wheel Inspection: Regularly check the 5" swivel casters for signs of wear or damage. Ensure they rotate smoothly and are securely attached.

• Structural Check: Inspect the aluminum frame for any loose bolts or structural weaknesses. Tighten any loose fasteners and address any structural issues promptly.

• Safety Precautions:

• Load Distribution: When loading the rack, distribute the weight evenly to prevent tipping or imbalance.

• Floor Compatibility: Ensure the rack is used on a flat, stable surface to prevent instability.

• Wheel Locks: Utilize the wheel locks when the rack is stationary to prevent unintended movement.
