NCM M3 - 9041210016

NCM M3 - 9041210016

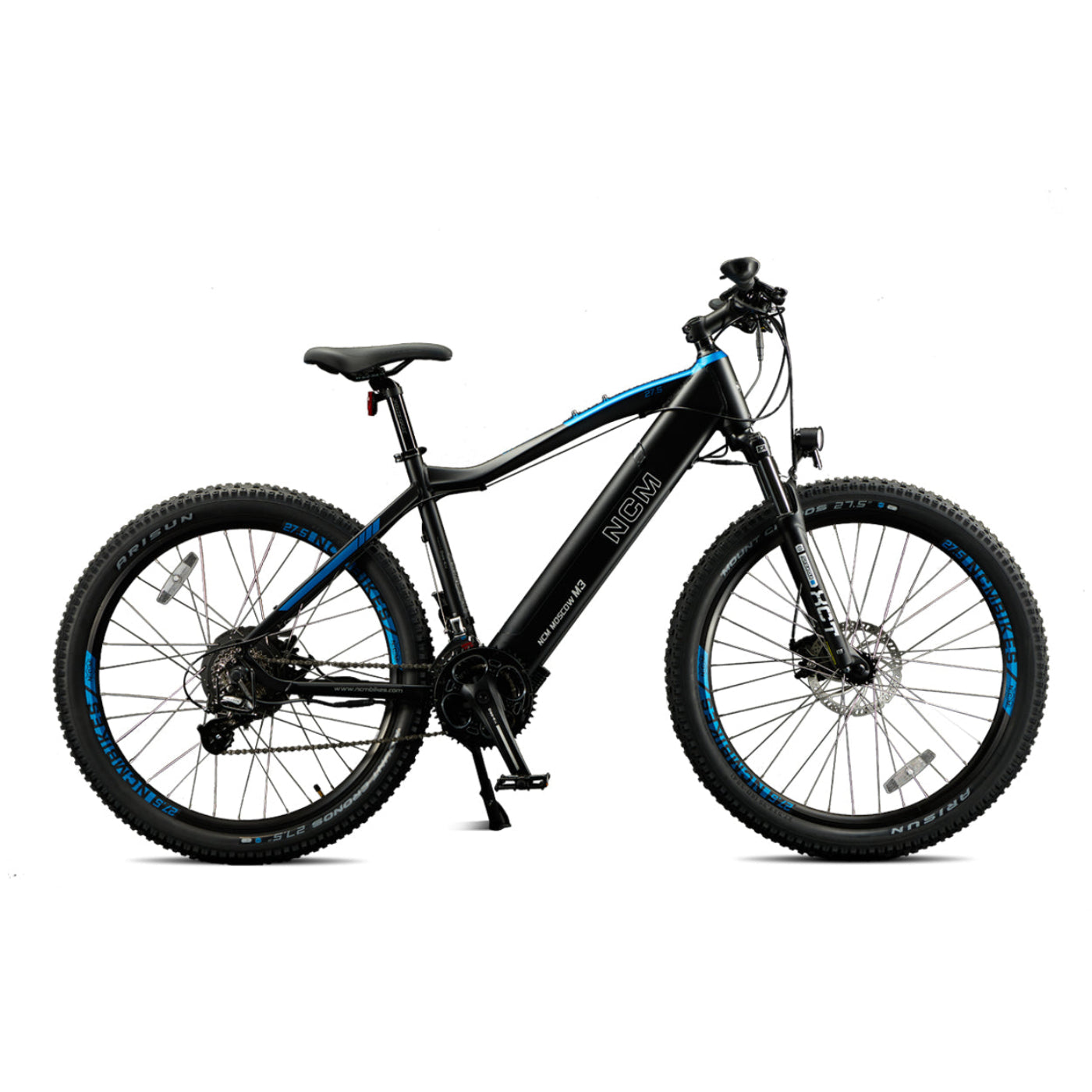

An entry-level e-mountain bike that doesn’t compromise on high-quality components, the NCM M3 is built to maintain its cool no matter what mountain trail it faces, balancing range and performance with accessibility and ease of use.

Features

BIKE COMPONENTS

Frame: Alu. 6061, 26"*18.1 inches / 27.5"*18.9 inches / 29"*20.5 inches

Suspension Fork: Suntour, XCT

Brake: Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: Arisun Mount Cronos

Saddle: VELO, VL-3410

Stem: Promax, Alu.MA-471

Crank: DAS-KIT, CM48,28/38/48T

Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed

Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed

Front Derailleur: Shimano, Altus, FD-M313

Rear Derailleur: Shimano, Altus, RD-M310

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i6-4812, 48V 12AH, 576WH

Hub Motor Rated / Peak Power: Das-Kit, X15, 48V 500W / 900W

Controller: Das-Kit, CT5-i6, 48V 15A

Charger: Das-Kit, 48V2A

Display: Das-Kit, L7

Front Light: DH002, 48V, 40 Lux

WEIGHT

Net Weight (with battery): 57.0 lbs

Battery Weight: 7.5 lbs

Max Load (driver+bike): 275.0 lbs

What Our Experts Think

• Powerful Motor: Equipped with a 500W Das-Kit X15 rear-drive motor, providing smooth acceleration and strong hill-climbing capability.

• Extended Range: Features a 48V 12Ah battery, offering up to 110 km of range per charge, depending on terrain and rider conditions.

• Sturdy Frame: Built with a 6061 aluminum alloy frame, available in 26", 27.5", and 29" wheel sizes to fit a range of riders.

• Comfortable Suspension: The Suntour XCT front suspension fork absorbs bumps and rough terrain, providing a smoother ride.

• Reliable Braking: Equipped with Tektro MD-M280 mechanical disc brakes for dependable stopping power in various conditions.

• User-Friendly Display: Includes a clear LCD display for monitoring speed, battery life, and riding modes.

• Convenient Charging: Features a fast-charging system that takes approximately 8 hours for a full battery recharge.

Q&A

Q: What is the price of the NCM M3?
A: The NCM M3 is priced at $1,299.00.

Q: What is the battery capacity of the NCM M3?
A: The NCM M3 is equipped with a 48V 12Ah battery, providing a total capacity of 576Wh.

Q: What is the motor power of the NCM M3?
A: The bike features a 48V 500W motor, capable of reaching a peak power of 750W.

Q: What is the top speed of the NCM M3?
A: The NCM M3 has a top speed of 32 km/h (approximately 20 mph).

Q: What is the maximum range of the NCM M3?
A: The bike can achieve a maximum range of up to 80 km (approximately 50 miles) on a single charge, depending on terrain and riding conditions.

Q: What is the weight of the NCM M3?
A: The net weight of the bike with the battery is approximately 24.0 kg (53 lbs).

Q: What is the weight capacity of the NCM M3?
A: The bike has a maximum load capacity of 120.0 kg (265 lbs), including the rider and cargo.

Q: What type of brakes does the NCM M3 have?
A: The bike is equipped with Tektro hydraulic disc brakes for reliable stopping power.

Q: What type of gears does the NCM M3 have?
A: The bike features a Shimano Altus 3x7-speed drivetrain, providing a wide range of gears for various terrains.

Maintenance Tips

• Charge Between 20–80%: Keep the battery within this range for optimal lifespan.

• Avoid Overcharging: Disconnect the charger once the battery is fully charged.

• Store Properly: If not in use for more than two weeks, store the battery at 50–60% charge in a cool, dry place.

• Allow Cooling: Let the battery cool for at least 30 minutes after use before charging.

• Use the Original Charger: Always use the charger that came with the battery to ensure compatibility and safety.

• Inspect Regularly: Check for signs of wear, corrosion, or damage. If issues arise, seek assistance.
