Marshall V-R241-4K 24" UHD 4K 3G-SDI HDR Monitor - VR2414K

Marshall V-R241-4K 24" UHD 4K 3G-SDI HDR Monitor - VR2414K

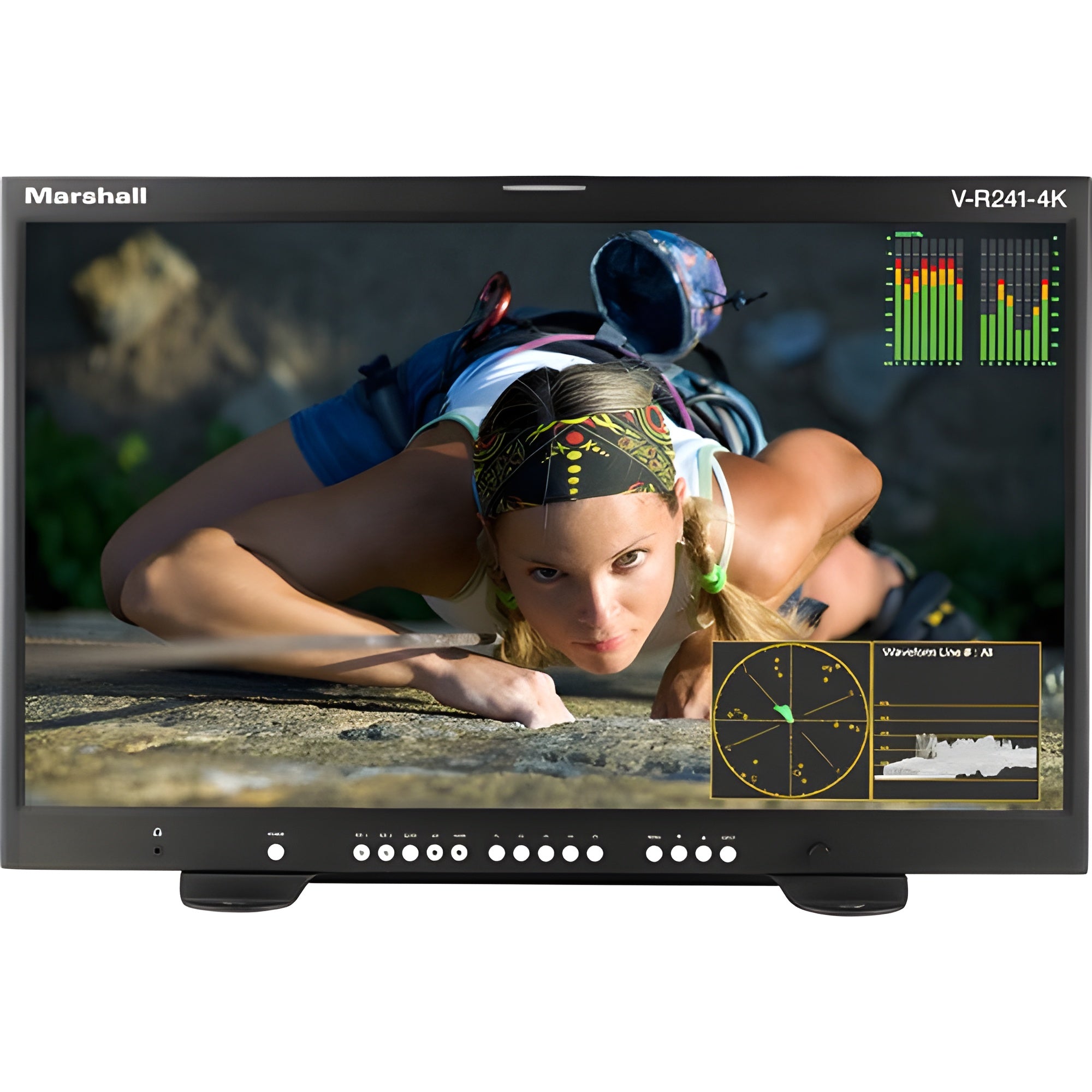

The V-R241-4K 24" UHD 4K 3G-SDI Confidence Monitor from Marshall is a UHD 4K-compatible monitor designed for use as a master confidence monitor for studio, post-production, or remote location use. View both your SDI and HDMI inputs in stunning HDR with support for HLG and SMPTE 2084 HDR. Color space presets include both Rec 709 and DCI P3 Cinema. Use the four SDI inputs for UHD 4K, quad-view, or multiview configurations. Input video via the V-R241-4K's two 12G-SDI, two 3G-SDI, and one HDMI inputs. SDI inputs 1 and 2 support single-cable 12G-SDI UHD 4K, and the HDMI input supports up to UHD 4K signals. Each SDI input has a loop-through output, and IMD/UMD content is input/output via RS-422 ports.

The V-R241-4K offers 350 cd/m² of brightness and a contrast ratio of 1000:1. Monitor features include tally and text display, timecode overlay, and 16-channel audio metering. This confidence monitor's display tools include fully adjustable on-screen markers, a waveform monitor, vectorscope, false color, LED tally lights, embedded LTC or VITC timecode overlay, and a 16-channel audio meter.

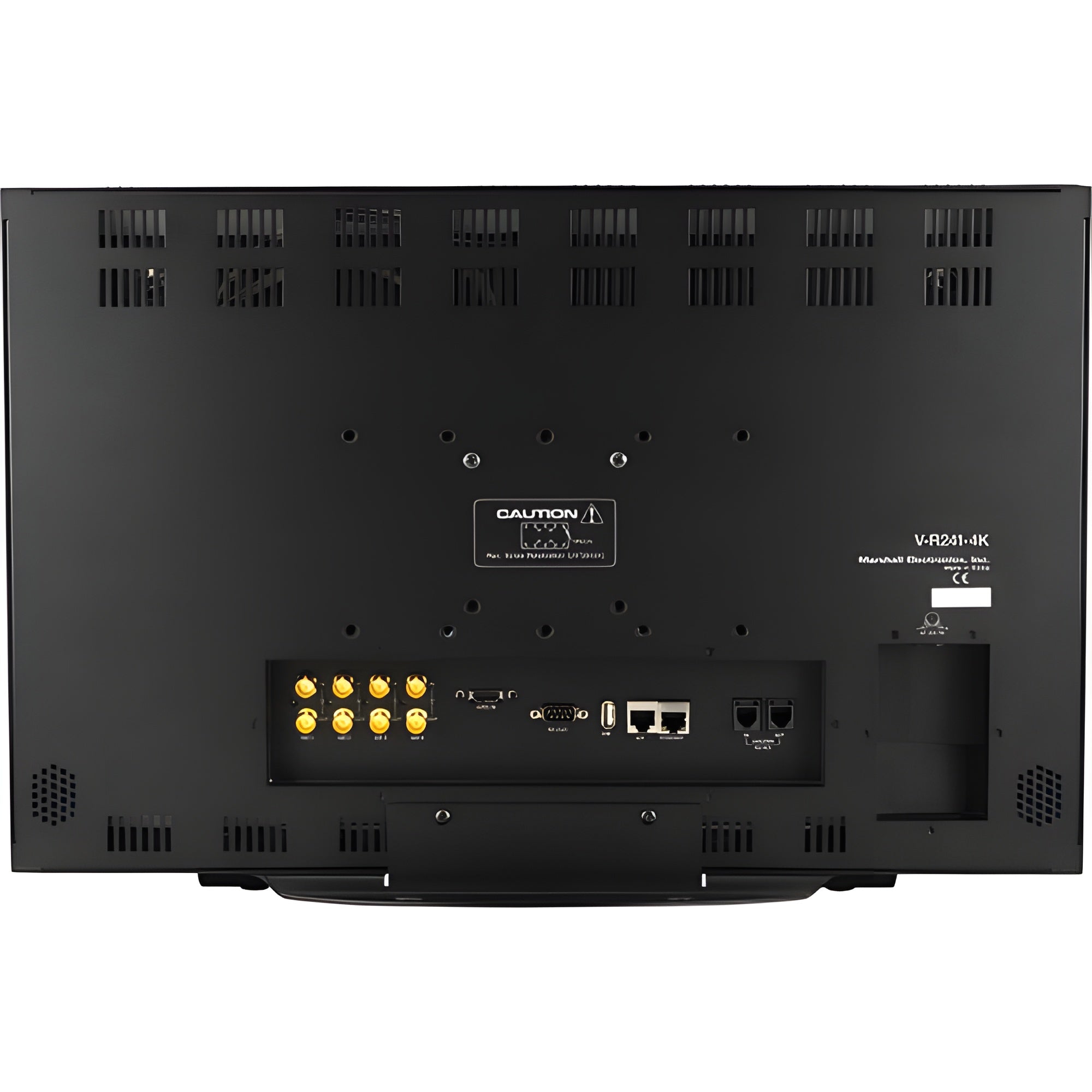

Control options include five user-programmable buttons, five input selection buttons, and remote control via Ethernet, RS-232, and GPI interfaces. The V-R241-4K can be powered using 110 to 240 VAC, or via a 5-pin XLR 24 VDC input. Display options include VESA 100mm mounting points, an included desktop stand, and wall- or rack-mounting using separately available components.

• 24" Display 3840 x 2160, LCD
• Supports HLG & SMPTE 2084 HDR
• Supports up to UHD 4K60 SDI, 2160p HDMI
• 2 x 12G-SDI, 2 x 3G-SDI, 1 x HDMI Input

Features

• 24" monitor with native 3840 x 2160 LCD panel

• Dual 12G-SDI, dual 3G-SDI, and single HDMI inputs; four SDI loop-through outs

• Supports HD/SD-SDI video resolutions up to 3840 x 2160 and HDMI input up to2160p

• Supports HLG and SMPTE 2084 HDR

• Rec 709 and DCI P3 Cinema color gamut presets

• Brightness of 300 cd/m² and contrast ratio of 1000:1

• Adjustable onscreen markers, waveform monitor, vectorscope, false color mapping

• LED tally, embedded LTC or VITC timecode overlay

• Five input-selection buttons and five user-programmable buttons

• Ethernet, RS-232, and GPI interface remote control

• 16 audio meter overlay

• Desktop, wall-mountable, or rack-mountable (with optional kit)

What Our Experts Think

• Stunning 4K UHD Resolution: Delivers crystal-clear image quality with a 3840x2160 resolution, perfect for professional broadcast and production use.
• HDR Support: High Dynamic Range (HDR) ensures enhanced contrast, deeper blacks, and more vibrant colors for accurate image monitoring.
• 3G-SDI & HDMI Connectivity: Supports multiple inputs, including 3G-SDI, HDMI, and DisplayPort, making it highly versatile for various video sources.
• Accurate Color Reproduction: Factory-calibrated for precision color accuracy, crucial for video production, post-production, and live broadcasting.
• Professional Monitoring Features: Includes waveform, vectorscope, peaking, false color, and other essential tools for professional-grade monitoring.
• Durable & Reliable Build: Designed for heavy-duty professional use with a robust chassis, making it ideal for studio and field applications.

Q&A

Q: Does the Marshall V-R241-4K have built-in calibration features?
A: Yes, the monitor includes professional color calibration tools and settings to ensure accurate color representation for post-production and on-set monitoring.

Q: Can the V-R241-4K be rack-mounted?
A: Yes, the 24-inch form factor is designed to be rack-mountable, making it a great choice for studio environments and production control rooms.

Q: What is the viewing angle of the Marshall V-R241-4K?
A: The monitor provides a wide viewing angle of 178° (horizontal and vertical), ensuring consistent color and brightness from different perspectives.

Q: Does the Marshall V-R241-4K support LUTs?
A: Yes, the monitor allows users to apply custom LUTs (Look-Up Tables), which is essential for color grading and maintaining consistent color workflows.

Q: What are the key features of the Marshall V-R241-4K monitor?
A: Key features include UHD 4K resolution, HDR support, multiple 3G-SDI inputs, HDMI 2.0 and DisplayPort connectivity, professional color calibration, wide viewing angles, and rack-mount compatibility.

Maintenance Tips

• Keep the Screen Clean: Use a soft microfiber cloth and a screen-safe cleaner to remove dust and fingerprints without damaging the display.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause screen discoloration and affect performance.
• Ensure Proper Ventilation: Keep air vents clear to prevent overheating and maintain optimal performance.
• Check Cable Connections: Regularly inspect and secure HDMI, SDI, and power cables to ensure stable signal transmission.
• Update Firmware: Check for software updates from Marshall to enhance features and fix potential issues.
• Store in a Safe Environment: When not in use, store the monitor in a dust-free, dry area to prevent damage.
• Use a Surge Protector: Protect the monitor from power surges that could cause internal damage.
