Marshall V-MD72-HDSDIX2 Pre Loaded Monitor with 2 MD-HDSDIx2 Modules - VMD72HDSDIX2

Marshall V-MD72-HDSDIX2 Pre Loaded Monitor with 2 MD-HDSDIx2 Modules - VMD72HDSDIX2

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

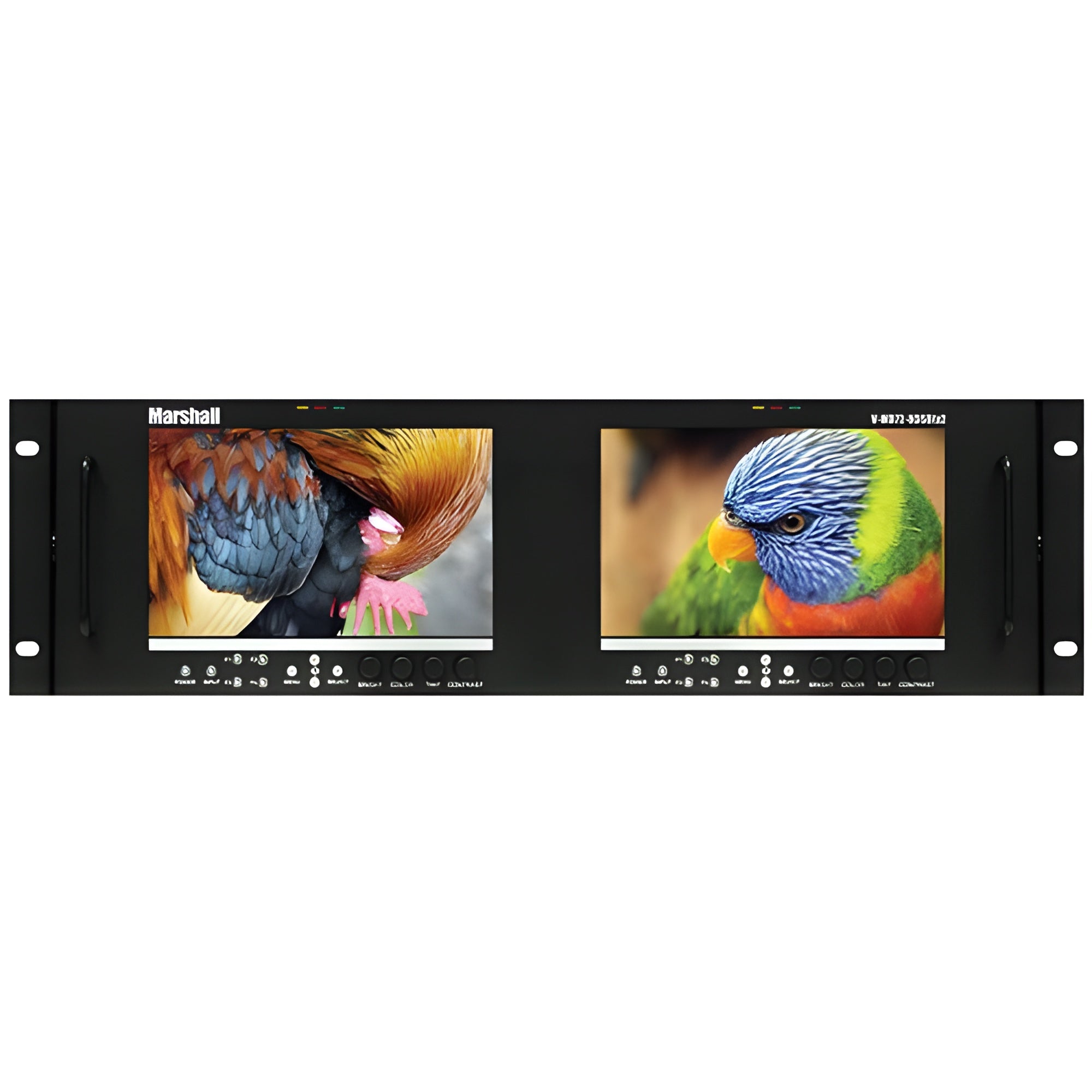

The V-MD72-HDSDIx2 offers two 800 x 480 LED-backlit LCDs in one single configuration, along with excellent viewing angles. The V-MD72-HDSDIx2 feature list includes Status Display, False Color Filter, IMD (In-Monitor Display), Network Control, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, user-definable function buttons, and more. A variety of modules will become available including the availability of 3G-SDI with loop-through, Fiber-Optic input/output modules, and more.

Marshall's MD monitors integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD-SDI transmission input/output modules. These fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.

Features

• Includes 2 MD-HDSDIX2-A Modules
• 2 LED-backlit LCDs
• Resolution - up to 800 x 480
• Brightness - 450 cd/m2

What Our Experts Think

• Dual 7" LCD Displays – Provides high-resolution, side-by-side monitoring for professional video applications.

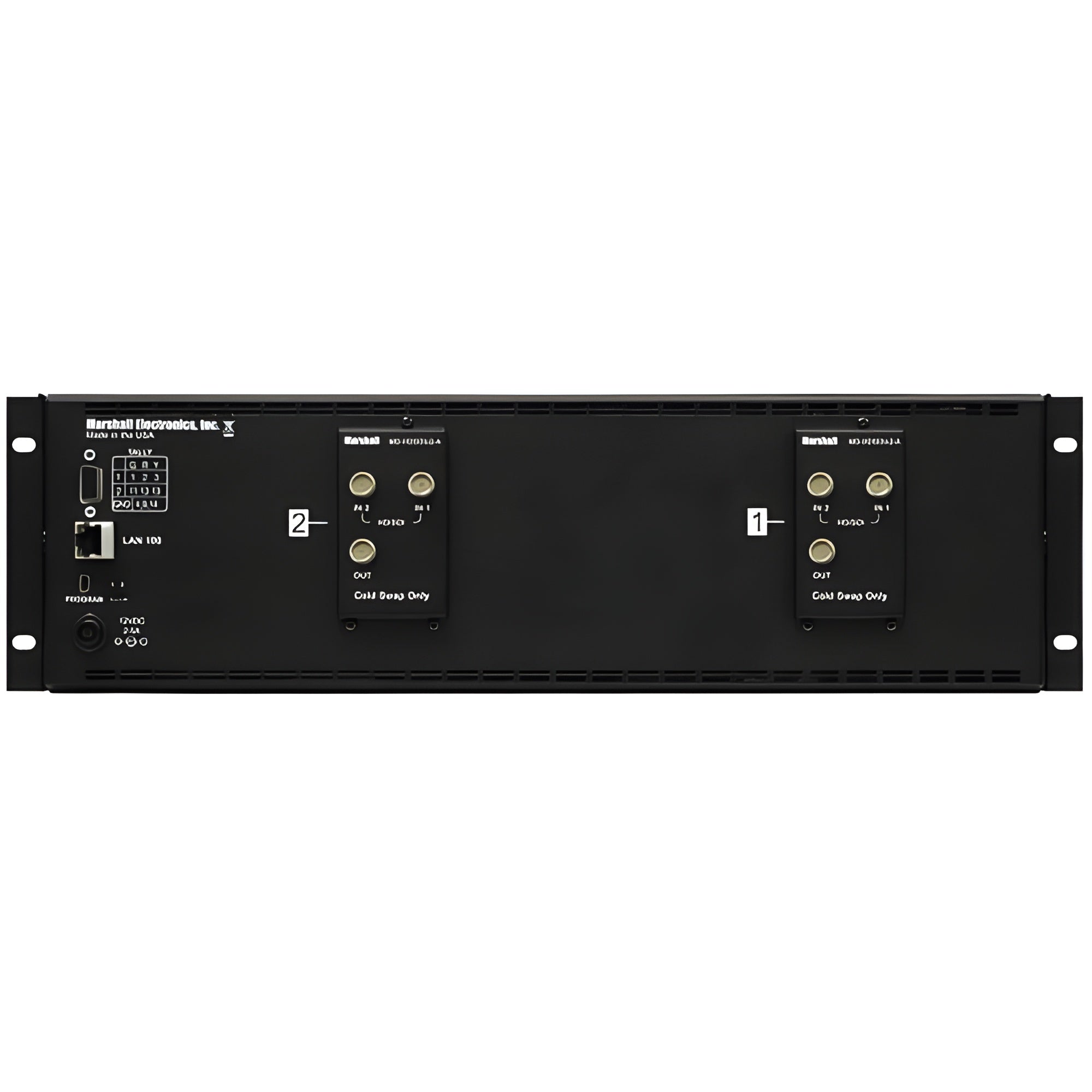

• Pre-Loaded with MD-HDSDIx2 Modules – Includes dual HD-SDI inputs per screen for seamless video monitoring.
• Modular & Expandable – Supports interchangeable input modules, allowing workflow customization.
• Rack-Mountable (3RU) – Designed for standard 19-inch racks, optimizing space in broadcast and production setups.
• Independent Screen Controls – Each display has adjustable brightness, contrast, color, and aspect ratio settings.
• Ideal for Live Production & Post-Production – Perfect for broadcast studios, control rooms, and mobile video operations.

Q&A

Q: What is the Marshall V-MD72-HDSDIX2 Pre-Loaded Monitor?
A: The Marshall V-MD72-HDSDIX2 is a dual 7-inch rack-mounted LCD monitor, pre-loaded with two MD-HDSDIx2 modules, designed for broadcast, production, and multi-camera monitoring.

Q: What is this monitor used for?
A: It is ideal for real-time video monitoring in broadcast control rooms, live productions, and post-production workflows, providing dual-screen functionality for enhanced efficiency.

Q: What connectivity options does it offer?
A: The included MD-HDSDIx2 modules provide HD-SDI inputs, ensuring seamless integration into professional video production setups.

Q: Is this monitor rack-mountable?
A: Yes, it is designed for standard 19-inch rack mounting, making it a compact and efficient solution for professional AV environments.

Maintenance Tips

• Clean the Screens Carefully – Use a microfiber cloth and screen-safe cleaner to remove dust and smudges without damaging the display.
• Ensure Proper Ventilation – Keep air vents unobstructed to prevent overheating and maintain performance.
• Check Cable Connections – Regularly inspect power and HDSDI cables for secure connections and optimal signal quality.
• Adjust Display Settings – Optimize brightness, contrast, and color settings for accurate video monitoring.
• Update Firmware – Install the latest firmware updates to enhance compatibility and functionality.
• Use a Surge Protector – Prevent electrical damage by connecting the monitor to a surge-protected power source.
• Avoid Extreme Conditions – Keep the monitor away from excessive heat, humidity, and direct sunlight to extend its lifespan.
• Handle with Care – Avoid physical impacts or pressure on the screens to prevent damage.
