Marshall QVW-1708-3G Quad View 17 inch native resolution. 4K quad 3GSDI (IMD) - QVW17083G

Marshall QVW-1708-3G Quad View 17 inch native resolution. 4K quad 3GSDI (IMD) - QVW17083G

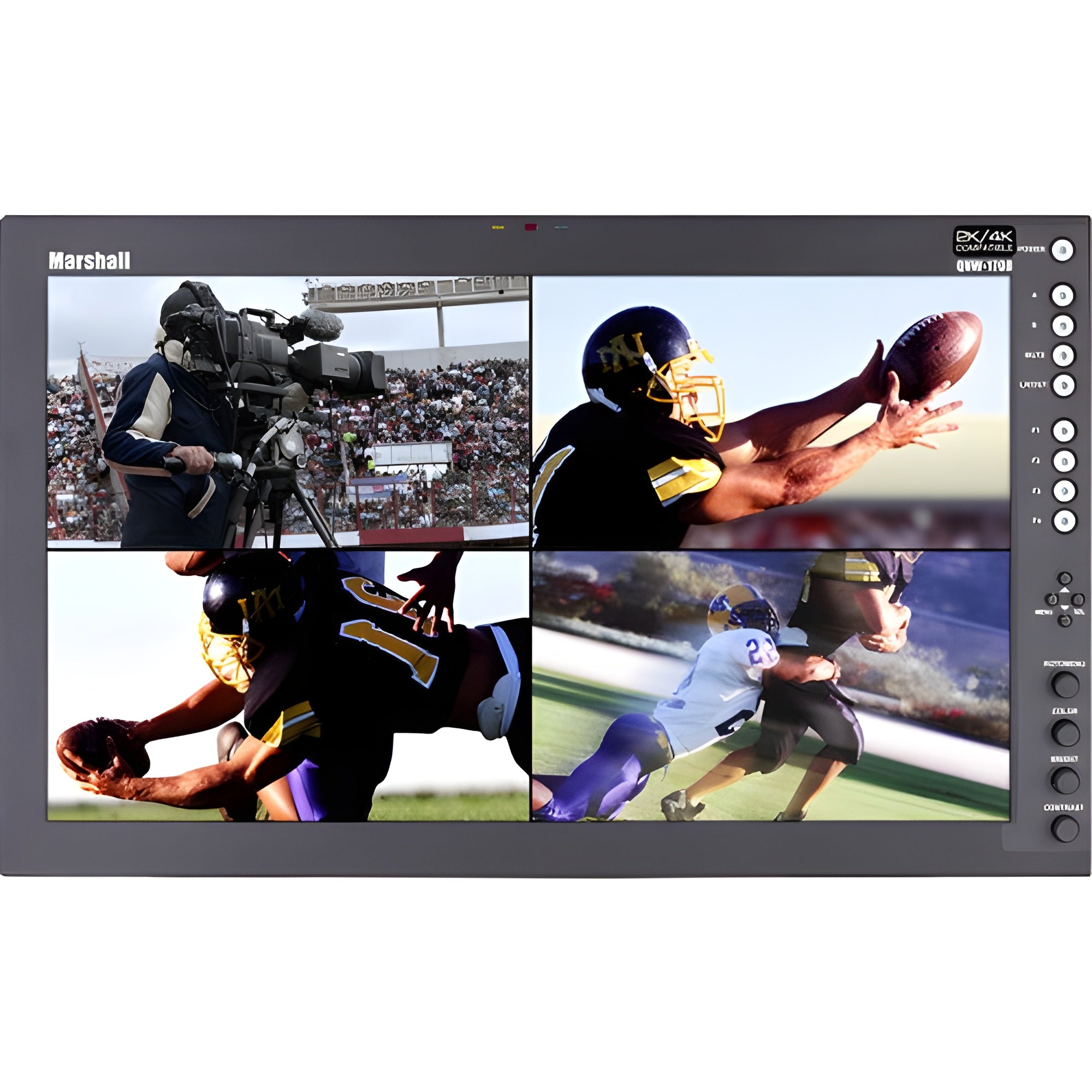

The QVW-1708-3G is part of Marshall Electronics' Quad Viewer series of rack mount monitors which can function as a single display supporting inputs up to 4K or four separate displays in Quad View mode supporting inputs up to 1920 x 1080 in each quadrant.

• Convenient, intuitive front panel controls in addition to control via network

• Quad 3GSDI inputs with active loop-through and auto format detection

The QVW-17083-3G can be mounted in any standard EIA 19-inch equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. A VESA standard 75mm hole pattern also allosws custom mounting installations.

• Native 1920 x 1080 display (16:9)
• Network control via Ethernet

Features

• 1920 x 1080 Native Display (16 x 9)

• Accepts Input Resolutions Up to 4096 x 2160

• IMD - In Monitor Display Functions

• Area Markers

• Hard Tally + Soft Tally

• Network Control via Ethernet

• Presence indicators for TC, CC (608/708), Audio

• Bar Display for Embedded Audio, also Timecode Display

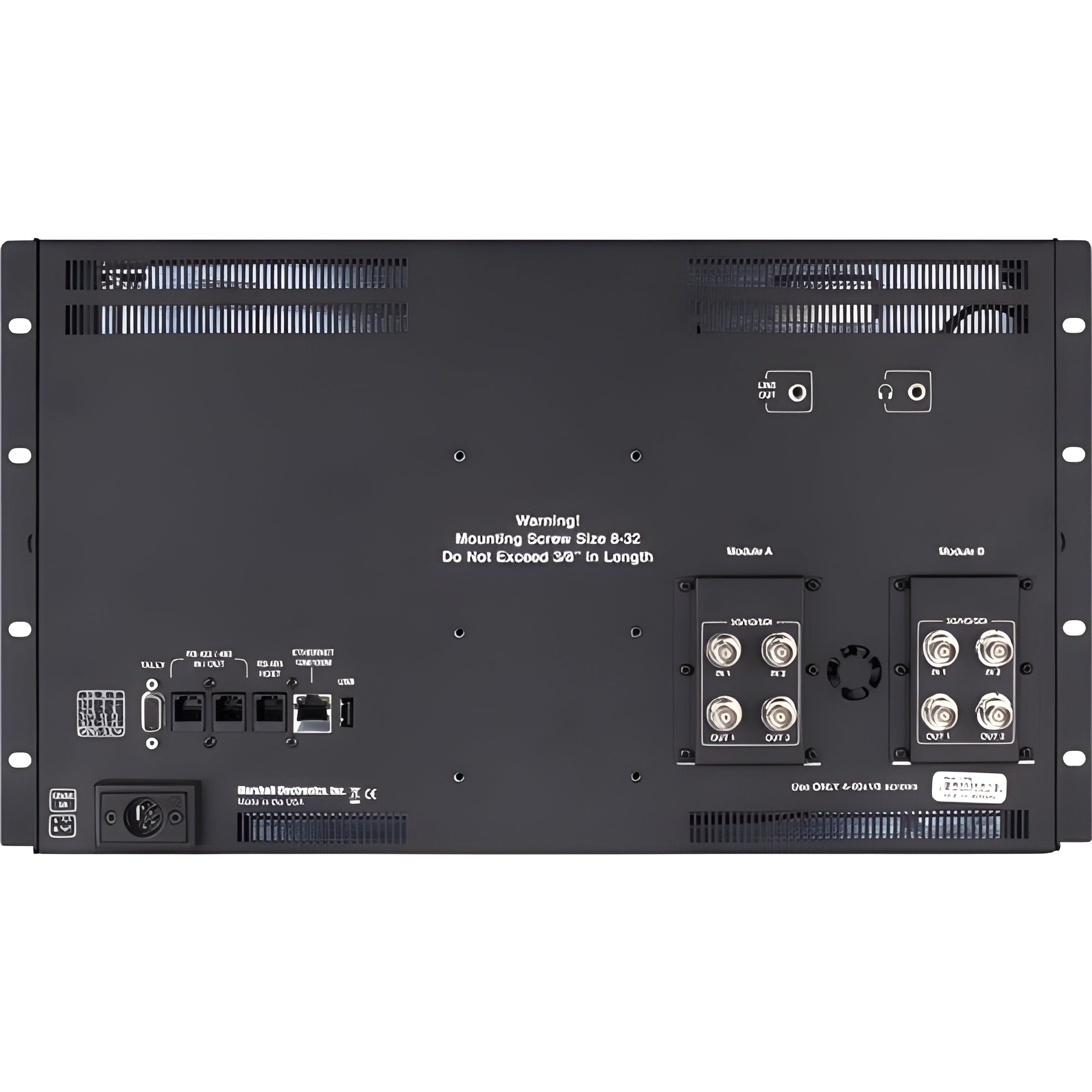

• RS-485 in/out/host ports allow daisy-chaining IMD and display functions

• Pixel-to-Pixel Mode

• Compatible with CalMAN 5 Calibration Technology
• IMD Control via Ethernet or RS-485 serial data

• Status Display Shows True Format / Frame Rate

• Rack Ears Included
• In-field firmware update

What Our Experts Think

• Quad View Monitoring: Displays up to four 3G-SDI video sources simultaneously, ideal for multi-camera setups and live production workflows.
• 17" Native Resolution Screen: Ensures sharp and accurate image representation, perfect for professional video monitoring.
• 3G-SDI & HDMI Inputs: Provides flexible connectivity for broadcast, production, and post-production environments.
• IMD (In-Monitor Display) Support: Allows on-screen tally, timecode, and text overlays, streamlining live production monitoring.
• Essential Monitoring Tools: Features waveform, vectorscope, peaking, and false color to ensure precise color accuracy and exposure.
• Rugged, Professional Build: Designed for durability in control rooms, production studios, and on-set monitoring.

Q&A

Q: Who is this monitor for?
A: Ideal for broadcasters, production studios, and live event monitoring.

Q: Does it support multiple input types?
A: Yes, it supports 3G-SDI, HDMI, and DVI for versatile connectivity.

Q: Is it suitable for field or studio use?
A: Yes, its durable build and high-quality display make it great for both.

Q: What makes it stand out?
A: Its 4K quad-view capability, color precision, and professional-grade durability.

Maintenance Tips

• Regular Cleaning – Use a microfiber cloth and screen-safe cleaner to remove dust and fingerprints. Avoid harsh chemicals.
• Proper Ventilation – Ensure adequate airflow around the monitor to prevent overheating.
• Secure Connections – Regularly check and tighten SDI and power cables to maintain stable performance.
• Firmware Updates – Keep the firmware updated for optimal functionality and new features.
• Safe Storage – Store in a dry, cool place when not in use to prevent moisture damage.
• Avoid Prolonged Static Images – Prevent burn-in by using screen savers or varying content regularly.
• Power Surge Protection – Use a surge protector to prevent damage from voltage fluctuations.
