Marshall OR-841-HDSDI Full Featured Single 8.4" Field / Camera Top Monitor with HDSDI/SDI inputs only - OR841HDSDI

Marshall OR-841-HDSDI Full Featured Single 8.4" Field / Camera Top Monitor with HDSDI/SDI inputs only - OR841HDSDI

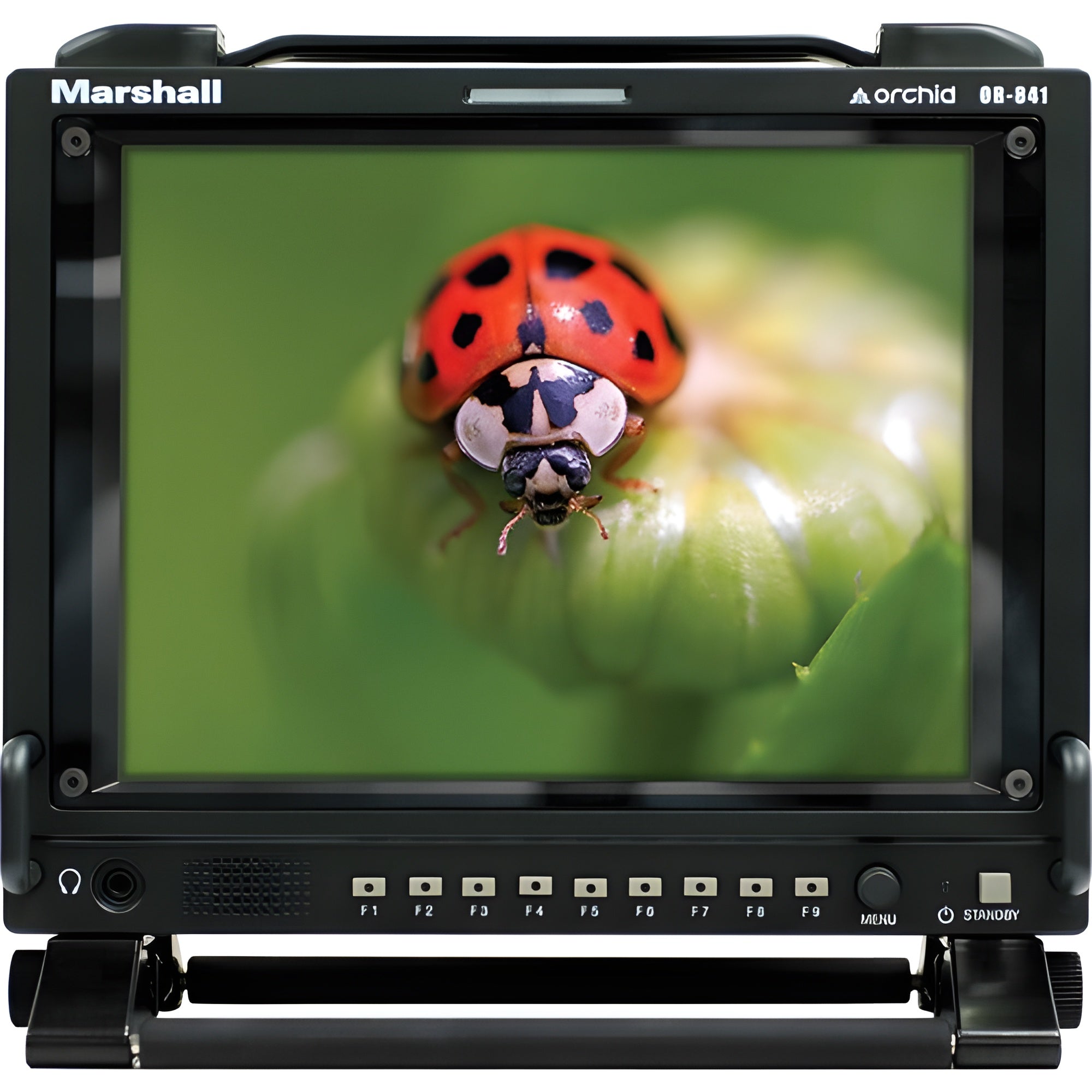

The OR-841-HDSDI 8.4" ORCHID® rack mountable / portable field monitor has all the features that customers have asked for and more. The OR-841-HDSDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system.

The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x.

The OR-841-HDSDI will also de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring.

The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-841-HDSDI comes standard with auto-sensing HD-SDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera.

• 1024 x 768 Resolution
• 400 cd/m²
• 500:1 Contrast Ratio
• HD-SDI

Features

• Real-Time Waveform Monitor

• Real-Time Color Vectorscope

• Auto White Balance Calibration

• Sixteen 64-segment Tri-color Audio Meters

• Tri-Color Tally Indicator

• On-Screen Time Code

• 7 assignable GPI inputs

• Adjustable Color Temperature

• Auto-Sensing Front Panel Headphone Jack

• Auto-Sensing Rear Unbalanced Stereo Output

• Adjustable Clipping Indicator

• Precision Gamma Settings
• Adjustable Color Temperature

• Variety of Safety Markers

• HD-SDI / SDI Inputs and Output

• Supports 3 different Battery Adapters

• Factory-installed Protective Screen

• Automatic Color Calibration with ORCHID Color Probe

• Adjustable / Detachable Stand with top handle

What Our Experts Think

• 8.4" High-Resolution Display: Compact yet sharp screen ideal for on-camera and field monitoring.
• HDSDI/SDI Inputs: Professional-grade connectivity for broadcast and production workflows.
• Full-Featured Monitoring Tools: Includes waveform, vectorscope, peaking, and false color for precise image analysis.
• Durable & Portable Design: Built for rugged field use with a lightweight, sturdy construction.
• Tally Support: On-screen tally indicators assist in multi-camera live productions.
• Accurate Color Reproduction: Ensures reliable color accuracy for professional video assessment.

Q&A

Q: What is the Marshall OR-841-HDSDI?
A: A professional 8.4" field/camera-top monitor with HD-SDI/SDI inputs for high-quality on-set monitoring.

Q: Who is this monitor for?
A: Ideal for cinematographers, broadcast professionals, and field production crews.

Q: What video inputs does it support?
A: It features HD-SDI and SDI inputs only for reliable signal transmission.

Q: Is it suitable for outdoor use?
A: Yes, it has a rugged design for field use with high visibility in various lighting conditions.

Q: What makes it stand out?
A: Compact size, SDI compatibility, and professional-grade monitoring features.

Maintenance Tips

• Screen Care – Use a microfiber cloth and screen-safe cleaner to remove dust and smudges.
• Secure Connections – Regularly check SDI cables and power connections for stability.
• Firmware Updates – Keep firmware up to date for improved functionality and compatibility.
• Proper Ventilation – Ensure adequate airflow to prevent overheating during extended use.
• Avoid Direct Sunlight – Protect the screen from prolonged exposure to prevent overheating and discoloration.
• Use a Protective Case – When transporting, store in a padded case to prevent damage.
• Power Surge Protection – Use a surge protector to safeguard against voltage fluctuations.
