Marshall OR-701A Single 7" Full Featured 3RU Rack Mount Monitor with Audio Speakers - OR701A

Marshall OR-701A Single 7" Full Featured 3RU Rack Mount Monitor with Audio Speakers - OR701A

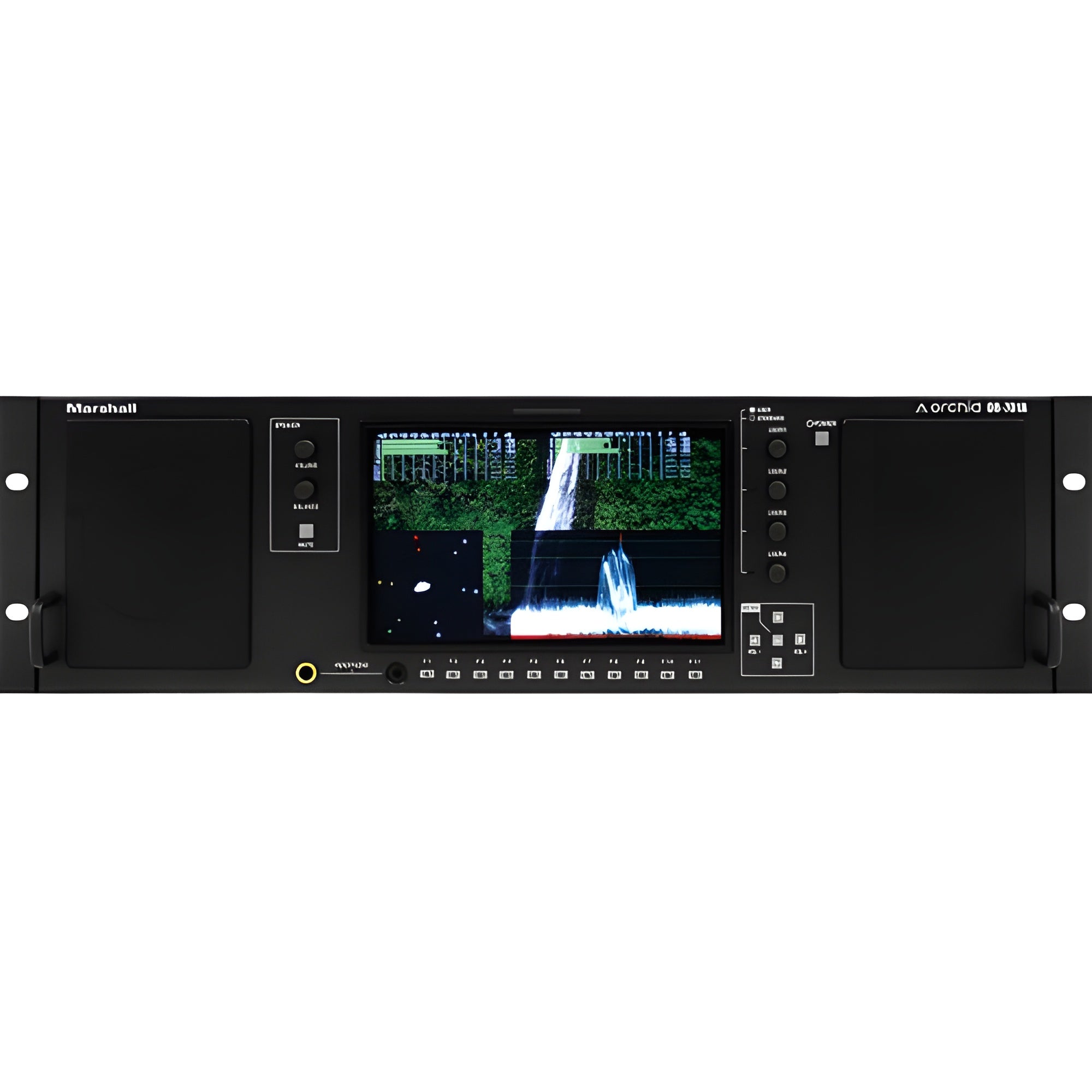

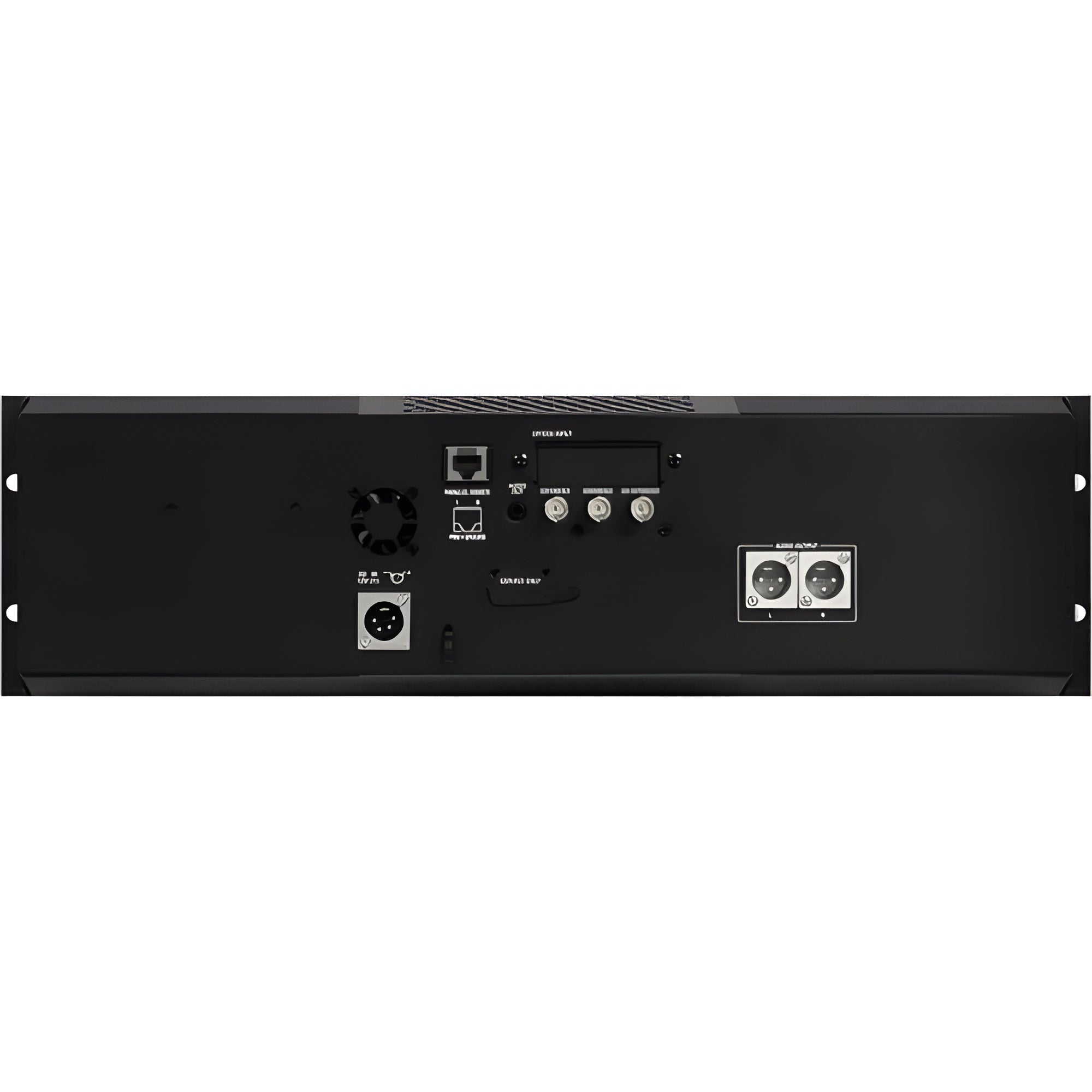

The OR-701A takes the same multi-function waveform and Vectorscope features found in Marshall's OR-702 and adds full range audio speakers and a new vertical audio bar layout for real-time audio monitoring. Any two of the sixteen audio channels being de-embedded from the HD-SDI source may be monitored through the built-in full range speakers. The same audio is available from balanced XLR outputs on the rear panel, along with the two front panel headphone jacks (3.5mm and 1/4'). Each audio output has its own level control. The front panel speakers have Volume, Balance and Mute controls that operate separately from the rear panel line and front panel headphone outputs.

The OR-701A is 3RU and has 11 user-assignable function keys as well as 4 user-assignable rotary encoders. This unit also utilizes a 5 button menu system. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen.

The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x. All screens are color matched at the factory and can be auto-adjusted in the field using an optional color probe system. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-701A comes standard with auto-sensing HD-SDI inputs, re-clocked output, and an open modular slot for additional input options.

• 800 x 480
• 16-channel Vertical Audio Bar
• Stereo Speakers
• 350 cd/m² Brightness

Features

• Full Range Stereo Speakers

• Real-Time Waveform Monitor

• Real-Time Color Vectorscope

• Sixteen 64-segment Tri-color Audio Meters

• Tri-Color Tally Indicator

• On-Screen Time Code

• 7 assignable GPI Inputs

• Adjustable Color Temperature

• Optional Input Modules

• Front Panel Headphone Jacks

• Rear Balanced +4 Stereo Outputs

• Adjustable Clipping Indicator

• Precision Gamma Settings

• Adjustable Color Temperature

• Variety of Safety Markers

• HD-SDI / SDI Inputs and Outputs

• Automatic Color Calibration with ORCHID Color Probe

What Our Experts Think

• 7" High-Resolution Display: Compact and sharp screen for professional monitoring in rack-mounted setups.
• 3RU Rack Mount Design: Ideal for broadcast studios, control rooms, and mobile production units.
• Built-In Audio Speakers: Enables real-time audio monitoring alongside video.
• Multiple Video Inputs: Supports a range of input formats for versatile connectivity.
• Waveform & Vectorscope Monitoring: Ensures precise color and exposure accuracy.
• Durable & Professional Build: Designed for long-term, reliable use in demanding environments.

Q&A

Q: What is the Marshall OR-701A?
A: A 7" full-featured rack-mount monitor with built-in audio speakers, designed for professional broadcast and production use.

Q: Who is this monitor for?
A: Ideal for broadcast control rooms, live production setups, and studio environments.

Q: What inputs does it support?
A: It features multiple video inputs for flexible signal compatibility.

Q: Does it have built-in audio?
A: Yes, it includes integrated speakers for audio monitoring.

Q: Is it rack-mountable?
A: Yes, it is designed for a 3RU rack configuration.

Q: What makes it stand out?
A: Compact size, high-quality display, built-in speakers, and professional-grade durability.

Maintenance Tips

• Screen Cleaning – Use a microfiber cloth and screen-safe cleaner to remove dust and smudges.
• Check Connections – Ensure SDI, HDMI, and power cables are secure for stable performance.
• Firmware Updates – Regularly update firmware for improved functionality and compatibility.
• Proper Ventilation – Maintain airflow in the rack setup to prevent overheating.
• Speaker Maintenance – Avoid maxing out volume to prevent distortion and speaker damage.
• Power Surge Protection – Use a surge protector to safeguard against voltage fluctuations.
• Rack Stability – Securely mount the monitor in a stable rack to prevent vibrations or movement.
