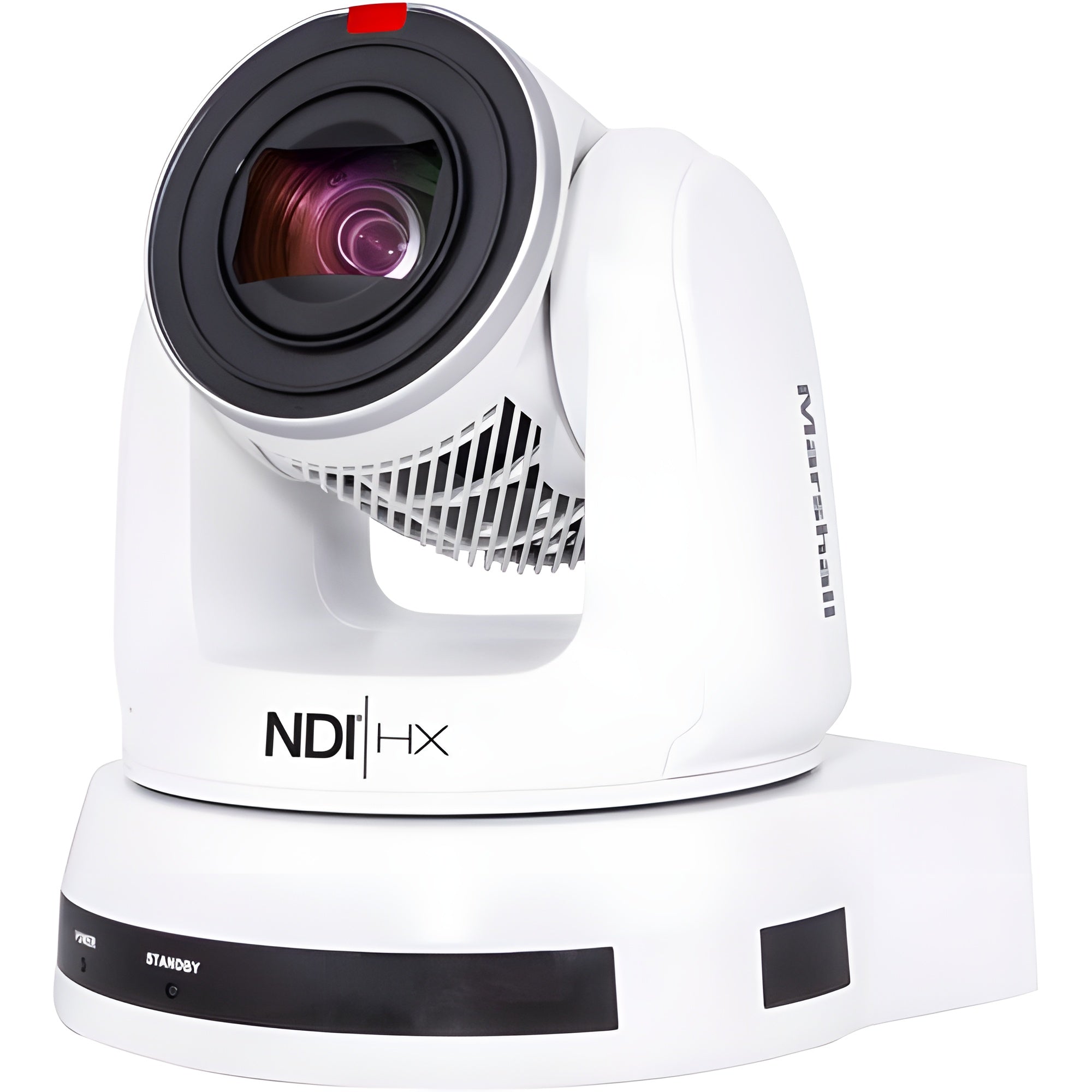

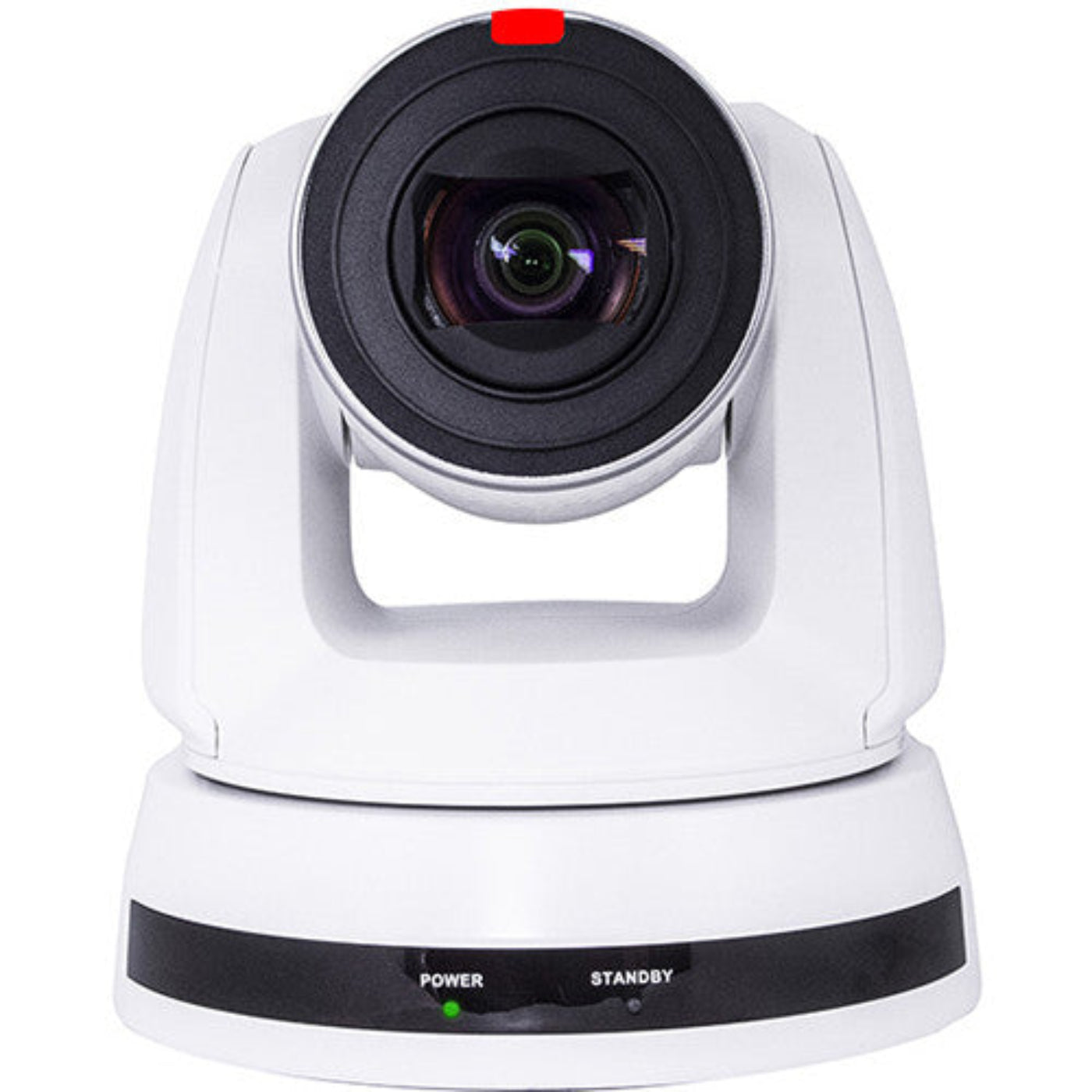

Marshall CV630-IPW 30X IP PTZ UHD Camera (White) - CV630IPW

Marshall CV630-IPW 30X IP PTZ UHD Camera (White) - CV630IPW

High Performance Video Output

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.

Applications

The CV630-IP is suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications

Features

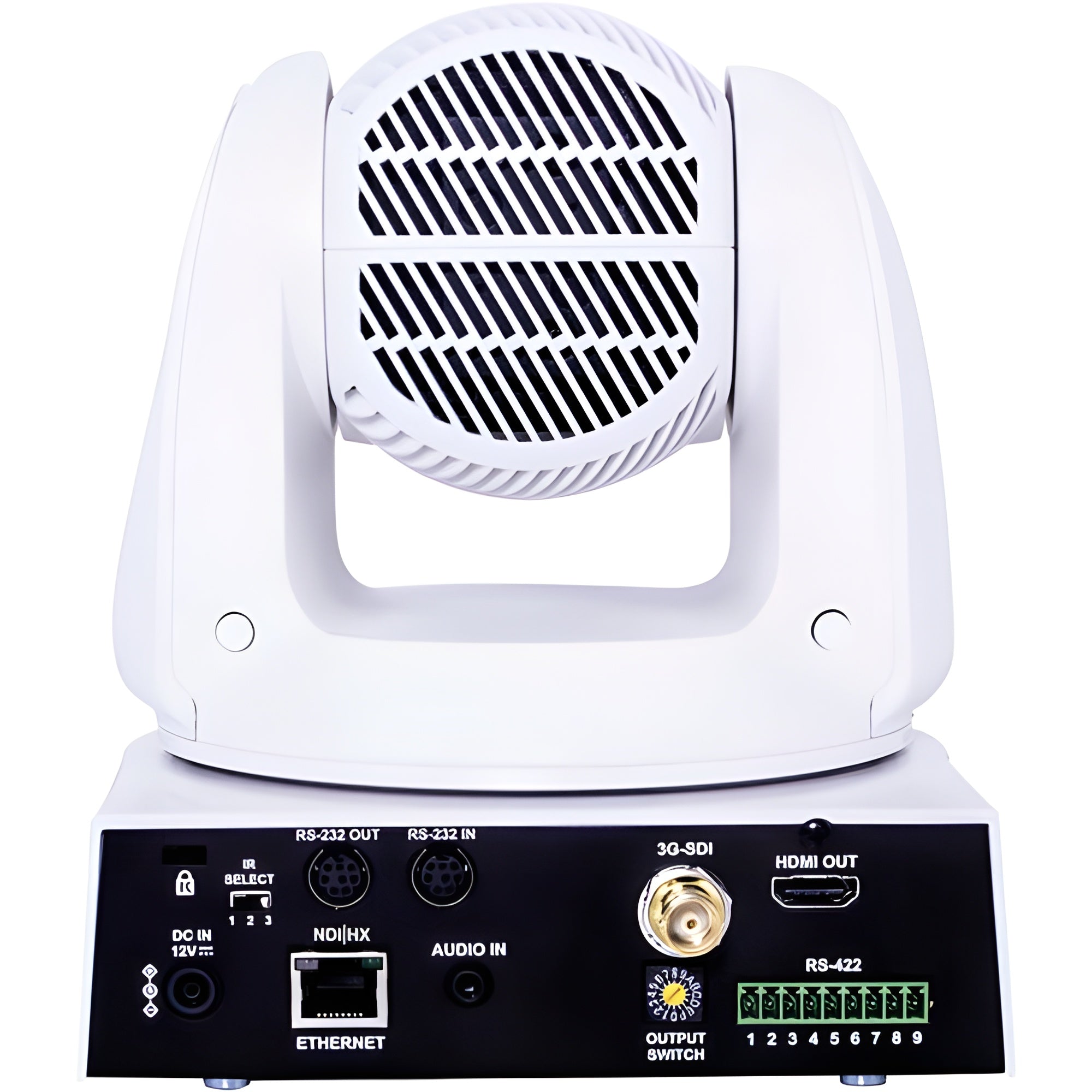

• Ethernet, 3G/HD-SDI, and HDMI Outputs

• 30x Optical Zoom

• 8MP 1/2.5" Sensor

• Up to UHD 4K Resolution

• 8MP 1/2.5" sensor

• 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest

• 3GSDI, HDMI, and IP simultaneous outputs

• Simultaneous pan, tilt, and zoom

• H.265 (HEVC) and H.264 (triple-stream) networked outputs

• RTSP / RTMP / MPEG-TS / Haivision SRT

• 3840x2160p, 1920x1080p, and 1280x720p

• Stereo audio input (mic or line level) embedding

• PoE+ (IEEE802.3at), video, and control over a single Ethernet cable

• 340° pan, 120° tilt, and 30X zoom range

• Front tally light

What Our Experts Think

• Ultra HD 4K Resolution – Captures 4K UHD (3840x2160) at 30fps and 1080p Full HD at 60fps for crystal-clear video.
• 30x Optical Zoom – Provides detailed close-ups with smooth zoom functionality, perfect for large spaces.
• IP, 3G-SDI & HDMI Outputs – Supports multiple connection options for seamless workflow integration.
• Low-Latency IP Streaming – Enables high-quality video transmission over networks, ideal for remote production and live streaming.
• Smooth PTZ Control – Offers precise pan, tilt, and zoom adjustments for professional-grade operation.
• Excellent Low-Light Performance – Features advanced noise reduction and HDR for superior image quality in various lighting conditions.
• Ideal for Professional Applications – Perfect for broadcast, corporate events, education, houses of worship, and live productions.

Q&A

Q: What is the Marshall CV630-IPW 30X IP PTZ UHD Camera?
A: The Marshall CV630-IPW is a professional UHD 4K PTZ camera with 30x optical zoom, featuring IP, 3G-SDI, and HDMI outputs, designed for broadcast, live streaming, conferencing, and video production.

Q: What is this camera used for?
A: It is ideal for broadcast studios, live events, corporate meetings, houses of worship, and remote learning, offering smooth pan, tilt, and zoom functionality for high-quality video capture.

Q: What resolution does this camera support?
A: The CV630-IPW captures UHD 4K at 30fps and Full HD 1080p at up to 60fps, delivering sharp and detailed video output.

Q: What are the connectivity options?
A: This camera supports IP streaming, along with 3G-SDI and HDMI outputs, making it highly versatile for professional setups.

Q: Can this camera be controlled remotely?
A: Yes, it supports remote control via IP, RS-232, and RS-422, allowing seamless integration into various production workflows.

Maintenance Tips

• Clean the Lens Carefully – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges for optimal image clarity.
• Ensure Proper Ventilation – Keep air vents unobstructed to prevent overheating and maintain performance.
• Check Cable Connections – Regularly inspect power, Ethernet (IP streaming), HDMI, and 3G-SDI cables for secure connections and stable signals.
• Update Firmware – Install the latest firmware updates to enhance functionality, security, and compatibility.
• Protect Against Power Surges – Use a surge protector or uninterruptible power supply (UPS) to prevent electrical damage.
• Avoid Extreme Conditions – Keep the camera away from excessive heat, humidity, and direct sunlight for longevity.
• Test PTZ Functions – Periodically check pan, tilt, and zoom movements to ensure smooth and accurate operation.
