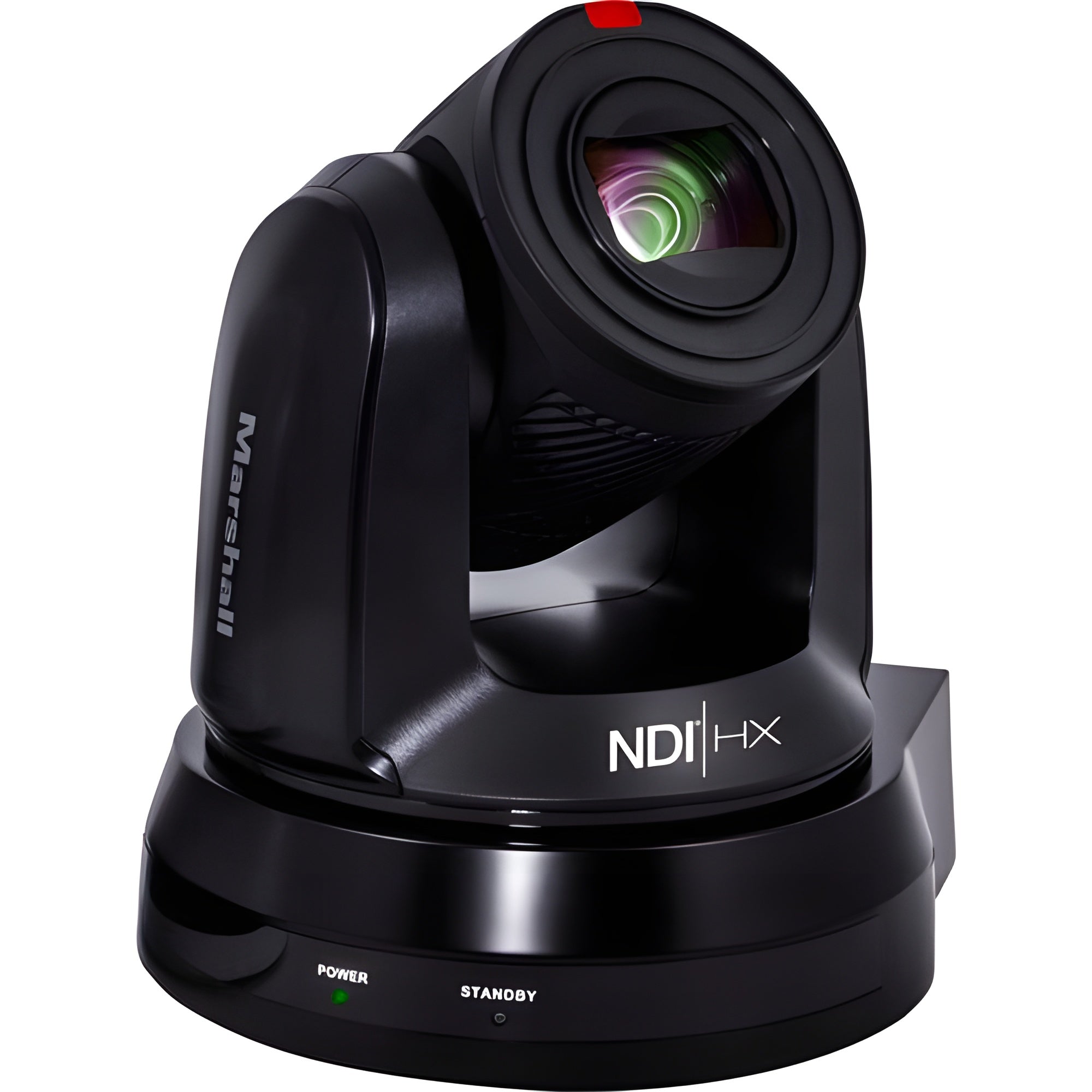

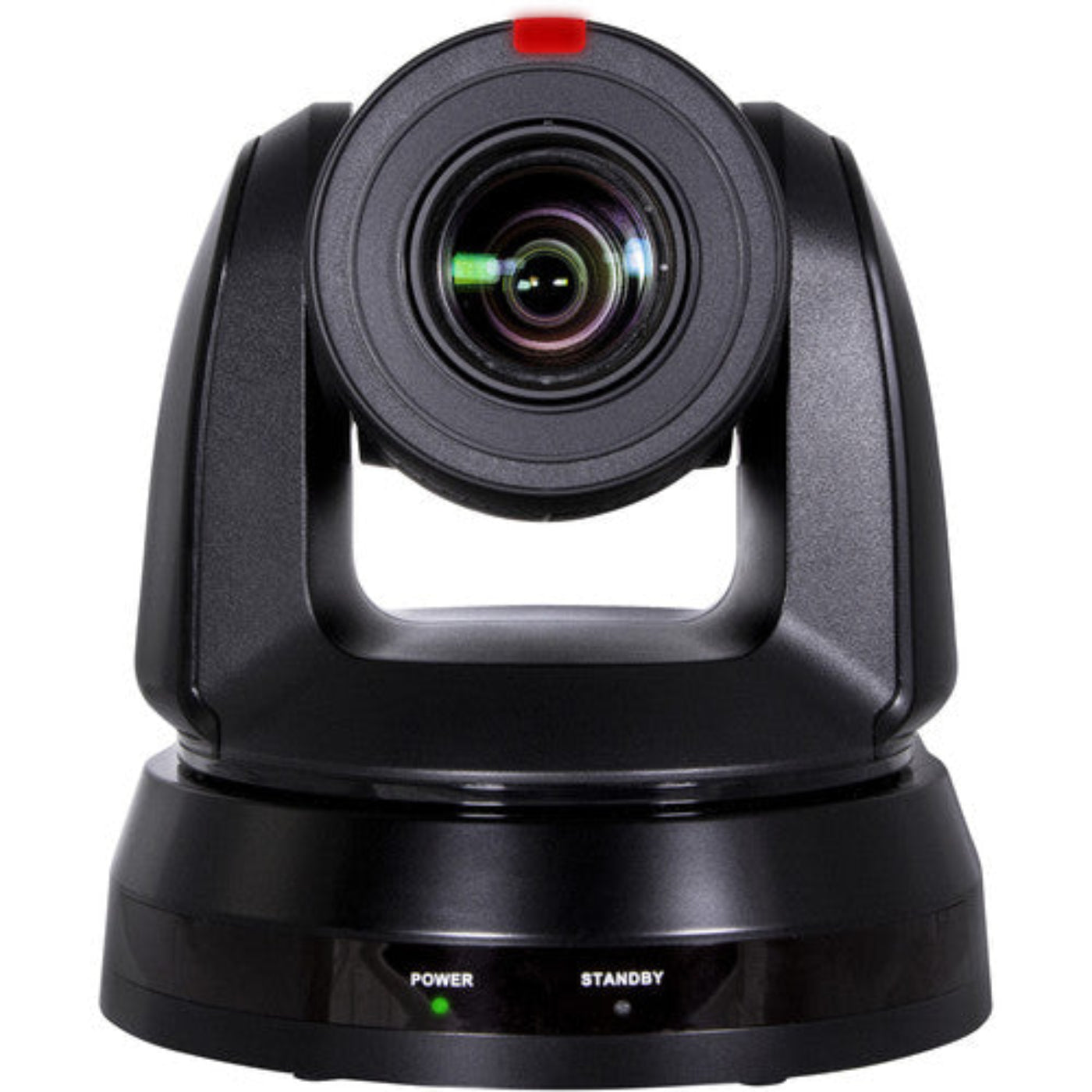

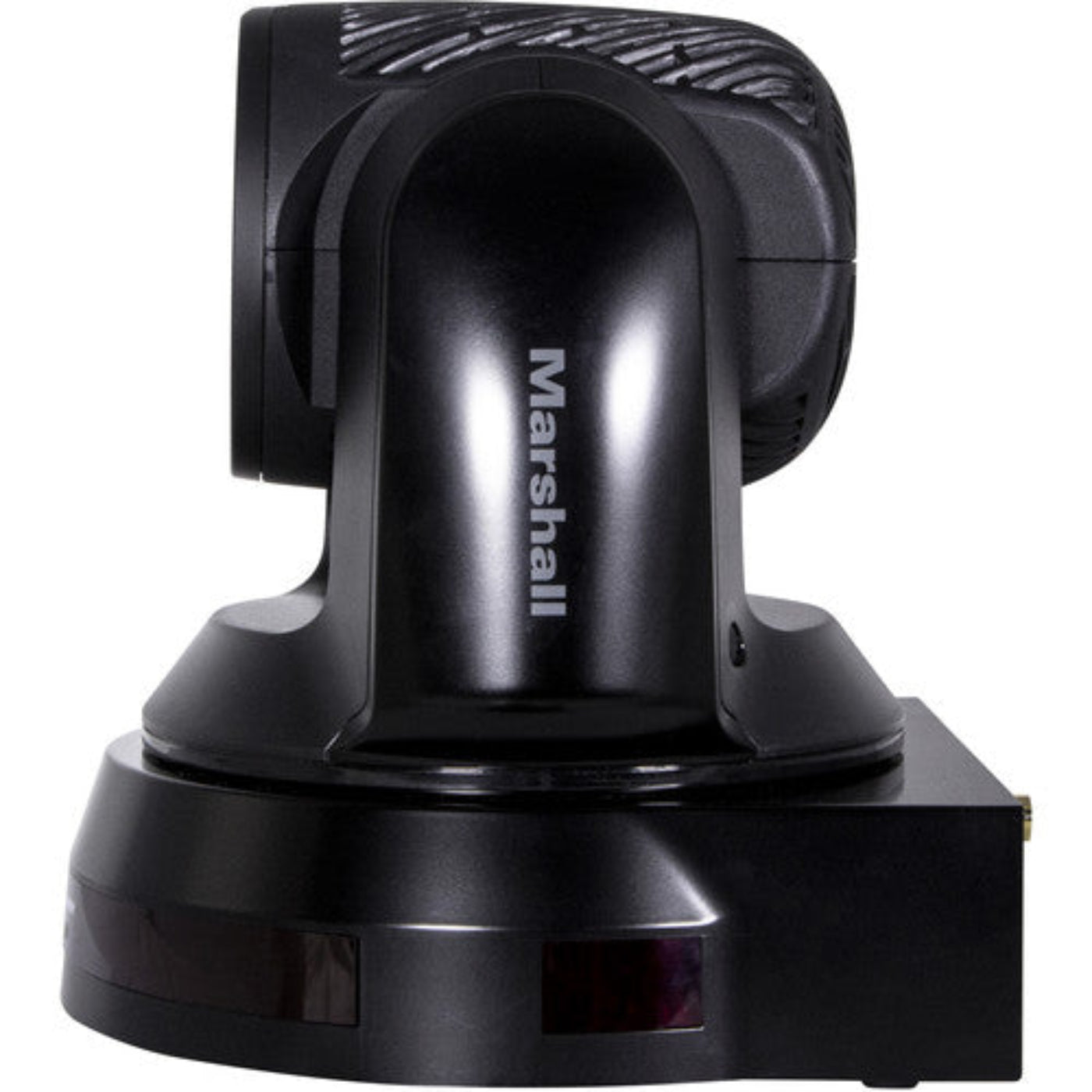

Marshall CV630-IP 30X IP PTZ UHD Camera (Black) - CV630IP

Marshall CV630-IP 30X IP PTZ UHD Camera (Black) - CV630IP

High Performance Video Output

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.

Applications

The CV630-IP is suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications

Features

• Up to UHD 4K Resolution

• 8MP 1/2.5" Sensor

• 30x Optical Zoom

• Ethernet, 3G/HD-SDI, and HDMI Outputs

• 8MP 1/2.5" sensor

• 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest

• 3GSDI, HDMI, and IP simultaneous outputs

• Simultaneous pan, tilt, and zoom

• H.265 (HEVC) and H.264 (triple-stream) networked outputs

• RTSP / RTMP / MPEG-TS / Haivision SRT

• 3840x2160p, 1920x1080p, and 1280x720p

• Stereo audio input (mic or line level) embedding

• PoE+ (IEEE802.3at), video, and control over a single Ethernet cable

• 340° pan, 120° tilt, and 30X zoom range

• Front tally light

What Our Experts Think

• UHD 4K Resolution: Captures stunningly detailed video with 4K resolution, ensuring high-quality footage for professional productions.
• 30x Optical Zoom: Provides exceptional zoom capabilities without sacrificing image quality, perfect for live events and broadcasts.
• IP Connectivity: Supports IP streaming and remote control, enabling easy integration into modern networked production environments.
• Precise PTZ Control: Offers smooth and accurate pan, tilt, and zoom movements, ideal for dynamic shooting and real-time adjustments.
• Multiple Video Outputs: Features 3G-SDI, HDMI, and IP outputs for versatile connectivity options to suit various broadcast and streaming systems.
• Sleek Black Design: A professional, discreet design that blends seamlessly into any production setup.

Q&A

Q: What is the Marshall CV630-IP?
A: A UHD 4K PTZ camera with a 30x optical zoom and IP streaming capabilities, designed for professional video production.

Q: Who is this camera for?
A: Ideal for broadcasters, live streamers, event producers, corporate settings, and houses of worship needing high-quality video capture with remote control.

Q: What video outputs does it support?
A: It supports IP streaming for flexible and efficient video distribution over networks.

Q: What resolution does it offer?
A: Provides stunning UHD 4K resolution, capturing high-quality video for professional use.

Q: Can it be controlled remotely?
A: Yes, the camera can be remotely controlled via IP, RS-232, and RS-422 for precise pan, tilt, and zoom adjustments.

Q: What makes it stand out?
A: Its powerful 30x optical zoom, UHD 4K resolution, and IP streaming functionality, making it ideal for live events and broadcast productions.

Maintenance Tips

• Lens Cleaning – Use a microfiber cloth and lens-safe cleaner to keep the lens free from dust and smudges.
• Firmware Updates – Regularly check for and install firmware updates to ensure optimal functionality.
• Secure Connections – Double-check all cables (IP, power, SDI, HDMI) to prevent loose connections and signal loss.
• Proper Ventilation – Place the camera in a well-ventilated area to ensure cooling and prevent overheating.
• Handle with Care – Mount securely and avoid any sudden impacts that could damage internal components.
• Surge Protection – Protect the camera from power surges by using a surge protector.
• Test PTZ Functions – Periodically test the pan, tilt, and zoom features to ensure smooth operation.
