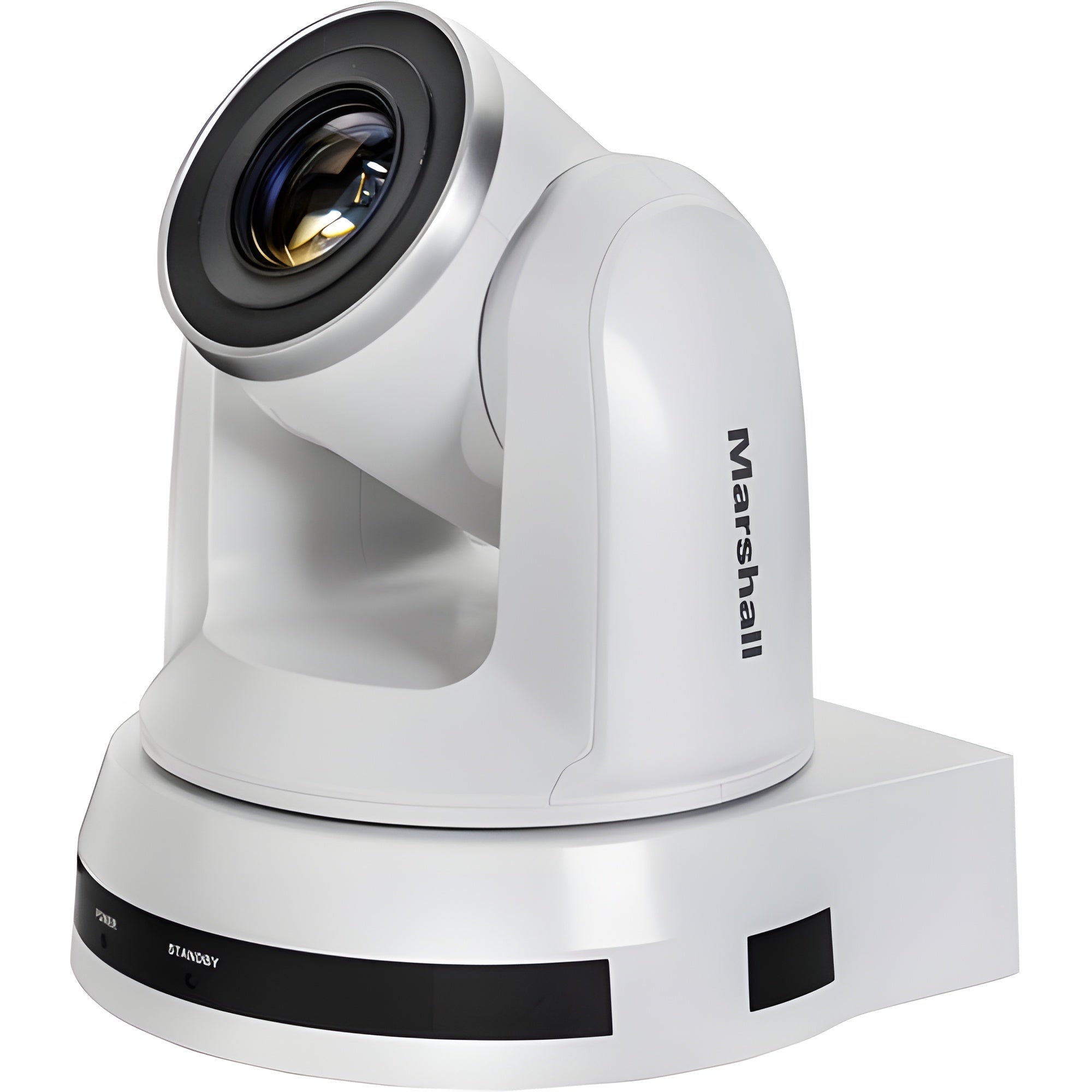

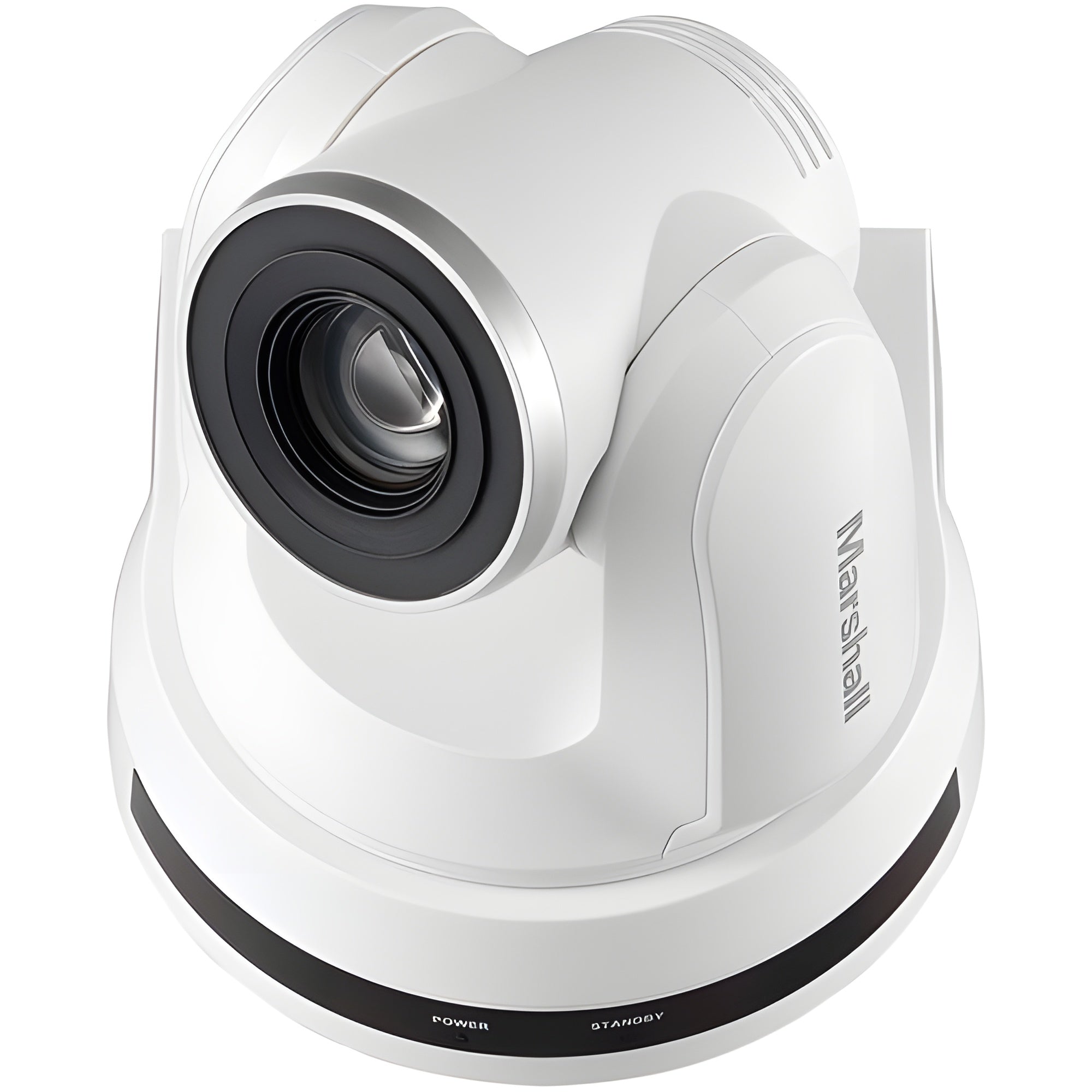

Marshall Electronics Broadcast ProAV PTZ Camera is built around a professional grade 2 Megapixel 1/2.8-inch sensor with a smooth 20x Optical Zoom (4.7~94mm) block. Versatile outputs such as 3G/HD-SDI, HDMI Type-A, and IP (H.264) which allows for one Ethernet cable to contain compressed H.264 Video, PoE (48V) and IP Control. Remote operation and control via VMS (Video Management Software), Web Browser GUI, or RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use. Applications served would include Remote Confidence Monitoring, Corporate, Broadcast, Education, Worship, Healthcare, Medical, Government, Courtroom, Entertainment, Music and a variety of Broadcast ProAV studio workflows using IP, 3G/HD-SDI, or HDMI.

Features

• RS422/RS232 Remote Control Interface

• 20x optical zoom

• 1080p, 1080i, and 720p modes

• 1/2.8" sensor captures clear images

• 2 Megapixel 1/2.8-inch Sensor

• Full-HD: 1920x1080i, 1920x1080p, 1280x720p

• High Speed: 60, 59.94, 50, 30, 29.97, 25 fps

• 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital

• Wide Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt

• Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor allows for quality transitions

• TRS Audio Line/Mic level select (2.5V to mic)

• IP (H.264), 3G/HD-SDI and HDMI simultaneous outputs

• RS422/RS232 Remote Control Interface at High Comm Speeds

• Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.

• Compatible with integrated video conferencing systems

• (1) Ethernet (Cat) connection allows for H.264 video, PoE+ (power), and Control over one Cat cable.

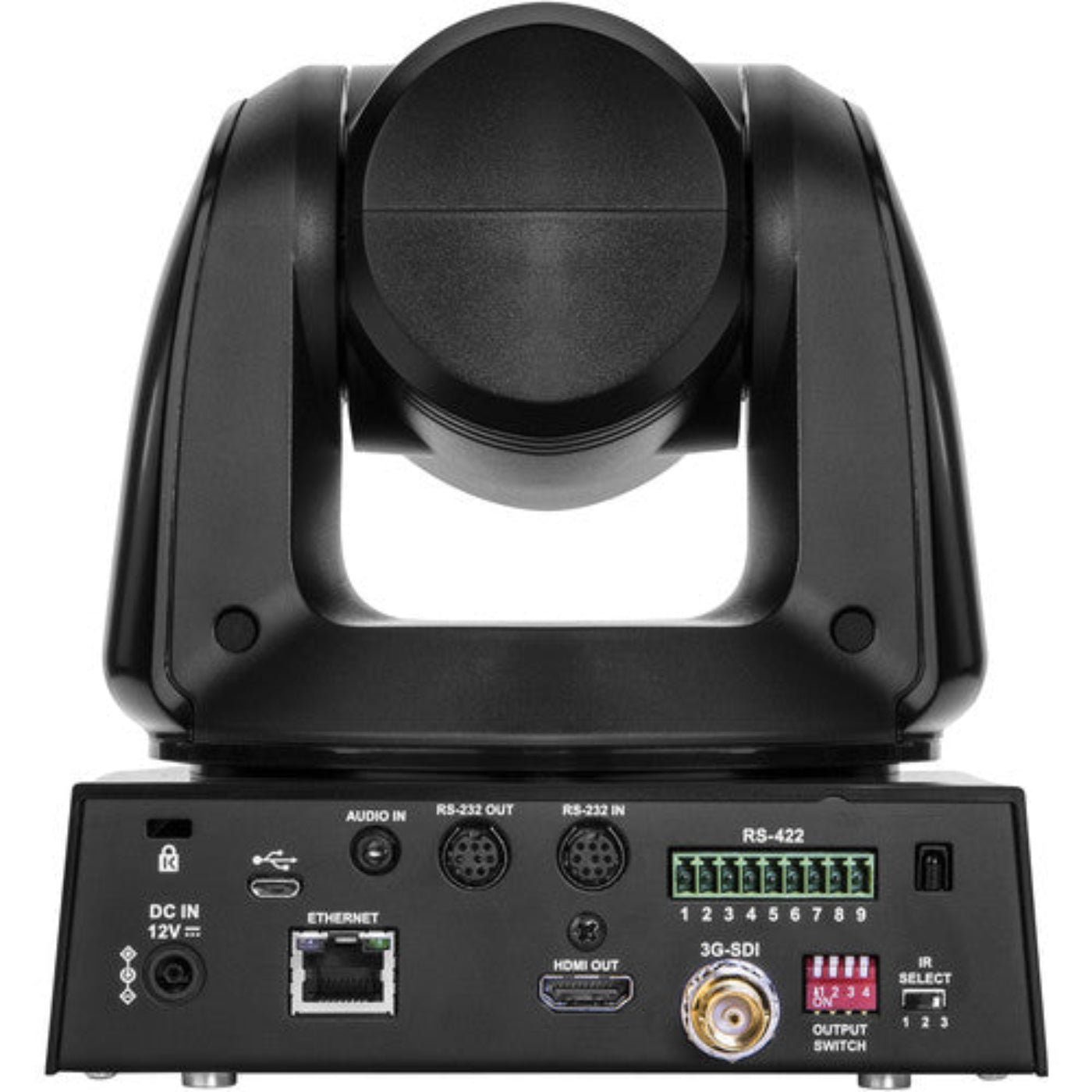

REAR OUTPUTS

1. USB port for FW updates

2. 12V Power input

3. IP NETWORK Ethernet (PoE+/H.264/IP Control)

4. HDMI Type-A Output

5. 3G/HD-SDI Output

6. OUTPUT Selection Switch

7. IR SELECT

8. TRS Audio In

9. RS-232 loop-through OUT

10. RS-232 INPUT port

11. RS-422 port

What Our Experts Think

• HD 1080p Resolution: Delivers sharp and clear video for professional live streaming, broadcast, and production environments.
• IP, 3G/HD-SDI, HDMI Outputs: Offers versatile connectivity options, ensuring compatibility with a variety of video systems.
• 20x Optical Zoom: Allows detailed, high-quality close-ups, perfect for dynamic shoots and live events.
• Smooth PTZ Control: Offers precise and responsive pan, tilt, and zoom for smooth operation during productions.
• Built-in IP Streaming: Enables direct IP streaming, reducing the need for extra hardware in remote setups.
• Sleek White Design: A modern and clean design that fits seamlessly into any studio or event production.

Q&A

Q: What is the Marshall CV620-IPW?
A: A versatile HD PTZ camera featuring IP, 3G/HD-SDI, and HDMI connectivity in a white housing, designed for professional video production.

Q: Who is this camera for?
A: Ideal for live event producers, broadcasters, corporate environments, and houses of worship requiring flexible video capture options.

Q: What video outputs does it support?
A: Supports IP, 3G/HD-SDI, and HDMI for multiple connectivity and flexibility.

Q: What resolution does it provide?
A: Delivers Full-HD 1080p video for high-quality and detailed footage.

Q: Can it be controlled remotely?
A: Yes, the camera can be controlled remotely via IP, RS-232, and RS-422 for smooth operation.

Q: What makes it stand out?
A: The combination of IP, SDI, and HDMI outputs with remote control capabilities in a sleek white design for professional production environments.

Maintenance Tips

• Lens Cleaning – Clean the lens regularly with a microfiber cloth and lens-safe cleaner for optimal image quality.
• Firmware Updates – Keep the firmware updated to ensure access to the latest features and bug fixes.
• Check Connections – Secure all cables (IP, 3G/HD-SDI, HDMI, and power) to prevent signal disruptions.
• Ventilation – Ensure the camera is placed in a well-ventilated area to prevent overheating.
• Avoid Physical Impact – Use a stable mount and avoid sudden movements to protect internal components.
• Power Surge Protection – Use a surge protector to prevent damage from power fluctuations.
• Test PTZ Functions – Regularly test pan, tilt, and zoom movements to ensure smooth functionality.
