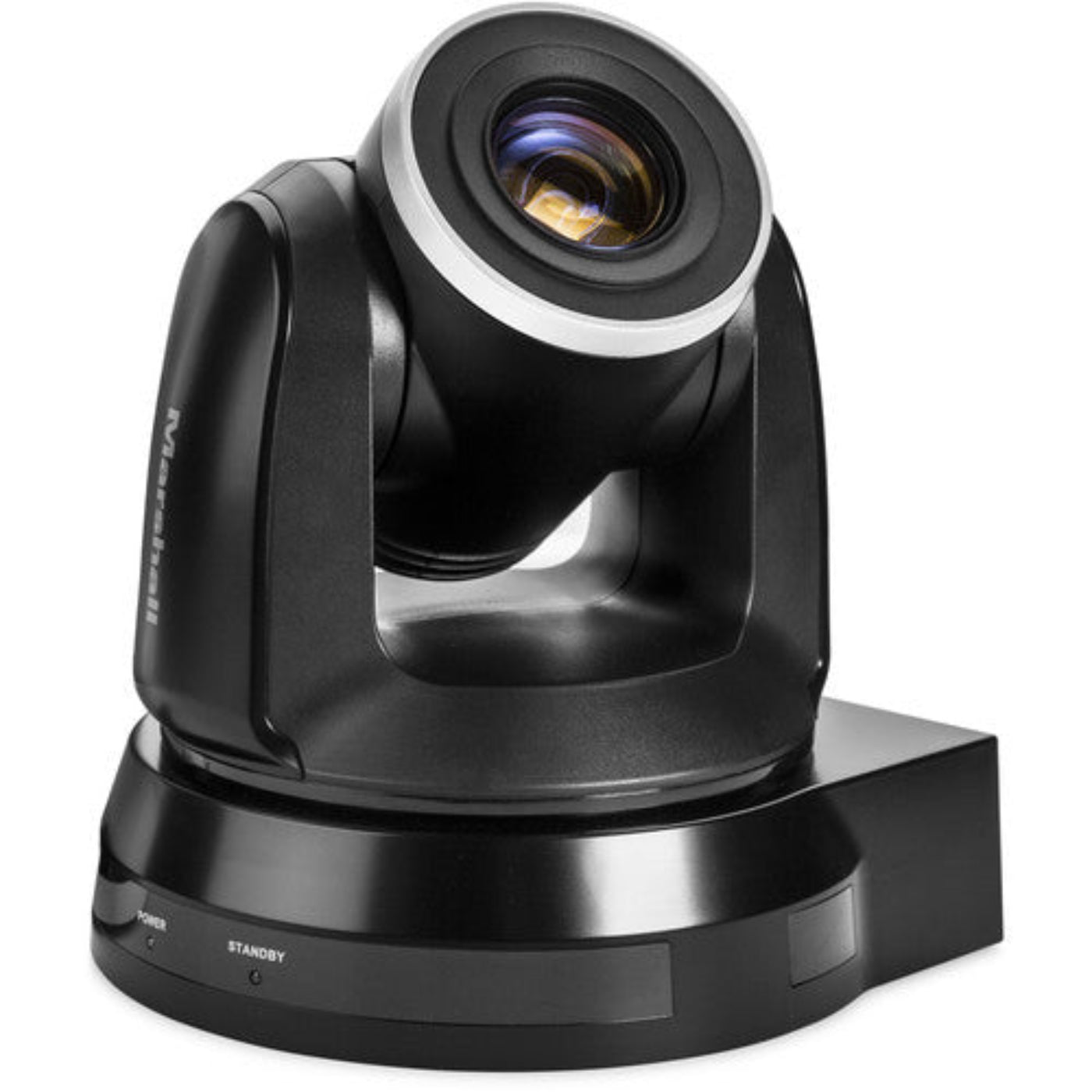

Marshall CV620-IP HD PTZ Camera with IP, 3G/HD-SDI, HDMI (Black) - CV620IP

Marshall CV620-IP HD PTZ Camera with IP, 3G/HD-SDI, HDMI (Black) - CV620IP

Marshall Electronics Broadcast ProAV PTZ Camera is built around a professional grade 2 Megapixel 1/2.8-inch sensor with a smooth 20x Optical Zoom (4.7~94mm) block. Versatile outputs such as 3G/HD-SDI, HDMI Type-A, and IP (H.264) which allows for one Ethernet cable to contain compressed H.264 Video, PoE (48V) and IP Control. Remote operation and control via VMS (Video Management Software), Web Browser GUI, or RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use. Applications served would include Remote Confidence Monitoring, Corporate, Broadcast, Education, Worship, Healthcare, Medical, Government, Courtroom, Entertainment, Music and a variety of Broadcast ProAV studio workflows using IP, 3G/HD-SDI, or HDMI.

Features

• 1/2.8" sensor captures clear images

• 1080p, 1080i, and 720p modes

• 20x optical zoom

• RS422/RS232 Remote Control Interface

• 2 Megapixel 1/2.8-inch Sensor

• Full-HD: 1920x1080i, 1920x1080p, 1280x720p

• High Speed: 60, 59.94, 50, 30, 29.97, 25 fps

• 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital

• Wide Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt

• Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor allows for quality transitions

• TRS Audio Line/Mic level select (2.5V to mic)

• IP (H.264), 3G/HD-SDI and HDMI simultaneous outputs
• RS422/RS232 Remote Control Interface at High Comm Speeds

• Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.

• Compatible with integrated video conferencing systems

• (1) Ethernet (Cat) connection allows for H.264 video, PoE+ (power), and Control over one Cat cable.

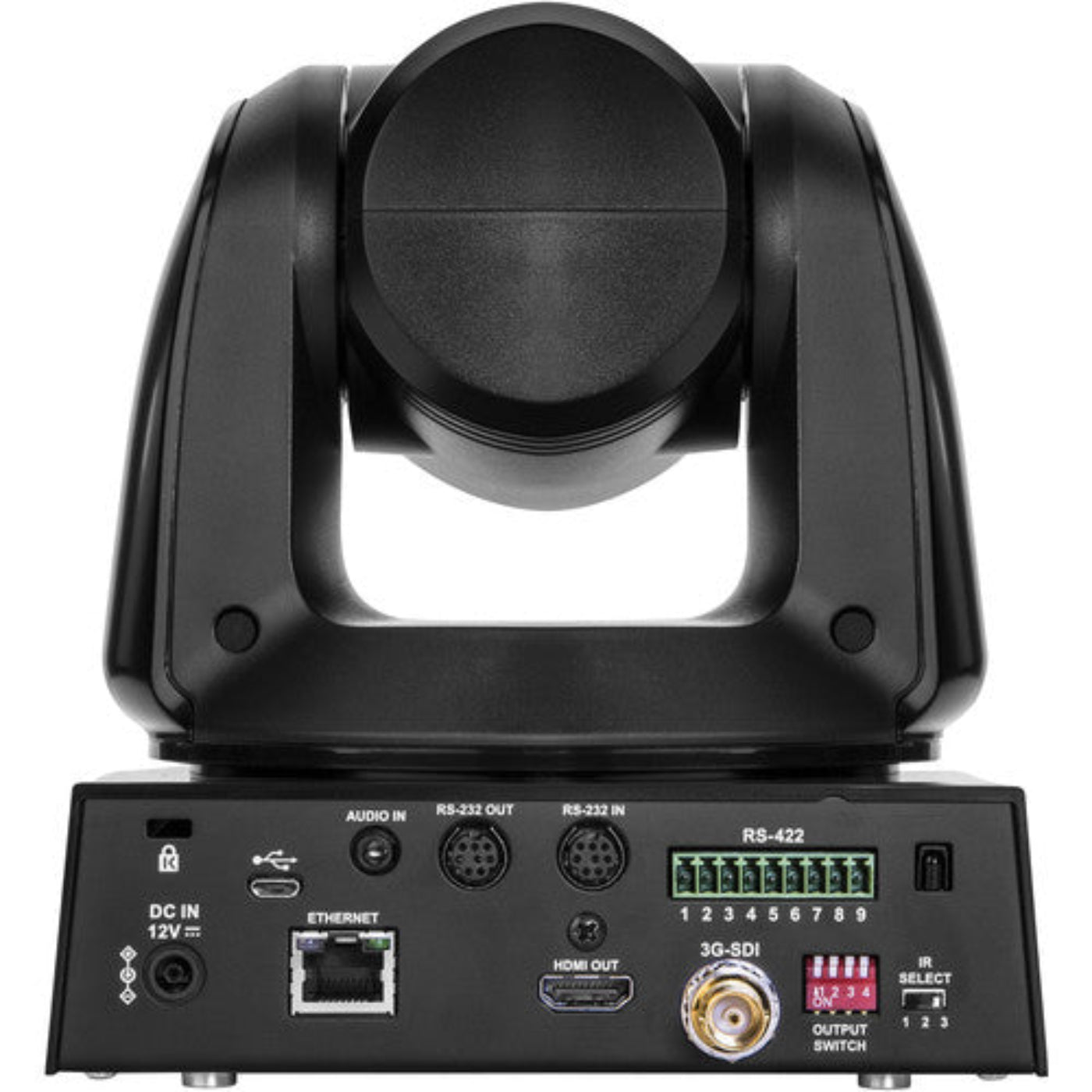

REAR OUTPUTS

1. USB port for FW updates

2. 12V Power input

3. IP NETWORK Ethernet (PoE+/H.264/IP Control)

4. HDMI Type-A Output

5. 3G/HD-SDI Output

6. OUTPUT Selection Switch

7. IR SELECT

8. TRS Audio In

9. RS-232 loop-through OUT

10. RS-232 INPUT port

11. RS-422 port

What Our Experts Think

• Full HD 1080p Resolution – Captures crisp, high-definition video at up to 60fps for professional applications.
• Versatile Connectivity – Supports IP streaming, 3G/HD-SDI, and HDMI, ensuring seamless integration into various workflows.
• 20x Optical Zoom – Provides sharp and detailed close-ups with smooth zoom transitions.
• Smooth PTZ Control – Offers precise pan, tilt, and zoom adjustments, ideal for remote operation.
• Low-Latency IP Streaming – Enables high-quality video transmission over networks for live streaming and remote production.
• Excellent Low-Light Performance – Features advanced noise reduction and HDR for superior image quality in any lighting.
• Ideal for Professional Use – Perfect for broadcast, live streaming, corporate meetings, education, and houses of worship.

Q&A

Q: What is the Marshall CV620-IP HD PTZ Camera?
A: The Marshall CV620-IP is a professional HD PTZ camera with IP streaming, 3G/HD-SDI, and HDMI outputs, designed for broadcast, live streaming, conferencing, and video production.

Q: What is this camera used for?
A: It is ideal for broadcast studios, live events, corporate meetings, houses of worship, and remote learning, offering smooth pan, tilt, and zoom functionality for high-quality video capture.

Q: What resolution does this camera support?
A: The CV620-IP captures Full HD 1080p video at up to 60fps, delivering crisp and detailed imagery.

Q: What are the connectivity options?
A: This camera supports IP streaming for remote operation, along with 3G/HD-SDI and HDMI outputs, making it versatile for professional AV setups.

Q: Can this camera be controlled remotely?
A: Yes, it supports remote control via IP, RS-232, and RS-422, allowing for easy integration into various production environments.

Maintenance Tips

• Clean the Lens Regularly – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges for clear, high-quality imaging.
• Ensure Proper Ventilation – Keep air vents unobstructed to prevent overheating and maintain performance.
• Check Cable Connections – Inspect power, Ethernet (IP streaming), 3G/HD-SDI, and HDMI cables for secure connections and signal stability.
• Update Firmware – Install the latest firmware updates to improve functionality, security, and compatibility.
• Protect Against Power Surges – Use a surge protector or an uninterruptible power supply (UPS) to prevent electrical damage.
• Avoid Extreme Conditions – Keep the camera away from excessive heat, humidity, and direct sunlight to ensure longevity.
• Test PTZ Functions – Periodically check pan, tilt, and zoom operations to ensure smooth, responsive movement.
• Secure Mounting – Make sure the camera is firmly mounted to prevent vibrations or misalignment during use.
