Marshall CV620-BK3 PTZ HD Camera with 3G/HD-SDI and HDMI (Black) - CV620BK3

Marshall CV620-BK3 PTZ HD Camera with 3G/HD-SDI and HDMI (Black) - CV620BK3

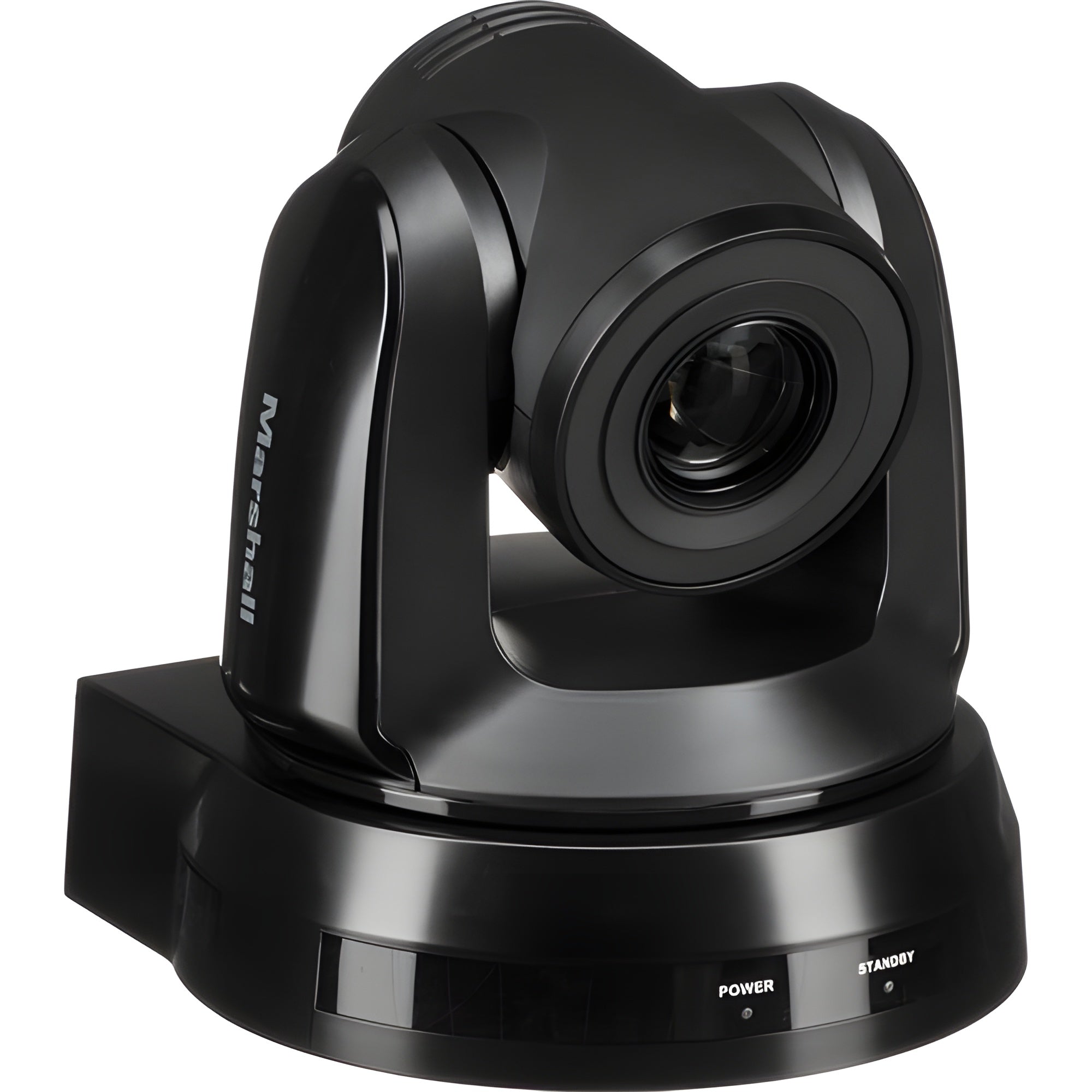

The black CV620-BK3 Broadcast Pro AV High-Definition PTZ Camera from Marshall Electronics is designed for professional video conferencing applications such as corporate, healthcare, government, education, and houses of worship venues. It captures up to 1080p60 resolution with 20x optical zoom, 12x digital zoom, and features 3G/HD-SDI and HDMI outputs and RS-232/RS-422 serial control.

The camera is built with smooth and quiet 340° pan, 120° vertical tilt, a variable zoom motor control with transition speeds between 5 and 300° per second, and it also offers simultaneous 4D PTZ and focus control for advanced transitions. Marshall Electronics recommends the optional VS-PTC-IP controller as the preferred controller to incorporate, and the optional VS-PTC-200 and VS-PTC-50 and various 3rd-party controllers are also compatible.

• 2MP 1/2.8" Sensor

• Record up to 1080p60 Resolution

• 20x Optical Zoom, 12x Digital Zoom

• 3G/HD-SDI and HDMI Outputs

Features

• 2MP 1/2.8" sensor

• Capture up to 1080p60 video

• 20x optical zoom, 12x digital zoom

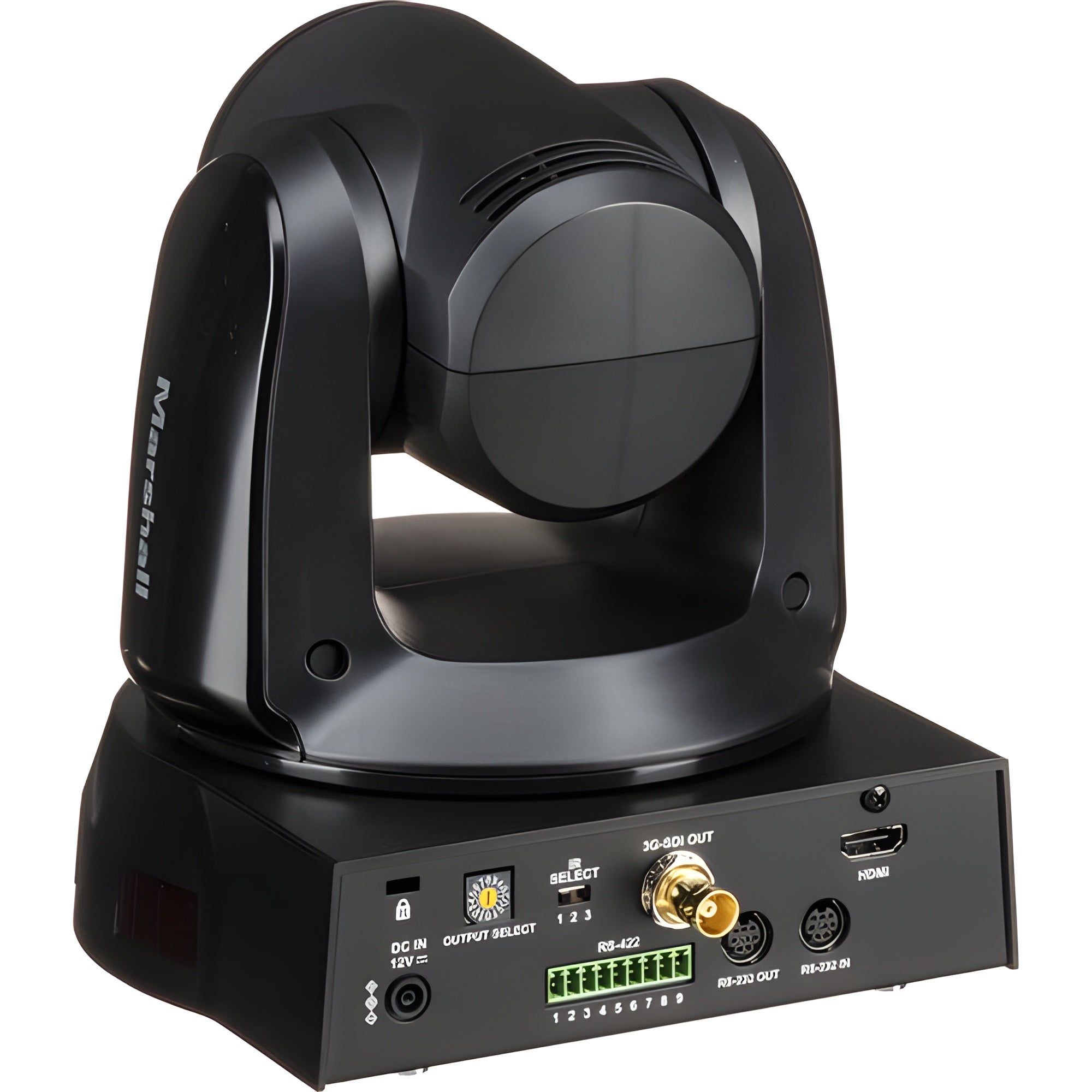

• 3G/HD-SDI and HDMI outputs

• RS-232/RS-422 serial control

• Simultaneous 4D control for pan, tilt, zoom, and focus

• 340° horizontal pan / 120° vertical tilt

• Variable Transition Speeds: 5-300° per second with optional motionless transition controller

• Mountable on desktop, wall, ceiling with optional mount

• Compatible with most integrated video management systems

• Kensington lock port

• Video resolution and frame rate select dial

• IR remote select

• Adjustable white balance, exposure, iris, gamma, black level

• Standby LED indicator

What Our Experts Think

• Full HD 1080p Resolution – Captures crisp, professional-quality video at up to 60fps.
• 20x Optical Zoom – Provides clear, detailed close-ups with smooth zoom transitions.
• 3G/HD-SDI & HDMI Outputs – Ensures seamless integration with broadcast and AV workflows.
• Smooth & Silent PTZ Movement – Offers precise pan, tilt, and zoom control for dynamic shots.
• Remote Control & Presets – Supports VISCA over IP, RS232, and RS422 for flexible camera management.
• Excellent Low-Light Performance – Features advanced noise reduction and wide dynamic range.
• Ideal for Live Production & Streaming – Perfect for broadcast, corporate events, houses of worship, and education.
• Sleek Black Finish – Blends into professional AV environments with a discreet design.

Q&A

Q: What is the Marshall CV620-BK3 PTZ HD Camera?
A: The Marshall CV620-BK3 is a professional PTZ camera with 3G/HD-SDI and HDMI outputs, delivering smooth pan, tilt, and zoom functionality for broadcast, live streaming, and video conferencing.

Q: What is this camera used for?
A: It is ideal for broadcast studios, live events, houses of worship, corporate meetings, and education, providing high-quality Full HD video with remote control capabilities.

Q: What resolution does this camera support?
A: The CV620-BK3 captures Full HD 1080p at 60fps, ensuring sharp, detailed video for professional applications.

Q: What are the connectivity options?
A: It features 3G/HD-SDI and HDMI outputs, making it compatible with a wide range of video production and streaming setups.

Q: Can this camera be controlled remotely?
A: Yes, it supports RS-232 and RS-422 serial control protocols, allowing seamless integration with PTZ controllers and remote operation systems.

Q: What are the key benefits of this camera?
A: It offers smooth pan, tilt, and zoom movements, high-quality Full HD video, multiple output options, and flexible remote control capabilities, making it a versatile solution for professional video production.

Maintenance Tips

• Keep the Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
• Ensure Proper Ventilation – Keep air vents clear to prevent overheating and maintain performance.
• Secure Cable Connections – Check and secure HDMI, SDI, power, and control cables to prevent disconnections.
• Update Firmware Regularly – Ensure the latest firmware is installed for optimal functionality and compatibility.
• Avoid Extreme Conditions – Protect the camera from excessive heat, moisture, and direct sunlight.
• Test PTZ Movement Periodically – Run pan, tilt, and zoom functions to ensure smooth operation.
• Use a Surge Protector – Prevent power-related damage by using a regulated power source or UPS.
• Store & Transport Safely – When not in use, cover or store the camera in a dust-free environment to prevent damage.
