Marshall CV612HT-4KW 4K PTZ Cameras with HDBaseT and HDMI (White) - CV612HT4KW

Marshall CV612HT-4KW 4K PTZ Cameras with HDBaseT and HDMI (White) -  CV612HT4KW

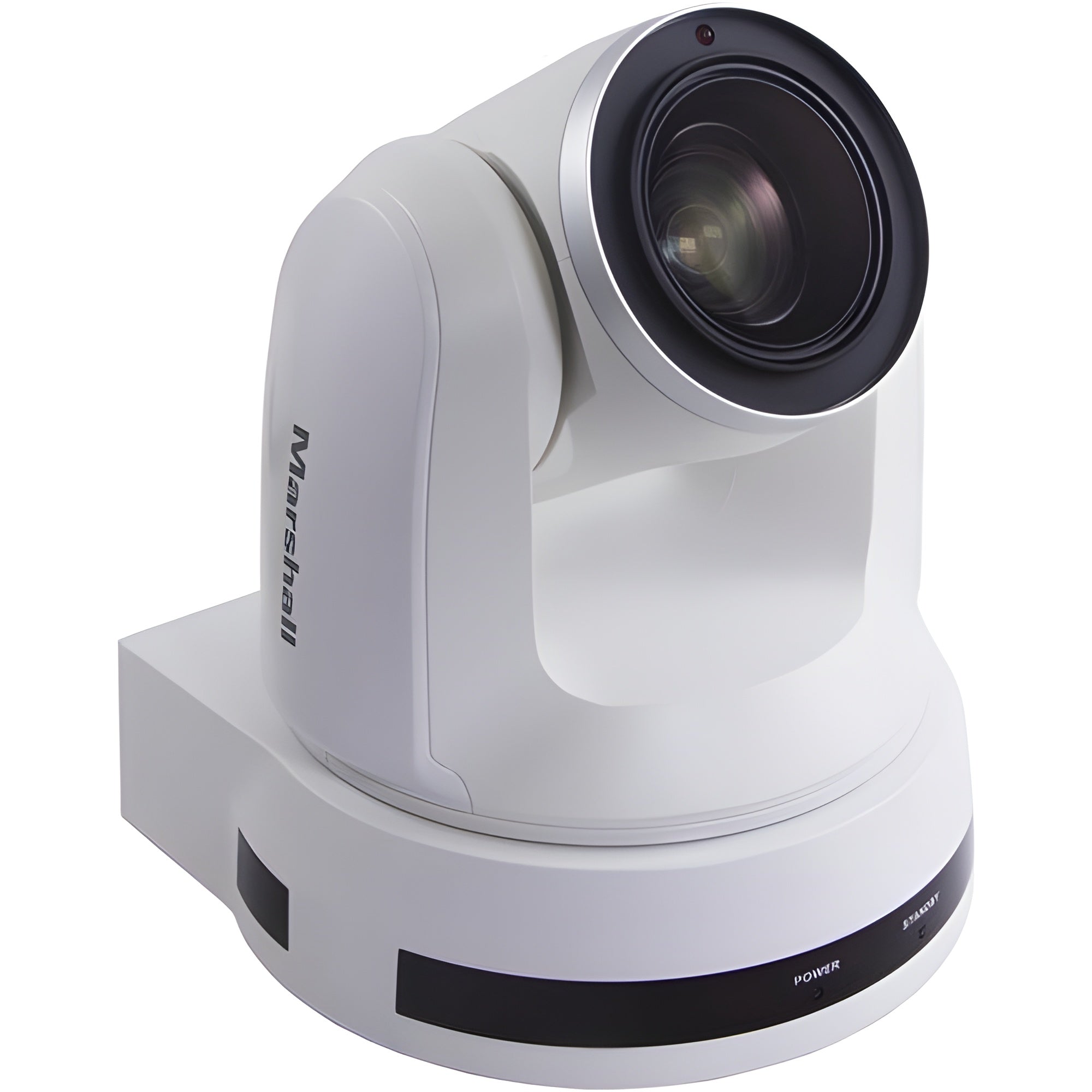

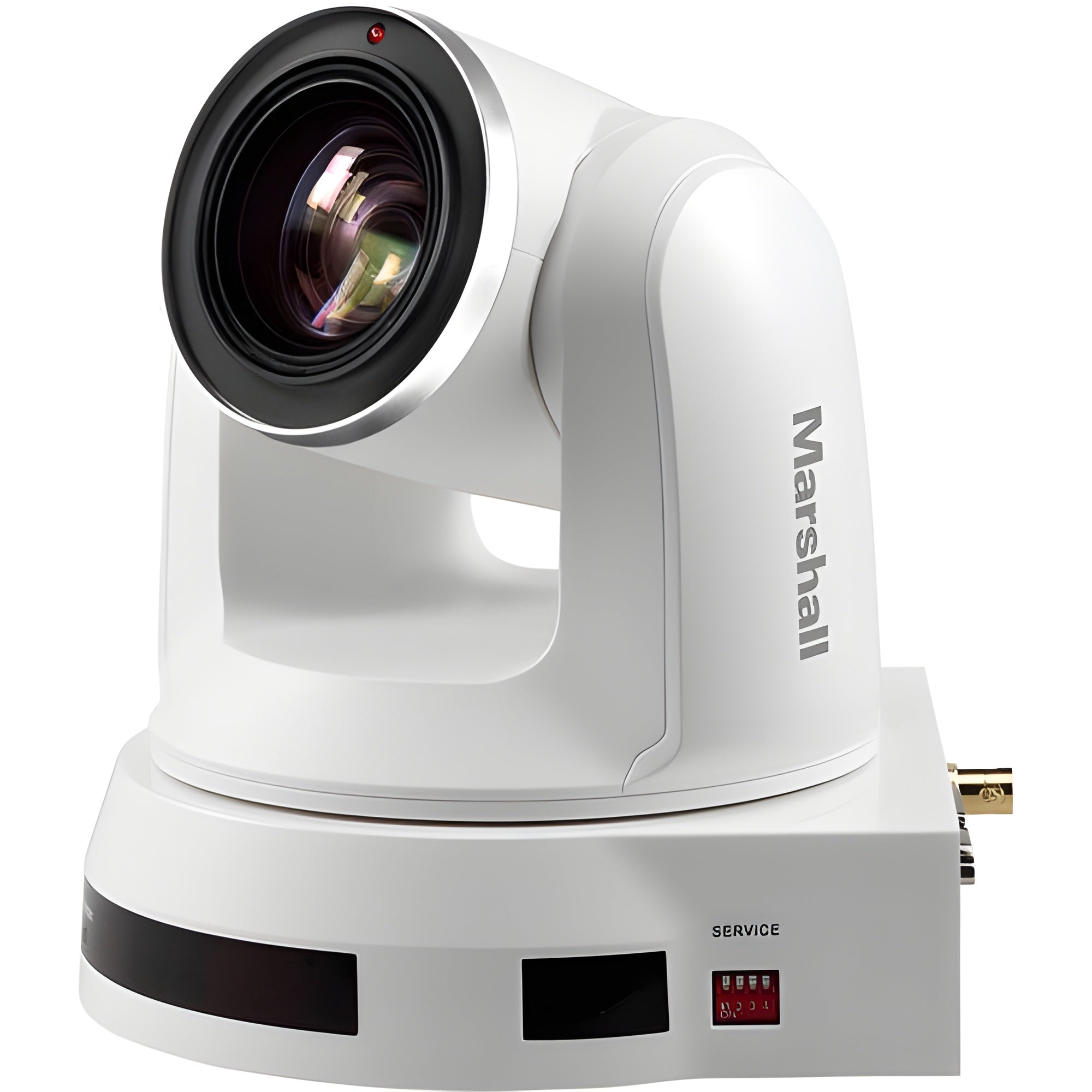

The CV612HT-4K UHD HDBaseT HDMI PTZ Camera from Marshall Electronics is built around a professional grade 1/2.3" image sensor with a smooth 12x optical zoom and outputs 4K UHD, 1080i/p, and 720p in NTSC and PAL compatible frame rates. It supports both HDBaseT and HDMI outputs, Power over Ethernet (PoE) as well as discrete 12 VDC input via a coaxial connector (do not use 12 VDC and PoE simultaneously).

Remote operation and control via RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as gain control, white balance, exposure control, manual/auto focus, image flip, along with 128-position memory provide camera and image control. An integrated tally light enables using this camera as part of a multi-camera live production. Applications include corporate, broadcast, education, worship, healthcare, medical, government, courtroom, entertainment, music, and a variety of studio workflows.

Features

• 12x Optical Zoom

• 4K UHD, 1080i/p, 720p Output

• NTSC/PAL Compatible

• 9MP 1/2.3" Sensor

• 1/2.3" sensor captures clear images

• 4K UHD up to 29.97/25, 1080i/p up to 59.94/50

• 12x optical zoom (3.9 to 46.8mm lens)

• Image flip allows you to ceiling mount the PTZ camera using the included mounting plates

• Compatible with integrated video conferencing systems

• Quiet PTZ motor allows for quality transitions

• You can power the camera via PoE or 12 VDC via the included AC power adapter. Do not simultaneously power the camera from PoE and the power supply

What Our Experts Think

• 4K Resolution: Captures crystal-clear 4K video for professional broadcasting and live-streaming.
• HDBaseT & HDMI Outputs: Provides flexible connectivity options, perfect for both broadcast environments and integrated AV systems.
• 12x Optical Zoom: Offers high-quality zoom for sharp, detailed shots in any production setting.
• Precise PTZ Control: Smooth and accurate pan, tilt, and zoom functions for dynamic video capture.
• Advanced Low-Light Performance: Ensures clear image quality in various lighting conditions, perfect for versatile applications.
• Sleek White Design: A modern, professional look that fits seamlessly into any studio or event setup.

Q&A

Q: What is the Marshall CV612HT-4KW?
A: A 4K PTZ camera with HDBaseT and HDMI connectivity, designed for professional video production and broadcasting.

Q: Who is this camera for?
A: Ideal for live broadcasters, event producers, corporate environments, and houses of worship needing high-quality video capture.

Q: What video outputs does it support?
A: It supports HDBaseT and HDMI for flexible video connections.

Q: What resolution does it provide?
A: Delivers stunning 4K video at up to 30fps for crystal-clear footage.

Q: Can it be controlled remotely?
A: Yes, it supports remote control through RS-232, RS-422, and IP, making it easy to adjust from a distance.

Q: What makes it stand out?
A: Its combination of 4K resolution, HDBaseT for long-distance transmission, and sleek white design for professional use.

Maintenance Tips

• Lens Cleaning – Gently clean the lens with a microfiber cloth and lens-safe cleaner to ensure clear imaging.
• Firmware Updates – Regularly update the firmware to ensure the camera is running with the latest features and improvements.
• Check Connections – Ensure all cables (HDBaseT, HDMI, power) are securely connected to avoid signal loss or interruptions.
• Proper Ventilation – Ensure the camera is placed in a well-ventilated area to prevent overheating during operation.
• Avoid Physical Impact – Handle the camera with care and mount it securely to avoid damage to internal components.
• Power Surge Protection – Use a surge protector to protect the camera from power spikes.
• Test PTZ Functions – Periodically test the pan, tilt, and zoom mechanisms to ensure smooth and accurate operation.
