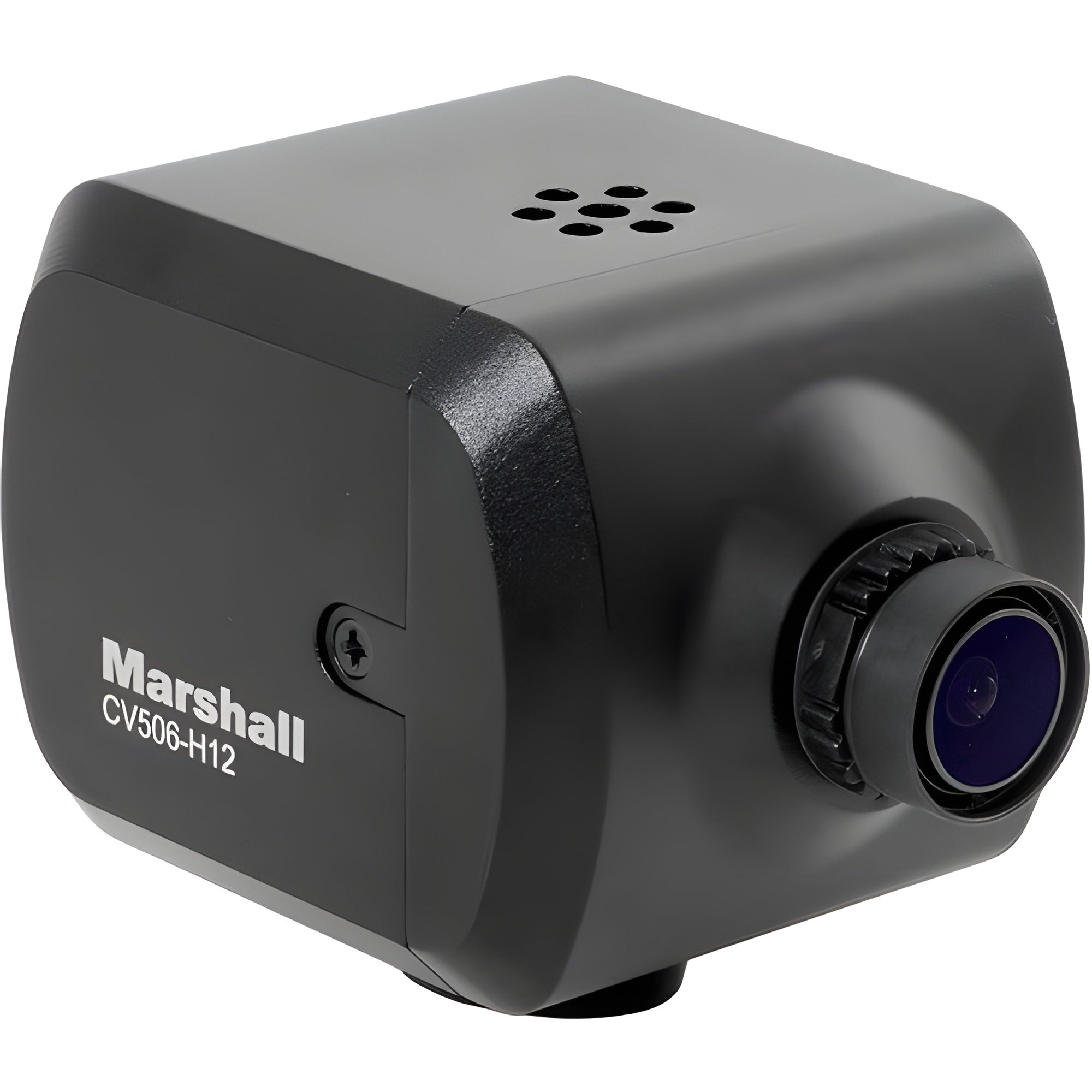

Use the CV506-H12 Miniature High-Speed Camera from Marshall to capture broadcast, sports, racing, or any high-speed action and create slow-motion, high-resolution video. This tiny camera features a 2MP 1/2.8" Sony Exmor sensor and records up to 1080p60 and up to 120 fps slow-motion video.

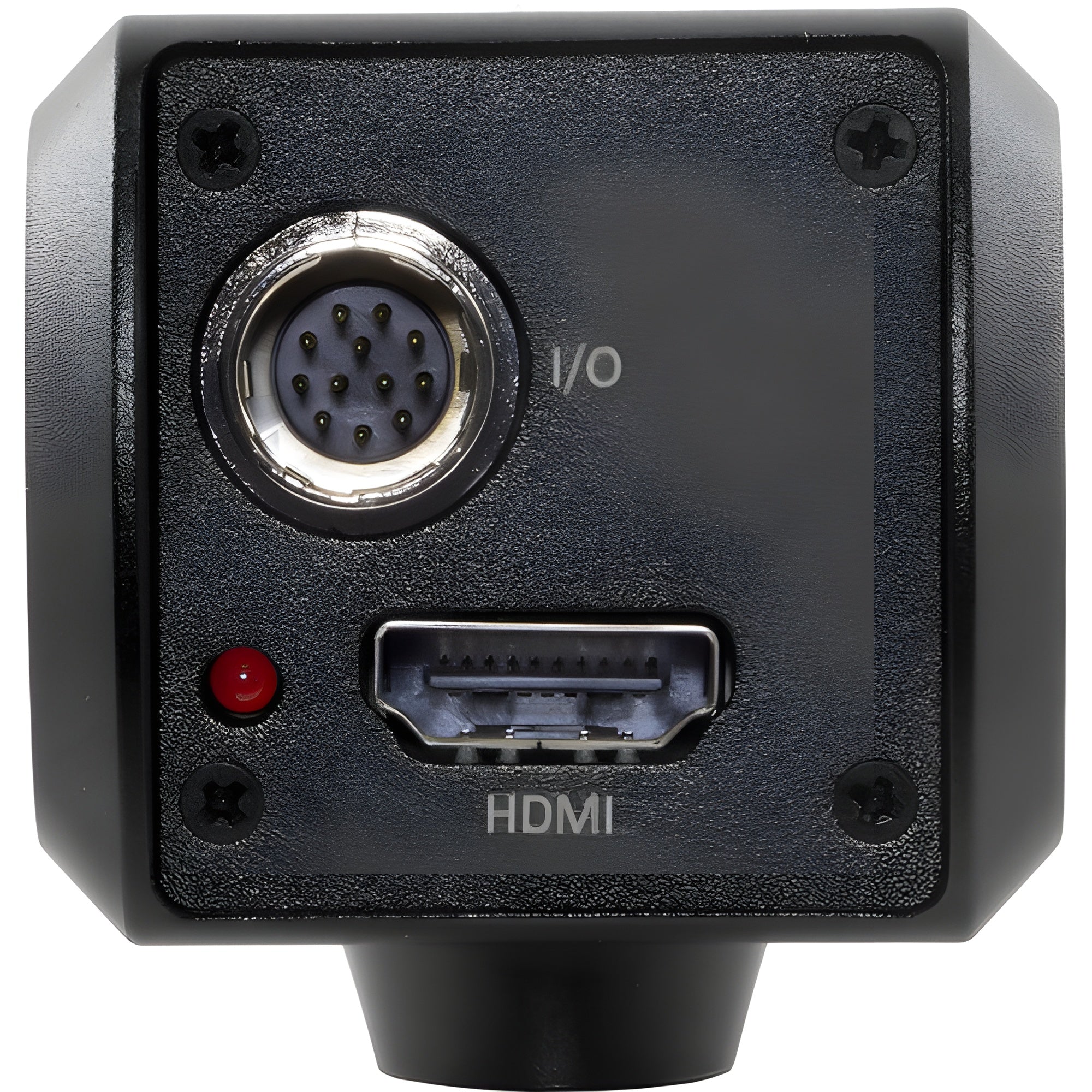

The CV506-H12 can be controlled with a joystick or by an RS-485 Visca-capable controller, which are both connected via the included breakout cable. Mic and line connectors are also provided on the breakout cable, providing TRS stereo output. An HDMI 2.0 port on the back of the unit outputs HD video for recording and broadcast. Configurable camera settings include paint, white balance, exposure, gain, pedestal (black), gamma, shutter, and others.
The camera includes a 3.6mm M12 prime lens with a 72° horizontal angle of view, and since the M12 lens mount is interchangeable you can replace the stock lens with one of the supported lenses listed below. A 12V power adapter is also included.

Features

Compatible Lenses
Prime Lenses

CV-4702.3-3MP: 2.3mm, f2.2 3MP M12 lens; Horiz. AOV = 126°

CV-4702.8-3MP-IR: 2.8mm, f2.6 3MP M12 lens; Horiz. AOV = 100°

CV-4703.6-3MP: 3.6mm, f2.0 3MP M12 lens (included); Horiz. AOV = 72°

CV-4706-3MP-IR: 6mm, f2.4 3MP M12 lens; Horiz. AOV = 48°

CV-4708.0-3MP: 8mm, f1.8 3MP M12 lens; Horiz. AOV = 40°

CV-4712.0-3MP: 12mm, f1.8 3MP M12 lens; Horiz. AOV = 33°

CV-4716.0-2MP: 16.0mm, f1.8 2MP M12 lens; Horiz AOV = 25°
Varifocal Lenses

CV-2812-3MP: 2.8–12mm, f1.4 3MP Varifocal M12 lens; Horiz. AOV = 108–3°

CV-0622-5MP: 6–22mm, f1.6 5MP Varifocal M12 lens; Horiz. AOV = 46–16°

• HDMI Video Output

• 2 MP 1/2.8" Sony Exmor

What Our Experts Think

• High-Speed Performance: Captures fast-moving subjects with precision, delivering smooth, detailed video in high-speed applications.
• Compact Design: Extremely small form factor allows for discreet placements in tight spaces without compromising performance.
• Full HD Resolution: Provides crisp 1080p HD video, ensuring excellent image quality for professional video production.
• Versatile Mounting Options: Flexible mounting options for diverse production setups, making it ideal for sports, live events, and high-speed tracking.
• Durable Build: Designed for demanding environments, built to withstand continuous use in professional settings.
• Wide Compatibility: Works seamlessly with a variety of video production systems and software.
• Remote Control Capability: Offers remote control features for ease of operation in complex production scenarios.

Q&A

Q: What is the Marshall CV506-H12?
A: The Marshall CV506-H12 is a miniature high-speed camera designed for professional video production. It offers high-quality video capture in a compact, easy-to-integrate design, making it perfect for tight spaces and specialized shooting setups.

Q: What applications is the CV506-H12 best suited for?
A: This camera is ideal for slow-motion video capture, sports broadcasting, live events, research, and industrial applications where high-speed video performance is crucial.

Q: What is the main feature of the CV506-H12 camera?
A: The main feature of the CV506-H12 is its high-speed video capture capabilities, allowing you to record fast-moving subjects in ultra-clear detail, making it ideal for slow-motion shots.

Q: How compact is the CV506-H12?
A: The CV506-H12 is a miniature camera, offering a small form factor that can be used in tight or unconventional spaces, ideal for setups where space is limited but performance is critical.

Q: Is this camera compatible with other Marshall equipment?
A: Yes, the CV506-H12 is compatible with other Marshall equipment, allowing easy integration into existing professional setups for seamless operation in multi-camera systems.

Maintenance Tips

• Lens Cleaning – Regularly clean the lens with a microfiber cloth and lens-safe cleaner to maintain clear, high-quality footage.
• Check Connections – Ensure all cables (SDI, power, etc.) are securely connected to avoid signal disruptions.
• Ventilation – Use the camera in a well-ventilated environment to prevent overheating, especially during extended high-speed recording sessions.
• Firmware Updates – Keep the camera’s firmware updated to take advantage of new features and improvements.
• Avoid Physical Damage – Handle the camera with care, especially since it’s miniature and may be more vulnerable to physical impacts.
• Test Regularly – Test the camera’s high-speed capture function and make sure it's performing as expected.
• Proper Storage – When not in use, store the camera in a dry, dust-free area to avoid any damage from environmental factors.
