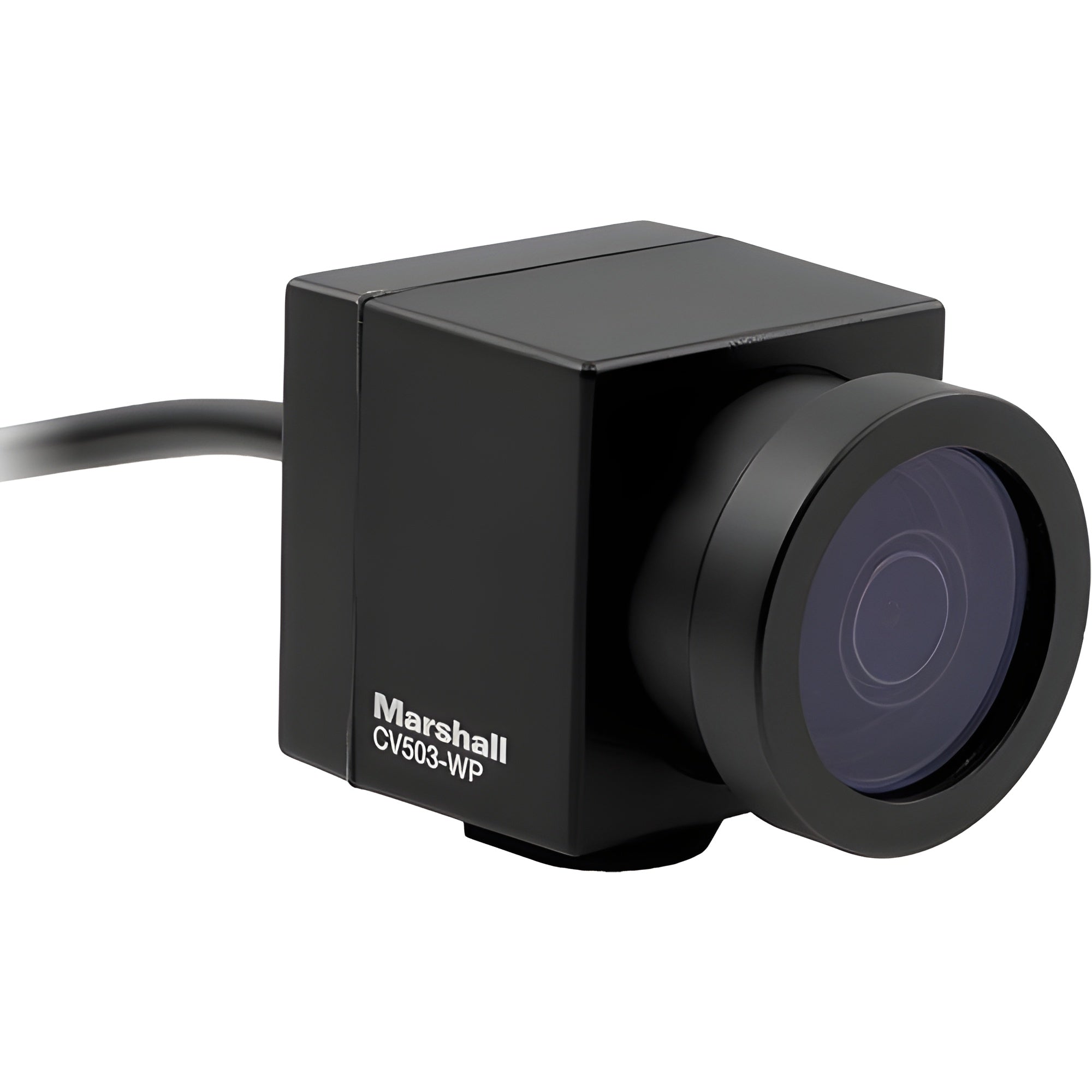

The CV503-WP Weatherproof Miniature HD Camera from Marshall Electronics offers many top features in an ultracompact design measuring approximately 1.5 x 1.5 x 2.2". In a discreet and flexible manner, the camera is useful for virtually all outdoor and indoor broadcast and professional A/V applications. The miniature design allows capturing hard-to-get angles while the 1/2.86", 2.5 MP sensor captures crisp video in up to 1080p60 resolution.

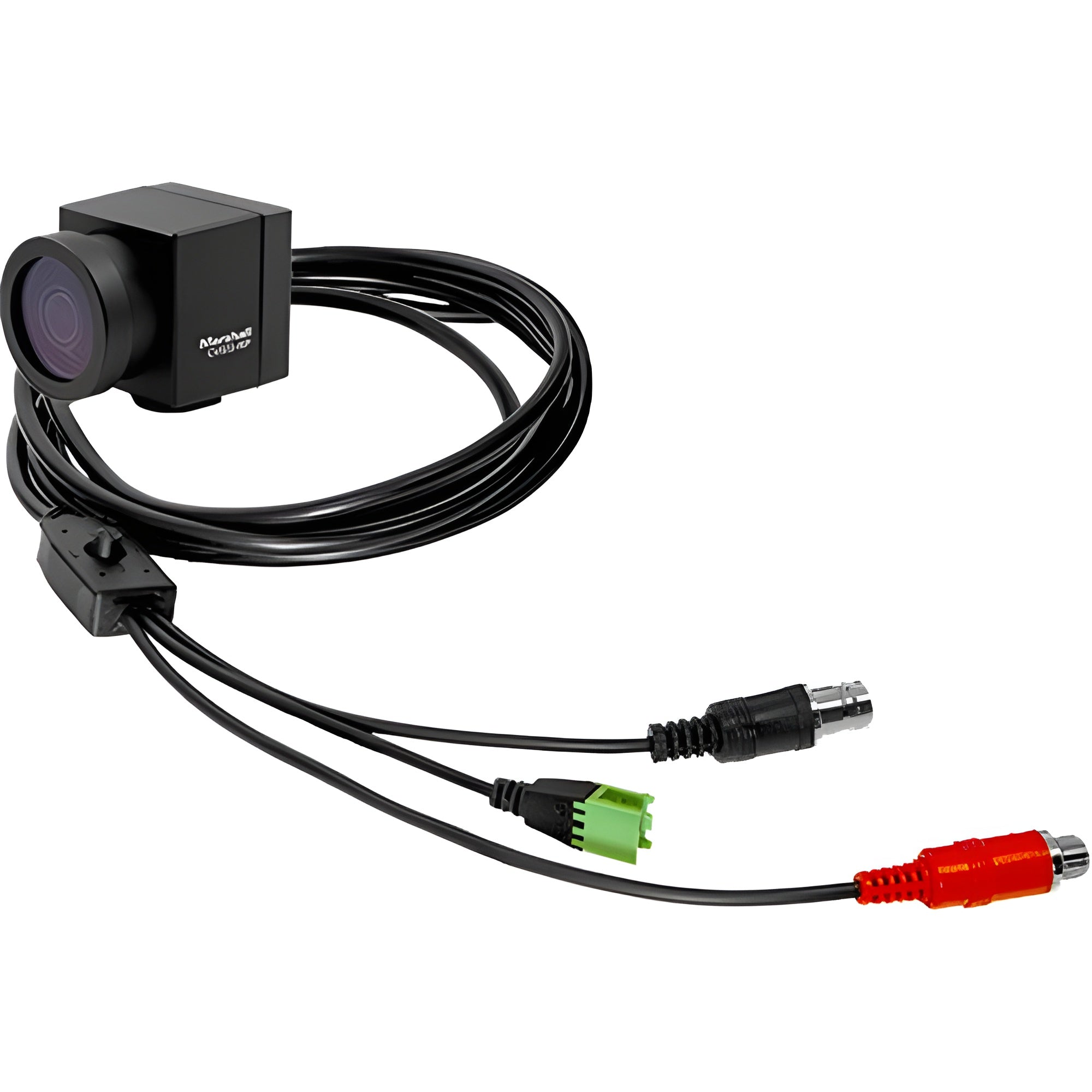

An integrated 10' cable extending out of the camera provides a full-sized 3G-SDI output, RS-485 interface, and locking 12V power connector on the opposite end. The camera includes a 3.6mm lens but has an interchangeable M12 lens mount that allows for various other lenses to be mounted for different environments.
Various settings, such as white balance, exposure, and gain, can be adjusted via the camera's OSD menu or over VISCA serial control over the RS-485 connection. Compatible controllers include the Marshall CV-RCP-V2, sold separately. An alternative option is to use Marshall's free camera control software on a computer or tablet. In this case an optional USB to RS-485 cable would be required in order to connect your PC/device to the camera.

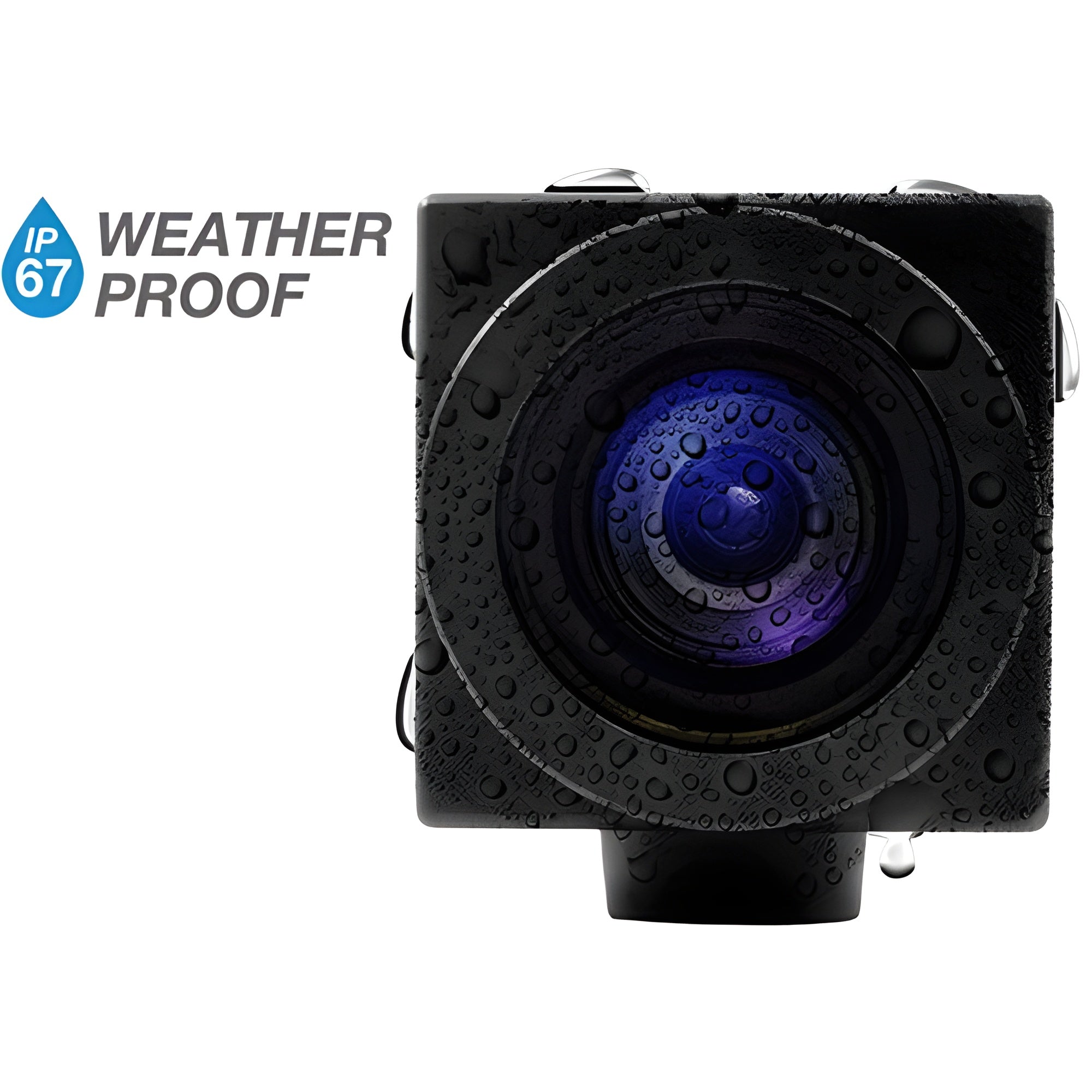

The CV503-WP is IP67 weatherproof-rated and features a 1/4"-20 mounting thread on the bottom. It can be mounted upside-down if you want, in which case you can switch on a digital flip function from the camera's menu to compensate.

• For Outdoor/Indoor Broadcast

• Up to 1080p60 Resolution

• 1/2.86" 2.5MP Sensor

Features

• Ultracompact design for flexible outdoor/indoor broadcast and professional A/V applications

• Measures only 1.5 x 1.5 x 2.2"

• 2.5 MP, 1/2.86" sensor captures up to 1080p60 resolution in 4:2:2 color

• Integrated 10' cable with 3G-SDI output, RS-485 interface, and locking 12V power connector

• Interchangeable M12 lens mount

• 3.6mm lens included

• Adjustable white balance, exposure, gain, and more

• VISCA serial control or software control via a computer or tablet

• IP67 weatherproof rated

• 1/4"-20 mounting thread

• Can be mounted upside-down, compensated by a digital flip function

What Our Experts Think

• All-Weather Durability: Built to withstand harsh environments, ideal for outdoor and rugged conditions with weatherproof protection.
• High-Definition Video: Delivers stunning 1080p HD resolution via 3G/HDSDI, ensuring crisp and clear video in professional productions.
• Miniature Design: Compact size allows for discreet placement in tight or hard-to-reach spaces, without sacrificing video quality.
• Versatile Connectivity: Supports both 3G and HDSDI signals for flexible integration into broadcast, surveillance, and live event setups.
• Rugged and Reliable: Designed for long-lasting use in demanding environments, providing consistent performance in all conditions.
• Wide Compatibility: Compatible with a variety of video systems and platforms, offering seamless integration into production workflows.
• Flexible Mounting: Easy to mount and install in various configurations, perfect for outdoor shoots, sports broadcasting, and surveillance.

Q&A

Q: What is the Marshall CV503-WP?
A: The Marshall CV503-WP is an all-weather, high-definition miniature camera designed for rugged outdoor use. It features 3G/HD-SDI connectivity and is perfect for broadcast, sports, and surveillance applications in challenging environments.

Q: What makes the CV503-WP suitable for outdoor use?
A: The CV503-WP is built to withstand harsh weather conditions with its weatherproof housing, making it ideal for outdoor broadcasting, live sports events, or any environment where durability is critical.

Q: What is the significance of 3G/HD-SDI connectivity?
A: 3G/HD-SDI provides reliable, high-quality digital video transmission over long distances without signal degradation, making it a preferred choice for professional broadcast applications and ensuring a stable video signal in demanding environments.

Q: Who is the CV503-WP designed for?
A: This camera is designed for professional broadcasters, sports producers, outdoor event organizers, and surveillance applications that require a compact, high-performance camera that can handle tough conditions.

Q: What are the main benefits of using the CV503-WP?
A: The CV503-WP offers exceptional image quality in HD resolution, rugged durability for all-weather use, and seamless integration with broadcast systems through 3G/HD-SDI connectivity, making it perfect for live event production and outdoor shoots.

Maintenance Tips

• Regular Inspections – Check for any visible signs of damage, especially on the housing, connectors, and lens, to ensure long-term reliability in all-weather conditions.
• Lens Cleaning – Clean the lens regularly using a microfiber cloth and lens-safe cleaner to maintain clear, high-quality video output.
• Secure Connections – Ensure all SDI cables and power connections are properly secured to avoid signal interruptions or damage.
• Protect from Harsh Elements – While designed for all-weather use, avoid prolonged exposure to extreme conditions such as heavy rain or snow. Store the camera in a sheltered area when not in use.
• Firmware Updates – Keep the camera's firmware up to date to ensure optimal performance and compatibility with other equipment.
• Test Functionality – Periodically test the camera’s video output to ensure it’s operating correctly, especially after exposure to extreme weather.
• Proper Storage – When not in use for extended periods, store the camera in a dry, cool place to avoid moisture damage.
