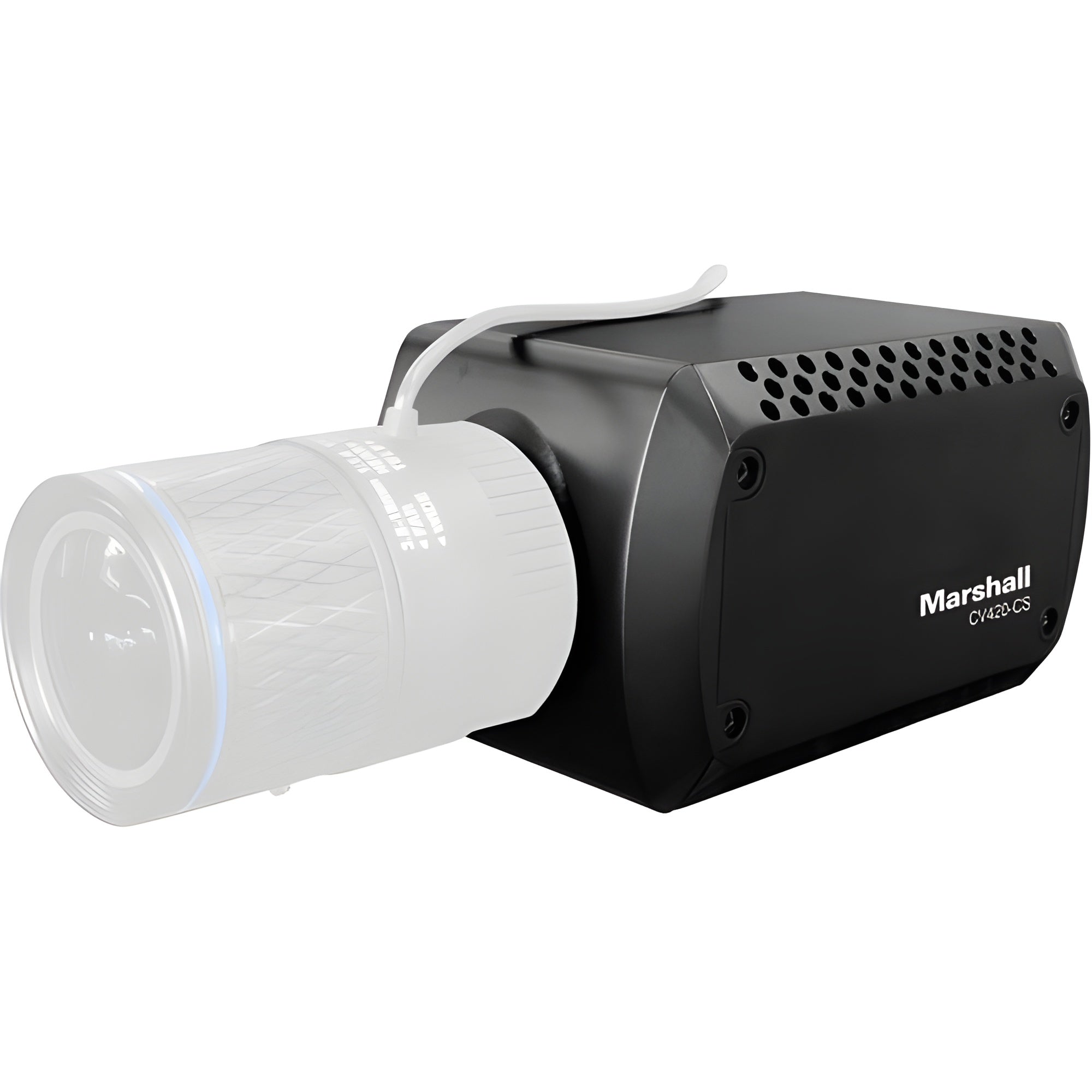

Marshall CV420-CS True 4K60 Compact Camera - CV420CS

Marshall CV420-CS True 4K60 Compact Camera - CV420CS

The Marshall CV420-CS is a true 4K camera built around a 12.4-Megapixel, 1/1.7-inch sensor delivering ultra-crisp, clear true 4K resolution in 4096x2160p at 60fps. CV420-CS contains a single 12G (BNC) and a simultaneous HDMI 2.0 output covering a variety of 4K/UHD/HD applications. Flexible CS/C lens mount format offers a wide range of lens options with DC Auto-Iris plug-in capability.

CV420 is a versatile and powerful camera solution in an easy to understand design. Remote adjust and match control is delivered via RS485 (Visca) or OSD menu joystick on breakout-cable. A wide range of picture adjustment settings are available such as paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma and more. The CV420-CS can capture detailed shots while maintaining a discrete presence and can be used as a fixed 4K wide shot where select HD windows can be captured and used within the frame in post.

CV420-CS Applications

The CV420-CS is suitable for use in flexible workflow environments including live broadcast production, sportscast, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more Broadcast and ProAV applications

Features

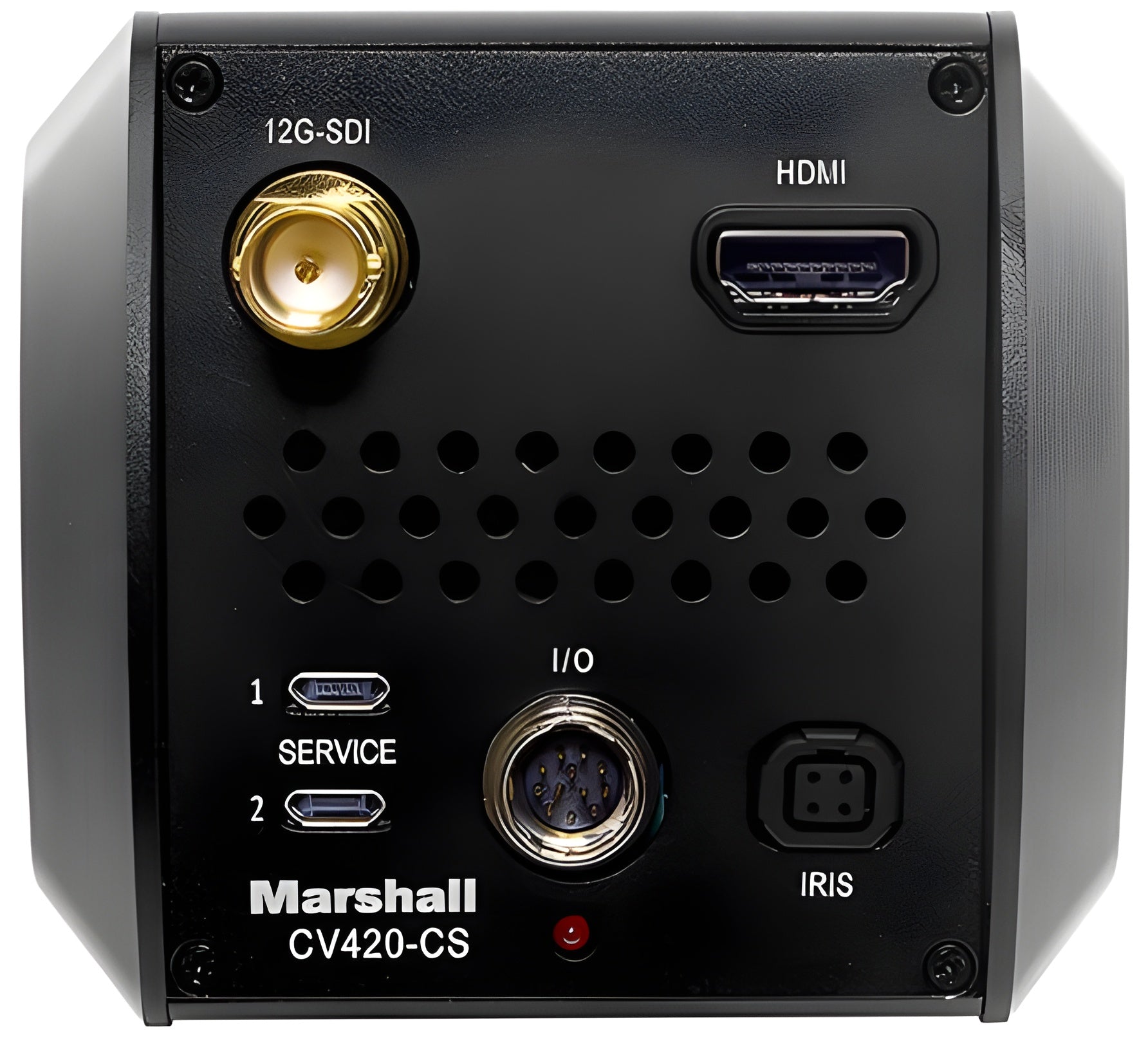

• 12G-SDI & HDMI 2.0 outputs

• 12 Megapixel (1/1.7") Sony sensor (4:2:2)

• Flexible CS/C-lens mount

• True-4K: 4096 x 2160p

• Remote adjust through RS485 (Visca) or OSD menu joystick
• 12G-SDI & HDMI 2.0 outputs

• 12 Megapixel (1/1.7") Sony sensor (4:2:2)

• Flexible CS/C-lens mount (Canon EF adapters available)

• True-4K: 4096 x 2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps

• Ultra-HD: 3840 x 2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps

• HD (Progressive): 1080p / 720p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps

• HD (Interlaced): 1920 x 1080i @ 60, 59.94, 50 fps

• TRS stereo audio inputs (mic & line level)

• Remote adjust through RS485 (Visca) or OSD menu joystick

• Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma and more

• Includes 12V power supply in box

What Our Experts Think

• True 4K60 Resolution: Captures stunning 4K UHD video at 60 frames per second, delivering incredibly sharp and smooth footage for professional-quality productions.
• Compact Form Factor: A small, lightweight design ideal for tight spaces or when portability is key without sacrificing performance.
• Multiple Output Options: Supports 12G-SDI, HDMI, and IP streaming, offering versatile connectivity for a wide range of video production setups.
• High Dynamic Range (HDR): Provides enhanced contrast and color accuracy, making it perfect for capturing vibrant and lifelike images in both bright and low-light environments.
• Wide Field of View: With its wide-angle lens, the CV420-CS ensures comprehensive coverage, great for live events, sports, and studio settings.
• Easy Integration: Designed to integrate seamlessly with existing broadcast setups, providing flexibility and control options for remote or manual use.

Q&A

Q: What is the Marshall CV420-CS?
A: The Marshall CV420-CS is a compact True 4K60 camera designed for high-quality video production, offering incredible clarity and detail at 4K resolution at 60 frames per second.

Q: Who is this camera for?
A: Ideal for broadcasters, video professionals, and event organizers who require high-resolution, compact cameras for capturing 4K video in various environments.

Q: What resolution does this camera support?
A: The CV420-CS supports True 4K resolution at 60 frames per second (4K60) for superior image clarity and smooth video performance.

Q: Is this camera compact and easy to install?
A: Yes, its compact size makes it ideal for discreet installations, perfect for tight spaces and portable setups.

Q: What outputs does the camera support?
A: The camera supports both 12G-SDI and HDMI outputs, providing flexibility for integration with various video systems.

Maintenance Tips

• Lens Cleaning – Regularly clean the lens using a microfiber cloth and lens-safe cleaner to maintain clear image quality.
• Firmware Updates – Keep the camera’s firmware up-to-date to ensure it operates with the latest features and bug fixes.
• Secure Connections – Ensure all cables, including SDI, HDMI, and power, are securely connected to avoid signal loss or interruptions.
• Proper Ventilation – Ensure the camera is placed in a well-ventilated area to prevent overheating during long hours of use.
• Physical Protection – Handle the camera with care to avoid physical impact or dropping, which may cause internal damage.
• Surge Protection – Use a surge protector to safeguard the camera from power fluctuations and electrical surges.
• Regular Testing – Test the camera’s 4K60 functionality regularly to ensure it is performing optimally.
