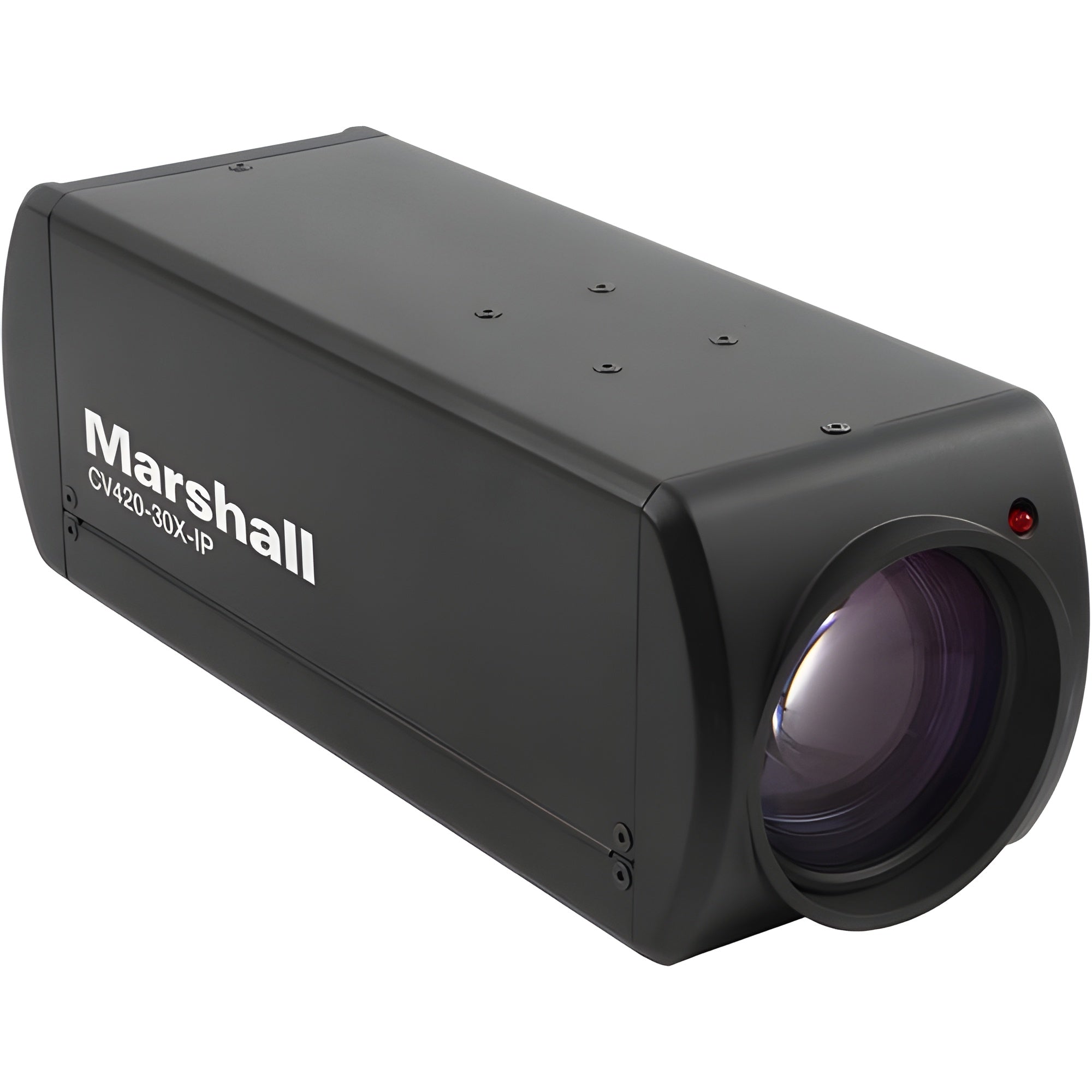

Marshall CV420-30X-IP 30X Zoom IP Camera - CV42030XIP

Marshall CV420-30X-IP 30X Zoom IP Camera - CV42030XIP

The CV420-30X-IP 30X Zoom IP Camera utilizes a professional 8.5MP sensor to capture brilliant 4K (UHD) with true colors up to 3840x2160p at 60fps with support for all HD formats.

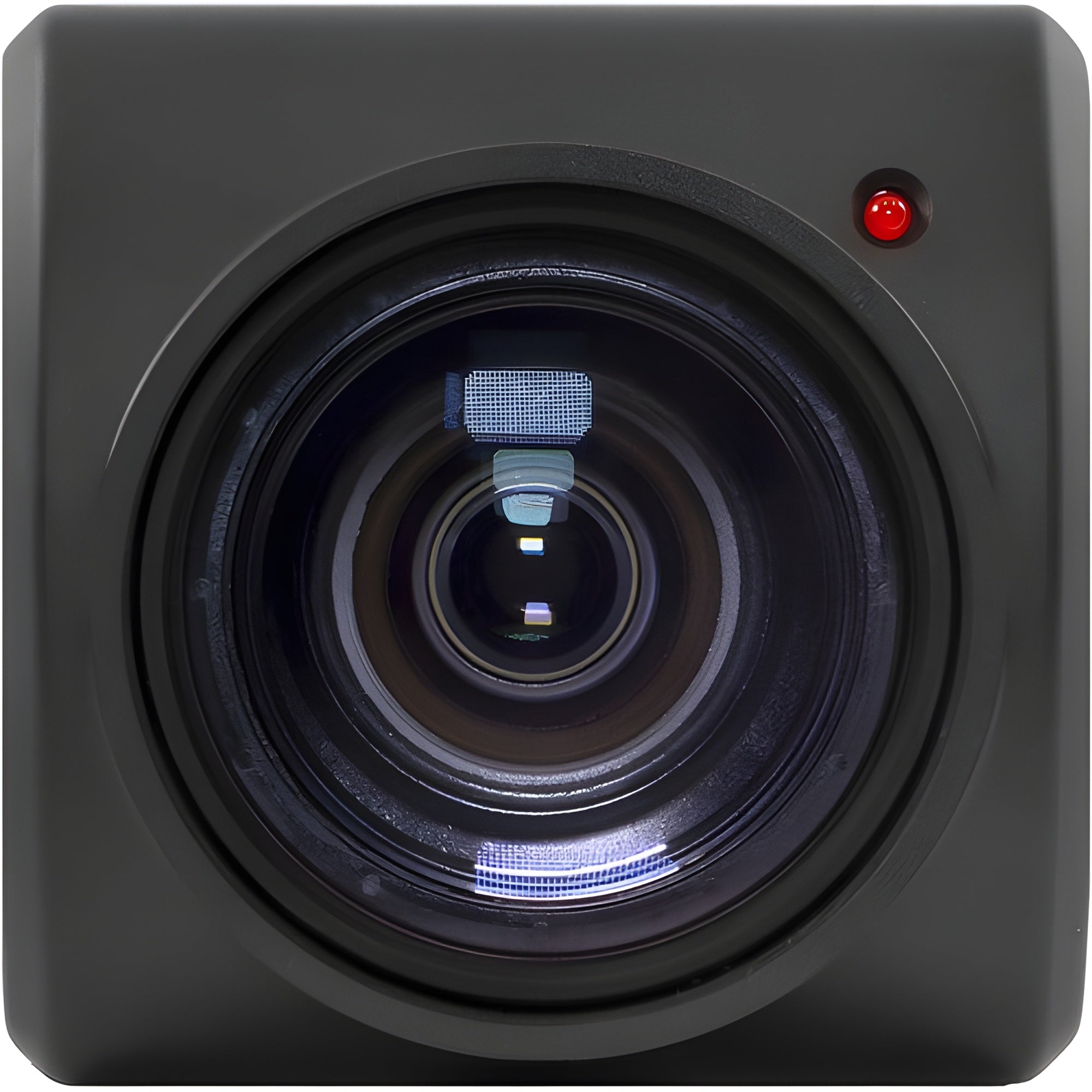

The 30X optical zoom block offers a flexible zoom range of 4.6 to 135mm starting at 68° through 3° horizontal angle-of-view for maintaining image crispness in both wide and tight shots.
Exceptional low-light sensitivity ensures the CV420-30X-IP will maintain a clear picture in variable lighting conditions for live events, houses of worship, indoor/outdoor sporting events, and other dynamic lighting environments.

Ideal for use in networked A/V installations, the CV420-30X-IP offers the convenience of triple-stream (H.264/H.265/MJPEG) and HDMI outputs with audio embedding.

Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

Features

• Up to 3840x2160, 1920x1080, and 1280x720p

• 30X Optical Zoom

• 8.5 Megapixel (1/2.5") 4K (UHD) sensor

• IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs
• Ethernet I/O support

• RS232 and 3.5mm audio input

• Visca over IP, Onvif, SRT compliant

• 8.5 Megapixel (1/2.5") 4K (UHD) sensor

• 30X Optical Zoom (4.6~135mm) - 68° AOV

• Up to 3840x2160, 1920x1080, and 1280x720p

• Frame-rates: 59.94/50/29.97/25fps

• Triple-stream IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs

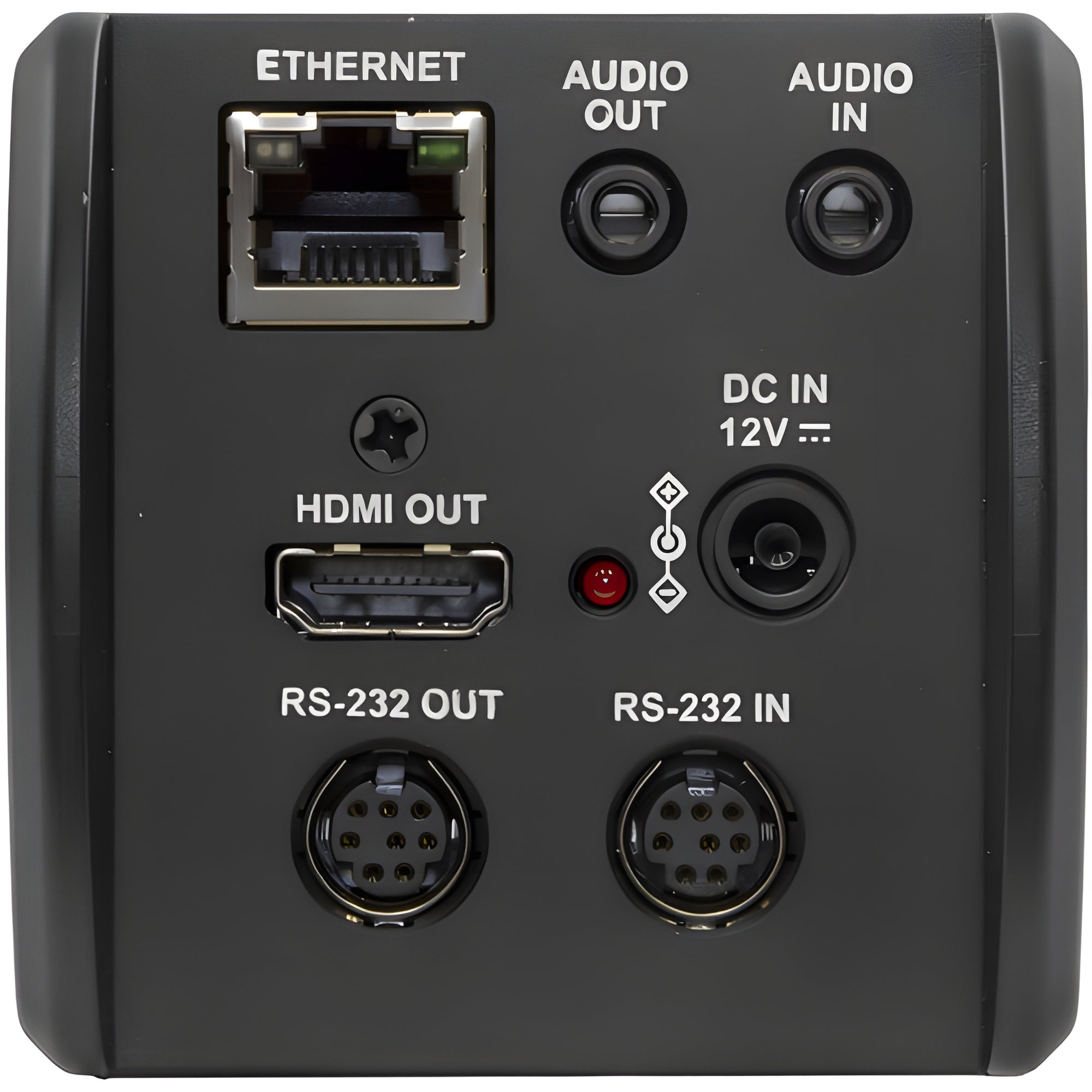

• Ethernet I/O supports video, control, and PoE over a single cable

• RS232 and 3.5mm audio input with passthrough
• Visca over IP, Onvif, SRT compliant

What Our Experts Think

• 4K Ultra HD Resolution – Captures 3840x2160 video at 60fps for high-quality imaging.
• 30x Optical Zoom – Provides sharp close-ups and flexible framing options for professional use.
• IP, 12G-SDI & HDMI Outputs – Supports multiple connectivity options for seamless integration into any workflow.
• Low-Latency IP Streaming – Ensures smooth and high-quality video transmission over networks.
• Advanced Image Controls – Features HDR, noise reduction, and custom exposure settings for optimal performance.
• Smooth & Quiet Operation – Ideal for broadcast, live events, corporate meetings, and surveillance applications.

Q&A

Q: What is the Marshall CV420-30X-IP 30X Zoom IP Camera?
A: The Marshall CV420-30X-IP is a professional UHD 4K camera with 30x optical zoom, featuring IP, 12G-SDI, HDMI, and USB connectivity, ideal for broadcast, live streaming, and remote production.

Q: What is this camera used for?
A: It is designed for broadcast studios, live events, houses of worship, sports streaming, and conferencing, providing high-quality remote video capture.

Q: What resolution does this camera support?
A: The CV420-30X-IP captures UHD 4K at 60fps and supports Full HD 1080p and 720p resolutions, delivering sharp and detailed video output.

Q: What are the connectivity options?
A: This camera offers IP streaming, 12G-SDI, HDMI, and USB outputs, making it highly versatile for professional video applications.

Q: Can this camera be controlled remotely?
A: Yes, it supports remote control via IP, RS-232, and RS-422, allowing for seamless integration into multi-camera setups.

Maintenance Tips

• Clean the Lens Regularly – Use a soft microfiber cloth and lens-safe cleaner to remove dust and smudges for clear image quality.
• Ensure Proper Ventilation – Keep air vents unobstructed to prevent overheating and maintain peak performance.
• Check Network & Power Connections – Secure PoE (Power over Ethernet) or power adapter connections for stable operation.
• Update Firmware – Regularly check for firmware updates to improve performance, security, and compatibility.
• Optimize Camera Settings – Adjust focus, exposure, and white balance for the best video quality in different lighting conditions.
• Protect Against Power Surges – Use a surge protector or UPS to prevent damage from electrical fluctuations.
• Monitor Network Performance – Ensure sufficient bandwidth for smooth IP streaming and video transmission.
• Secure the Mounting Position – Periodically check mounting brackets and screws to prevent misalignment or accidental falls.
