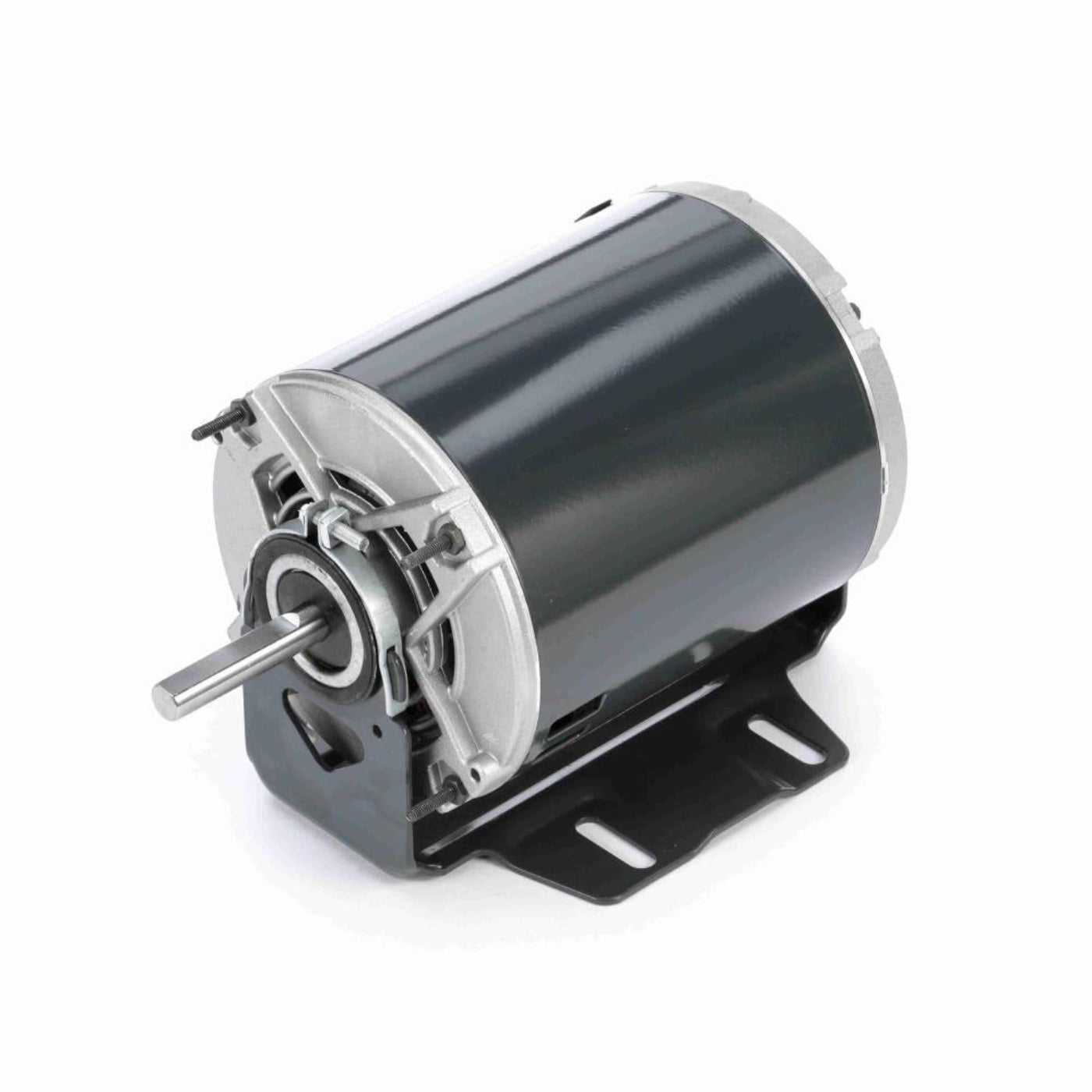

Marathon M4682 Belt Drive Fan and Blower Motor - M4682

Marathon M4682 Belt Drive Fan and Blower Motor - M4682

The Marathon M4682 is a belt drive fan and blower motor designed for HVAC applications. This motor features a power rating of one third horsepower and operates at a speed of one thousand seven hundred twenty-five RPM. The motor frame is sized at fifty-six Z, ensuring a reliable fit in various systems. It is built with a rolled steel material for durability and comes with a resilient base for easy mounting.

Product Highlights

The M4682 motor is ideal for HVAC and refrigeration applications, delivering efficient operation and reliable performance.

Features

• Electrical type: Split phase
• Voltage: 115/208-230
• Phase: Single

Specifications

What our Experts Think

• Reliable Power Output: Delivers 1/3 HP at 1725 RPM, ideal for consistent airflow in various applications.

• Voltage Compatibility: Operates on 115/208-230V single-phase power, accommodating standard electrical systems.

• Durable Construction: Features a 56Z frame with an open drip-proof (ODP) enclosure, ensuring longevity in demanding environments.

• Efficient Operation: Designed for continuous duty with energy-efficient performance, contributing to reduced operational costs.

• Flexible Mounting: Equipped with a rigid base mounting system, simplifying installation and reducing vibration during operation.

Q&A

Q: What applications is the Marathon M4682 motor suitable for?
A: The M4682 motor is ideal for residential and commercial HVAC systems, including furnace blowers, air handlers, and exhaust fans

Q: Is the Marathon M4682 motor energy efficient?
A: Yes, the M4682 motor is designed for efficient operation, making it suitable for continuous-duty applications.

Q: Can this motor replace other 56Z-frame motors?
A: Yes, the M4682's standard 56Z-frame size and resilient base mounting make it a suitable replacement for many 1/3 HP motors in compatible applications.

Q: Why choose the Marathon M4682 motor?
A: The M4682 motor is known for its durability, efficiency, and versatility, making it a reliable choice for various industrial applications. Its robust design ensures consistent, long-lasting performance even under demanding conditions.

Maintenance Tips

1. Regular Cleaning: Keep the motor housing free from dust and debris to maintain proper cooling. Use a soft cloth or brush for cleaning.

2. Inspect Mounting: Ensure the motor is securely mounted to prevent vibration and misalignment. Tighten any loose bolts or components.

3. Monitor Bearings: Listen for unusual sounds during operation, which may indicate bearing wear. Replace bearings if necessary to avoid operational issues.

4. Check Electrical Connections: Periodically inspect wiring and terminals for signs of wear, corrosion, or looseness. Ensure all connections are secure and meet voltage ratings.

5. Overheating Protection: The motor includes automatic thermal overload protection. If the motor shuts down due to overheating, allow it to cool before restarting. Investigate and address any causes of excessive heat.

6. Ambient Conditions: Operate the motor within its specified ambient temperature range (up to 40°C) and in environments free from excessive moisture or contaminants.

7. Storage: When not in use, store the motor in a clean, dry location to prevent corrosion and damage.
