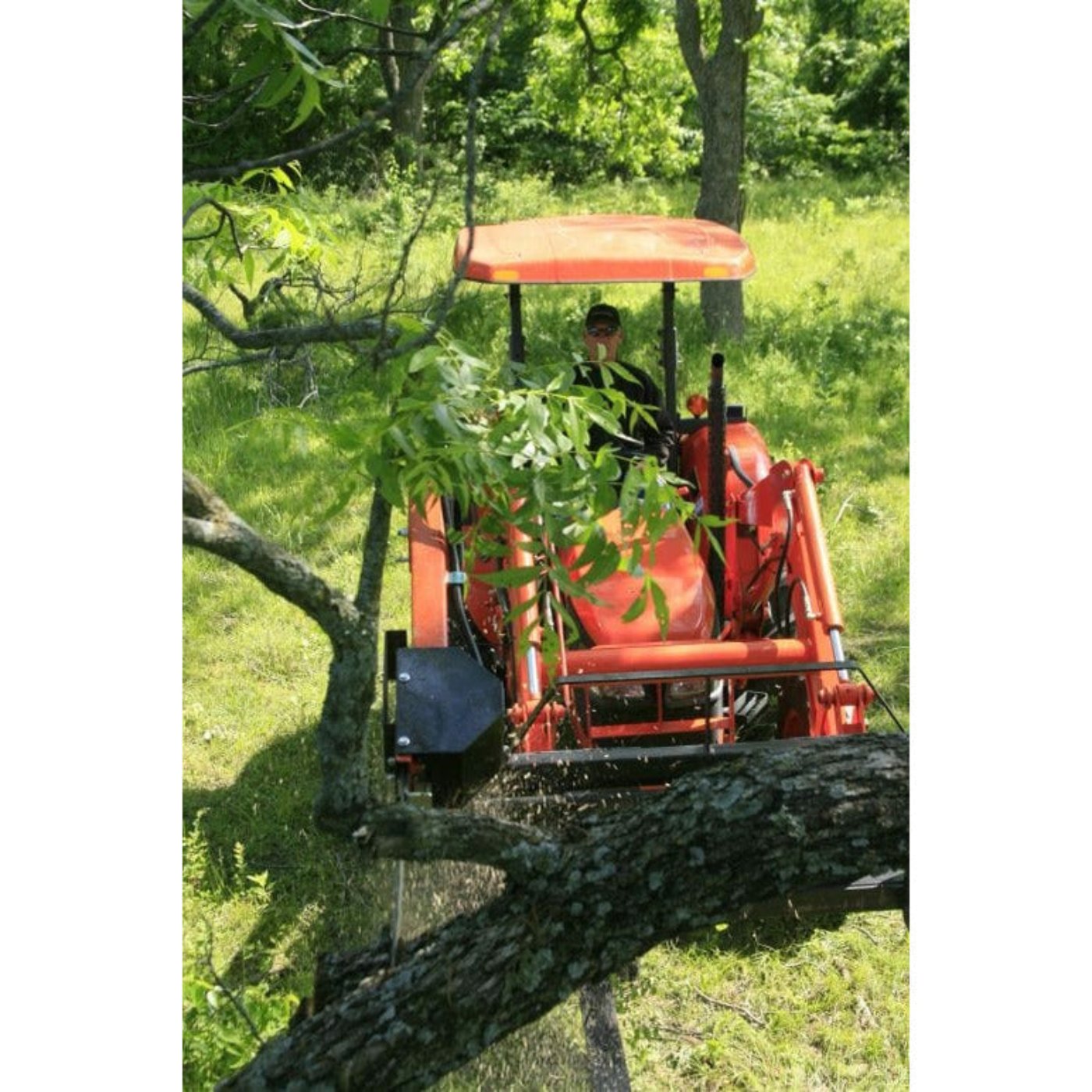

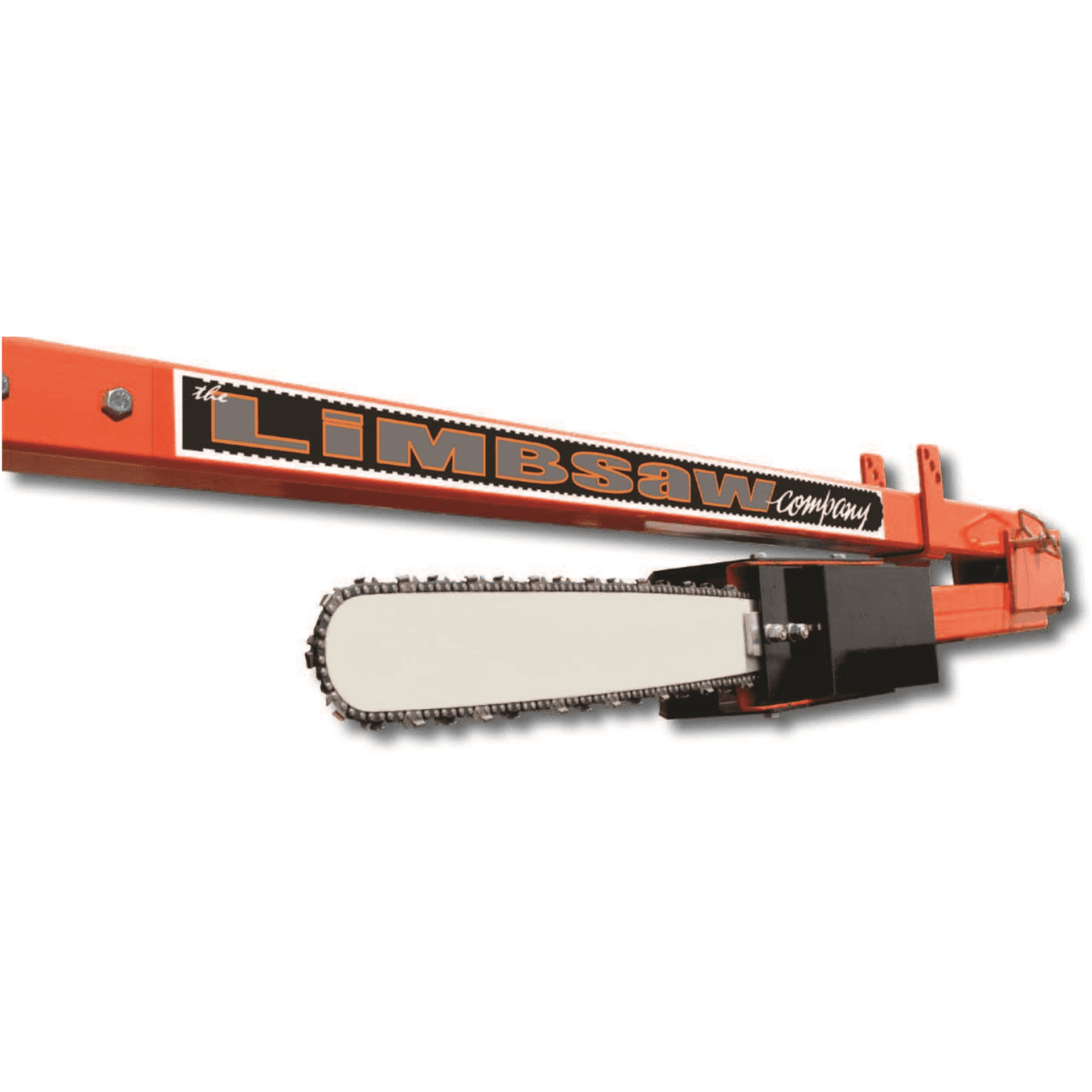

Running off your tractor's auxiliary hydraulics, it can reach up to 21' when mounted on a standard tractor loader. Operates at 5,000 RPM with a 20" bar and 0.325 pitch chain and only requires 7 GPM hydraulic flow.
See Features Below:
​Self-oiling system provides continuous lubrication directly from your tractor's hydraulic system
Reversible motor allows an operator to back the chain out of a pinch
Easily installed, attached and removed at only 90 lbs.
Uses 7 GPM flowÂ
Uses 3/8in. or 1/2in. hoses (hoses provided to end of boom)Features
Â
Wedge | |
---|---|
   Wedge   Material    |
Cast Steel |
Hydraulics | |
   Hydraulic   Reservoir Size   |
20 Gallons |
   Max   Pump PSI |
5000 PSI |
Cylinder Length | 20 Inches |
   Engine | |
   Idle   Control |
Yes |
Low Oil Shutdown | No |
   Power Head | |
   Vibration   Damping |
Yes |
Maximum RPM's | 3500 RPM |
Extended Length | 102" |
   Chain & Bar | |
   Chain   & Bar Included |
Yes |
Chain Pitch | .325 " |
Chain Gauge | .063 " |
Bar Length | 20 Inches |
Chain Brake | No |
Max Bar Length | 20 Inches |
Min Bar Length | 20 Inches |
Drive Links | 81 |
   Overview | |
   Weight |
86 Pounds |
Consumer Warranty | 6 Month |
Product Length | 103.2 Inches |
Product Width | 11 Inches |
Product Height | 9 Inches |
UPCÂ Â Â | 7.26237E+11 |
LS8 Manual 2019Â (pdf)
LSC Manual 2019Â (pdf)
LSC Parts Page (pdf)
