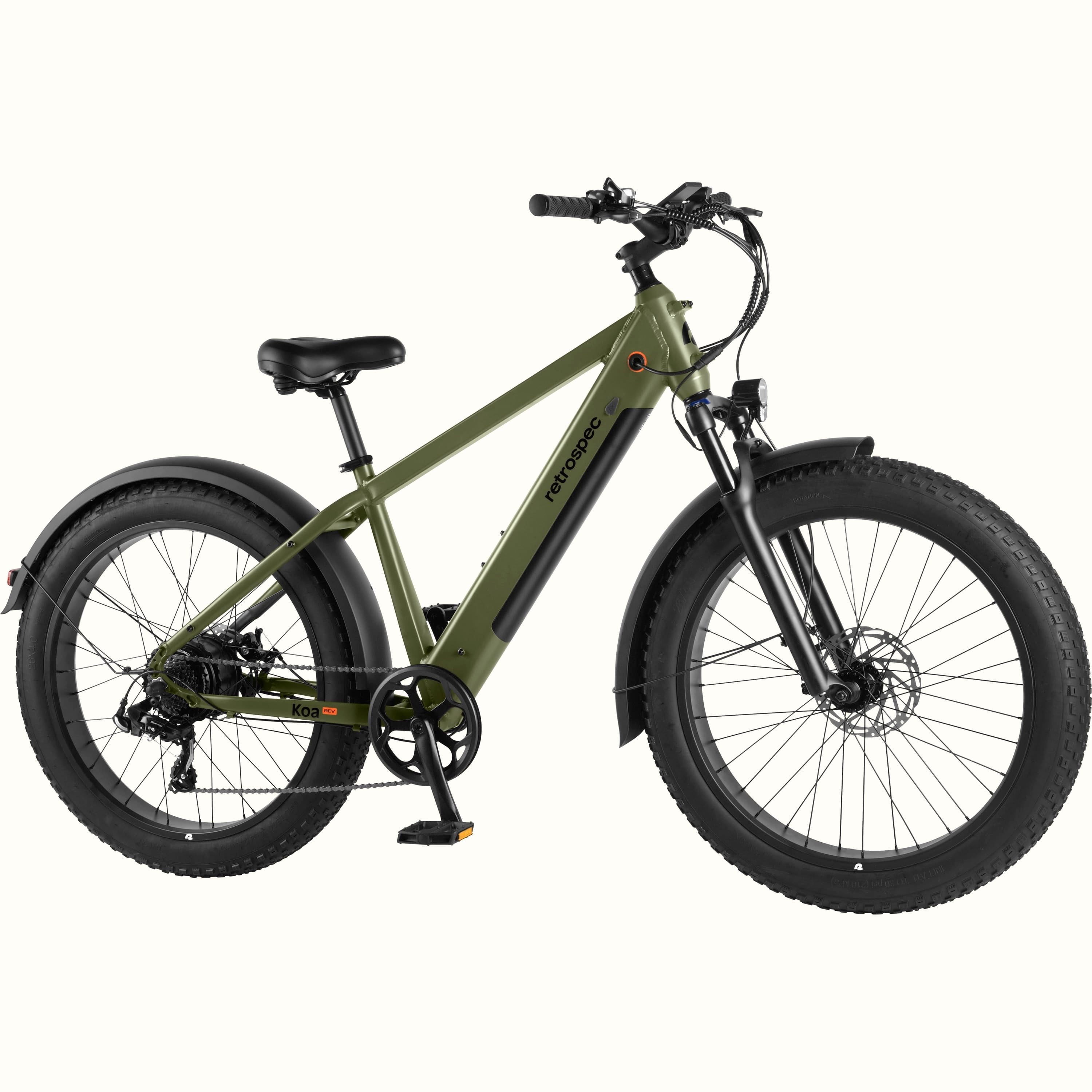

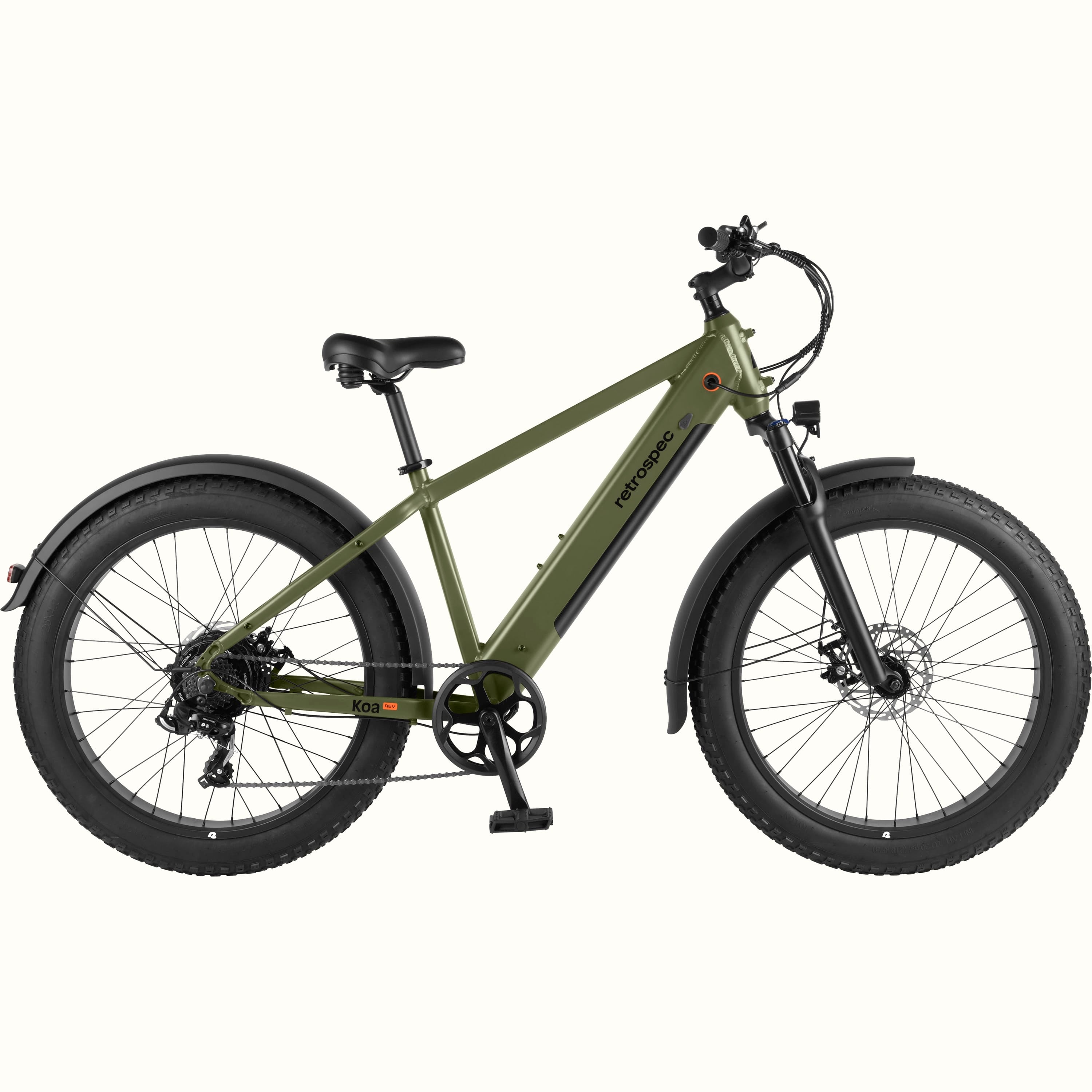

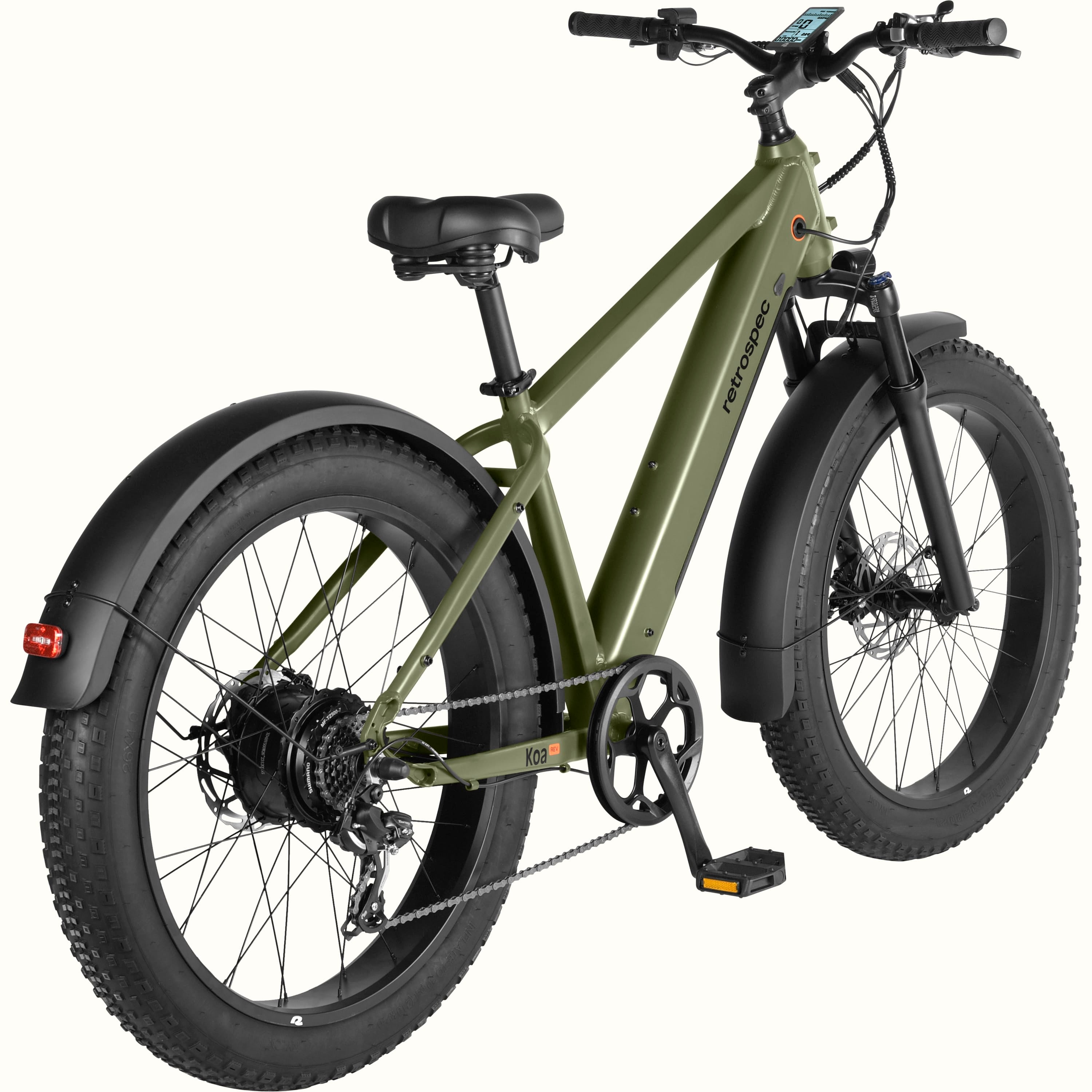

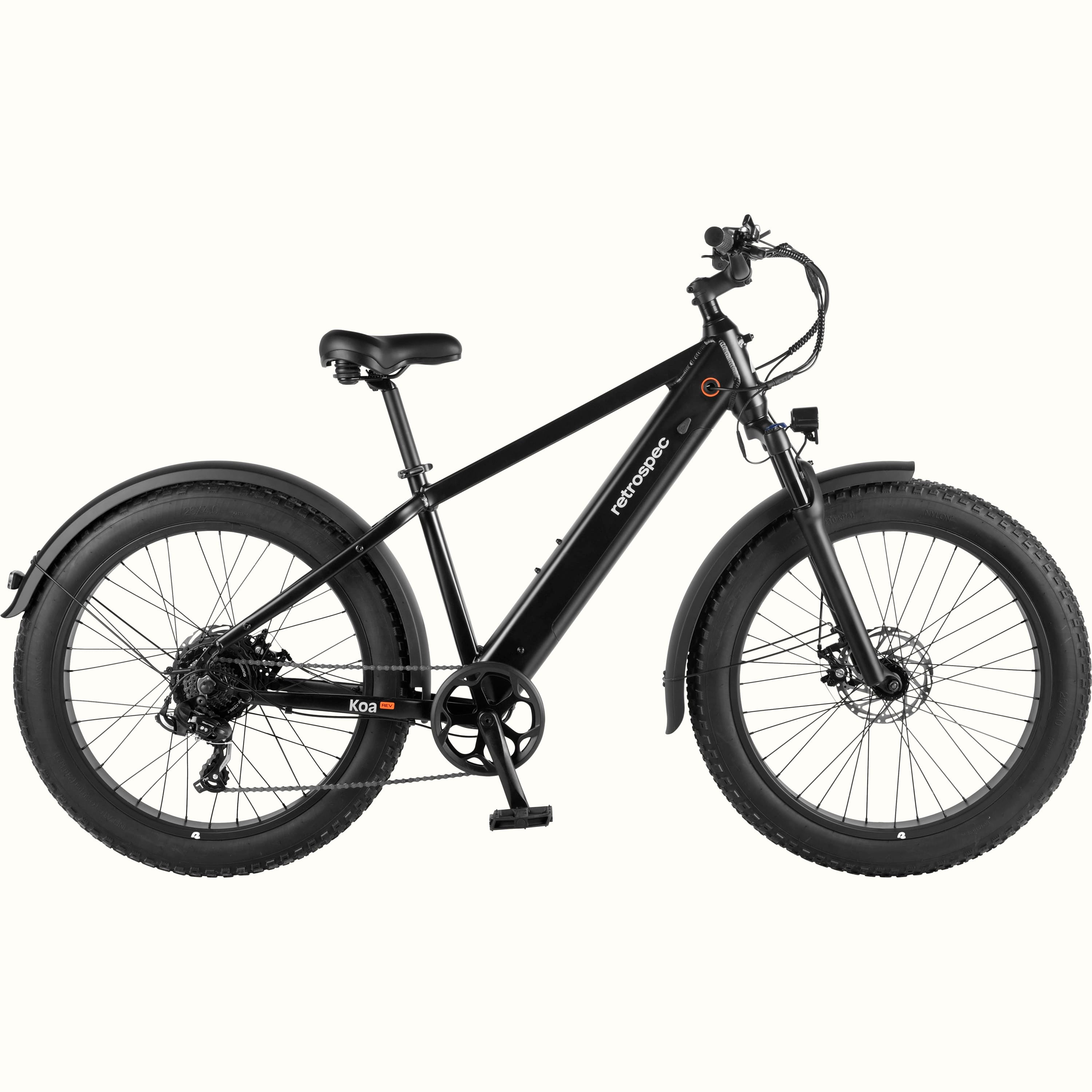

Koa Rev 2 Fat Tire Electric Bike

FREE SHIPPING
CLEARANCE SALE
80 Peoples are also watching.
SKU: 6017
$1,499.99
$0.00
$1,499.99
Color: Matte Olive Drab
Motor & Battery: 48V/500W
Subtotal: $1,499.99
clearance sale ends in
00 Hours
00 Minutes
00 Seconds
authorized dealer, shop your favorite brand.
Expert Support,

Dial +1 (888) 575-2099

Limited Supply,

grab it before it's gone.

Lowest prices,

As low as possible.

All Items are brand New,

Never used.

Popular Add-Ons

$200.00

$70.00

$100.00

$30.00

Add-Ons Bundle

$200.00

$70.00

$100.00

$30.00

Bundle Offer

$300.00

$100.00

Recently Viewed Products

SPECS:

FRAMESET
  • Sizes: 1 size 26"  x 482mm/48cm/19"
  • Material: Alloy, 6061 TIG welded, hydroformed tubing
  • Dropouts: 1x rear fender eyelets, rear rack mounts
  • Fork: Suspension fork 80mm travel, alloy crown, steel stanchions, steel lowers, 1 1/8" (28.6mm)
WHEELSET
  • Rims: Alloy double-wall, 26" x 4.0 x 36H x 13G
  • Hubs: F: Alum bolt-on, R: Hub motor bolt-on, 36H x 13G
  • Spokes: 13G w/brass nipples, black ED finish
  • Tires: 26 x 4.0, S/V
E-POWER SYSTEM
  • 48V/750W Motor: Brushless rear hub motor, 9-pin connector, MXUS
  • 48V/750W Battery: Li-ion + Charger w/US plug, w/power level display.

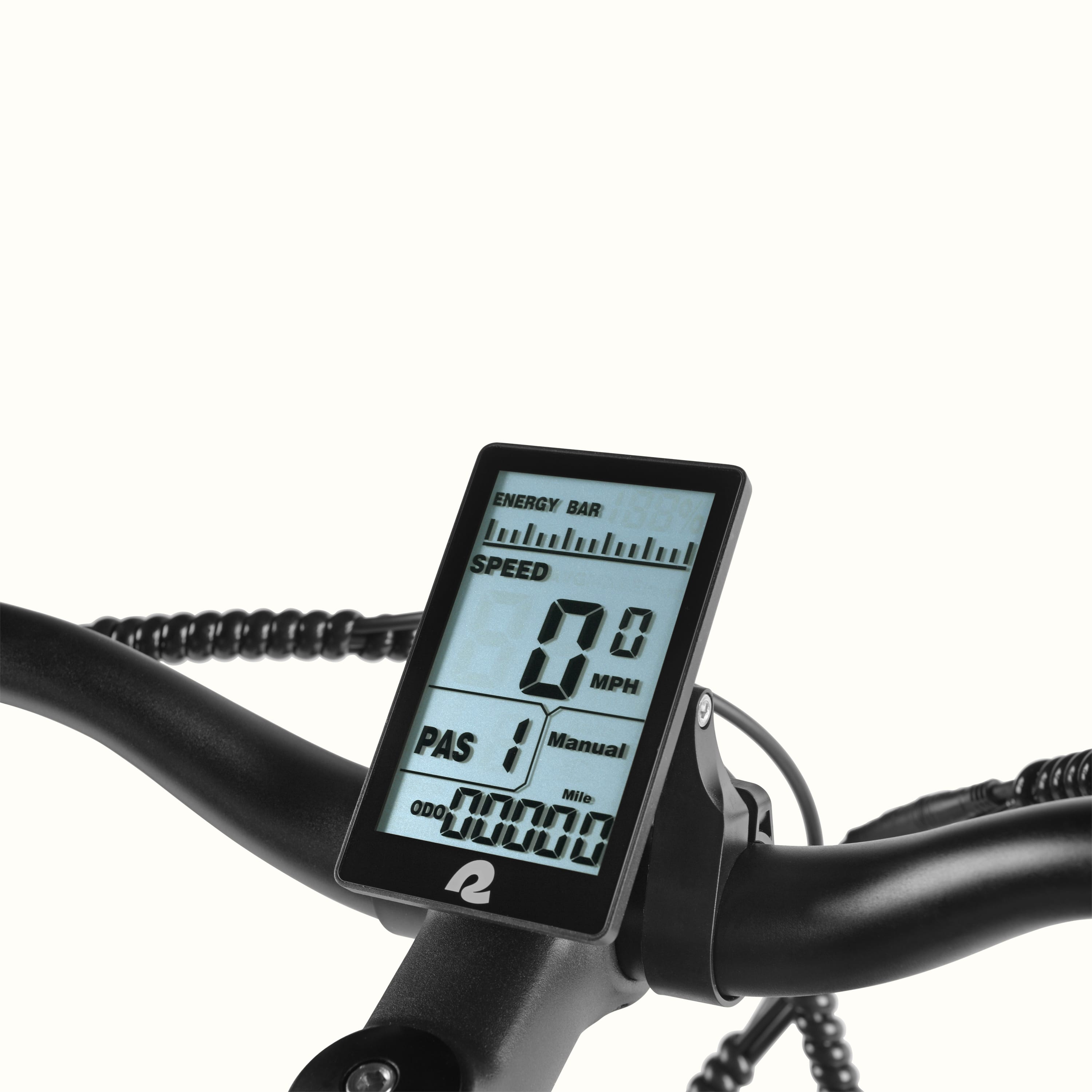

  • Drive Mode, Display: PAS/twist throttle Right side FT158X twist throttle, speed sensor, LCD display panel w/6 PAS levels (Pedal Assist System), w/Start-Aid 6kph (~4mph).
  • 48V/750W: range Up to 46 miles
DRIVETRAIN
  • Rear Derailleur: Shimano Altus 9S
  • Shifter: Altus Rapidfire Plus, w/OGD & Clamp Band
  • Crankset: Prowheel 170mm x 42T w/inside chainguide, outside chainring cover
  • Chain: KMC 3/32" x 118L
  • BB: Steel sealed cartridge, 120mm x 175mm
  • Freewheel/Cog: Shimano 9-speed
COMPONENTS
  • Headset: Threadless, 1 1/8" (28.6mm) semi-integrated, steel+alum
  • Brakes: JAX Mechanical disc Front & Rear, 160mm

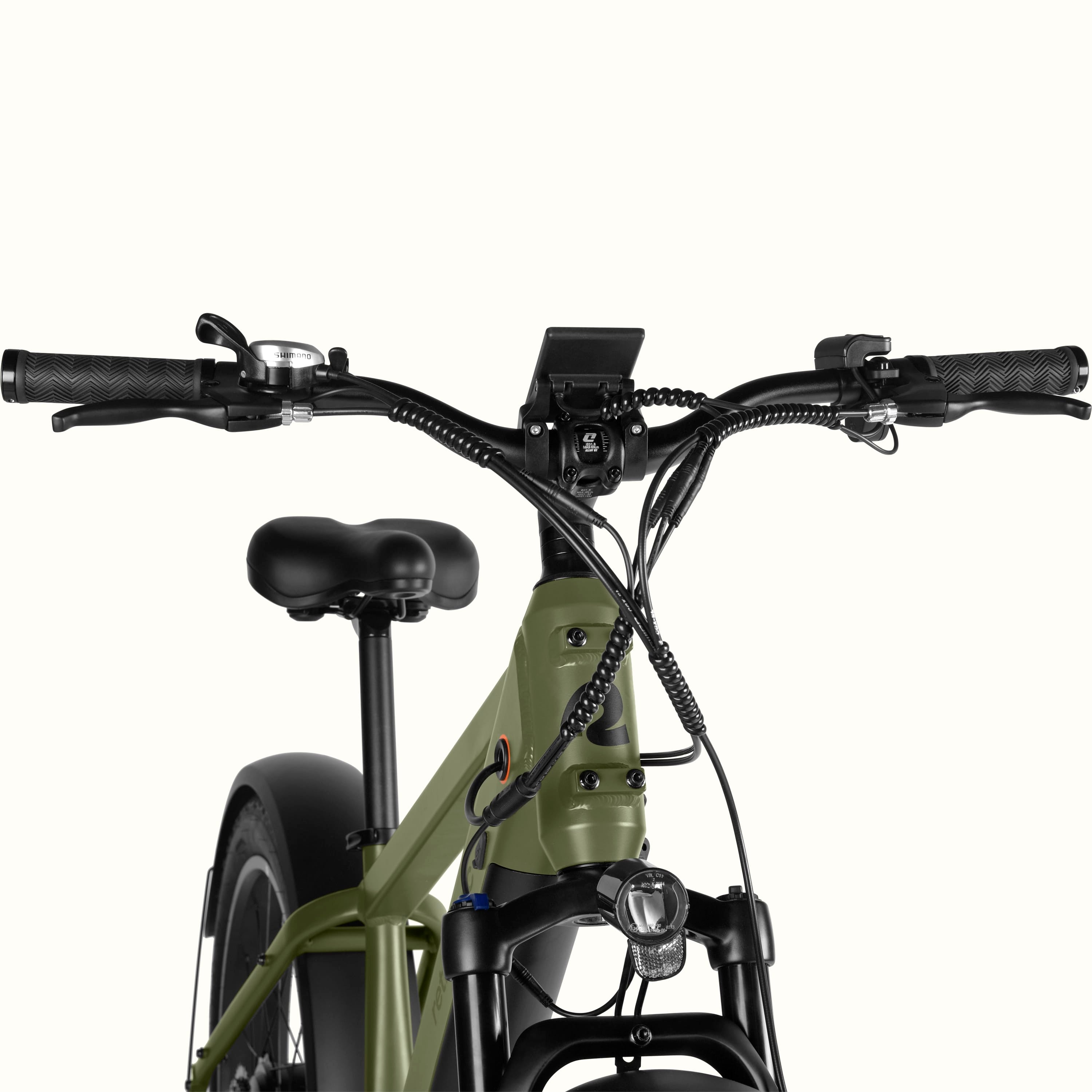

  • Handlebars: Alloy 680mmW x 25mm Rise
  • Grips: Comfort
  • Stem: Alum alloy threadless, 90mm ext x 7° rise
  • Saddle: SuperSoft MTB
  • Seatpost: Alloy, 30.4 x 300mmL, black
  • Seatpost Clamp: Alloy QR
  • Pedals: Alloy platform, loose-ball 9/16"
EXTRAS
  • Kickstand: Rear mount, adjustable, aluminum alloy
  • Light(s): Front (2x AA) + Rear (2x AA), batteries included
  • Chaincover: Chainring cover (not chaincover)
  • Tools: 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
  • Recommended Weight Limit: 250lbs
  • Item Weight: 74 lbs (battery included)
