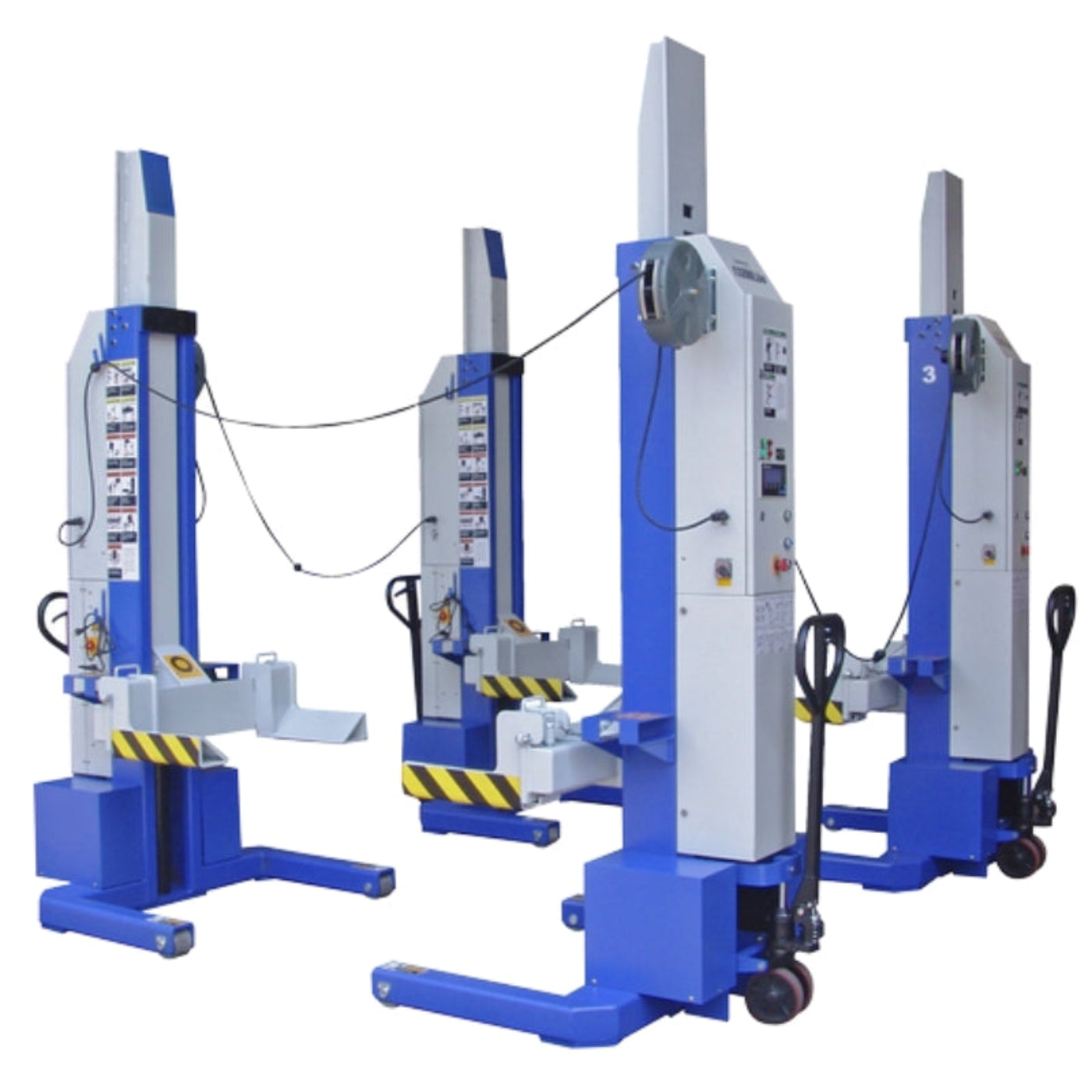

MSC-13K-B-452 Mobile Column Lift by iDeal

The MSC-13K-B-452 is the ultimate lifting solution for heavy-duty applications. With a  52,000 lbs, capacity, this configuration with 4 columns is a match for your specific needs. Our lifts are built tough with a heavy-duty hydraulic system, advanced Siemens PLC technology, and precise Electro-Optical encoders to ensure smooth, synchronized lifting.

Safety and efficiency are at the core of our design. Each column boasts an independent locking system and emergency stop, while the adjustable lifting forks and large carriage bearings make handling different loads a breeze. The user-friendly LCD screen provides clear information at a glance. With quiet operation at 70 dB(A), these lifts are perfect for indoor environments. Experience the MSC-13K-B-452 difference and elevate your lifting game.

Features

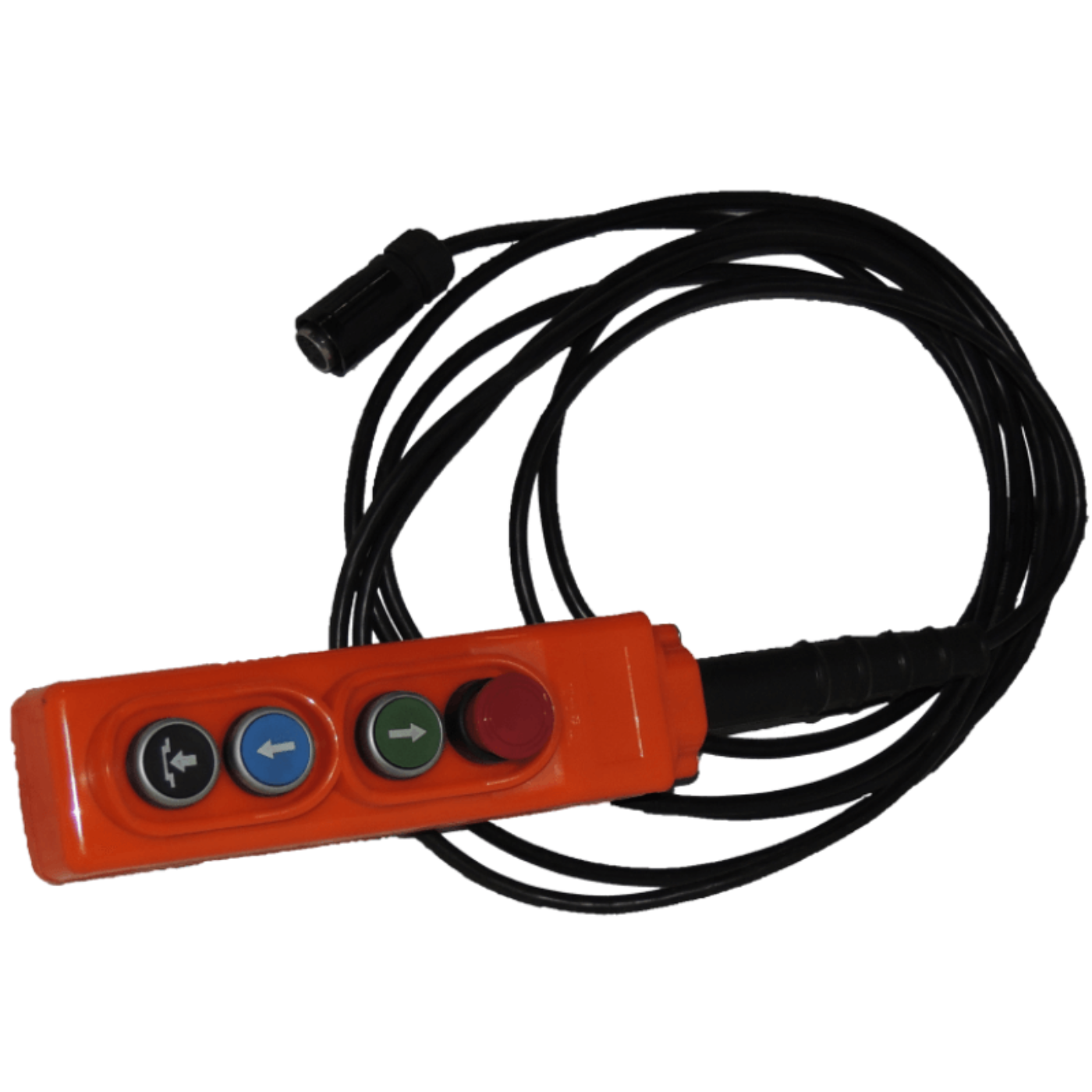

• Easy to use master controller for individual or paired synchronized operation
• Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

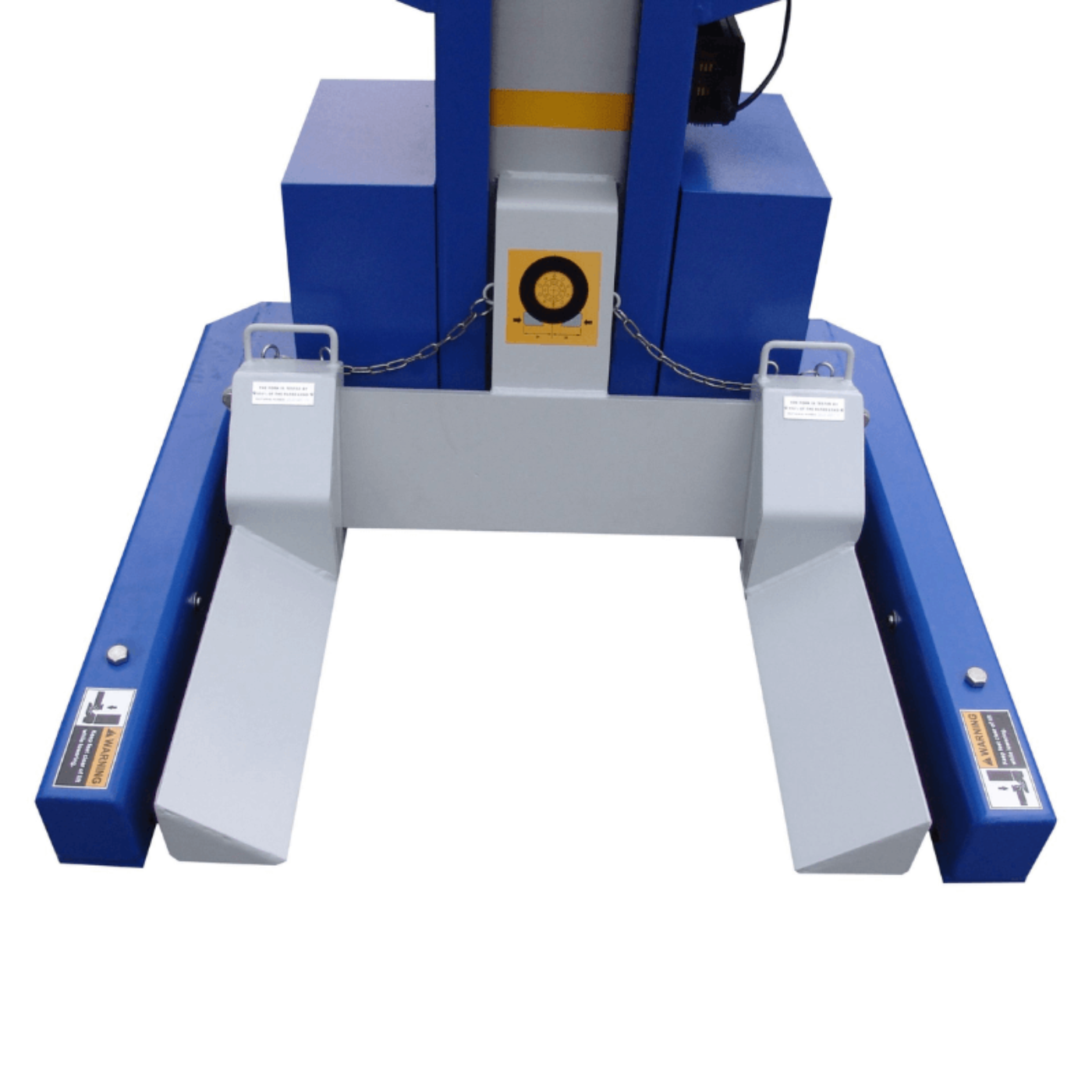

• Adjustable lifting forks accommodate the widest range of wheels
• Easily positioned with pallet jack style wheel
• Heavy-duty hydraulic system
• Large carriage bearings provide durable, fast and easy lifting

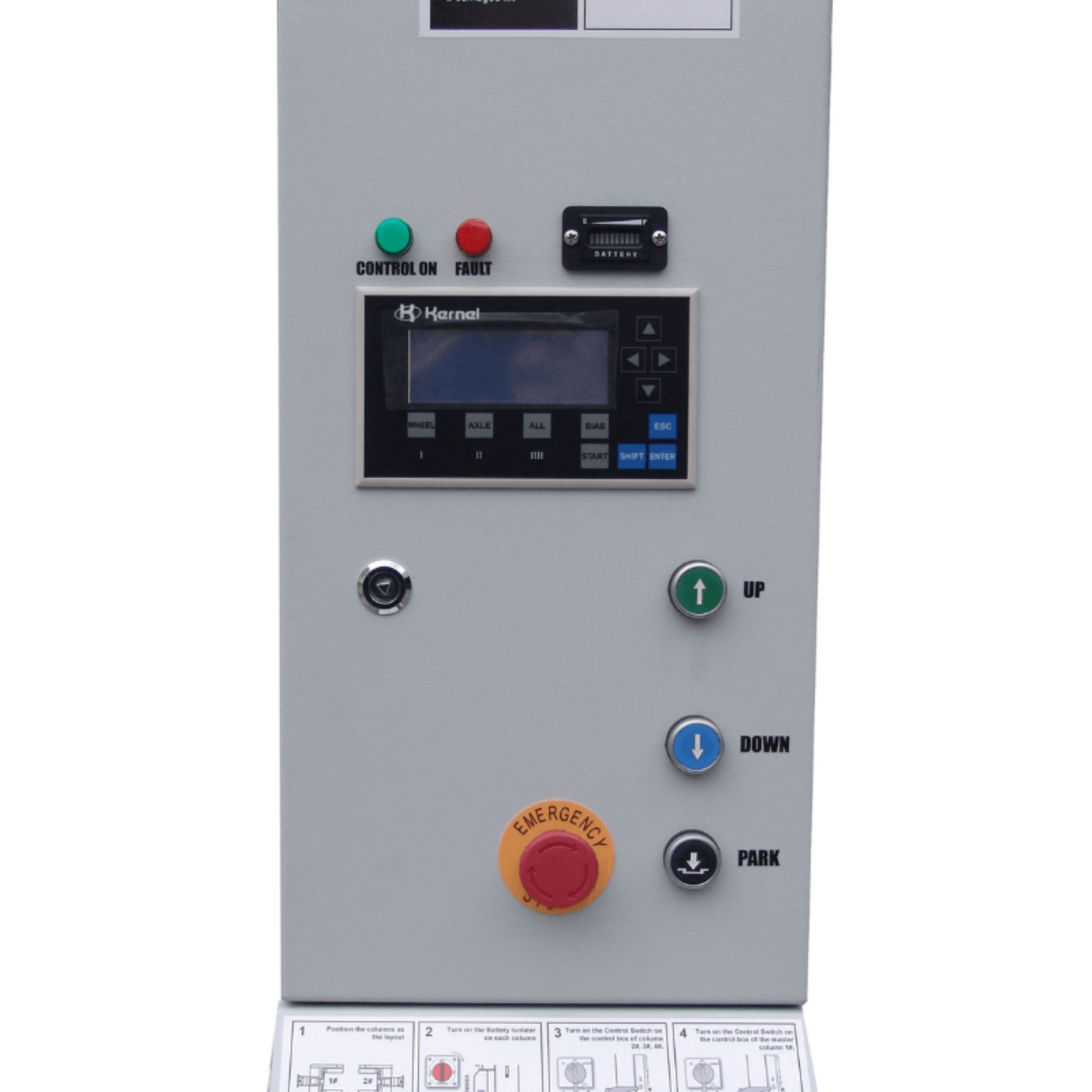

• LCD screen with keyboard offers easy to read visuals of settings and lifting height
• Independent mechanical locking system
• Emergency switch on each column provide highest safety assurance
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
• iDeal Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment

Specifications

Manual

   iDeal MSC-13K-B-452 Product Manual

• All refurbished items are stocked and shipped from Texas Warehouse Only
• Pictures of units can be shared upon request
• 20% off is based off regular price.
• Contact Us today if your item is available

What our Experts Think

• Heavy-Duty Performance: The iDEAL MSC-13K-B-452 Mobile Column Lift is built to handle the toughest lifting tasks. With a total capacity of 52,000 lbs (13,000 lbs per column), it's perfect for lifting large vehicles like trucks, buses, and heavy-duty equipment.

• Versatile and Flexible: The 4-column configuration offers flexibility in vehicle lifting, allowing for independent operation of each column. This versatility makes it an ideal choice for shops working on a variety of vehicle types and sizes.

• Efficient Operation: This lift can raise vehicles quickly, with a rise time of just 75 seconds. It’s powered by an onboard battery system that is rechargeable, giving it the mobility to be used in different work areas.

• Safety First: With an independent mechanical locking system and an emergency stop feature, the iDEAL MSC-13K-B-452 provides peace of mind during operation, ensuring that safety is prioritized during use.

• Space-Saving and Quiet: The lift operates quietly (70 dB), making it suitable for indoor environments where noise might be a concern. Plus, the lift can be easily moved around, making it a great solution for shops with multiple work bays.

Q&A

Q: What is the iDEAL MSC-13K-B-452 Mobile Column Lift?
The iDEAL MSC-13K-B-452 is a heavy-duty mobile column lift designed to lift vehicles up to 52,800 lbs (13,200 lbs per column). It is ideal for automotive shops, allowing for efficient lifting of large vehicles like trucks and buses.

Q: What features enhance the functionality of this lift system?
The MSC-13K-B-452 features a direct-drive hydraulic system, independent mechanical locking system, and an onboard battery with a charging system. It is designed for easy mobility and compact storage, making it a great fit for various shop environments.

Q: What is the price of the iDEAL MSC-13K-B-452 Mobile Column Lift?
The typical price of the iDEAL MSC-13K-B-452 is around $31,715, offering a competitive value for its lifting capacity and features. Prices may vary depending on the retailer.

Q: Where can I purchase the iDEAL MSC-13K-B-452 Mobile Column Lift?
This lift is available through authorized automotive equipment dealers. Availability may vary by location and size.

Maintenance Tips

• Battery Care: Charge the batteries at 100–140VAC, 60Hz. For long-term storage, disconnect and remove batteries, storing them in a dry place. Discharge to 30% annually before recharging.

• Visual Inspections: Check for hydraulic leaks, and inspect cables, chains, pulleys, and rubber pads for wear. Replace worn components promptly.

• Fork Adjustments: Adjust lifting forks to fit different wheel sizes. Ensure the mechanical lock-pins are engaged to prevent side movement under load.

• Synchronization: Ensure all columns are synchronized using the Siemens PLC and Electro-Optical encoder system for balanced lifting.
