iDeal LT-PT2500AH-X Powertrain Platform/ Air Hydraulic - LT-PT2500AH-X

iDeal LT-PT2500AH-X Powertrain Platform/ Air Hydraulic - LT-PT2500AH-X

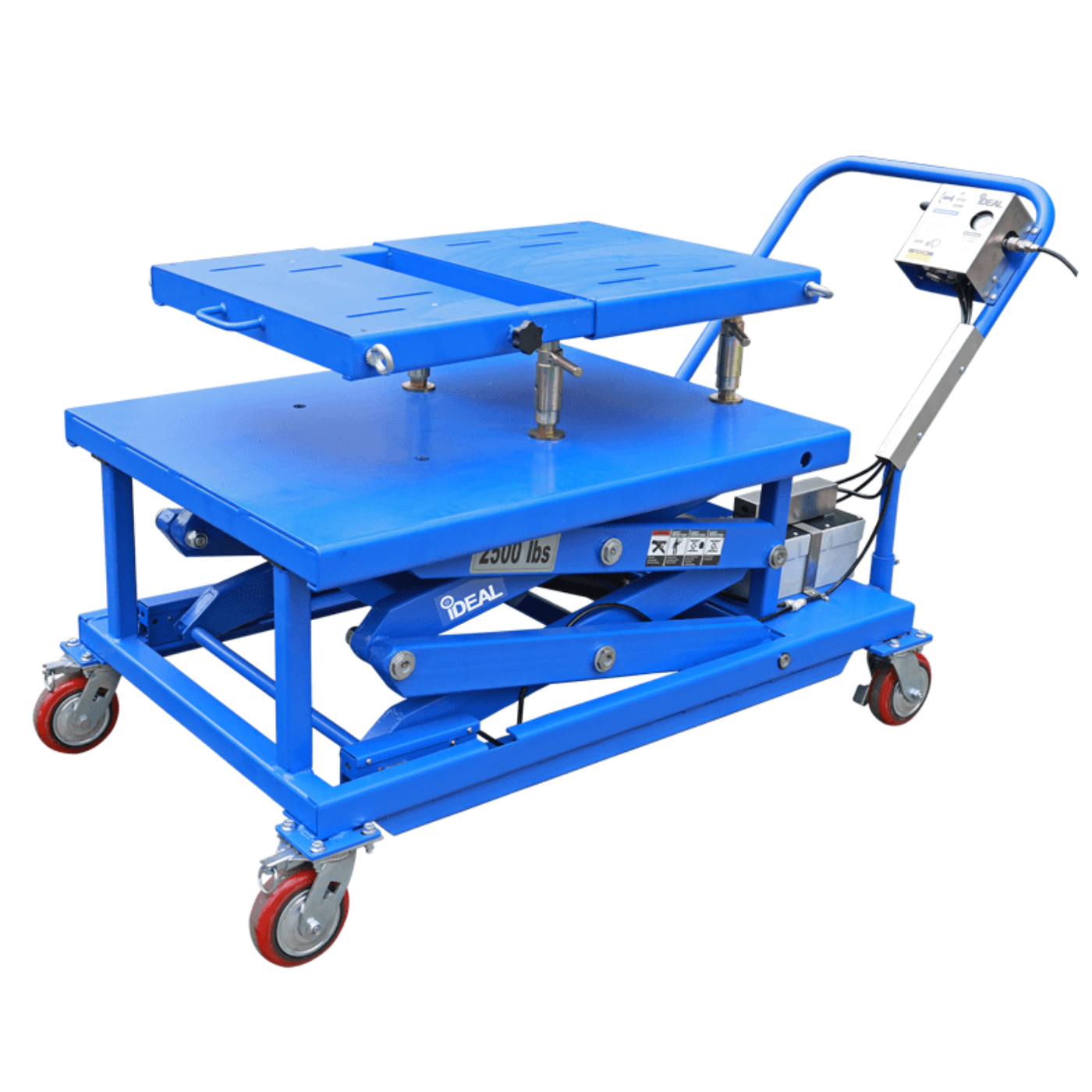

LT-PT2500AH-X Powertrain by iDeal

Is your current powertrain lift about as helpful as a chocolate teapot? Are you tired of feeling like you're playing a game of Twister every time you need to work on a transmission? Well, buckle up buttercup, because the iDeal LT-PT2500AH-X Powertrain by iDeal is here to save your bacon (and your back)!

With a 2,500 lbs capacity, it's built to handle the beefiest of powertrains without breaking a sweat. Its adjustable platform is more accommodating than your favorite stretchy pants, extending from 31.5" to 36.7" in length. This lift doesn't just go up and down like a see-saw on steroids. With tilt and height adjustments smoother than your best pick-up line, you'll be positioning powertrains with the finesse of a conductor leading an orchestra. Don't let your outdated equipment turn you into a contortionist. The LT-PT2500AH-X, with its fancy air gauge, water separator, and a built-in tool tray, is ready to transform you into a powertrain specialist. Upgrade now, and you might even start looking forward to Monday mornings!

Features

• 2,500 LBS CAPACITY
• INNOVATIVE, HIGH QUALITY PORTABLE SCISSOR LIFT DESIGN
• EFFICIENT & SAFE METHOD TO INSTALL OR REMOVE HEAVY VEHICLE POWERTRAIN COMPONENTS IE: TRANSMISSIONS, ENGINES OR AXLES
• FULL OPERATION AIR SYSTEM HAND CONTROLS FOR LIFTING, LOCKING & LOWERING
• COMPRESSED AIR / HP HYDRAULIC OPERATION (90 TO 125 PSI)
• INTEGRATED AIR GAUGE W/ WATER SEPARATOR
• HD PT ‘EXTENDABLE & SLOTTED’ PLATFORM W/ 5.2” ADJUSTMENT LENGTH
• HD JACK SCREWS FOR PRECISION ‘TILT & HEIGHT’ PLATFORM ADJUSTMENTS
• DOUBLE SCISSOR HD DESIGN W/ HQ HYDRAULIC CYLINDER
• INTEGRATED UTILITY / TOOL TRAY & SUB-PLATFORM STORAGE AREA
• DURABLE ‘DIRECTIONAL & LOCKING’ 6” POLY SWIVEL CASTERS
• PT PLATFORM SIZE 23.6”W X 31.5 - 36.7”L
• 3EA LOCKING HEIGHT POSITIONS
• MAX PT PLATFORM HEIGHT 72”
• MIN PT PLATFORM HEIGHT 35”
• OVERALL SIZE 71.3”L X 33.5”W
• 72S RISE & 33S LOWER TIME
• INCLUDES 4EA TIE-DOWN RING EYELETS & HD RATCHET STRAP
• DURABLE POWDER-COAT FINISH

Specifications

• All refurbished items are stocked and shipped from Texas Warehouse Only
• Pictures of units can be shared upon request
• 20% off is based off regular price.


What our Experts Think

• Heavy-Duty Capacity: The iDEAL LT-PT2500AH-X is built to handle up to 2,500 lbs, making it ideal for lifting and positioning large powertrain components like engines, transmissions, and axles.

• Precision Adjustment: Offers an adjustable platform with tilt (±6–8°), extendable length, and a height range from 35" to 72", allowing for exact alignment during installation or removal.

• Air-Hydraulic Operation: Utilizes an air-over-hydraulic system powered by shop air (90–125 PSI) for smooth, controlled lifting and lowering with minimal effort.

• Control and Safety: Features a stainless-steel pneumatic hand control with integrated air gauge and water separator, plus tie-down ring eyelets and a ratchet strap to secure loads safely.

• Mobility and Storage: Equipped with 6" swivel casters (locking and directional), an integrated tool tray, and under-platform storage for easy mobility and organized workspaces.

• Built to Last: A double scissor-lift design paired with a heavy-duty hydraulic cylinder provides exceptional stability and long-term reliability.

• Optional Add-ons: Compatible with a "quick mount" powertrain support stand kit for even more adaptability in demanding shop environments.

Q&A

Q: What is the iDEAL LT-PT2500AH-X?
A: The LT-PT2500AH-X is a high-rise, air-hydraulic powertrain lift platform with a 2,500 lb capacity. It’s built for removing, installing, and servicing engines, transmissions, EV battery packs, and other heavy components in commercial or automotive environments.

Q: What is it used for?
A: It’s ideal for safely supporting and aligning heavy vehicle components like powertrains, EV batteries, and drivetrains during service or installation, especially in fleet, dealership, or repair shop settings.

Q: Is it customizable or expandable?
A: Yes, it’s compatible with an optional quick-mount Powertrain Support Stand Kit for additional stability and configuration flexibility.

Q: What does it weigh and how large is it?
A: The unit weighs about 798 lbs and has an overall length of 71.3" and width of 33.5".

Q: What is the price range?
A: The base model is typically priced around $4,500, depending on supplier and selected options.

Maintenance Tips

• Multi-Adjustable Platform: Offers extendable length, tilt, and height adjustments to accommodate various powertrain components.

• Pneumatic Control Panel: Features a stainless-steel hand-operated control panel with integrated air gauge and water separator for precise operation.

• Heavy-Duty Construction: Built with a double scissor design and high-quality hydraulic components for durability and stability.

• Enhanced Mobility: Equipped with locking swivel and directional poly casters for easy maneuverability.

• Safety Features: Includes tie-down anchors and a heavy-duty ratchet strap to secure components during handling.

• Optional Support Stand Kit: Available to provide additional support for various powertrain components
