iDEAL Elec-Hydra UTV Lift w/Integrated Motor & Retractable Ramp - U-2200IEH-XR

iDEAL Elec-Hydra UTV Lift w/Integrated Motor & Retractable Ramp - U-2200IEH-XR

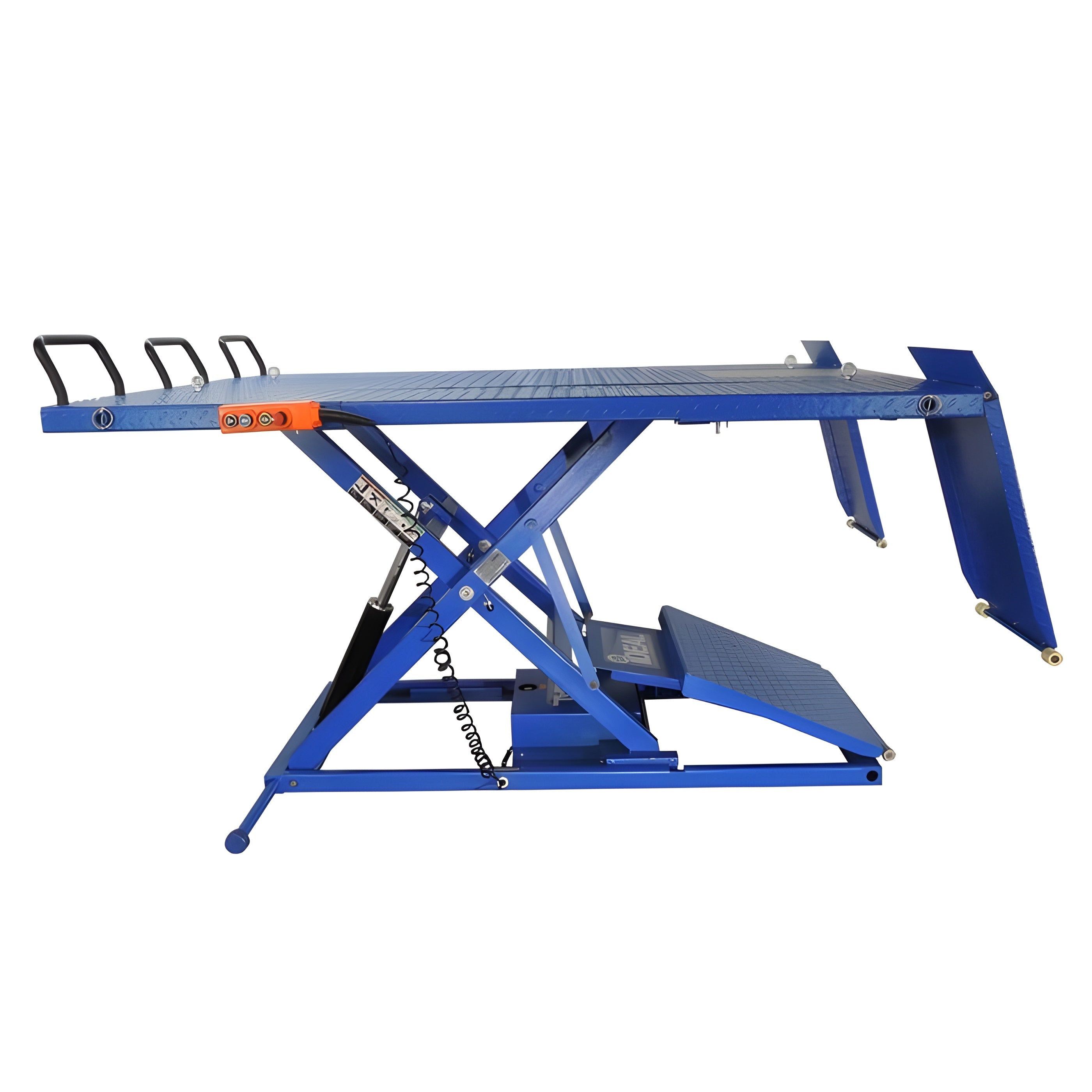

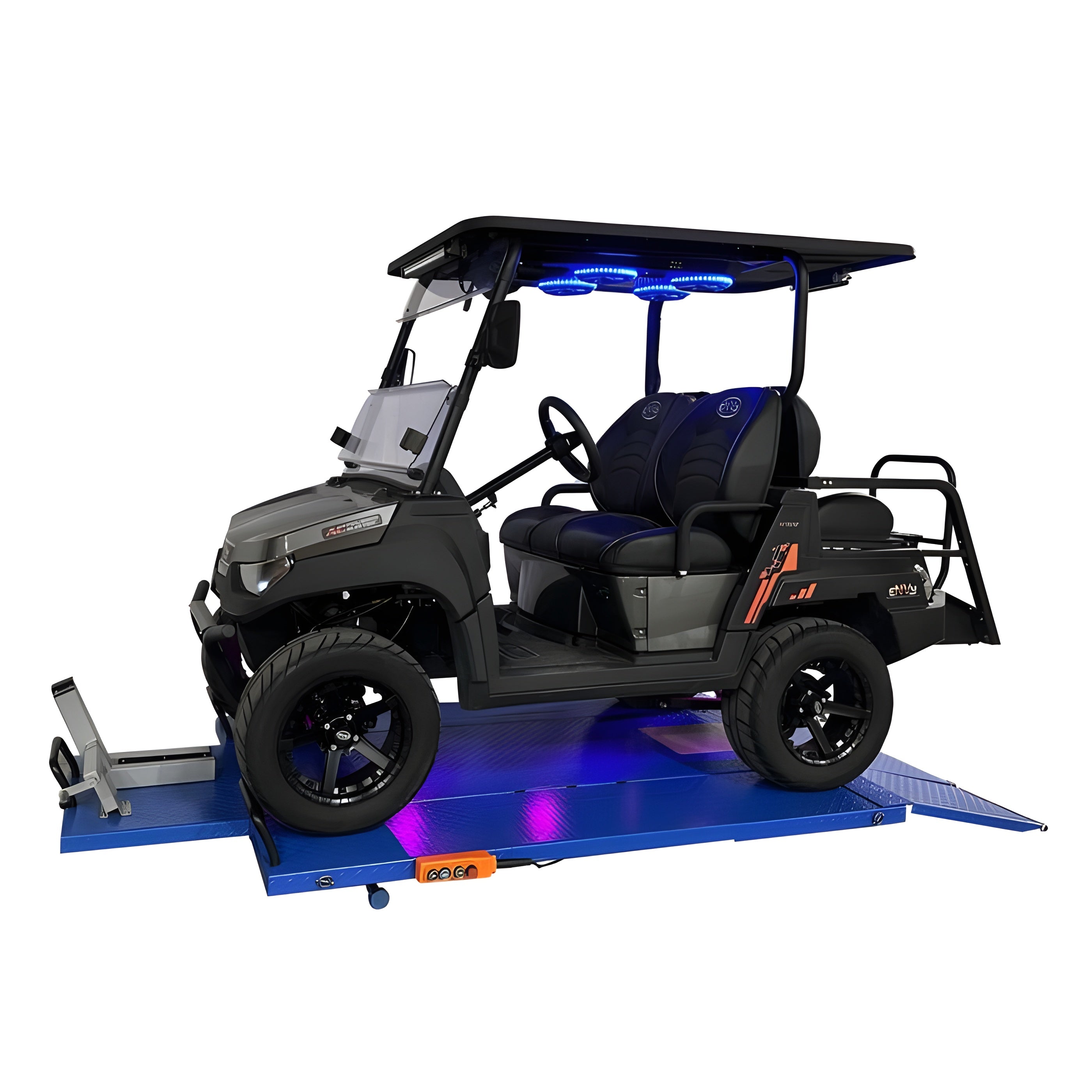

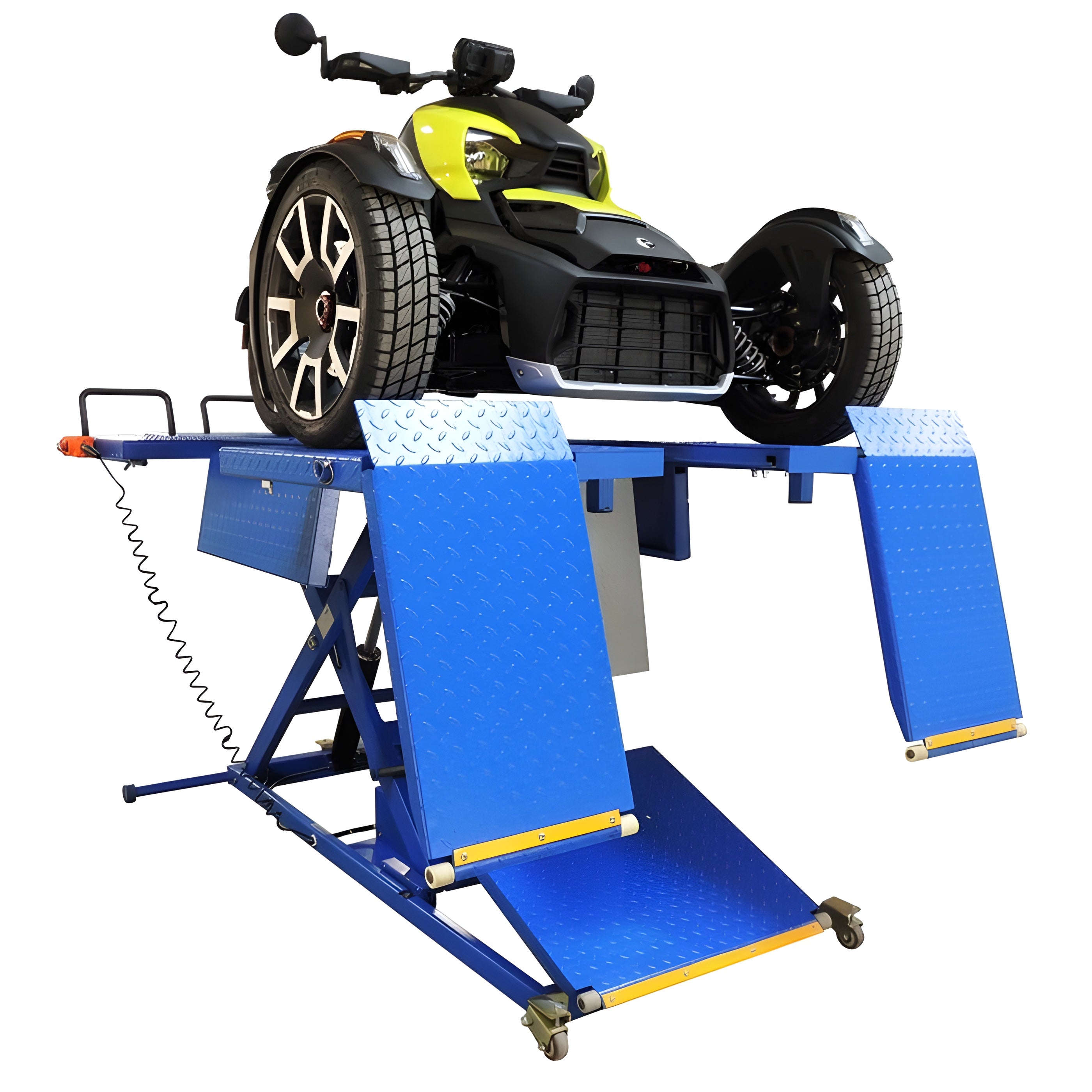

The iDEAL UTV Lift, model U-2200-IEH, with 2,200 lbs. of capacity is designed to lift UTVs and ATVs with ease. The 65 wide table will accommodate Trikes, ATVs and UTVs. The removable UTV side extensions have an integrated fold down access panel to improve technician productivity. We use a 110V electric hydraulic power unit that is built into the lift which provides smooth, safe and quick lifting and lowering. The lift is operated using a simple hand held pendant which raises, lowers into the locks and lowers, which eliminates the need to manually disengage safety latches. The perfect lift for everything from the UTV to the motorcycle. Wheel Chock and Vise Sold Separately.

Features

• NEW! Retractable Ramp System
• 2,200 lbs. Capacity
• 47" Rise Height
• 110V Integrated Electric/Hydraulic Power Unit

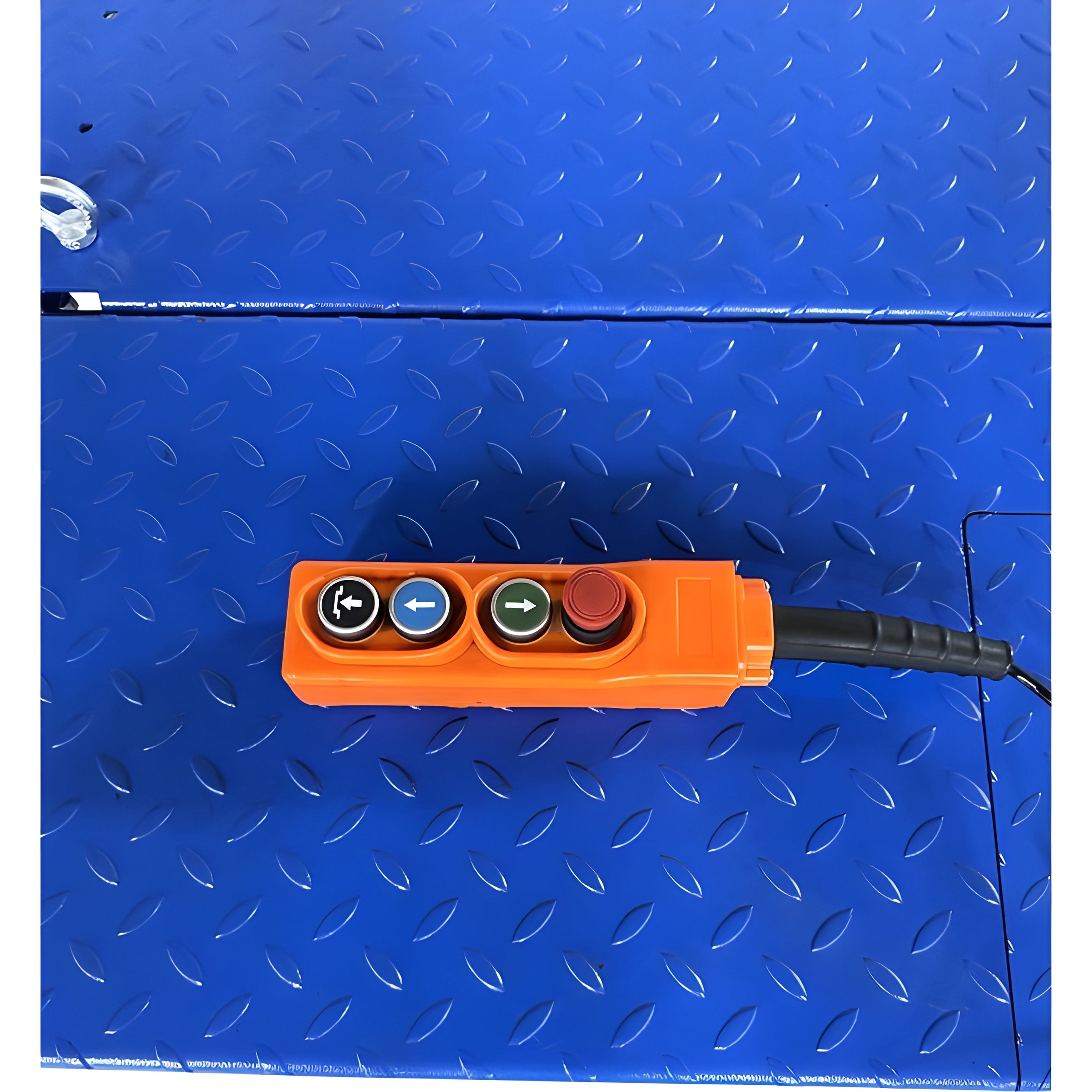

• Single Point Hand Held Control Pendant for Operation and Lock Release
• Six Locking Positions
• Extended 27.5" Long Full Width Approach Ramp

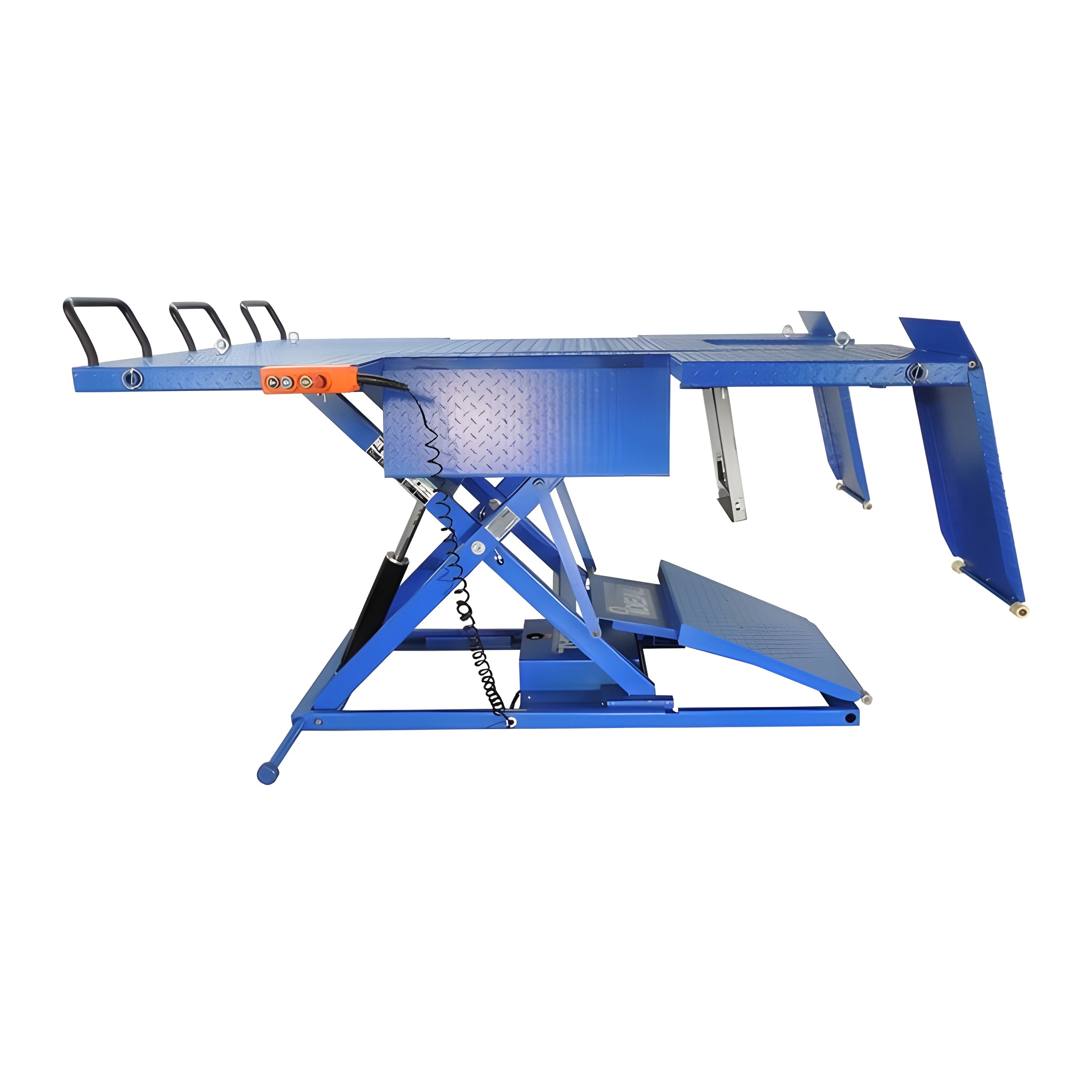

• Rear Drop Down Service Panel
• Wheel Stops
• 65" X 88.6" Table

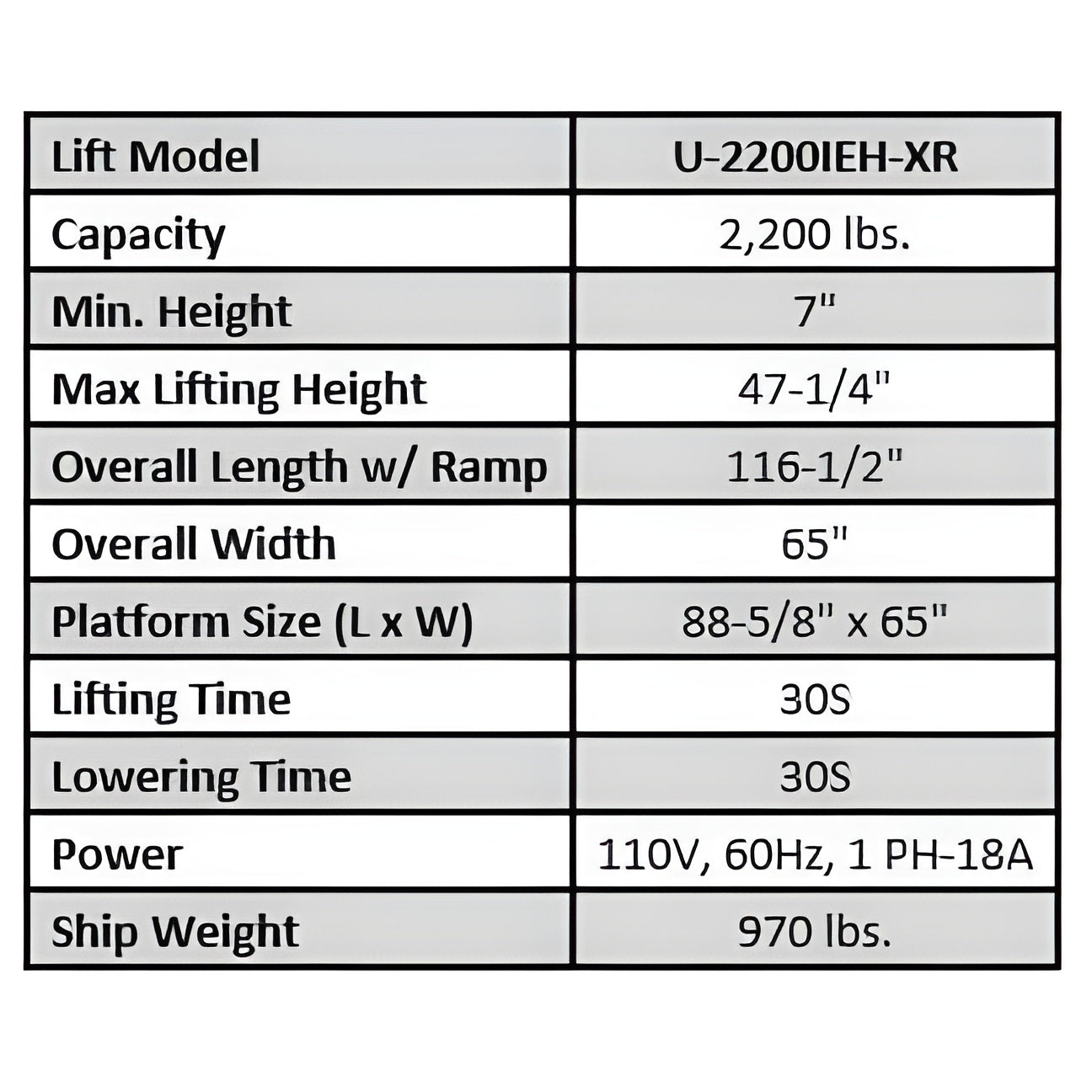

Specifications

What Our Experts Think

• Effortless Lifting with Electric-Hydraulic System: The iDEAL Elec-Hydra UTV Lift features a powerful integrated motor for smooth, easy lifting of UTVs, ATVs, and other heavy vehicles.
• Heavy-Duty Capacity: With a robust design, it supports up to 2,200 lbs, making it perfect for lifting larger off-road vehicles for repairs or maintenance.
• Retractable Ramp for Easy Loading: The included ramp is retractable, allowing for smooth loading and unloading, improving workflow and reducing the time spent moving vehicles.
• Sturdy and Durable Construction: Built with high-quality steel, this lift ensures long-lasting durability, able to withstand the demands of daily use in professional shops.
• Increased Safety Features: Equipped with secure locking mechanisms and non-slip surfaces, offering enhanced stability during vehicle lifts to prevent accidents.
• Space-Saving Design: When not in use, the compact design allows for easy storage, making it ideal for shops with limited space.
• Perfect for Professionals: Designed for heavy-duty use, this UTV lift is ideal for repair shops, maintenance facilities, and anyone working with large off-road vehicles.

Q&A

Q: What is the weight capacity of the iDEAL Elec-Hydra UTV Lift?
A: The iDEAL Elec-Hydra UTV Lift has a weight capacity of 2,200 lbs, making it suitable for a variety of UTVs, small trucks, and other heavy-duty vehicles.

Q: Does the lift have an integrated motor?
A: Yes, the lift features an integrated electric motor, providing smooth and effortless lifting and lowering of vehicles with minimal manual effort.

Q: Is the ramp retractable?
A: Yes, the iDEAL Elec-Hydra UTV Lift includes a retractable ramp, which allows for easy loading and unloading of vehicles.

Q: What is the maximum height the lift can reach?
A: The iDEAL Elec-Hydra UTV Lift can raise vehicles up to a maximum height of 35 inches, giving ample space for maintenance and repairs.

Q: Is the lift adjustable to different vehicle sizes?
A: Yes, the iDEAL Elec-Hydra UTV Lift is designed to be adjustable, accommodating a range of vehicle sizes, including UTVs, ATVs, and other off-road vehicles.

Q: Can the lift be used for UTVs and other off-road vehicles?
A: Absolutely! The iDEAL Elec-Hydra UTV Lift is specifically designed for UTVs, ATVs, and other off-road vehicles, making it an excellent choice for all-terrain vehicle maintenance.

Q: How easy is it to operate the lift?
A: The electric motor allows for easy operation, making the lifting and lowering process straightforward and simple.

Maintenance Tips

• Regular Cleaning: Clean the lift and ramp after each use to remove dirt, debris, and grease buildup. Ensure the motor and hydraulic components stay free of contaminants.
• Inspect Hydraulic System: Check the hydraulic pump and hoses for leaks or wear. Make sure the fluid level is correct and top it off or replace it when needed.
• Lubricate Moving Parts: Apply lubricant to the lift's moving components and ramp mechanism to ensure smooth operation and reduce friction.
• Examine Electrical Components: Regularly inspect the motor, wiring, and controls for damage or wear. Ensure all connections are secure and free from corrosion.
• Tighten Fasteners: Periodically check all bolts, screws, and fasteners to ensure they are properly tightened and the lift is stable.
• Test Lift Functionality: Run the lift through its full range of motion to check for smooth and consistent lifting action. If you notice any irregularities, address them immediately.
