This aligner (IWA-60-8500-HD-K) is one of the most economical & advanced heavy-duty 3D multi-axle imaging alignment systems on the market today. The iDEAL 3D HD Imaging Wheel Aligner provides multi-axle wheel alignments for trucks, semi-trailers, and buses quickly & accurately without the need for vehicle lifting!

Four high-definition industrial cameras enable readings on up to four axles simultaneously, plus the ability to align vehicles with even more axles. Wide Scope technology allows the system to read over an extensive range of lengths and wheelbases providing .01 degrees of accuracy, along with real-time measurements for improved productivity. Modern lightweight targets are quick & easy to mount on many styles of tire rims.

Alignment software also includes specialized data for trucks, with shim assistance, when setting rear axle thrust. User-friendly features provide precise & easy-to-understand instructions with high-quality LCD screen graphics, illustration diagrams & integrated help system, just to list a few. The iDEAL 3D HD Image Wheel Aligner is fully supported in the United States!

Features

Multi-Axle Floor Alignment System No Vehicle Lift Required!
Designed to Measure Long Vehicles &Amp; Vehicles with Trailers
High Resolution / Extended Range 3d Tower Cameras Measures Up to Four Axles at Once
Integrated Quick Reference Vehicle Database for Commercial Vehicles

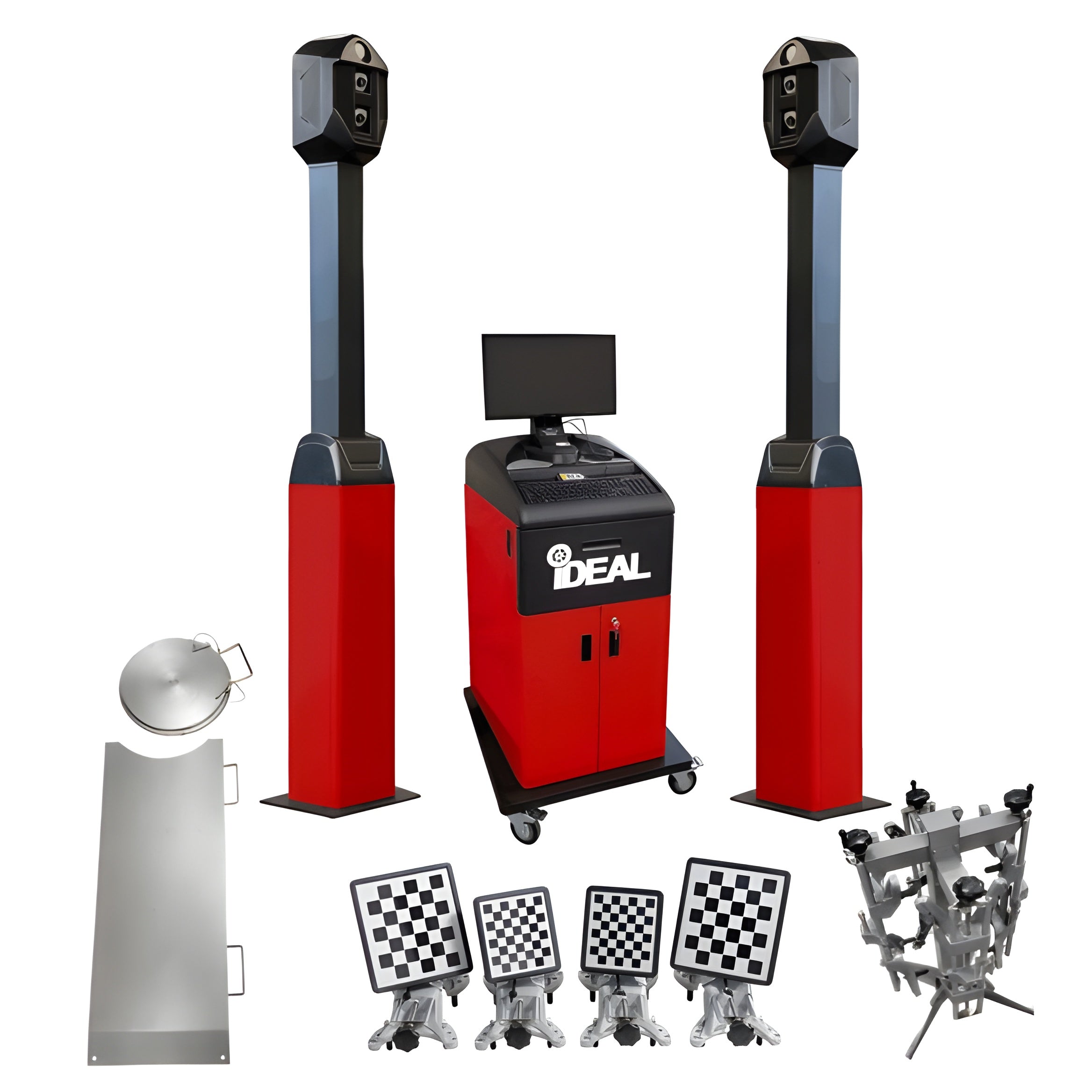

Includes Hd Turntable &Amp; Drive-On Floor Ramp Sets for Quick &Amp; Easy Front End Alignments
Dynamic Led Tower Guide Changes Shape to Guide Technician
Mobile Cabinet Allows for Side or Front Centered Placement for Drive-Thru or Dead-End Set-Up Configurations
Drive-Over Cable Plates Included for Drive-Thru Configuration

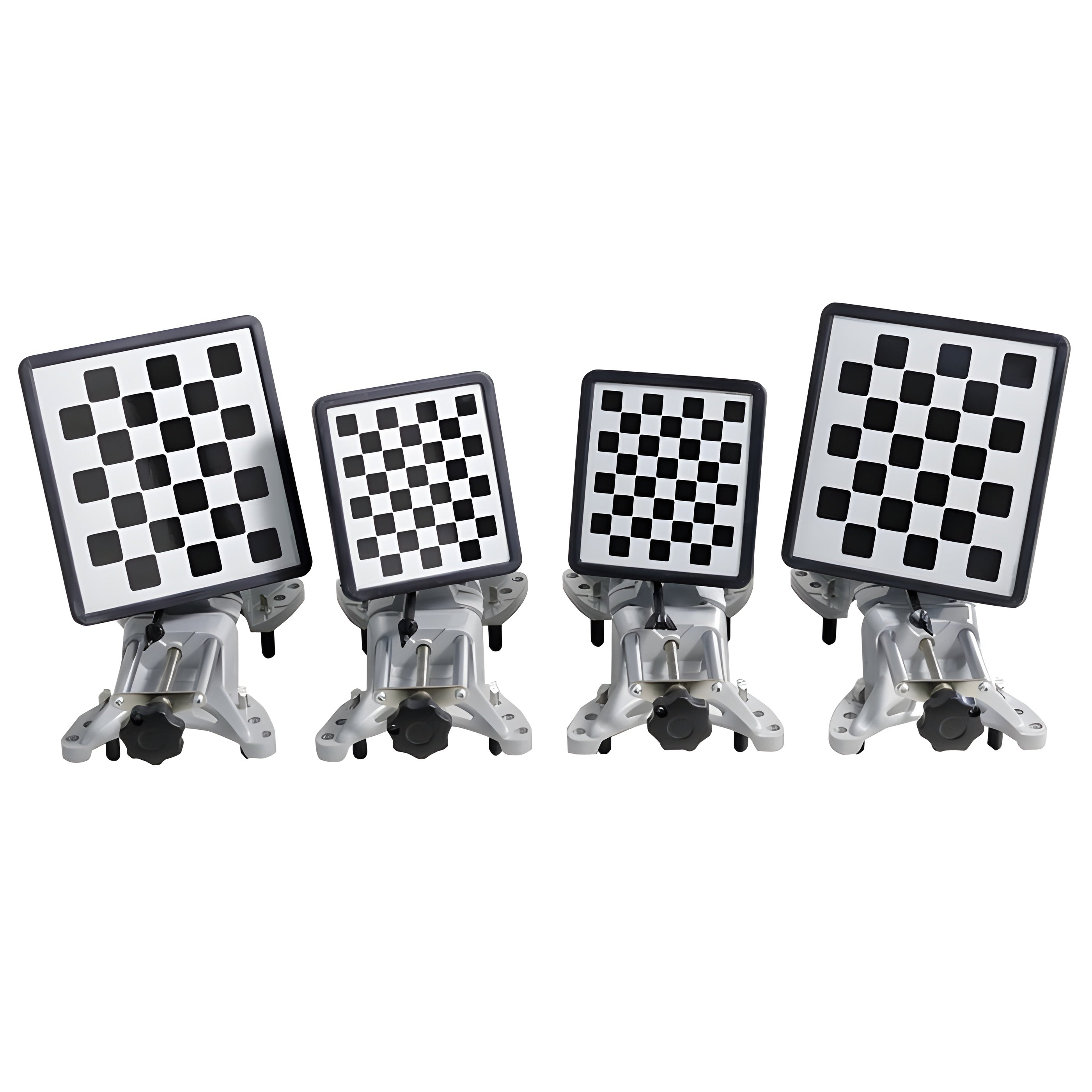

8ea Compact Lightweight Targets
8ea Adjustable Wheel Clamps 15- 27 Fits Most Standard Rim Sizes
Convenient Storage Stands for Wheel Clamps

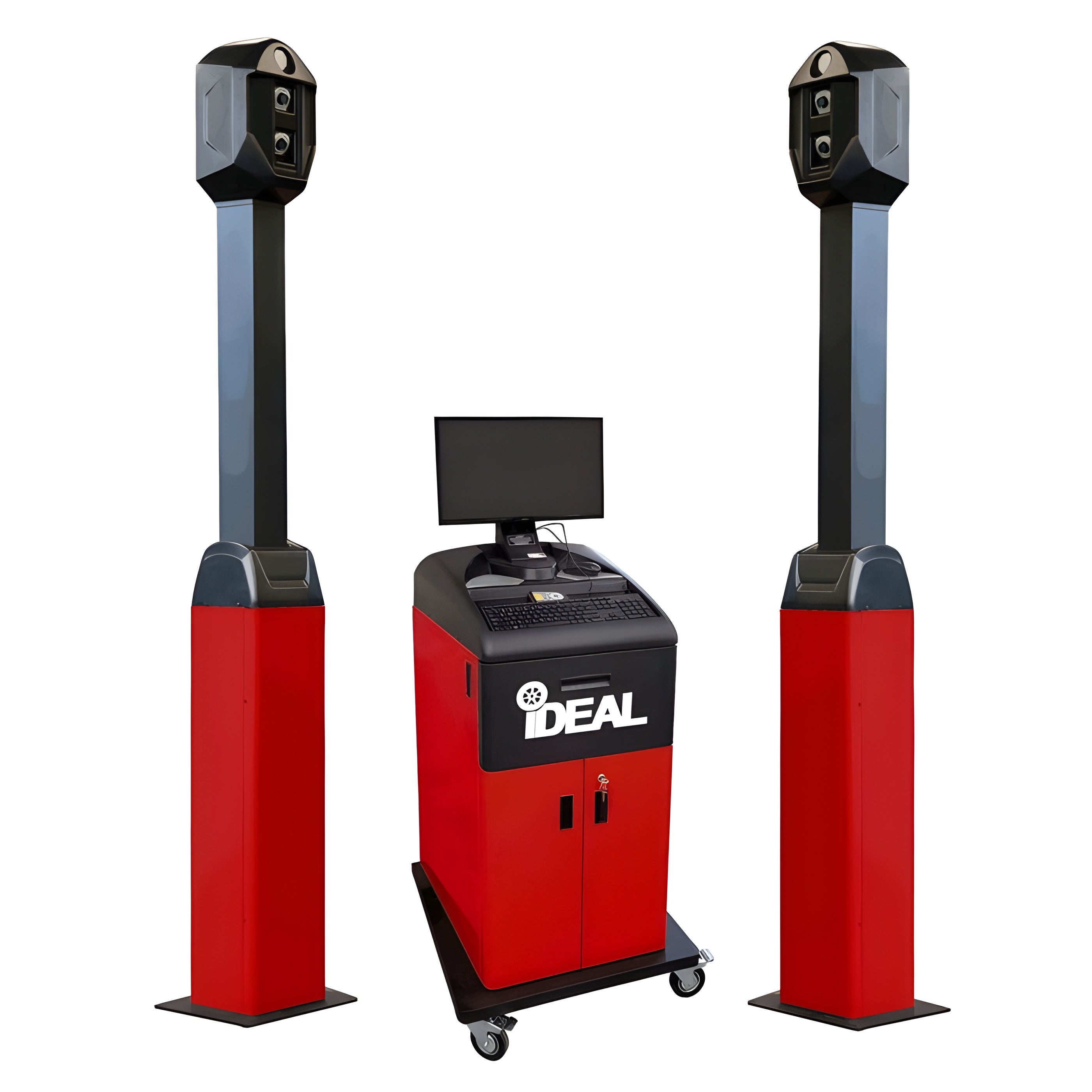

Dual Towers Provide Max View Range Up to 50 Ft.
Wireless Remote Control Operation When Unable to Reach Cabinet &Amp; Keyboard
Illustration Diagrams &Amp; Integrated Help System
Live Reading Screens for Front &Amp; Rear Axle Readings
Recalls / Prints Current &Amp; Past Info for Customized Reports
Optional Yearly Vehicle Spec Updates
Convenient Customer Database Feature
Steering Wheel Holder, Brake Depressor &Amp; Wheel Chocks Included
Computer, Monitor, Keyboard, Mouse &Amp; Color Printer Also Included

Specifications

Manual

iDEAL 3D HD Multi-Axle Imaging Wheel Alignment System Manual

What Our Experts Think

• Advanced 3D Multi-Axle Alignment Technology: The iDEAL IWA-60-8500-HD-K offers state-of-the-art 3D HD imaging for precise multi-axle wheel alignment, enhancing accuracy and reducing downtime.
• High-Definition Imaging: Equipped with high-definition cameras, it provides clear, real-time data for quicker and more accurate alignment adjustments.
• Versatile & Comprehensive System: Ideal for a wide range of vehicles, from passenger cars to heavy-duty trucks, ensuring precise alignment for all axle types.
• User-Friendly Interface: Features an intuitive interface, making setup and operation simple for technicians, even with minimal training.
• Integrated UPS/AVR: The system includes an Uninterruptible Power Supply (UPS) and Automatic Voltage Regulator (AVR), ensuring continuous power and preventing power surges, safeguarding your equipment.
• Efficient & Time-Saving: Designed to speed up the alignment process, helping to boost productivity in busy auto repair shops and service centers.
• Durable & Reliable: Built to handle high-volume use, the IWA-60-8500-HD-K is a long-lasting, reliable tool that ensures optimal performance over time.
• Perfect for Professional Use: Ideal for alignment specialists and busy repair shops looking for precision, efficiency, and versatility in their wheel alignment equipment.

Q&A

Q: What is the primary function of the iDEAL IWA-60-8500-HD-K Wheel Aligner System?
A: The iDEAL IWA-60-8500-HD-K is a 3D HD multi-axle wheel alignment system designed for precise and efficient wheel alignment on various types of vehicles, including cars, trucks, and commercial vehicles.

Q: What makes this system a "3D HD" wheel aligner?
A: The 3D HD designation means that the system uses high-definition 3D technology to provide accurate and fast alignment measurements by capturing real-time data for all vehicle axles, ensuring precise alignment results.

Q: What is the benefit of the multi-axle functionality?
A: The multi-axle capability allows the iDEAL IWA-60-8500-HD-K to perform alignments on vehicles with multiple axles, such as trucks, buses, and trailers, making it suitable for both personal and commercial vehicles.

Q: What additional features come with the system?
A: The system comes with a UPS (Uninterruptible Power Supply) for consistent operation and an AVR (Automatic Voltage Regulator), ensuring reliable performance even in unstable power conditions.

Q: How does the iDEAL IWA-60-8500-HD-K improve accuracy in wheel alignment?
A: The system’s 3D HD imaging technology captures highly detailed and accurate readings, ensuring precision in wheel alignment and minimizing the risk of errors that could result from traditional alignment methods.

Q: Is this system easy to use?
A: Yes, the iDEAL IWA-60-8500-HD-K features user-friendly software with an intuitive interface that makes alignment procedures simple to follow, even for technicians who may be new to 3D alignment systems.

Q: Can the iDEAL IWA-60-8500-HD-K be used for both small and large vehicles?
A: Absolutely! The system is designed to accommodate both light-duty vehicles like passenger cars and heavy-duty vehicles like trucks and commercial vehicles, making it versatile for different types of alignment jobs.

Q: What is included with the system?
A: The iDEAL IWA-60-8500-HD-K comes with high-definition cameras, multi-axle measurement capabilities, computerized software, and the UPS/AVR package to ensure seamless operation and high precision.

Q: How does the iDEAL IWA-60-8500-HD-K benefit commercial shops?
A: For commercial shops, this system provides quick, accurate, and reliable wheel alignments, helping technicians improve efficiency and reduce downtime by minimizing the time it takes to complete alignment services for various vehicle types.

Maintenance Tips

• Regular Calibration: Ensure the system is calibrated regularly for accurate measurements. Follow the manufacturer's recommendations for calibration intervals.
• Clean the Equipment: Wipe down the 3D imaging cameras, sensors, and alignment heads after each use to remove dirt, dust, and grease. Use a soft cloth to avoid scratching.
• Inspect Sensors and Cameras: Regularly check the sensors and cameras for any damage or misalignment. Ensure lenses are clean and free from obstructions.
• Check Wiring and Connections: Inspect all electrical connections, including power and data cables, for wear or damage. Ensure they are securely connected.
• Maintain UPS and AVR: Keep the Uninterruptible Power Supply (UPS) and Automatic Voltage Regulator (AVR) in good working condition by cleaning vents and checking battery levels to ensure stable power supply.
• Lubricate Moving Parts: If the system has any moving components, lubricate them regularly to ensure smooth and quiet operation.
• Test Functionality: Run a quick test on the system to ensure all components are working properly and alignment readings are accurate.
