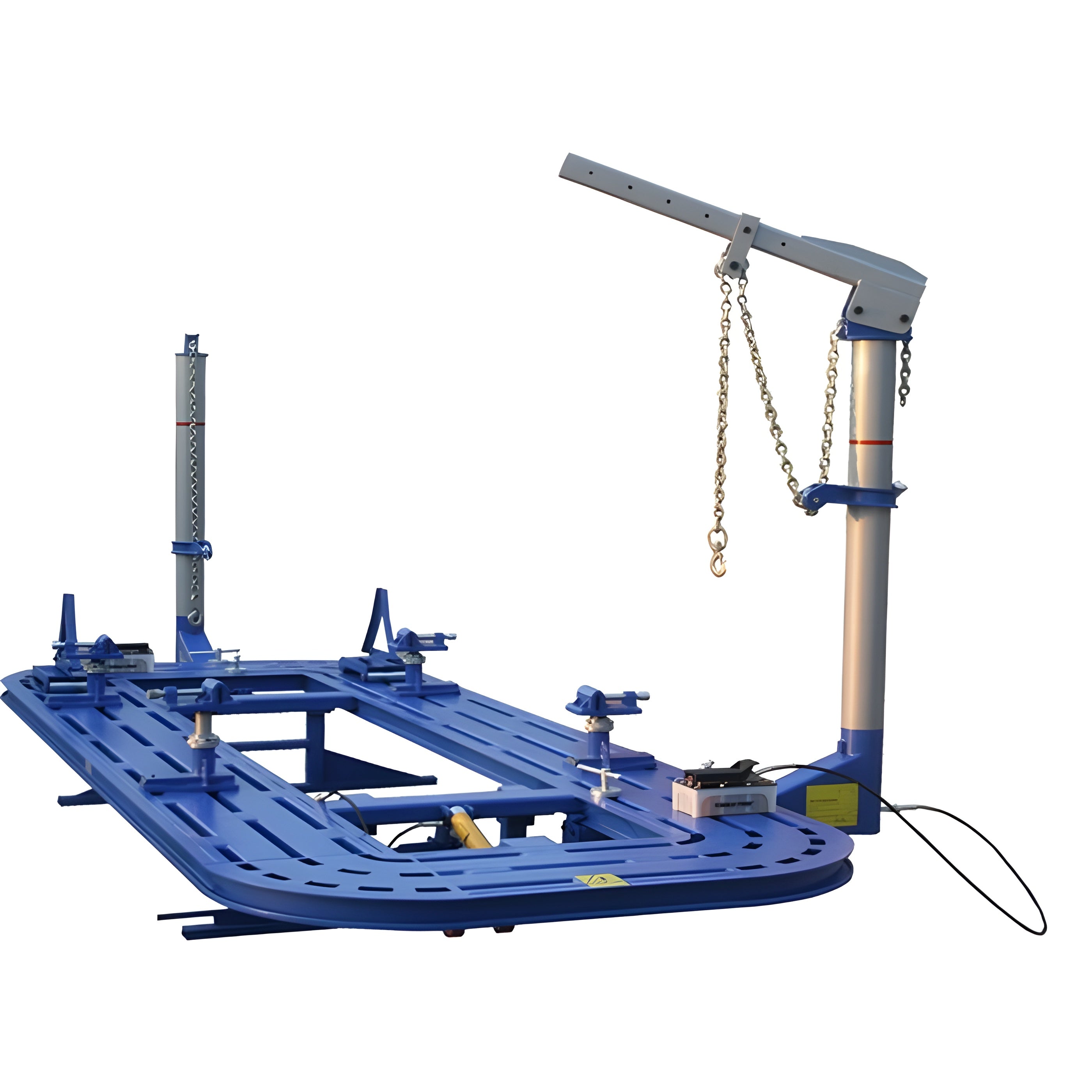

iDEAL FR-77T-20 20' Tilt Deck/Tubular Platform Frame Rack - FR-77T-20

iDEAL FR-77T-20 20' Tilt Deck/Tubular Platform Frame Rack - FR-77T-20

Features

• Tilt Deck Operation with 7,700lbs. Capacity with Drive On Ramps
• Durable, Heavy Duty Tubular Construction
• Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
• Two 10 Ton Pulling Towers with Telescoping Heads
• Adjustable Tower Collars
• Overhead Boom Pull Tower Extension
• Quick Disconnect Hydraulic Fittings
• Two 10' Pulling Chains with Hooks
• Two High Quality Air/Hydraulic Pumps with Pressure Gauges
• Universal Wheel Stand And Dead Vehicle Dolly
• Powder Coat Finish

Specifications

Manual

iDEAL FR-77T-20 20-inch Frame Rack Manual

What Our Experts Think

• 20' Tilt Deck Design – Simplifies vehicle loading and positioning for efficient frame repairs.
• Heavy-Duty Tubular Platform – Built for durability, stability, and long-term professional use.
• Versatile Application – Ideal for collision repair, structural adjustments, and frame straightening.
• High Weight Capacity – Supports a wide range of vehicles, from sedans to light trucks.
• Secure & Adjustable – Multiple tie-down points and anchoring options for precise repairs.
• Auto Shop Essential – A reliable solution for professionals handling extensive frame work.

Q&A

Q: What is the iDEAL FR-77T-20 Frame Rack?
A: A heavy-duty 20' tilt deck frame rack with a tubular platform, designed for auto body repair and frame straightening.

Q: What is the weight capacity?
A: Built to handle a variety of vehicles, making it ideal for collision repair and restoration work.

Q: What are the key features?
A: 20' tilt deck, durable tubular platform, multiple tie-down points, hydraulic lifting system, and compatibility with various pulling accessories.

Q: Is it easy to use?
A: Yes, the tilt deck and hydraulic system ensure smooth vehicle loading and precise frame adjustments.

Q: Who is this frame rack ideal for?
A: Perfect for auto body shops, collision repair professionals, and restoration specialists.

Q: Where can I buy it?
A: Available through automotive equipment suppliers and online retailers.

Maintenance Tips

• Keep Deck Clean: Regularly remove dirt, grease, and debris for smooth operation.
• Inspect Hydraulics: Check for leaks, maintain proper fluid levels, and ensure smooth lifting.
• Lubricate Moving Parts: Apply grease to hinges, tilt mechanism, and pivot points to prevent wear.
• Check Fasteners: Tighten bolts, clamps, and securing mechanisms periodically.
• Inspect Chains & Hooks: Ensure they are free from rust, cracks, or excessive wear.
• Monitor Deck Alignment: Verify that the platform tilts and locks into place securely.
• Rust Prevention: Store in a dry area and apply rust inhibitors to exposed metal surfaces.
• Follow Load Limits: Do not exceed the rated weight capacity to maintain safety and durability.
