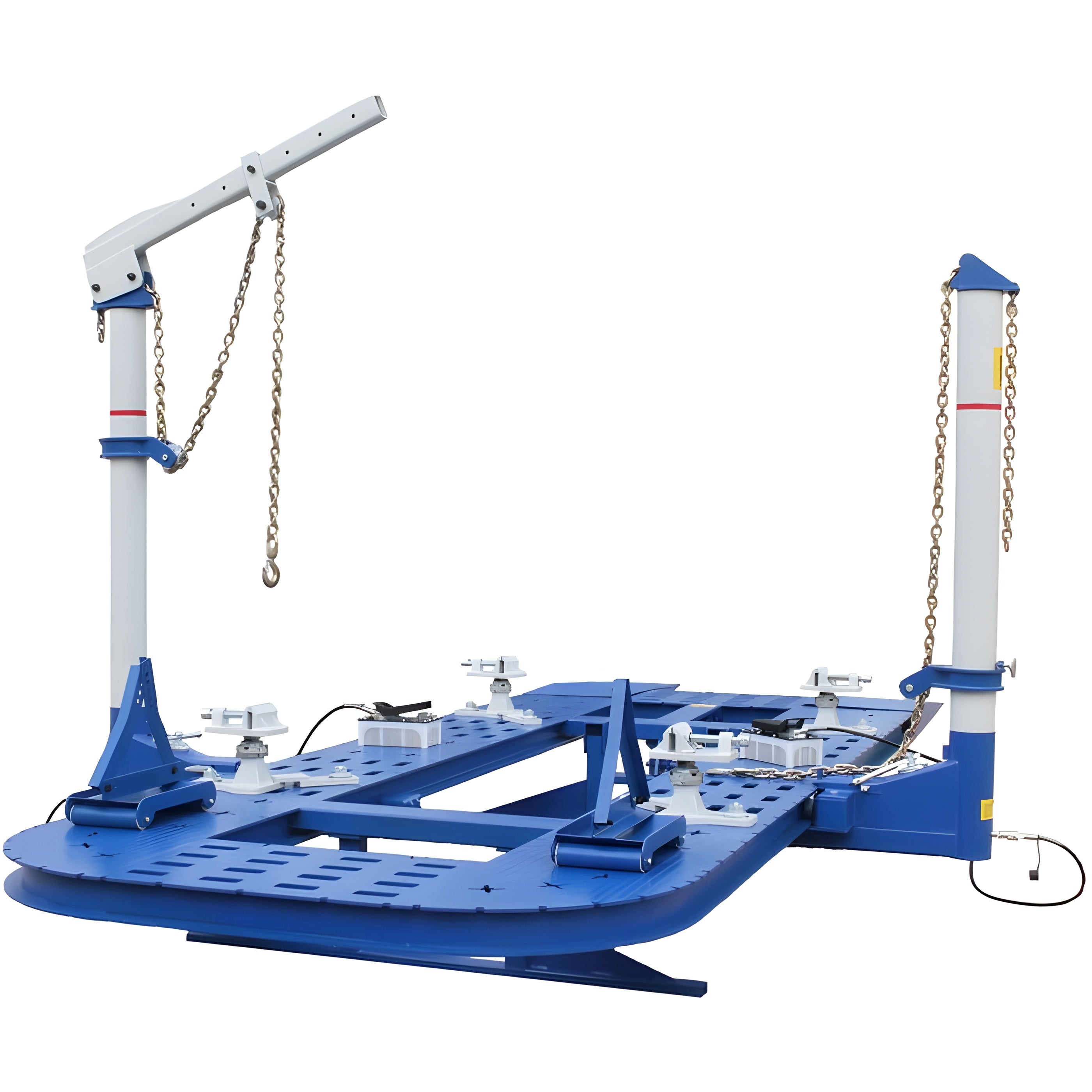

iDEAL FR-77-20 20' Tilt Deck/Steel Plate Platform Frame Rack - FR-77-20

iDEAL FR-77-20 20' Tilt Deck/Steel Plate Platform Frame Rack - FR-77-20

Features

• Durable, heavy duty steel deck construction

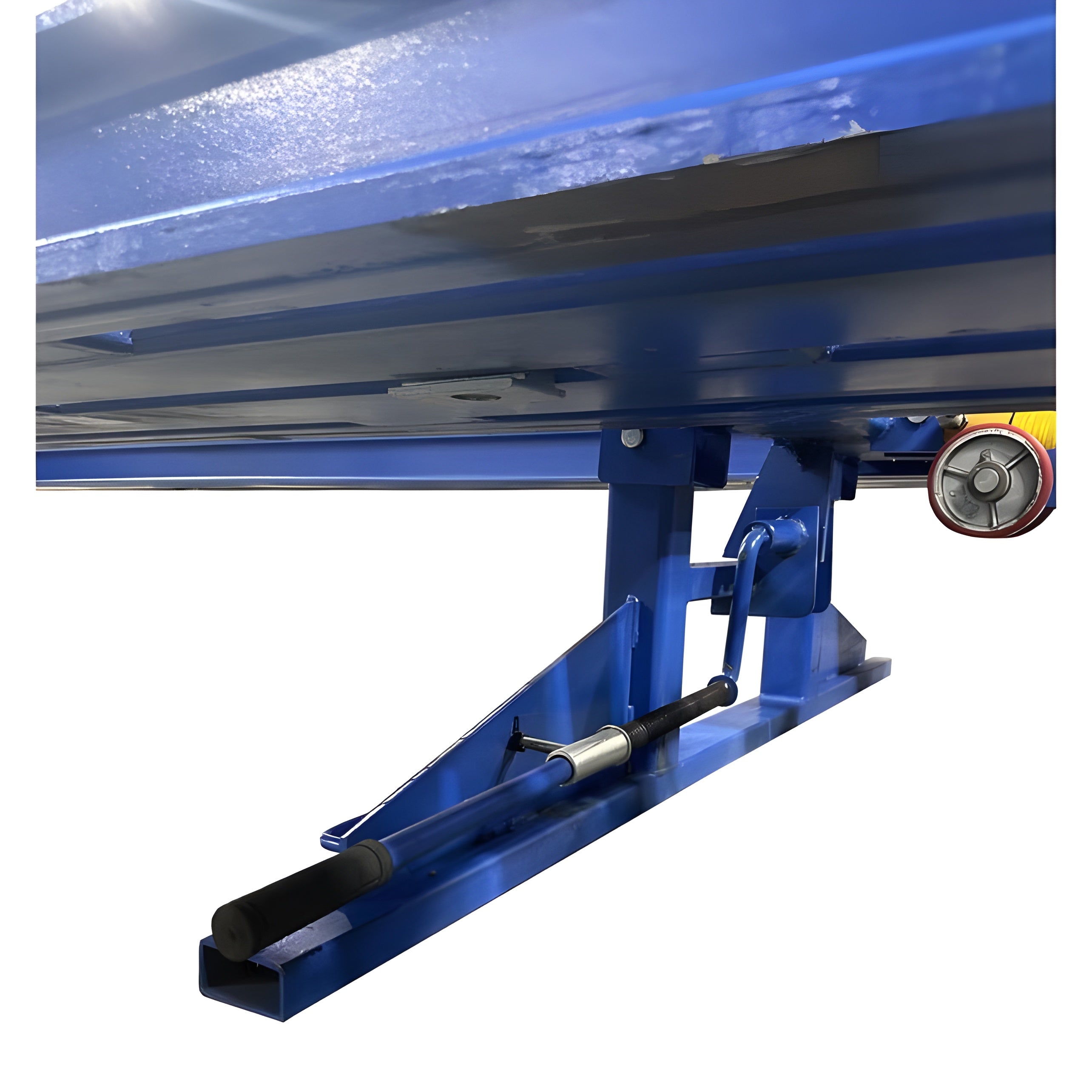

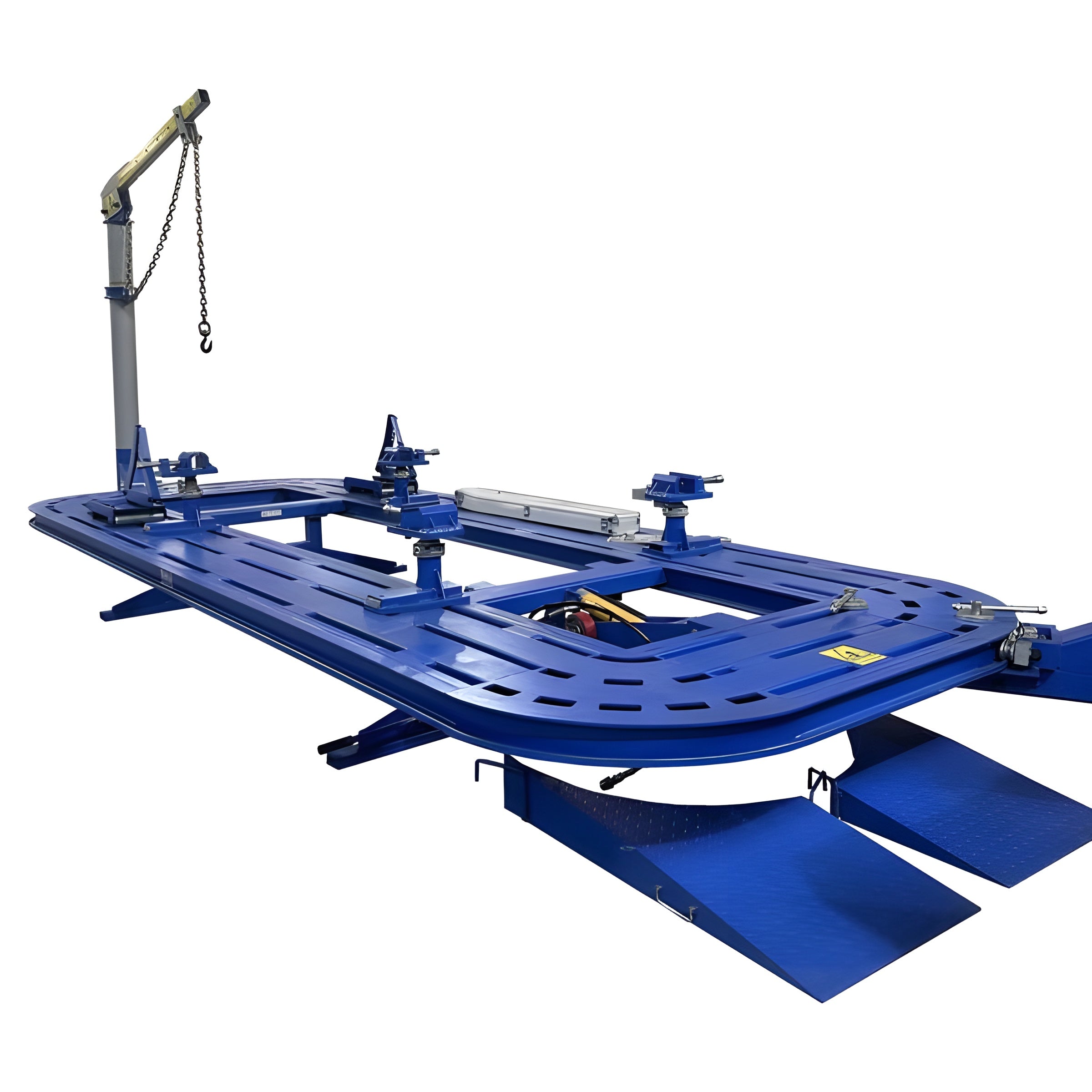

• Tilt deck operation with 7,700 LBS capacity with drive on ramps
• Universal anchoring system with adjustable height pinch weld assemblies

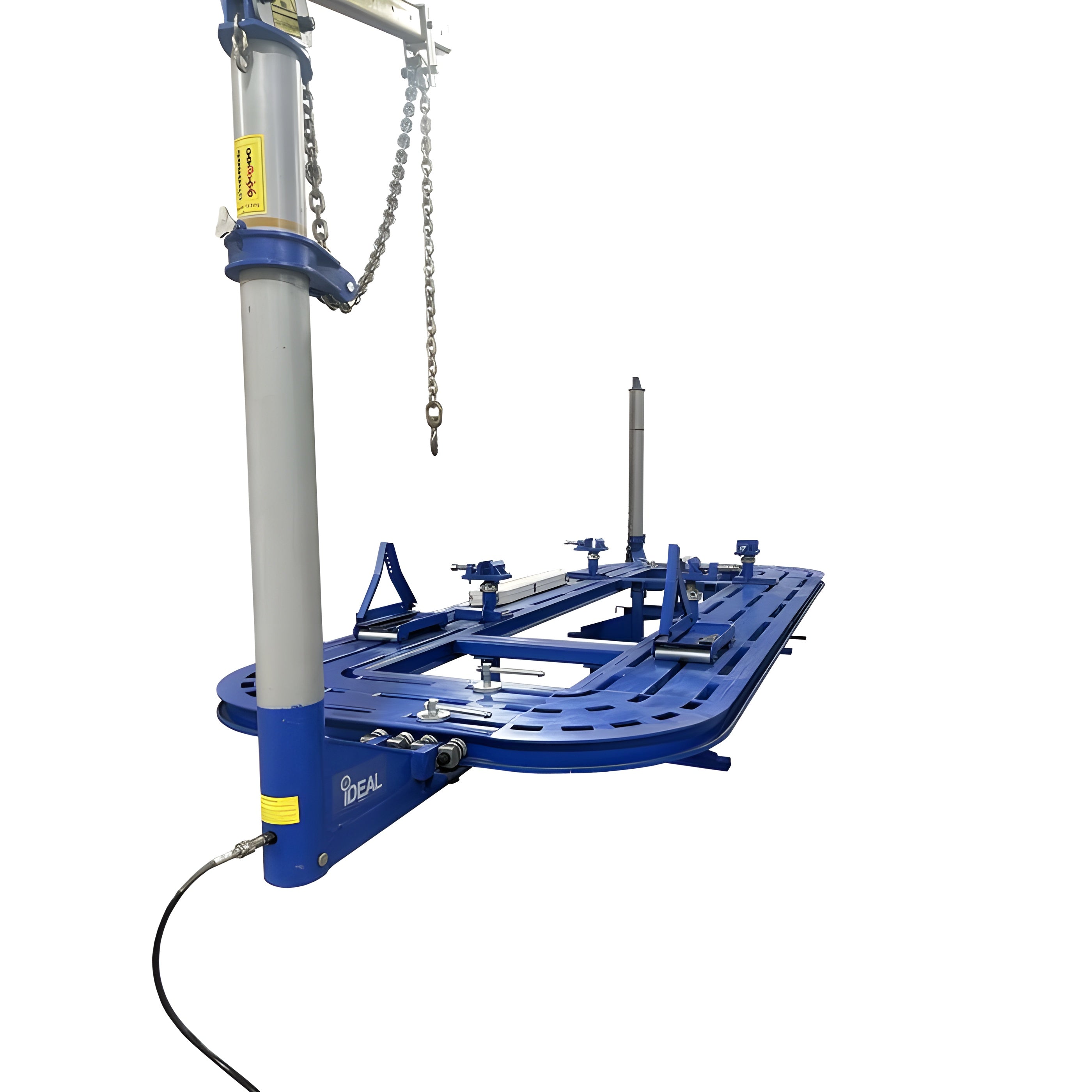

• Two - 10 TON pulling towers with telescoping heads.

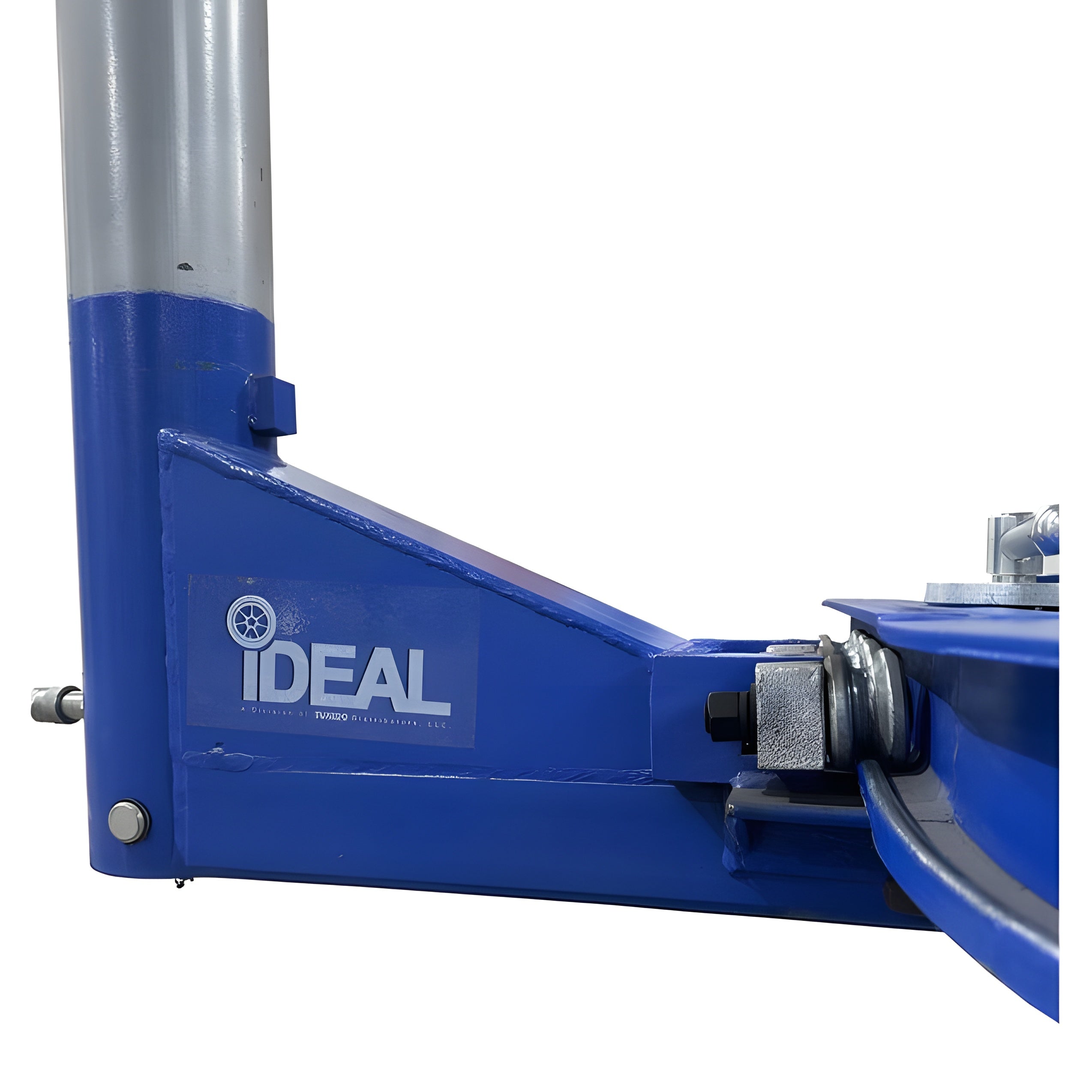

• Adjustable tower collars

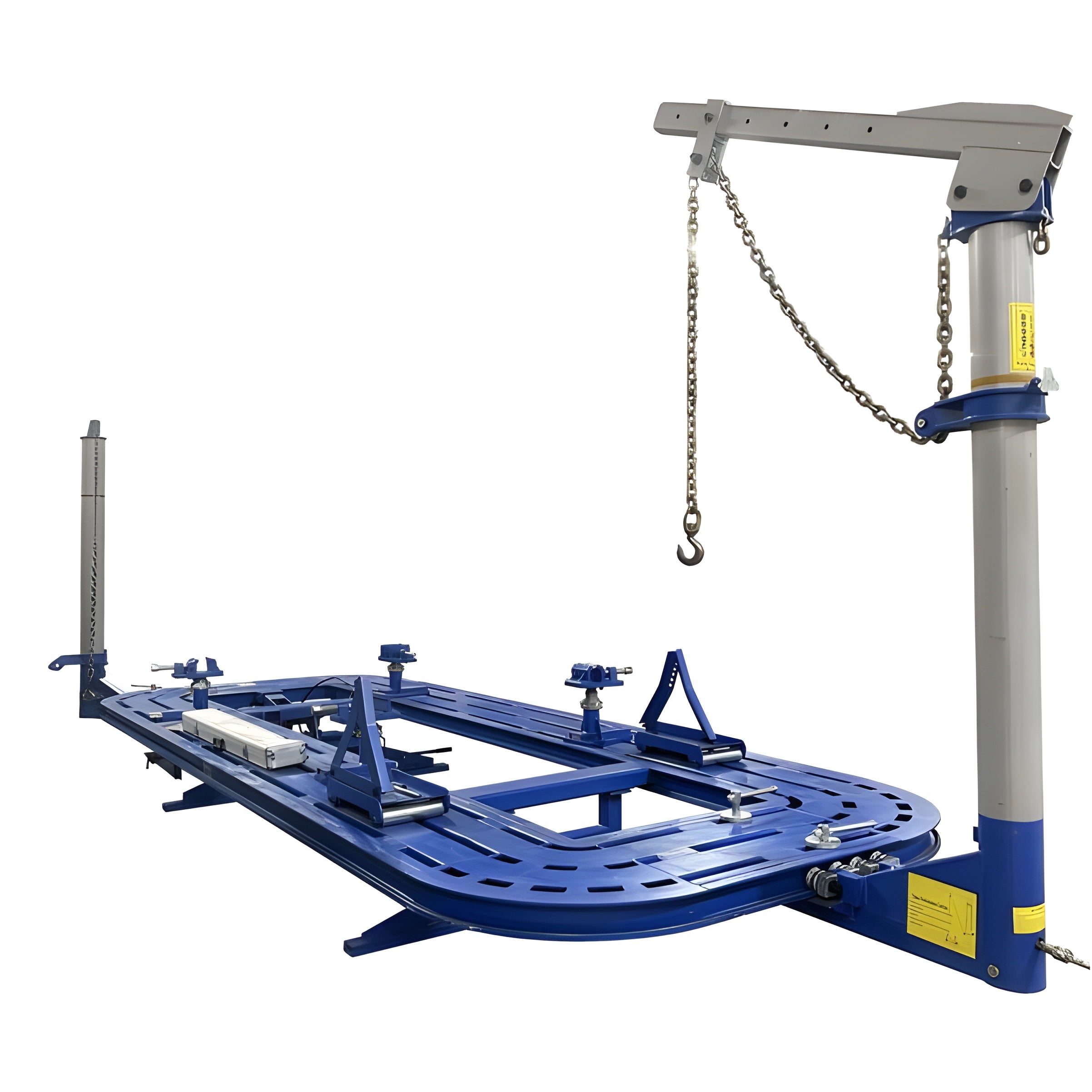

• Overhead boom pull tower extension
• Quick disconnect hydraulic fittings
• Two - 10 pulling chains with hooks
• Two - high quality air/hydraulic pumps with pressure gauges
• Universal wheel stand and dead vehicle dolly
• Powder coat finish

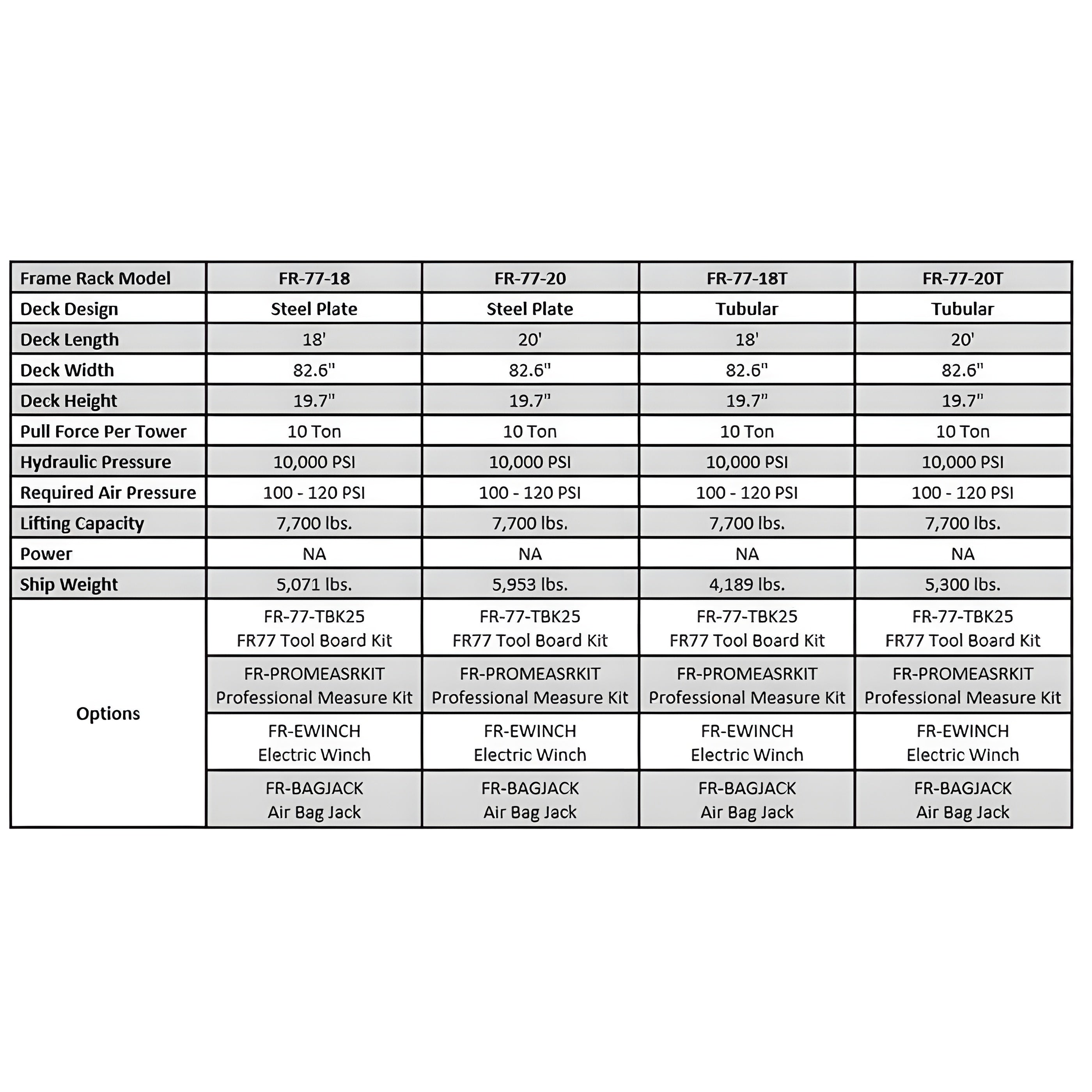

Specifications

Manual

iDEAL Fr-77-20 20-inch Frame Rack Manual

What Our Experts Think

• Heavy-Duty Tilt Deck Design: The iDEAL FR-77-20 features a 20-foot tilt deck, making it perfect for working on large vehicles with ease, including trucks and SUVs.
• Steel Plate Platform: Built with a durable steel plate platform, this frame rack ensures a strong, stable surface for frame repairs, even under heavy loads.
• Easy Vehicle Access: The tilt deck design allows for quick, convenient loading and unloading of vehicles, reducing setup time and increasing productivity in busy shops.
• High Capacity: With a 20-foot length and robust construction, it can handle large, heavy vehicles, supporting a wide range of frame repair and alignment tasks.
• Safety Features: Designed with stability in mind, the FR-77-20 ensures that vehicles are securely held in place during the repair process, reducing the risk of accidents.
• Versatile & Efficient: Ideal for professional auto shops, this frame rack can accommodate a variety of vehicles and repair needs, from minor frame adjustments to more intensive work.
• Durability & Reliability: The steel construction ensures long-lasting durability, even with frequent, heavy-duty use in demanding environments.

Q&A

Q: How does the tilt deck feature work?
A: The tilt deck feature allows for easier loading and unloading of vehicles by tilting the platform, reducing the effort required to position the vehicle for repairs.

Q: Is the platform suitable for all types of vehicles?
A: Yes, the iDEAL FR-77-20 is designed to accommodate a wide range of vehicles, including heavy-duty trucks, SUVs, and other large vehicles that require frame repairs or alignment.

Q: Does the iDEAL FR-77-20 come with any accessories?
A: The iDEAL FR-77-20 includes integrated features such as a steel plate platform and heavy-duty supports, designed for durability and efficient vehicle support during repairs.

Q: Is this frame rack suitable for commercial use?
A: Yes, the iDEAL FR-77-20 is perfect for commercial garages and repair shops that specialize in large vehicle repairs and need a robust and reliable frame rack for heavy-duty work.

Q: What safety features are included with this frame rack?
A: The iDEAL FR-77-20 is equipped with safety locks, stabilizing features, and reinforced supports to ensure vehicle safety and stability during the frame repair process.

Q: How does the steel plate platform benefit vehicle repairs?
A: The steel plate platform provides a strong, durable, and stable surface that ensures proper vehicle positioning and reliable support during frame straightening and repairs.

Q: Is this frame rack easy to use?
A: Yes, the tilt deck design and heavy-duty lift system make the iDEAL FR-77-20 easy to operate, allowing for smooth loading, unloading, and vehicle positioning for frame repair tasks.

Maintenance Tips

• Regular Cleaning: Clean the platform, deck, and tilt mechanism after each use to remove dirt, debris, and oil. Ensure the steel plate is free of rust and buildup.
• Inspect for Damage: Check the frame, tilt mechanism, and platform for any signs of wear, cracks, or structural damage. Address issues immediately to avoid further damage.
• Lubricate Moving Parts: Apply lubricant to the tilt mechanism, hinges, and moving components to ensure smooth operation and reduce wear.
• Inspect Hydraulic System: Regularly check the hydraulic pump, hoses, and fluid levels for leaks or damage. Replace or top off hydraulic fluid as necessary.
• Check Fasteners: Tighten any loose bolts, screws, or fasteners to ensure the frame rack remains stable and secure.
• Test Tilt Function: Test the tilt functionality regularly to ensure it operates smoothly and the platform tilts evenly without issues.
• Rust Protection: Apply a rust-resistant coating or wax to the steel plate to prevent corrosion, especially if the rack is used in wet or humid conditions.
