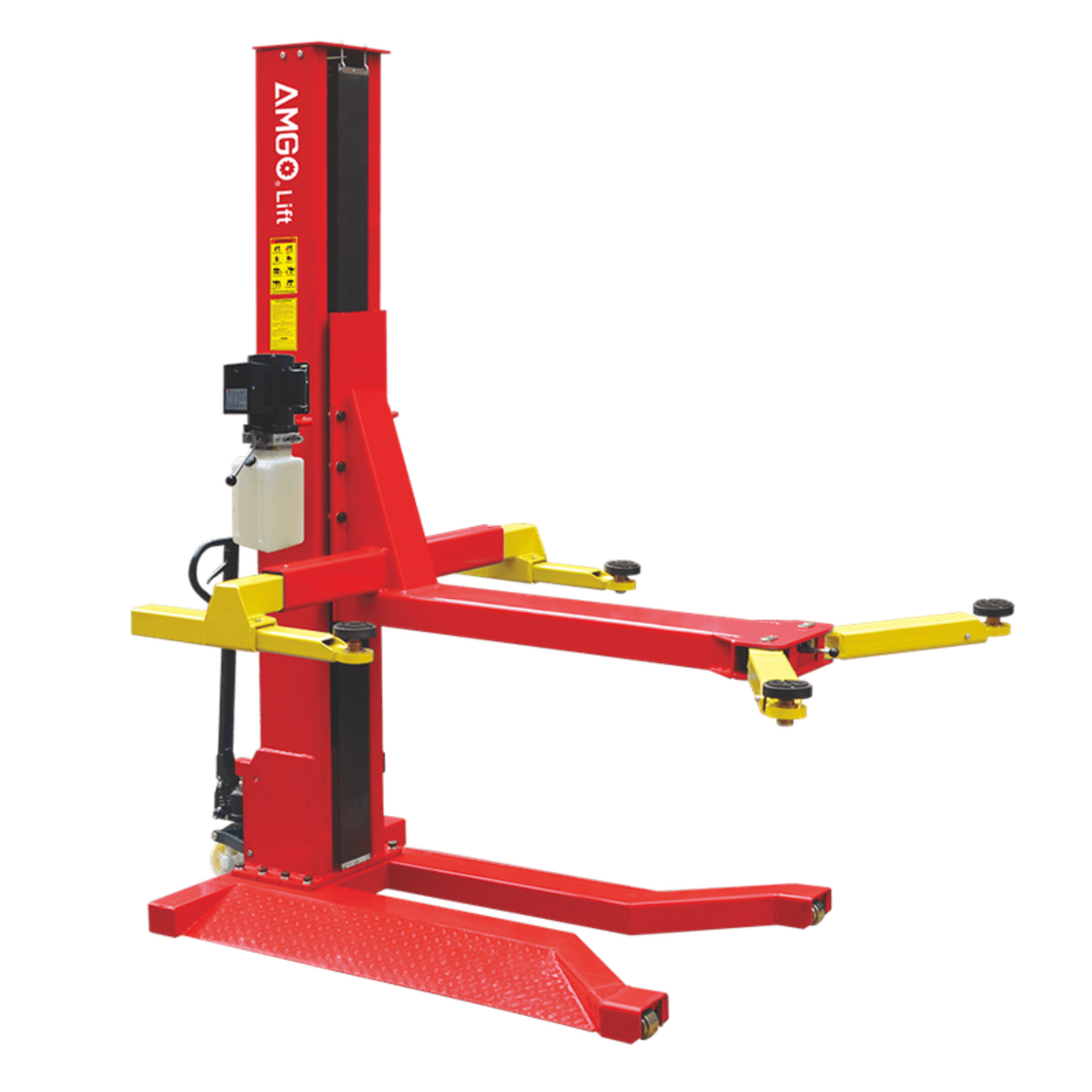

iDeal AMGO SML-7 7,000 lbs Single Post Lift - SML-7

iDeal AMGO SML-7 7,000 lbs Single Post Lift - SML-7

Ideal for both commercial shops and garage owners, the AMGO SML-7 delivers exceptional performance. With a robust 7,000 lbs capacity and AMGO's patented single-handle arm lock release design, this lift ensures efficiency and reliability. Completely mobile, it can be effortlessly moved by a single person to wherever the job demands. A perfect solution for those seeking both portability and space-saving convenience. Let me know if you'd like further adjustments!

Features

• 7,000lbs capacity, portable single post lift.
• Max. lifting height: 77 3/4" (1976 mm)
• Min height: 4 3/8" (110 mm)
• Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze bushings.
• High quality cylinders and power units are manufactured to high quality standards.
• AMGO 5-3-2 Warranty.

Specifications

Detailed Information

Downloads

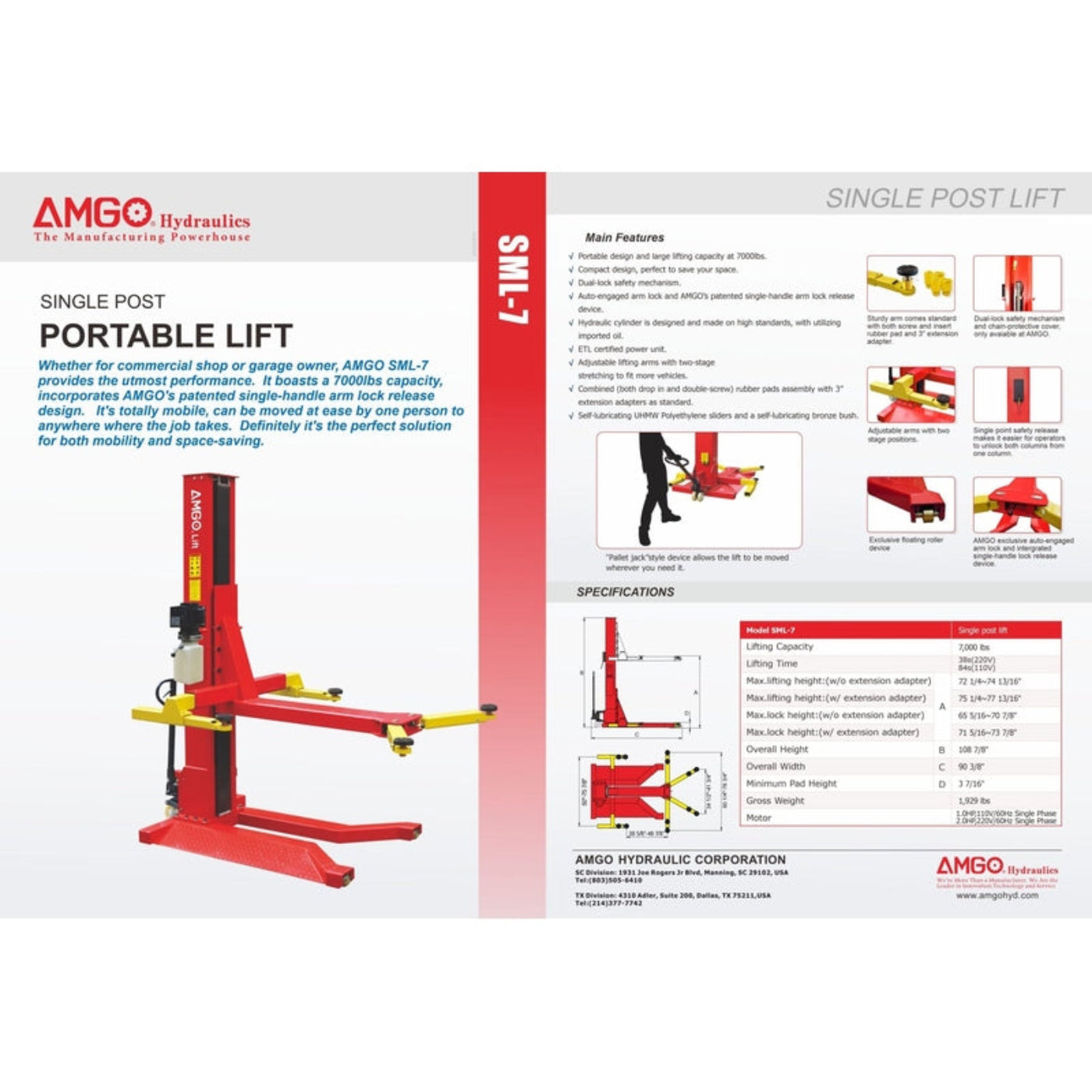

AMGO SML-7 7,000 lbs Single Post Lift Manual

What our Experts Think

• Compact & Portable: Designed for easy mobility, this single post lift is perfect for shops or garages with limited space—can be moved and positioned by just one person.

• Strong Lifting Power: Handles up to 7,000 lbs, making it suitable for cars, SUVs, and light-duty trucks.

• Adjustable Arms: Two-stage adjustable arms accommodate a variety of vehicle sizes and configurations.

• Quick Lifting Times: Operates efficiently—84 seconds on 110V and as fast as 38 seconds on 220V.

• Enhanced Safety: Equipped with a dual-lock safety system, auto arm lock, and single-handle release for added operator confidence.

• Durable Build: Includes self-lubricating UHMW polyethylene sliders and bronze bushings to reduce wear and extend product life.

Q&A

Q: What is the lifting capacity of the AMGO SML-7?
A: The AMGO SML-7 has a lifting capacity of 7,000 lbs, making it suitable for most passenger vehicles and light-duty trucks.

Q: What is the maximum lifting height?
A: The maximum lifting height is 77 3/4 inches, with a locking height of 71 5/16 inches when using the included extension adapters.

Q: What are the overall dimensions of the lift?
A: The overall height is 108 7/8 inches, and the width is 90 3/8 inches.

Q: What is the minimum pad height for the SML-7?
A: The minimum pad height is just 3 1/2 inches, making it ideal for low-profile vehicles.

Q: What safety features does the SML-7 include?
A: It includes a dual-locking safety mechanism and a manual safety release with dual safety devices for added security.

Q: What power options are available?
A: The lift is available with either a 1.0 HP 110V or a 2.0 HP 220V single-phase motor.

Q: How much does the lift weigh?
A: The gross weight of the SML-7 is approximately 1,919 lbs.

Q: Is the lift portable?
A: Yes, the single-post design and included wheels make it easy to reposition and store when not in use.

Maintenance Tips

• Regular Cleaning: Wipe down the lift structure and moving parts to remove dust, grease, and debris after each use.

• Inspect Components: Check bolts, pins, and connectors regularly to ensure everything is tightly secured and properly mounted.

• Lubricate Moving Parts: Use 90 wt gear oil or equivalent to lubricate cables, rollers, and pivot points for smooth and safe operation.

• Hydraulic System Check: Inspect hydraulic lines for leaks or signs of wear and ensure fluid levels are adequate.

• Check Safety Devices: Verify that all safety locks and mechanical stops are functioning correctly before each use.

• Re-torque Anchor Bolts: Periodically re-torque the anchor bolts to 80–117 Nm to maintain lift stability.

• Avoid Overloading: Never exceed the 7,000 lbs capacity to ensure the lift operates within its safe limits.
