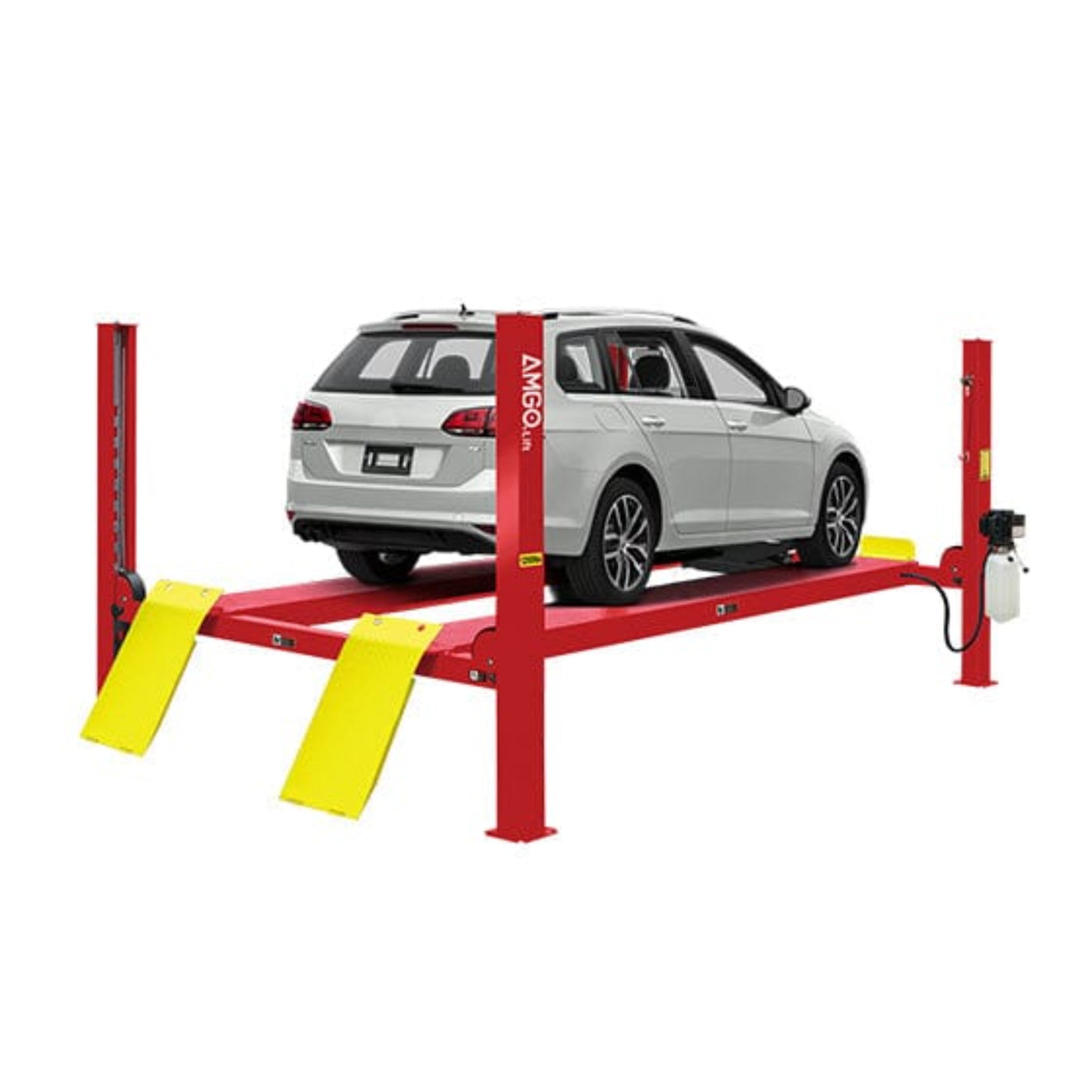

iDeal AMGO PRO-12 12,000 lbs 4 Post Lift - PRO-12

iDeal AMGO PRO-12 12,000 lbs 4 Post Lift - PRO-12

The commercial-grade Pro-12 is the perfect solution for efficient daily servicing of cars, SUVs, pickups, and vans, with a robust lifting capacity of up to 12,000 lbs. It is equipped with stepless width adjustment technology, allowing it to accommodate various wheel tracks with ease. Built with heavy-duty construction, it ensures exceptional durability and maximum safety, making it an ideal service tool for both garages and professional service shops.

Features

• 12,000 lbs lifting capacity.
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2" aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4(1100mm) and maximum distance is 51 1/8(1300mm).
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
• CE Approved and Certified
• Meets or exceeds the standards prescribed by European Standard EN-1493

Specifications

Detailed Images

Downloads

AMGO PRO-12 12,000 lbs 4 Post Lift Manual

What our Experts Think

• Heavy-Duty Capacity: Lifts up to 12,000 lbs, perfect for cars, trucks, and larger vehicles.

• Fast Operation: Lifts vehicles quickly in around 62 seconds, improving efficiency for busy shops.

• Durable Construction: Sturdy design with high-quality materials and ETL certified power unit.

• Reliable Safety Features: Includes mechanical self-locking safety devices and air-driven lock release for secure lifting.

• Cable-Driven System: Uses 1/2" aircraft-quality cables for smooth and reliable operation.

• Adjustable Platforms: Offers stepless width adjustments to accommodate different vehicle sizes.

• Non-Slip Platforms: Diamond-patterned platform surfaces provide added grip and stability.

Q&A

Q: What kind of safety features does the AMGO PRO-12 have?
A: The lift includes mechanical self-locking safety devices, an air-driven lock release, multiple safety locks, cable-slack protection, and aircraft-quality cables. It also features non-skid diamond platforms for added stability.

Q: What type of motor does it use?
A: The lift is powered by a 2.0 HP, 220V, 60Hz, single-phase motor, providing strong and reliable lifting power.

Q: What warranty does the AMGO PRO-12 come with?
A: It includes a 5-year warranty on the steel structure, 3 years on hydraulic parts, and 2 years on electrical components.

Q: Is this lift suitable for commercial use?
A: Yes, the AMGO PRO-12 is designed for both residential and commercial use, offering durability and reliability for professional garages and service centers.

Maintenance Tips

1. Regular Inspections: Inspect cables, pulleys, and safety locks regularly to ensure they are in good condition.

2. Lubrication: Lubricate moving parts like columns and rollers to keep the lift running smoothly.

3. Hydraulic Fluid: Check fluid levels and replace if necessary to maintain optimal hydraulic performance.

4. Cleaning: Keep the lift free from dirt and debris to avoid wear on components.

5. Motor and Electrical: Regularly check the motor and electrical system to ensure they are functioning correctly.

6. Safety Lock: Test the safety lock mechanism to ensure proper engagement and disengagement.
