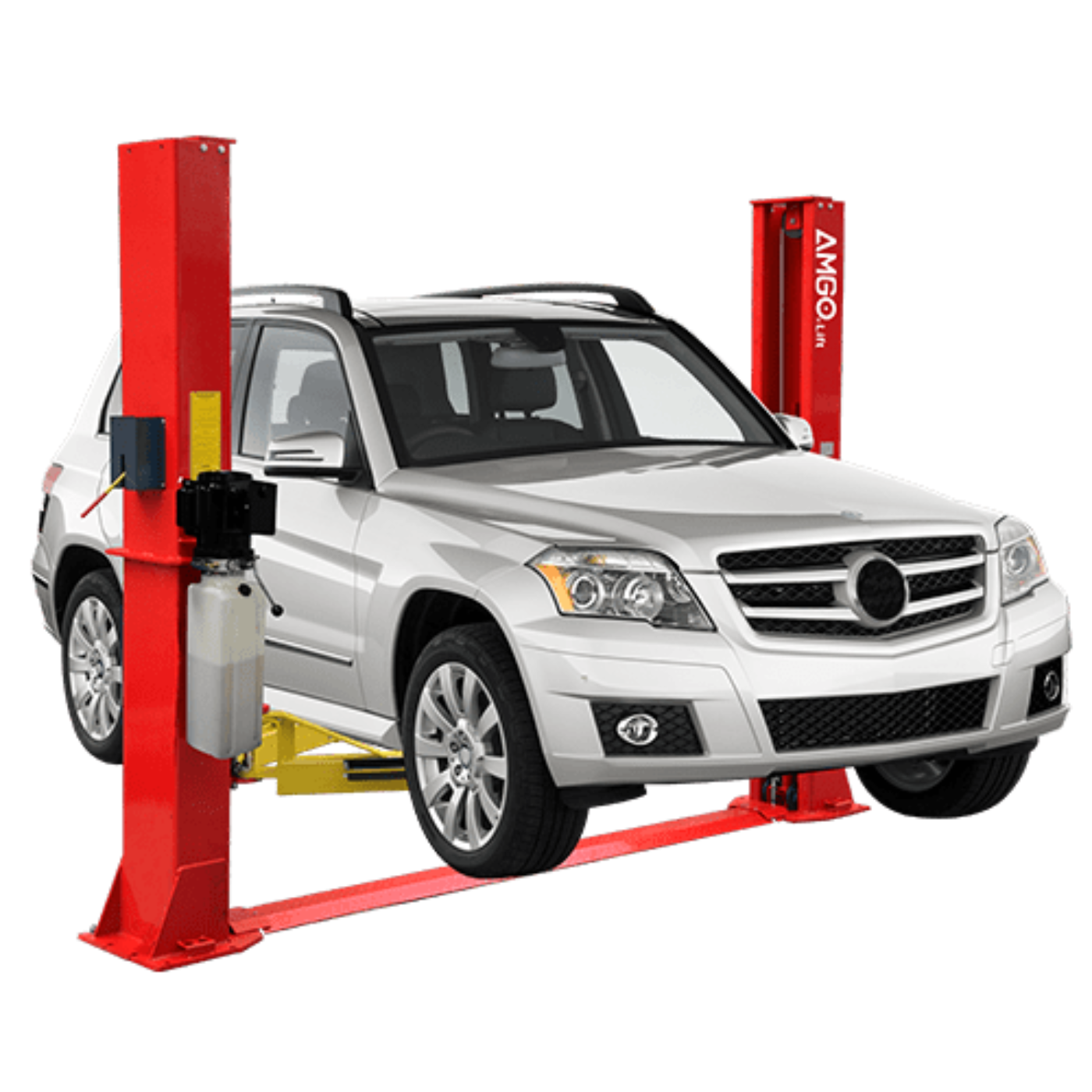

The AMGO BP-12 2 Post Lift

The AMGO BP-12 base plate heavy-duty lift is equipped with extra-long three-stage retractable arms and adjustable width settings, offering exceptional versatility for accommodating a wide range of vehicles—from cars to massive, taller, and wider trucks. Its open-top design makes it an ideal choice for both professional commercial shops and home garages. Let me know if you'd like further refinements!

 Features

• 12,000 lbs capacity, chain-driven 2 post lift with base plate heavy duty design
• Single-point safety release allows the operator to unlock the safety locks from both Columns simultaneously. There is also a dual locking system for additional safety
• 4 three-stage arms are suitable for more vehicles
• Automatic arm restraints keep the arms locked in their proper positions.
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Width adjustment:width between columns 118 1/8"(3000mm)and 123 1/2"(3137mm)
• Aircraft quality cable is used for synchronization
• Detachable foot guard and tool tray allow for a clutter free work space
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components

• Meets or exceeds the standards prescribed by European Standard EN-1493

Specifications

Images

Downloads

AMGO BP-12 12,000 lbs 2 Post Lift Manual

What our Experts Think

• 12,000 lbs Capacity
  Supports cars, SUVs, pickups, and light trucks, making it perfect for most vehicle types.

• Versatile Adjustable Width
  Accommodates various wheelbase sizes, enhancing its adaptability for different vehicles.

• Enhanced Safety
  Equipped with mechanical locks and air-driven lock release for secure and easy operation.

• Durable and Reliable
  Built with high-quality materials and non-skid platforms for long-lasting, consistent performance.

Q&A

Q: What is the lifting capacity of the AMGO PRO-12?
A: The PRO-12 lifts up to 12,000 lbs, ideal for cars, SUVs, and light trucks.

Q: Is the PRO-12 suitable for commercial use?
A: Yes, it’s designed for professional automotive shops with durable, high-performance features.

Q: What type of power does the PRO-12 require?
A: It operates on 220V single-phase power.

Q: Does the PRO-12 come with safety ?
A: Yes, it includes a multi-position safety lock system for secure lifting.

Q: Can the PRO-12 be used for alignment work?
A: Yes, it features alignment turntable slots and built-in slip plates for precise wheel alignments.

Maintenance Tips

Daily Maintenance

• Visual Inspection: Check for any visible signs of wear, damage, or obstructions on all components.

• Hydraulic System: Look for fluid leaks and confirm that oil levels are adequate.

• Safety Checks: Test all safety locks and emergency stop functions before operation.

 Monthly Maintenance

• Anchor Bolts: Tighten all anchor bolts to the specified torque to ensure safe installation.

• Lubrication: Apply lubricant to all moving parts such as scissor pivots, rollers, and hinges to prevent friction and wear.

• Hose Inspection: Examine hydraulic hoses and fittings for any cracks, wear, or fluid leaks.

• Rollers and Pins: Lubricate using high-quality gear oil to maintain smooth movement and prevent corrosion.

• Operational Test: Cycle the lift up and down fully to confirm consistent performance.

 Every Six Months

• Structure Inspection: Check for fatigue, cracks, or abnormal wear on scissor arms, platforms, and joints.

• Cable Tension: If applicable, check and adjust tension to ensure synchronized lifting.

• Platform Leveling: Ensure both runways remain level during lifting; make any necessary adjustments.

• Rubber Pads: Replace any worn or damaged contact pads to maintain proper vehicle support.

• Fasteners: Re-tighten all accessible bolts, nuts, and structural connections.
