AMGO 408-HP-DX (Combo) 8,000 lbs 4 Post Parking Lift - 408-HP-DX

AMGO 408-HP-DX (Combo) 8,000 lbs 4 Post Parking Lift - 408-HP-DX

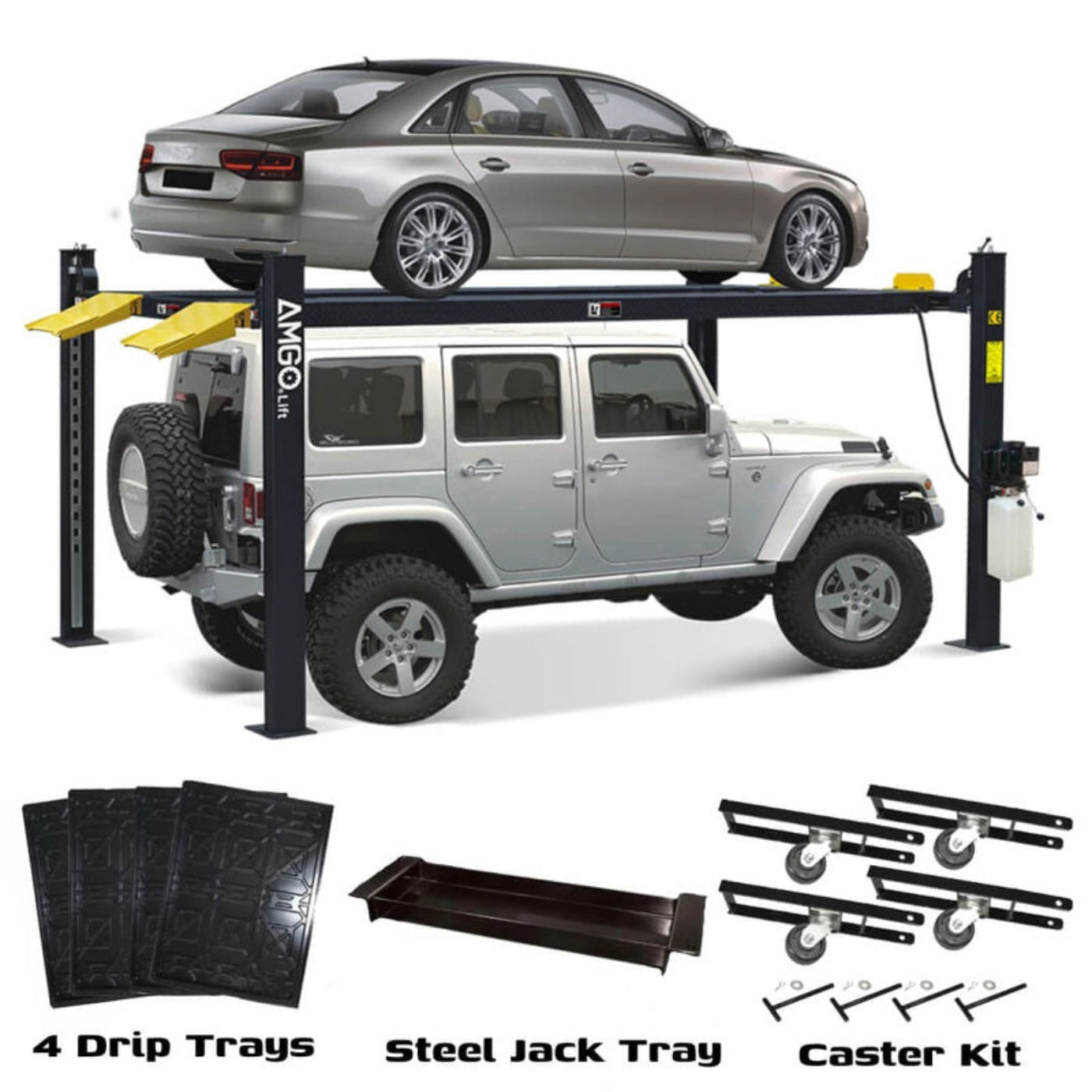

The AMGO 408-HP-DX 4 Post Parking Lift

Professional Deluxe 4-Post Parking Lifts, widely regarded as one of the top-performing models on the market, offering exceptional lifting capabilities.

Included Caster Kit, 4 drip trays, and steel jack tray

Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components.

Features

• Lifting capacity: 8,000lbs.
• AMGO ETL certified power unit comes as standard.
• High quality cylinder is designed and made to a high standard.
• AMGOs patented design concealed safety lock control device, with manual single-point lock release.
• Aero standard cables are included as standard.
• Double-S shaped columns are utilized to enhance strength.
• Non-slip platforms come with foldable drive-in ramps as standard
• Support back to back installation to minimize space occupancy.
• Power side column can be installed at any corner.
• Extremely high lifting is suitable to park taller vehicles.
• Pull rope comes as standard.

Specifications

Downloads

AMGO 408-HP-DX 8,000 lbs 4 Post Parking Lift Manual

What our Experts Think

• Portable Design: Easily movable by a single person, ideal for shops or garages with limited space.

• High Capacity: Supports up to 7,000 lbs, suitable for a variety of vehicles. Compact Footprint: Overall width of 90 3/8″ and height of 108 7/8″, fitting into tight spaces.

• Dual-Lock Safety Mechanism: Includes auto-engaged arm lock and AMGO’s patented single-handle arm lock release device.

• Adjustable Lifting Arms: Two-stage stretching arms with combined rubber pads and 3” extension adapters.

• Self-Lubricating Components: Features UHMW polyethylene sliders and bronze bushings for smooth operation

Maintenance Tips

1. Inspect Moving Parts: Look for wear, interference, or damage.

2. Adjust Cable Equalizer Tension: Ensure level lifting.

3. Check Column Plumbness: Verify vertical alignment

4. Assess Rubber Pads: Replace if worn.

5. Verify Safety Devices: Ensure all safety mechanisms are in good condition.

Operational Tips

• Hydraulic Fluid: Maintain proper levels; use the recommended hydraulic oil.

• Weight Capacity: Do not exceed the 7,000 lbs limit.

• Daily Operation: Raise the lift to its maximum height at least once daily to extend the service life of cylinders and seals.
