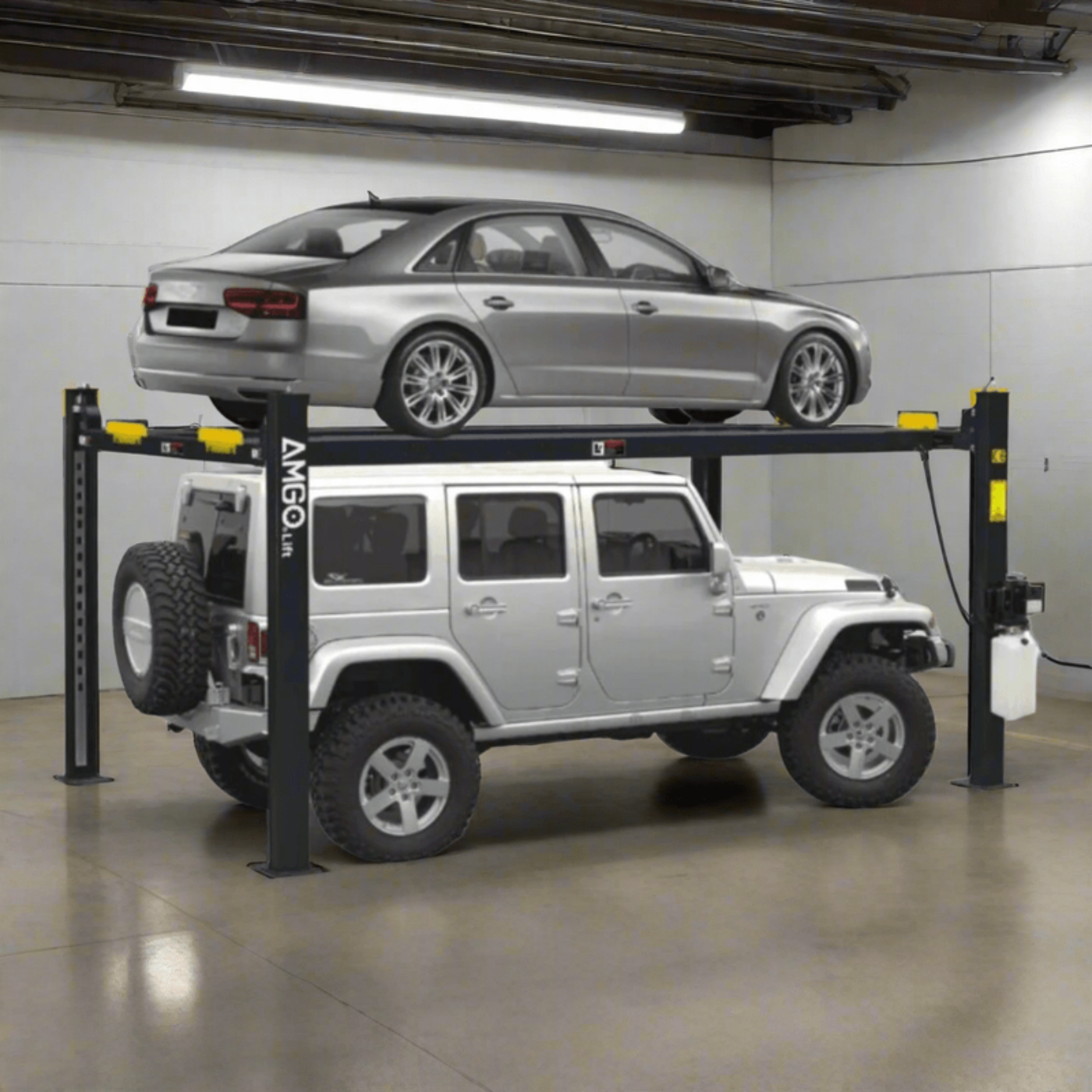

iDeal AMGO 408-HP 8,000 lbs 4 Post Parking Lift - 408-HP

iDeal AMGO 408-HP 8,000 lbs 4 Post Parking Lift - 408-HP

The 408-HP offers nearly all the same features as the 408-P but stands out with an additional 14 inches of lifting height, making it an ideal choice for accommodating taller vehicles with ease.

 Features

• Lifting capacity: 8,000lbs.
• AMGO ETL certified power unit comes as standard.
• High quality cylinder is designed and made to a high standard.
• AMGOs patented design concealed safety lock control device, with manual single-point lock release.
• Aero standard cables are included as standard.
• Double-S shaped columns are utilized to enhance strength.
• Non-slip platforms come with foldable drive-in ramps as standard
• Support back to back installation to minimize space occupancy.
• Power side column can be installed at any corner.
• Extremely high lifting is suitable to park taller vehicles.
• Pull rope comes as standard.

Specifications

Downloads

AMGO 408-HP 8,000 lbs 4 Post Parking Lift Manual

What our Experts Think

• Heavy-Duty Capacity: Supports up to 8,000 lbs, ideal for most light trucks, SUVs, and other vehicles.

• Extra-Large Lift: Offers a maximum lifting height of 87.75", perfect for taller vehicles.

• Safety Features: Includes hidden safety locks with manual release, multiple lock points, and anti-fall mechanisms for enhanced stability.

• Sturdy Build: Features durable double-S shaped columns, non-slip platforms, and foldable drive-in ramps for added convenience.

• Flexible Setup: Power-side column can be installed at any corner for versatility in space utilization.

• Optional Accessories: Includes available caster kits and jack trays for added utility.

Q&A

Q: What safety features does the AMGO 408-HP offer?
A: The lift includes hidden safety locks, manual single-point lock release, multi-safety locks in each column, adjustable lock ladder, and anti-fall devices, ensuring safe operation.

Q: How long does it take to lift a vehicle?
A: Lifting time is about 98 seconds with a 110V power supply and 40 seconds with a 220V power supply.

Q: What is the warranty for the AMGO 408-HP?
A: The lift comes with a 5-year warranty on the structure, 3 years on hydraulic components, and 2 years on electrical components.

Q: Are there optional accessories available?
A: Yes, optional accessories include a rolling jack, caster kit, plastic drip tray, and jack tray, which enhance the lift's functionality.

Maintenance Tips

• Regular Inspections: Check all bolts, nuts, and safety locks for tightness and proper function.

• Lubrication: Apply lubricant to moving parts, including the safety lock mechanisms and casters, to maintain smooth operation.

• Cleaning: Keep the runways and ramps free from debris and clean them regularly to prevent slippage.

• Hydraulic System: Inspect hydraulic fluid levels periodically and replace the fluid as recommended by the manufacturer.

• Caster Maintenance: If using caster kits, ensure the wheels are free of obstructions and rotate smoothly
