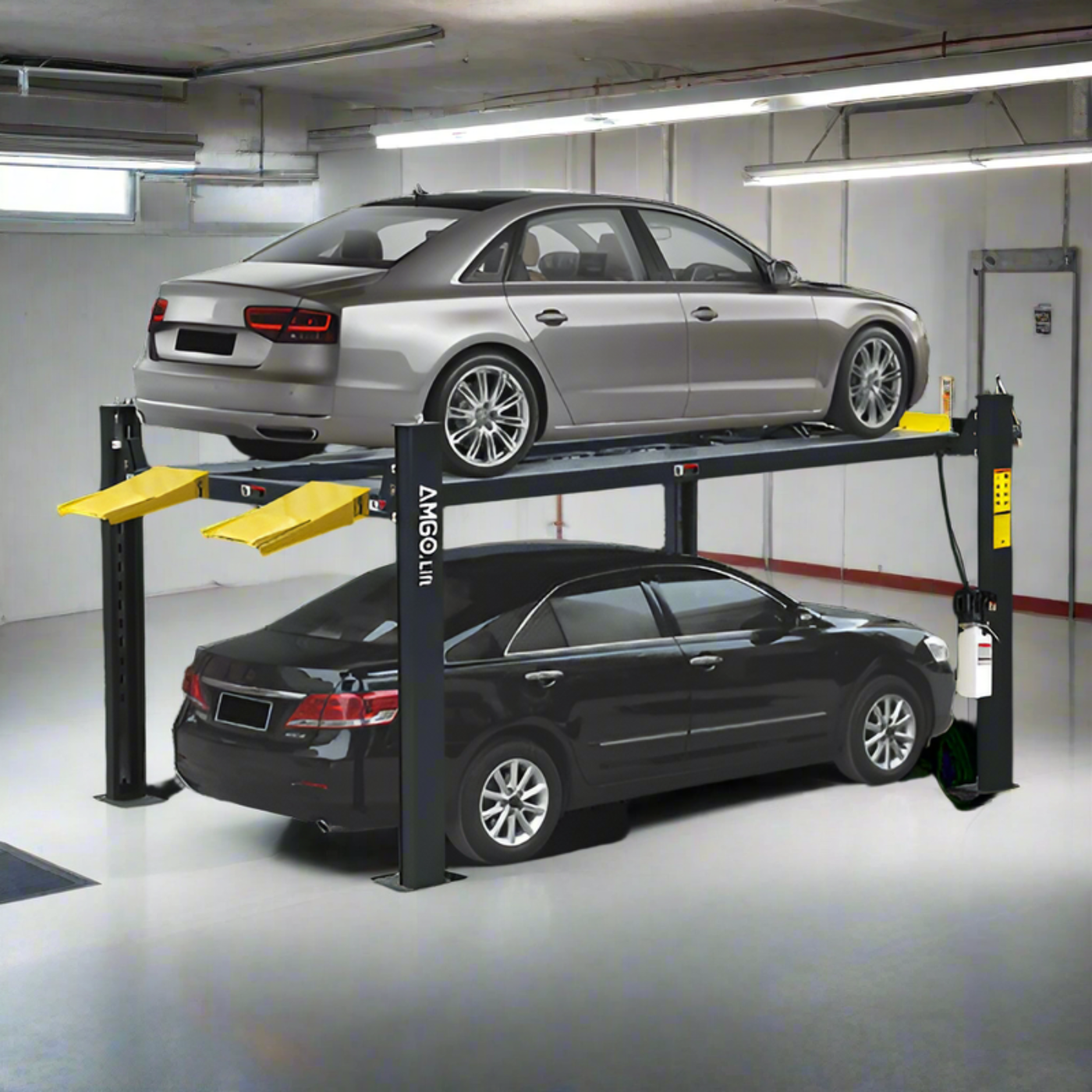

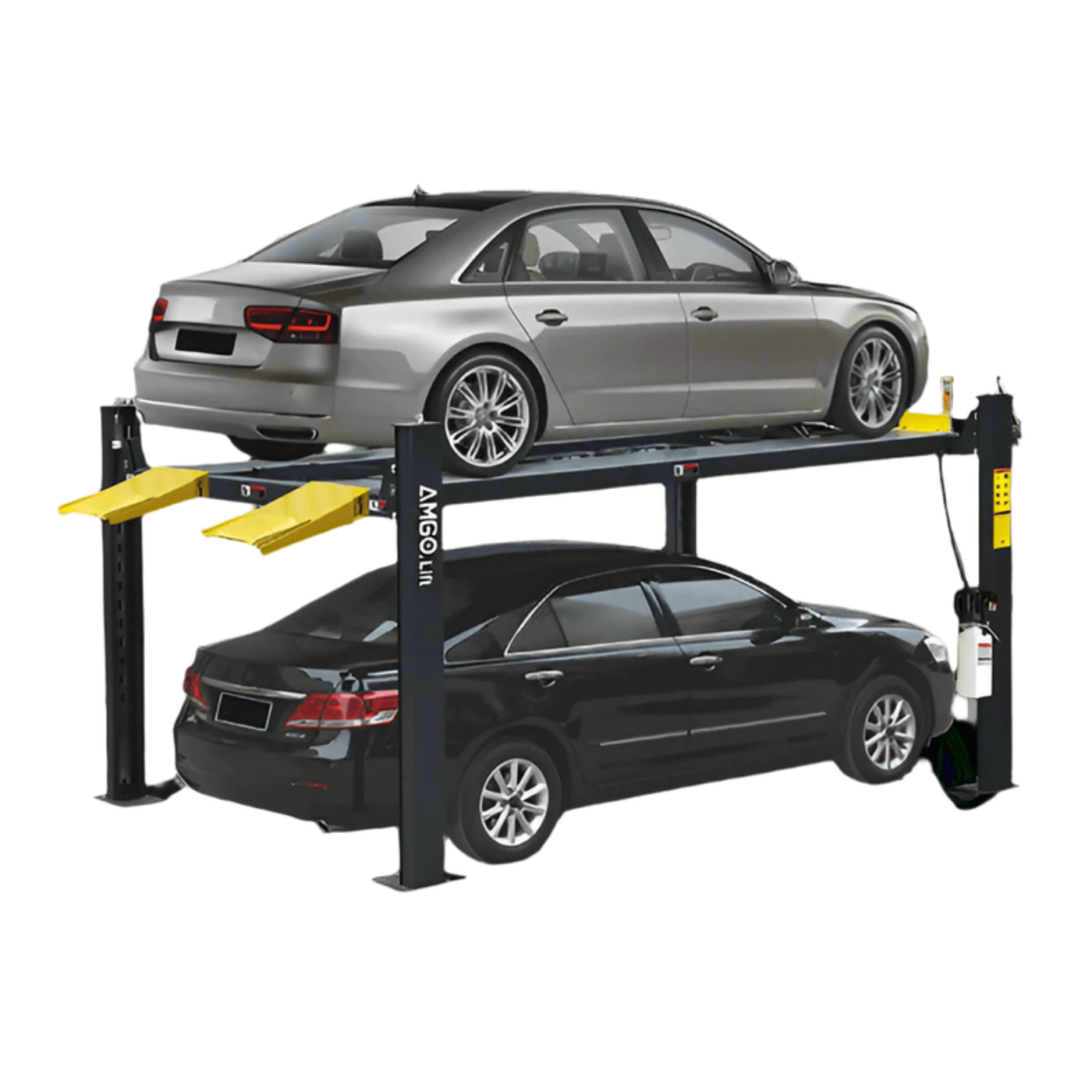

iDeal AMGO 407-P 7,000 lbs 4 Post Parking Lift - 407-P

iDeal AMGO 407-P 7,000 lbs 4 Post Parking Lift - 407-P

This innovative, space-saving solution takes up considerably less room compared to other models. With its patented concealed safety mechanism and compatibility for back-to-back installation, it’s ideal for professional workshops and home garages alike. Designed for ease of installation and low-maintenance operation, this commercial-grade lift combines efficiency with reliability.

Features

• Lifting capacity: 7,000lbs.
• AMGO ETL certified power unit comes as standard.
• High quality cylinder is designed and made to a high standard.
• AMGOs patented design concealed safety lock control device, with manual single-point lock release.
• Aero standard cables are included as standard.
• Double-shaped columns are utilized to enhance strength.
• Non-slip platforms come with foldable drive-in ramps as standard.
• Support back to back installation to minimize space occupancy.
• Power side column can be installed at any corner.

Specifications

Downloads

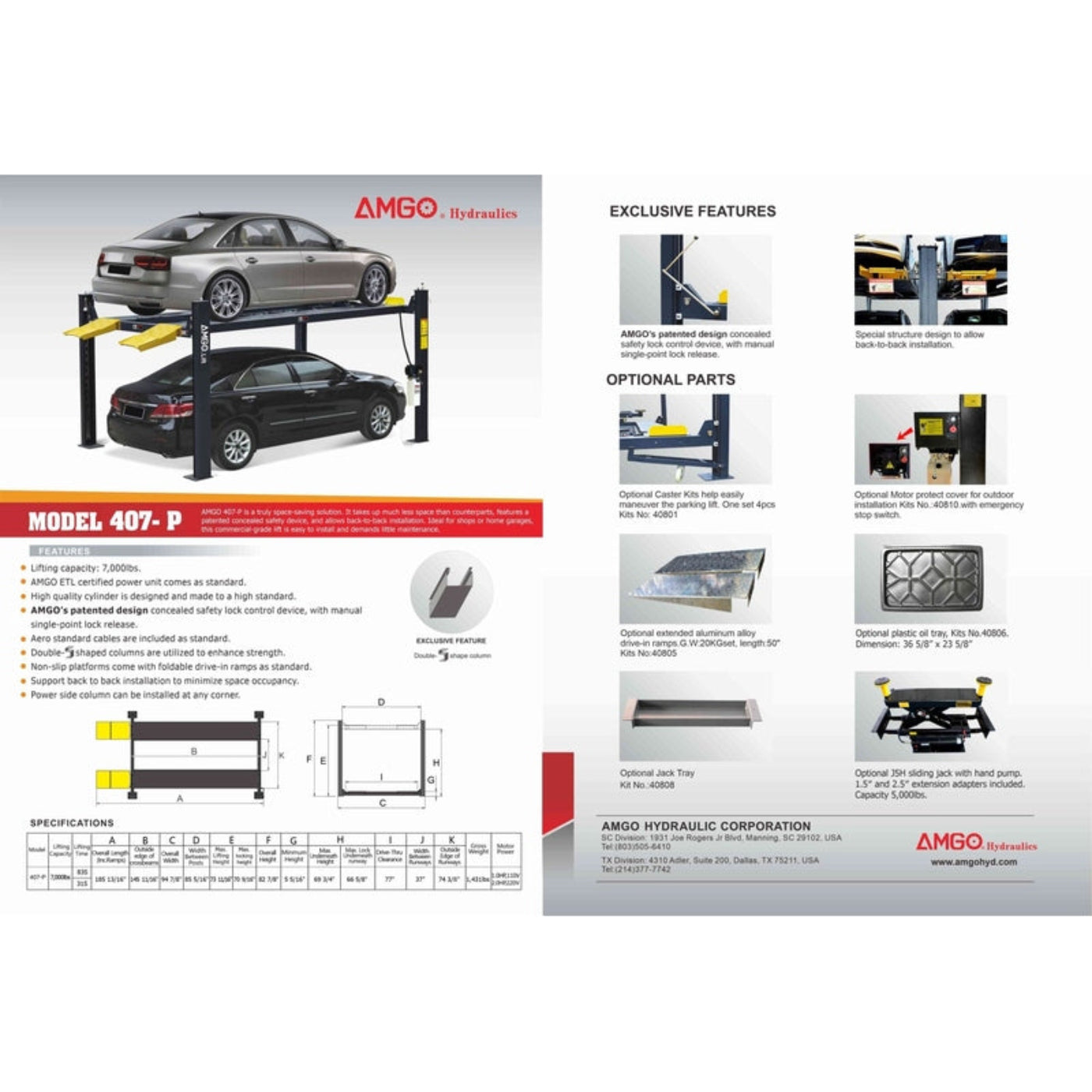

AMGO 407-P 7,000 lbs Parking Lift Manual

What our Experts Think

• High Lifting Capacity: Supports up to 7,000 lbs, making it perfect for most passenger vehicles and light trucks.

• Rapid Lifting Speed: Lifts vehicles quickly, with a lifting time of 68 seconds on 110V and 26 seconds on 220V, optimizing workflow efficiency.

• Compact Design: Ideal for garages with limited space, featuring a compact footprint and flexible installation options.

• Enhanced Safety Features: Equipped with hidden safety locks and a manual single-point lock release for secure and smooth operation.

• Durable Construction: Made with double-S shaped columns for added strength and a non-slip platform for additional safety.

• Easy Installation: Simple to set up without requiring special foundation work, suitable for both home and commercial use.

Q&A

Q: What is the lifting capacity of the AMGO 407-P?
A: The AMGO 407-P has a lifting capacity of 7,000 lbs, making it suitable for most cars and light trucks.

Q: What are the dimensions of the AMGO 407-P?
A: The overall length with ramps is 185 13/16 inches, width is 94 7/8 inches, and height is 82 7/8 inches. The maximum lifting height is 73 11/16 inches, and the minimum height is 5 5/16 inches. The drive-thru clearance is 77 inches, and the width between runways is 37 inches.

Q: What power options are available for the AMGO 407-P?
A: The AMGO 407-P is available with either a 1HP 110V motor or a 2HP 220V motor. The lifting time is approximately 83 seconds for the 110V model and 31 seconds for the 220V model.

Q: What safety features does the AMGO 407-P include?
A: The AMGO 407-P includes hidden safety locks, a manual single-point lock release, multi-safety locks in each column, and a redundant anti-fall device. The design also features double-S shaped columns for added strength and a non-slip lifting platform.

Q: Is the AMGO 407-P suitable for commercial use?
A: Yes, the AMGO 407-P is designed for both home garages and commercial shops, offering a compact design that saves space without compromising on lifting capacity.

Maintenance Tips

• Regular Cleaning: Wipe down the platform and columns to remove dust and debris after each use.

• Inspect Safety Locks: Regularly check the safety locks and manual release device to ensure proper function.

• Lubricate Moving Parts: Apply lubricant to cables and pulleys to ensure smooth operation.

• Check Hydraulic System: Inspect the hydraulic system for leaks, check the oil level, and top up as needed.

• Verify Electrical Components: Ensure electrical connections are secure and free from corrosion. Test the power unit periodically.

• Check for Structural Integrity: Inspect the columns and platform for damage, and ensure all bolts and fasteners are tight.

• Proper Loading: Do not exceed the 7,000 lbs capacity to prevent overloading the lift.
