AMGO 407-P 7,000 lbs 4 Post Parking Lift - 407-P

AMGO 407-P 7,000 lbs 4 Post Parking Lift - 407-P

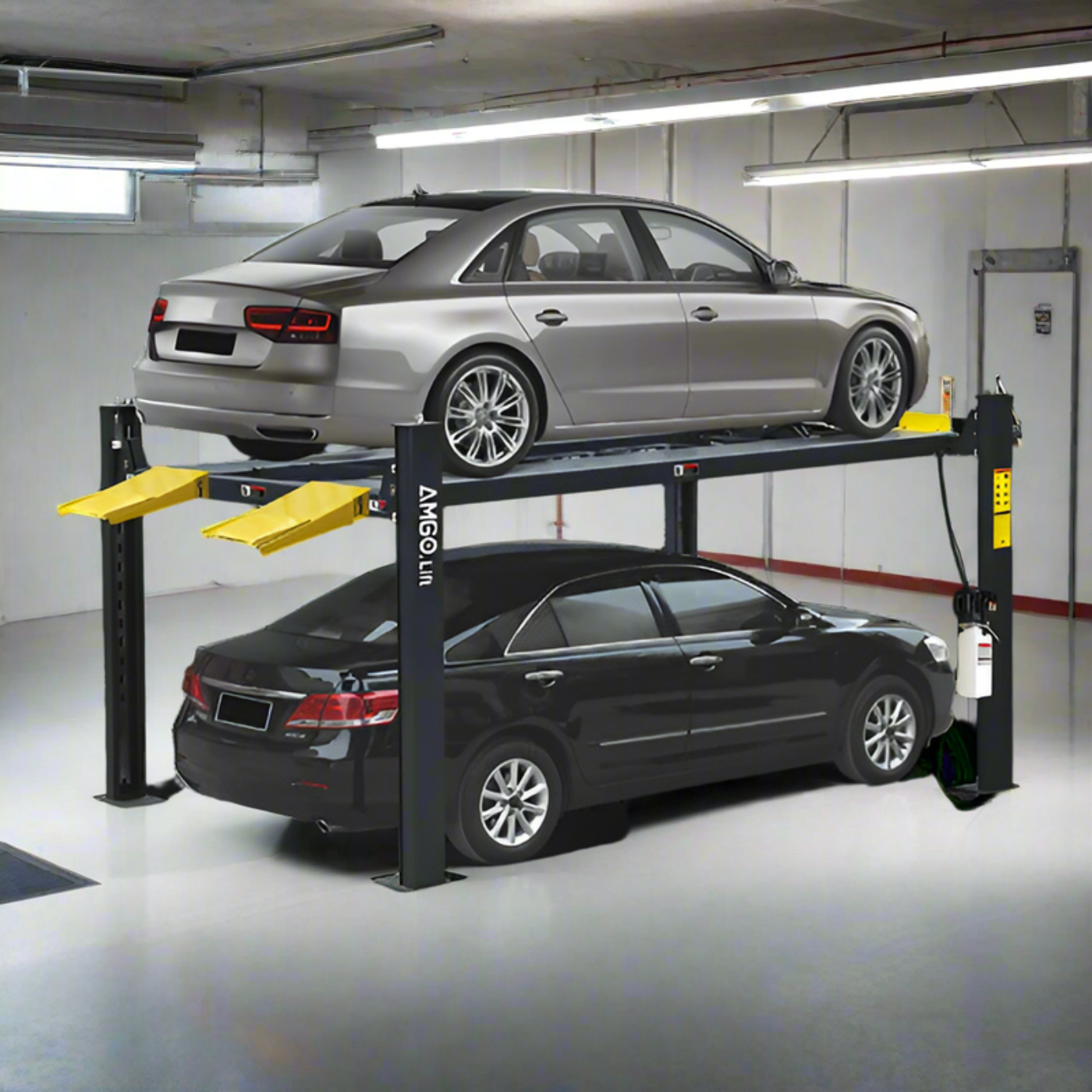

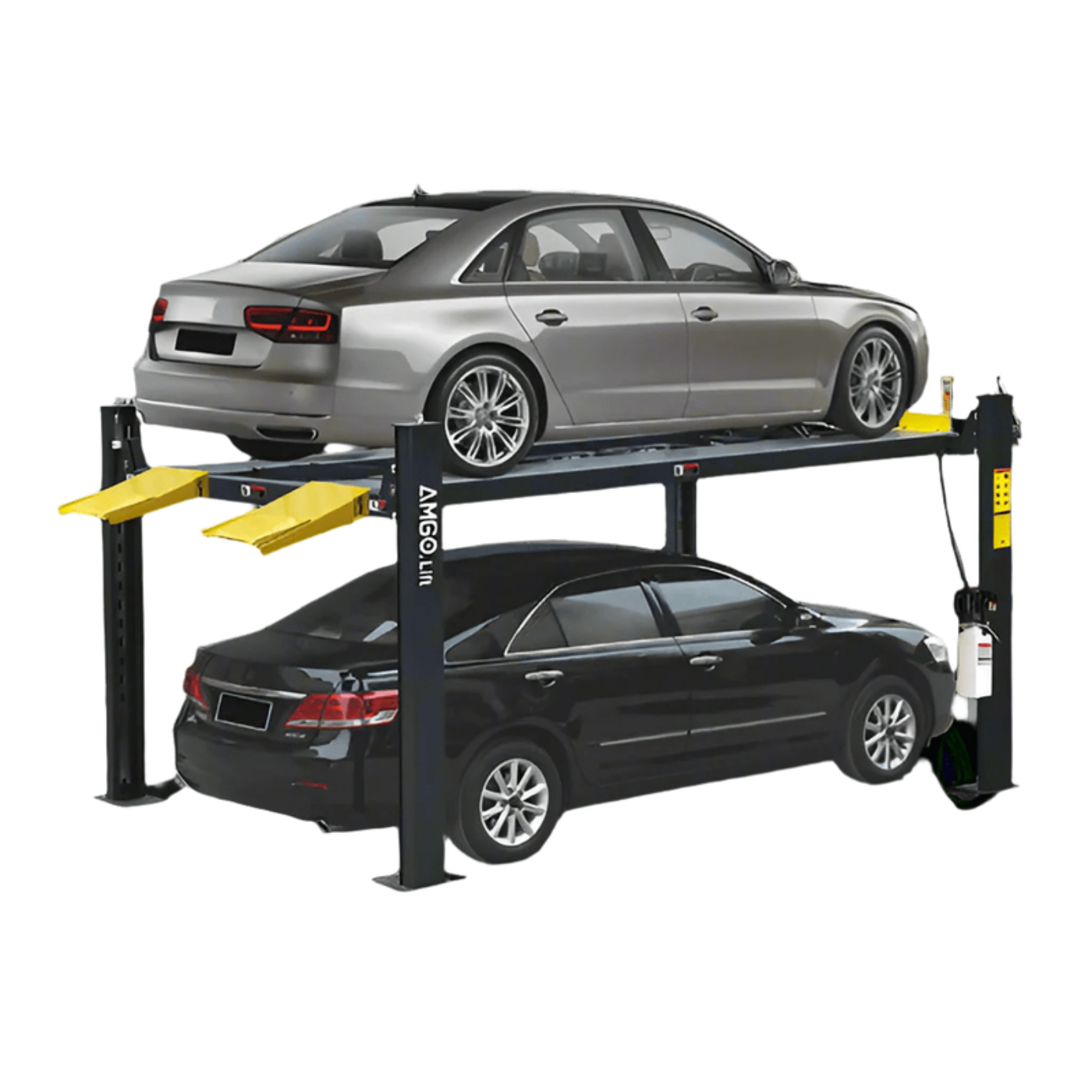

The 407-P 4 Post Parking Lift by AMGO

This innovative, space-saving solution takes up considerably less room compared to other models. With its patented concealed safety mechanism and compatibility for back-to-back installation, it’s ideal for professional workshops and home garages alike. Designed for ease of installation and low-maintenance operation, this commercial-grade lift combines efficiency with reliability.

Features

• Lifting capacity: 7,000lbs.
• AMGO ETL certified power unit comes as standard.
• High quality cylinder is designed and made to a high standard.
• AMGOs patented design concealed safety lock control device, with manual single-point lock release.
• Aero standard cables are included as standard.
• Double-shaped columns are utilized to enhance strength.
• Non-slip platforms come with foldable drive-in ramps as standard.
• Support back to back installation to minimize space occupancy.
• Power side column can be installed at any corner.

Specifications

Downloads

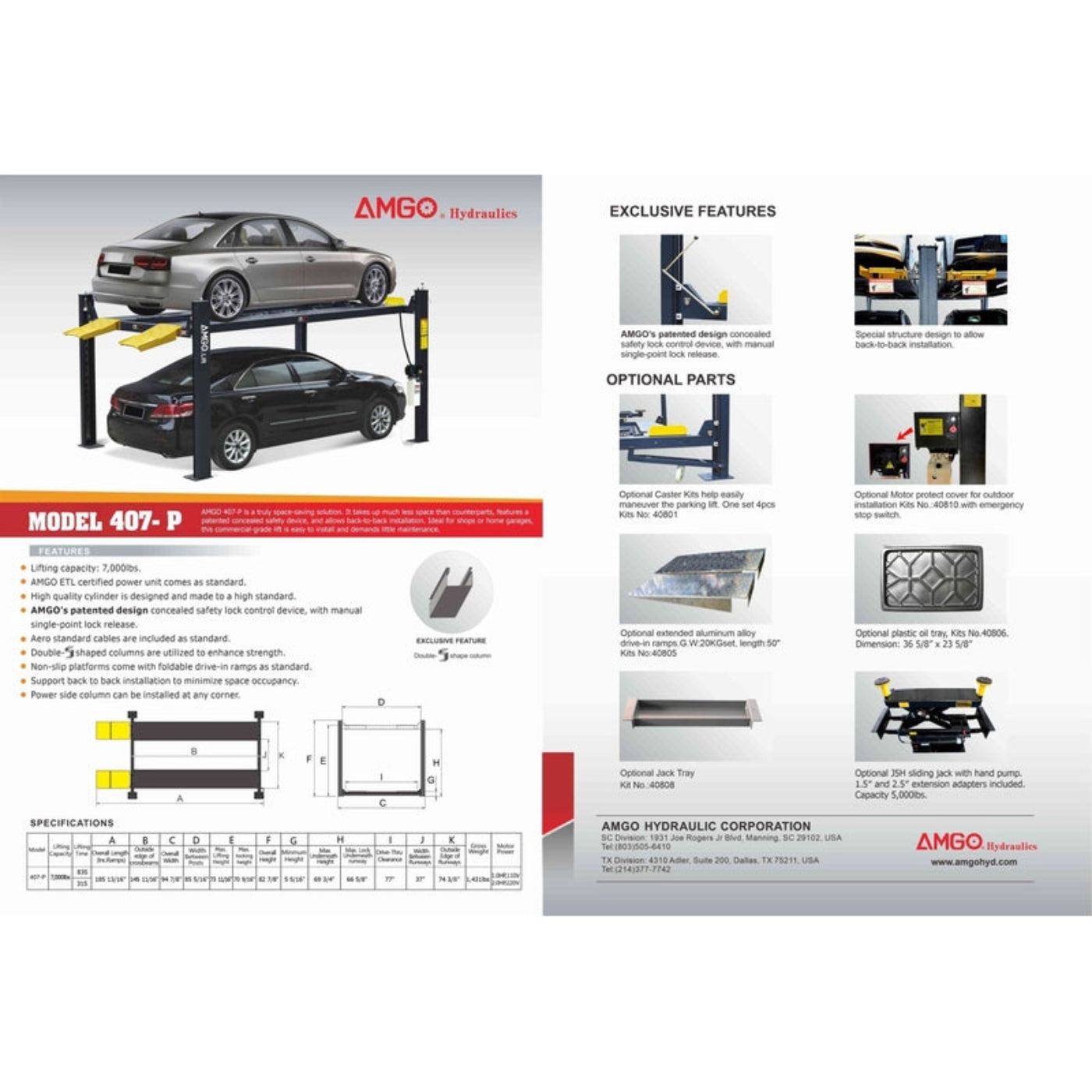

AMGO 407-P 7,000 lbs Parking Lift Manual

What our Experts Think

• 7,000 lbs Capacity
  Supports light-duty vehicles, including cars and SUVs, with ease.

• Compact and Space-Saving
  Ideal for maximizing garage space with its ability to be installed back-to-back.

• Flexible Power Options
  Works with both 110V and 220V power supplies, offering versatile installation choices.

• Safety
  Equipped with concealed safety locks and manual single-point release for secure operation.

• Durable Construction
  Built with double-S shaped columns and non-slip platforms for enhanced stability.

Q&A

Q: What is the lifting capacity of the AMGO 407-P?
A: The 407-P lifts up to 7,000 lbs, suitable for cars, SUVs, and light trucks.

Q: Is the 407-P suitable for commercial use?
A: Yes, it’s designed for both professional and home garages, offering reliable performance in tight spaces.

Q: What power does the 407-P require?
A: It operates on either 110V or 220V power.

Q: Does the 407-P include safety ?
A: Yes, it features multi-safety locks and a manual release system for added security.

Q: What is the lifting height of the 407-P?
A: The 407-P offers a maximum lifting height of 73 11/16".

Maintenance Tips

Daily Maintenance

• Visual Inspection: Check for visible wear or damage on components like cables, chains, and hydraulic parts.

• Hydraulic System: Inspect for any leaks and verify the hydraulic fluid level is within the recommended range.

• Safety Features: Test safety locks and emergency stop functions to ensure they work properly.

• Arm Locking Mechanisms: Ensure the arm locks are fully engaged and functioning.

 Monthly Maintenance

• Anchor Bolts: Tighten anchor bolts to the specified torque to ensure secure installation.

• Lubrication: Lubricate all moving components such as rollers, cables, and pulleys to reduce friction and wear.

• Hydraulic Hoses: Check hydraulic hoses for any visible wear or leaks.

• Rollers and Pins: Apply a high-quality gear oil to maintain smooth operation of all rollers and pins.

Every Six Months

• Moving Parts: Conduct a thorough inspection of moving parts for any damage or interference.

• Cable Tension: Check the tension of the cables and adjust them as needed to ensure even lifting.

• Platform Alignment: Verify that the platforms are level and make adjustments as necessary.

• Rubber Pads: Inspect and replace any worn or damaged rubber pads.
