Aardwolf Pivot Forklift Boom PFB1-2600

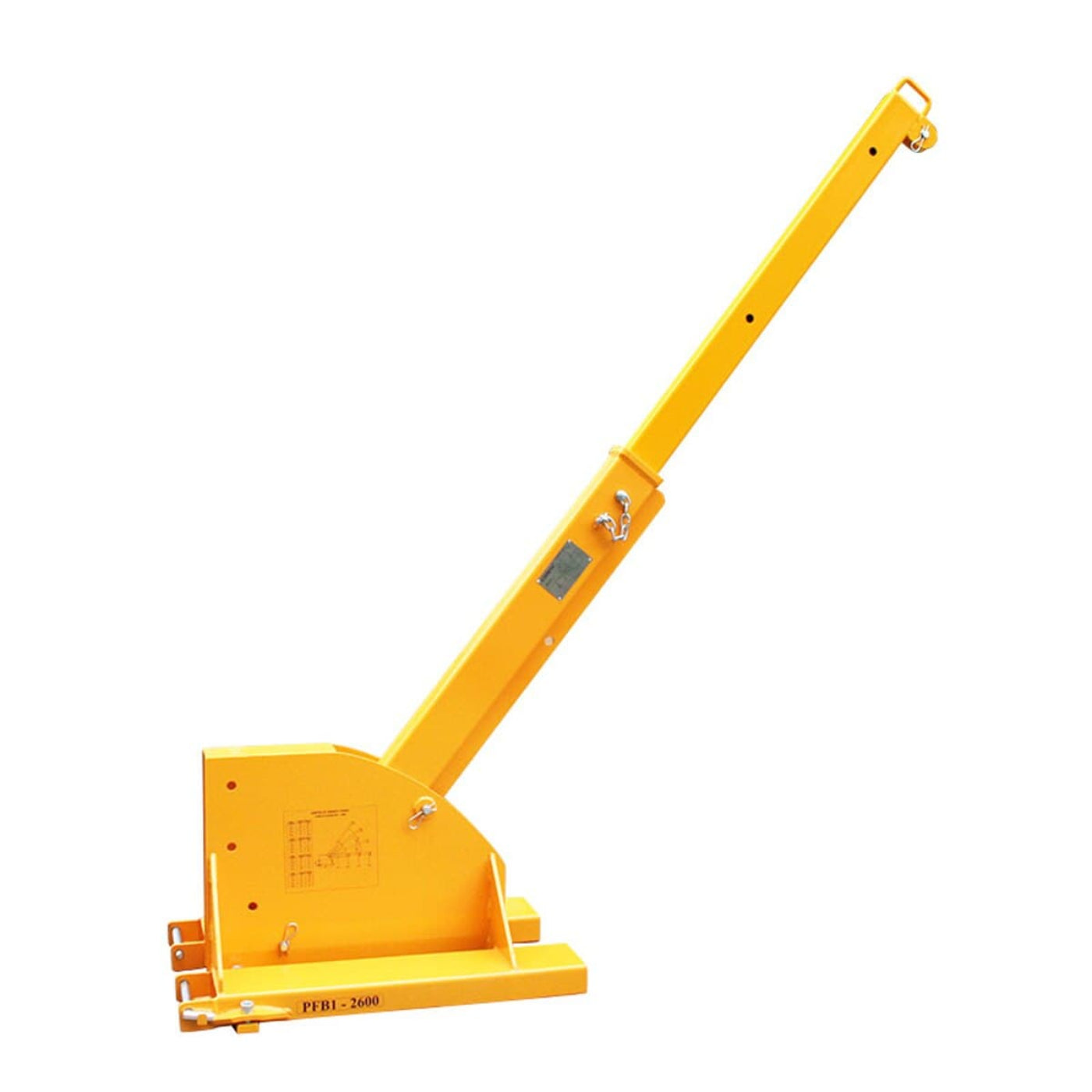

The Pivot Boom model PFB1-2600 is adjustable for height and length. The tilt facility allows extra height to compensate for the hook and sling length lost when lifting with a jib attachment.

Features

Specifications

What our Experts Think

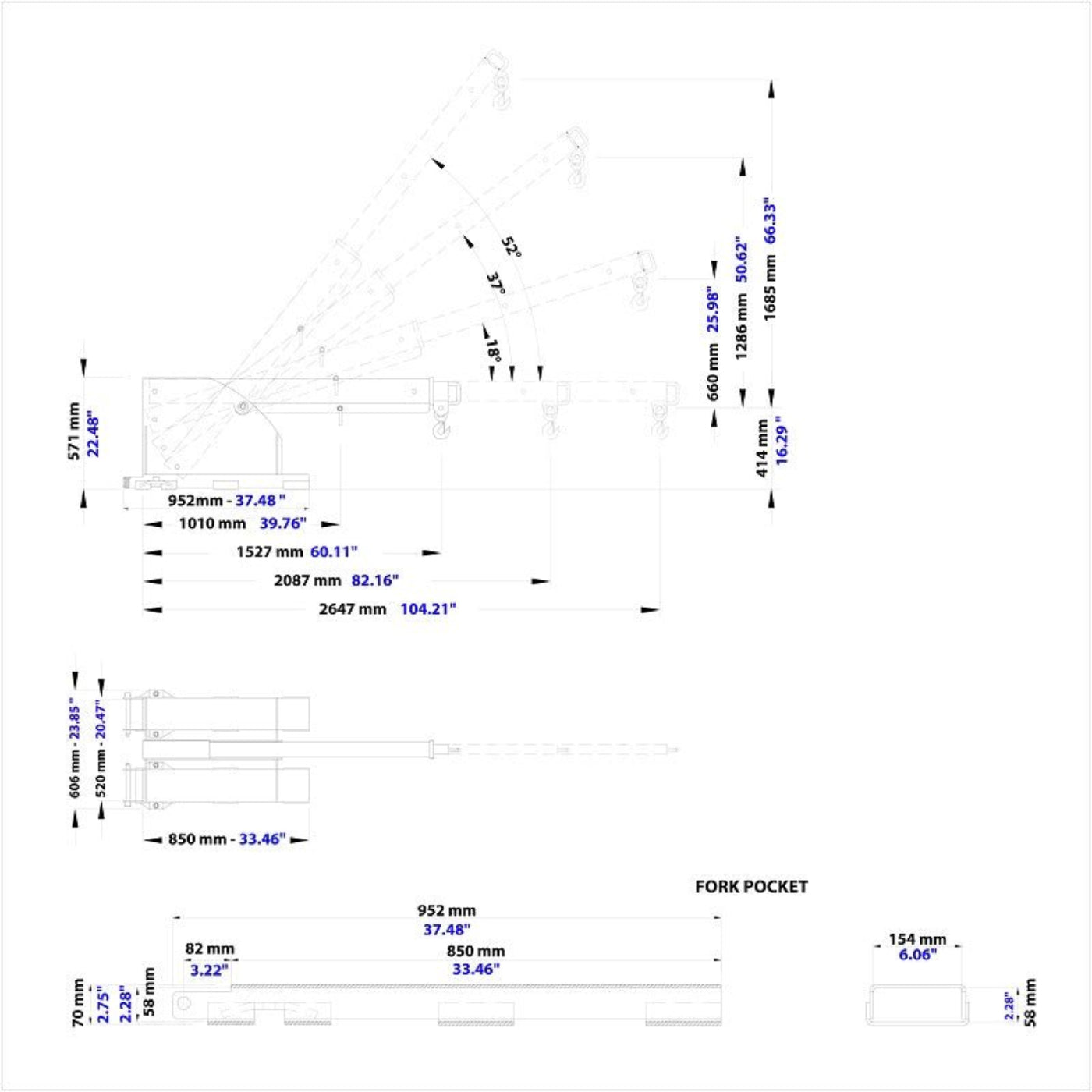

• Adjustable Reach and Height: Telescopes from 1500 mm to 2600 mm (59" to 102.4") in 560 mm (22") increments, allowing flexibility in lifting operations.

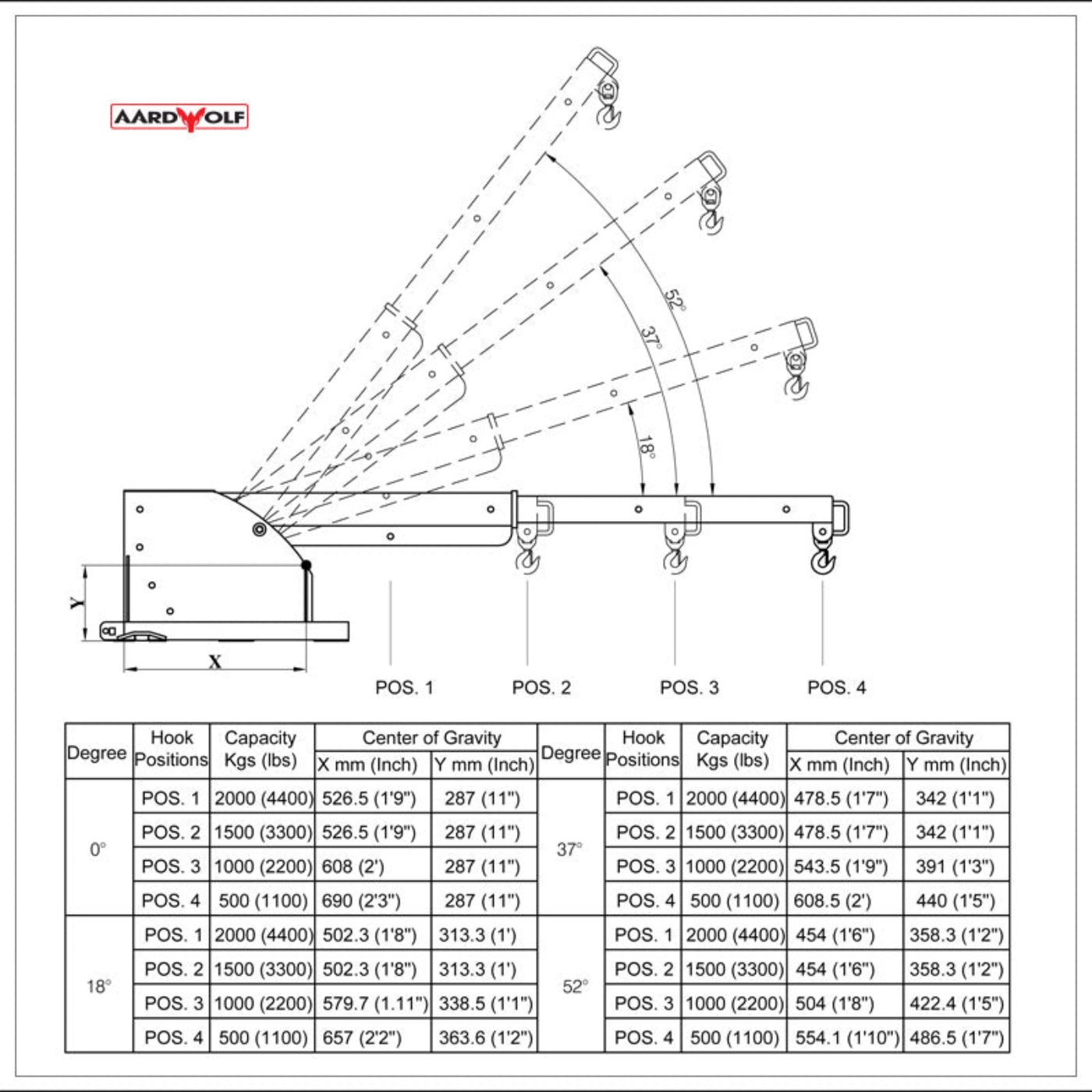

• Tilt Functionality: Offers a tilt range of 0° to 52°, ideal for gaining extra height when using a hook and sling combination.

• Secure Attachment: Fits standard forklift forks with pockets measuring 154 x 58 mm and is secured with bolts and restraint pins for safe operation.

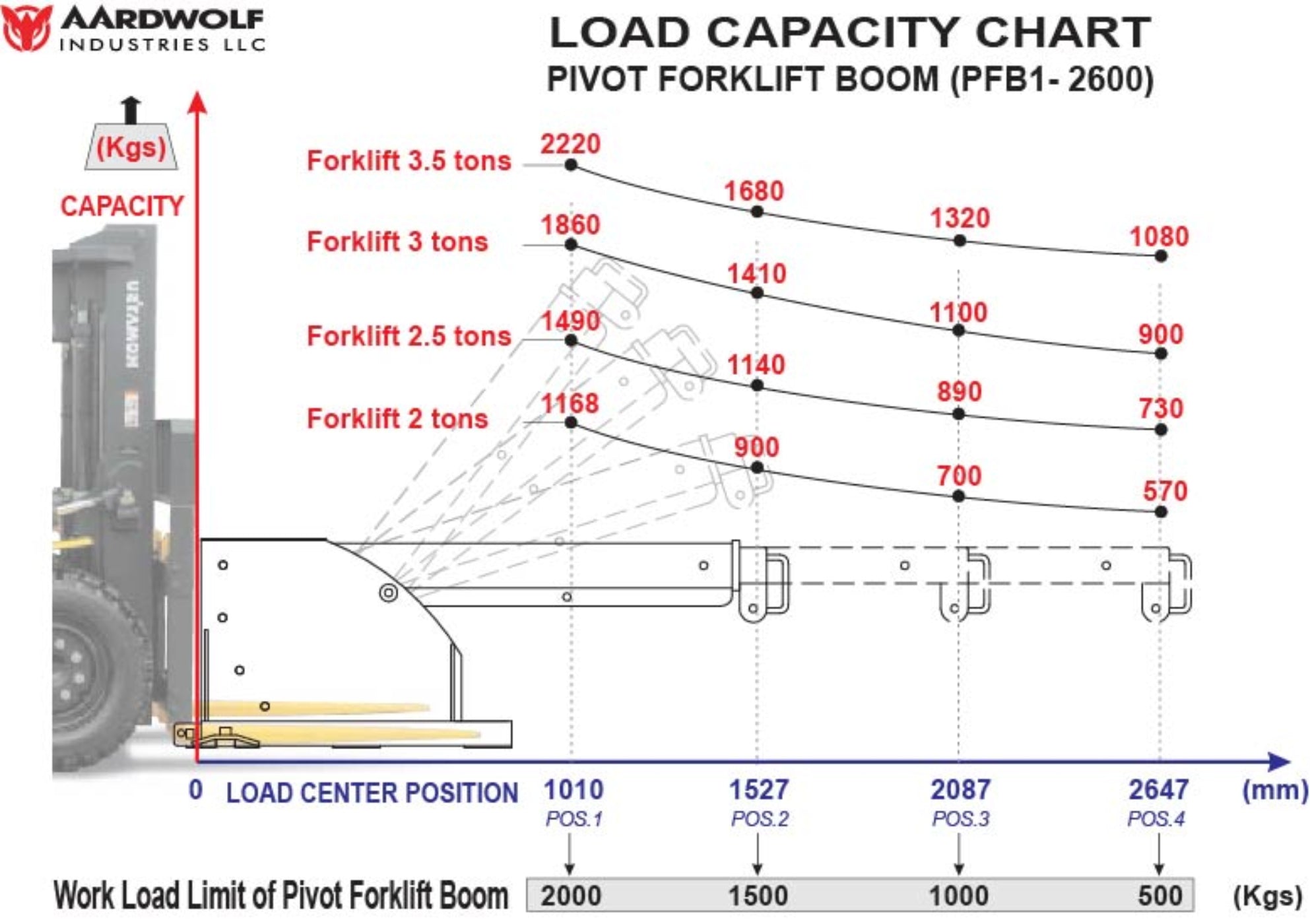

• Load Capacity: Working load limit of 1500 kg when retracted and 500 kg when fully extended, subject to the forklift's rated capacity.

Q&A

Q: What is the Aardwolf PFB1-2600 Pivot Forklift Boom used for?
A: It's designed to extend the reach and lifting height of forklifts, ideal for handling stone slabs, construction materials, and other heavy loads.

Q: What is the working load limit?
A: It supports up to 1,500 kg when retracted and 500 kg when fully extended.

Q: How is it secured to the forklift?
A: The boom slips onto forks with pockets measuring 154 mm x 58 mm and is secured by two bolts at the back of each fork pocket and restraint pins.

Q: What is the tilt range?
A: The boom can tilt up to 52°, allowing for versatile lifting angles.

Maintenance Tips

• Inspect Regularly: Examine the clamp's frame, jaws, and lifting eye for any signs of wear, cracks, or deformation.

• Clean After Use: Remove dust, debris, and moisture from all components to prevent corrosion and maintain optimal performance.

• Check Gripping Pads: Inspect the high-friction, replaceable rubber pads for wear. Replace them if they show signs of damage or reduced grip.

• Lubricate Moving Parts: Apply appropriate lubricant to the moving parts, such as the pivot points, to ensure smooth operation.

• Test Functionality: Before each use, verify that the clamp jaws open and close correctly and that the automatic locking mechanism functions properly.

• Store Properly: When not in use, store the clamp in a dry, sheltered area to protect it from environmental damage.
