Forklift Booms for safely attaching a forklift and a slab lifting device

All Sales final on Forklift Booms.

FB1-2720

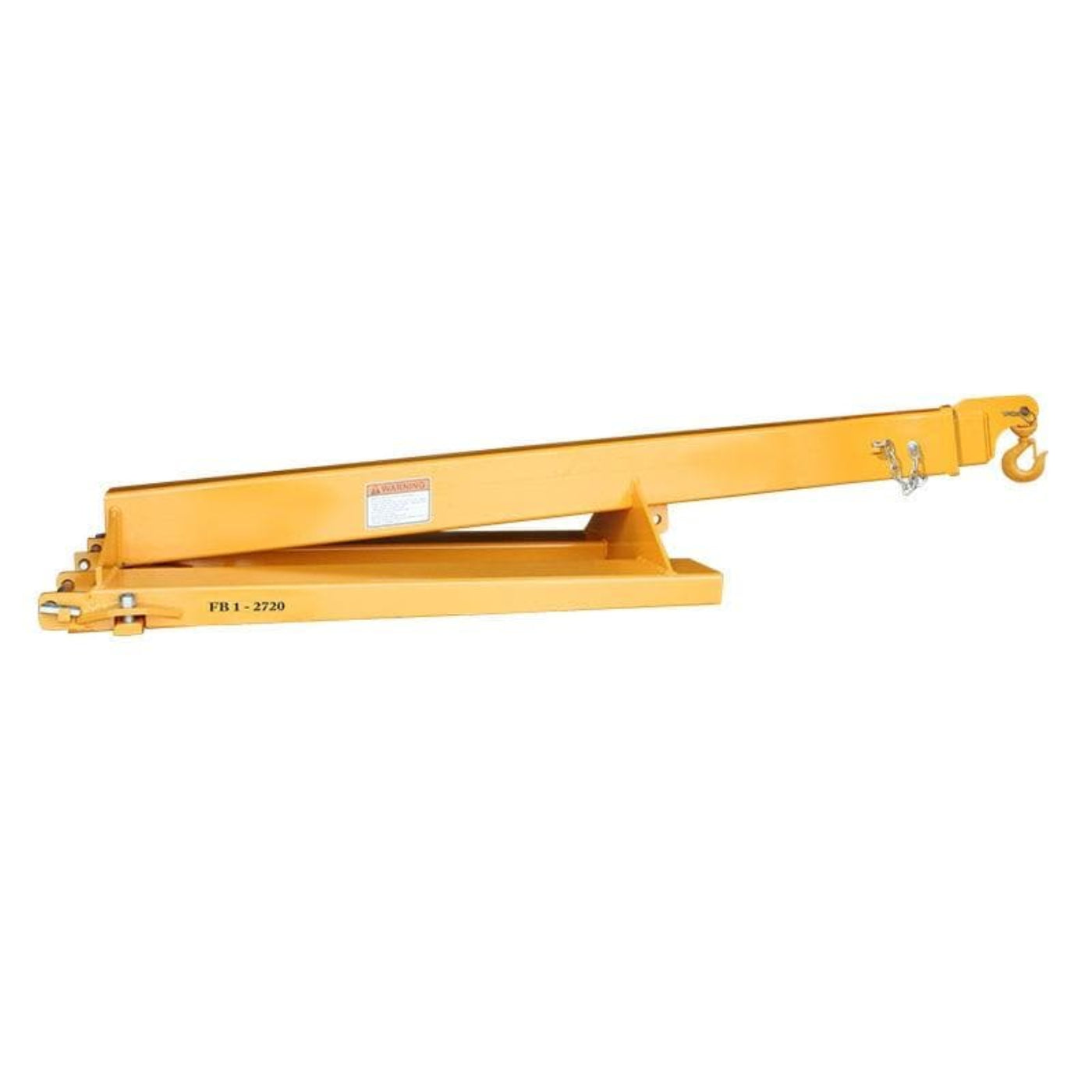

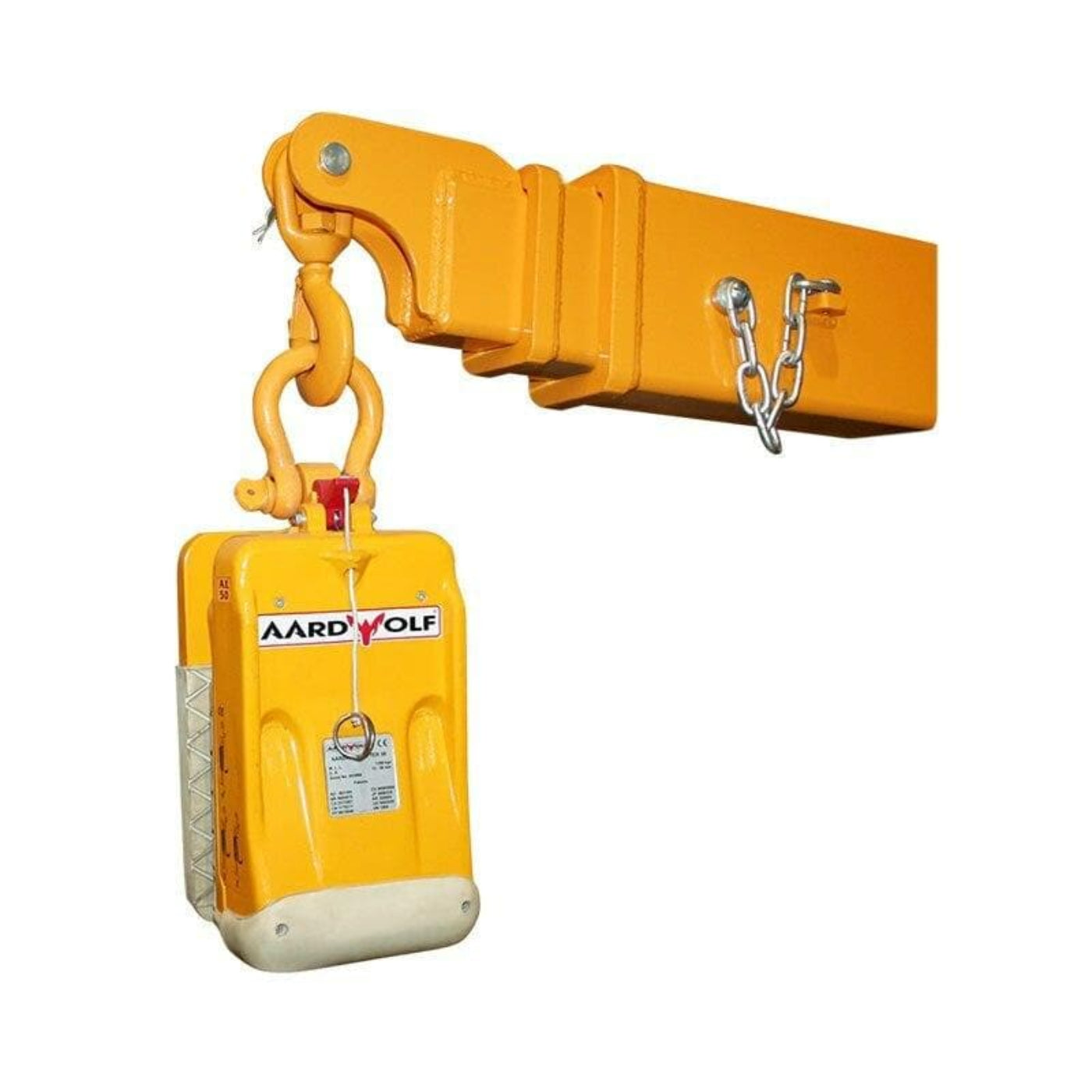

The Aardwolf Forklift Boom FB-1 is a forklift attachment made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability and safety. The FB-1 is the smaller of forklift booms Ardwolf offers and has the lifting capacity over 3,000 pounds and over a 1,000 pounds fully extended. The Aardwolf forklift booms compliment the patented range of Aardwolf lifting clamps. The Forklift Boom FB1-2720 is a telescoping two-section rectangular tube steel boom for use on 2 ton and 2.5 ton forklift trucks. It offers versatility with maximum visibility for the driver.

Features

• Maximum load capacity, fully retracted - 3307 LBS, fully extended - 1102 LBS.

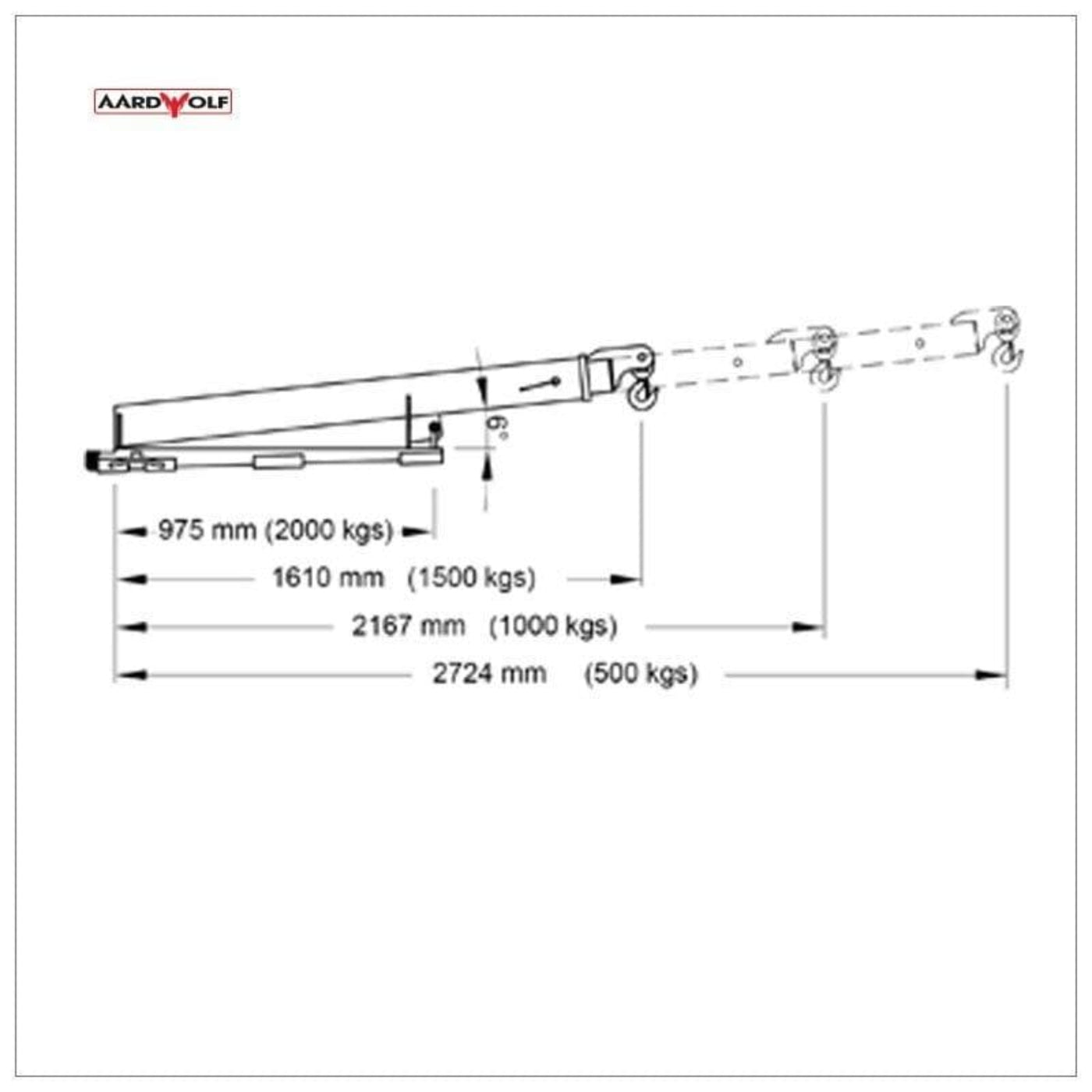

• Manually telescopes from 1.610 M to 2.724 M in 2 increments of 27".
• Boom extension is designed so it cannot be pulled all the way out.
• The boom is firmly secure onto fork blades by two bolts located at the back of each fork pocket and restraint pins.

Specifications

What our Experts Think

• Heavy-Duty Construction: Crafted from high-grade Australian rectangular tube steel (AS1163-450 LO), ensuring strength, reliability, and safety for demanding lifting tasks.

• Telescoping Design: Features a two-section boom that manually telescopes from 1,610 mm (63.4") to 2,724 mm (107"), providing adjustable reach to suit various lifting needs

• Secure Attachment: Easily mounts onto forklift forks with fork pockets measuring 150 mm x 58 mm (5.9" x 2.3") on 366 mm (14.4") centers, secured by two bolts and restraint pins, ensuring stability during operation.

• Lifting Capacity: Offers a working load limit of 1,500 kg (3,307 lbs) when retracted and 500 kg (1,102 lbs) when fully extended, accommodating a range of materials.

• Compact Storage: Weighs 91 kg (201 lbs) with packaging dimensions of 1,750 mm x 620 mm x 410 mm (68.9" x 24.4" x 16.1"), facilitating easy storage and transport.

Q&A

Q: What is the Aardwolf Forklift Boom - FB1-2720 used for?
A: The FB1-2720 is designed to extend the lifting range of forklifts, making it easier to lift and position heavy stone slabs, machinery, and other bulky items.

Q: What is the weight capacity of the FB1-2720?
A: It can handle a weight capacity of up to 2720kg, making it suitable for heavy-duty lifting tasks.

Q: How is it attached to a forklift?
A: The forklift boom easily attaches to the forklift’s carriage, offering quick setup and secure lifting.

Q: Is it adjustable?
A: Yes, the FB1-2720 features an adjustable design to accommodate various lifting heights and load positions.

Q: Can it be used for different materials?
A: Yes, it is versatile and can be used for lifting stone slabs, machinery, construction materials, and other heavy loads.

Q: Is it safe for use?
A: The FB1-2720 is built with safety in mind, featuring reinforced construction and secure attachment points to ensure safe lifting.

Maintenance Tips

• Inspect Regularly: Check for any signs of wear, cracks, or damage to the boom arms, hooks, and connections.

• Clean After Use: Remove debris, dust, and moisture to prevent rust and maintain smooth operation.

• Lubricate Moving Parts: Apply oil or grease to the pivot points and moving parts to reduce friction and wear.

• Check Connections: Ensure that all pins, bolts, and fasteners are securely tightened before use.

• Proper Storage: Store in a dry, sheltered location to protect from corrosion and prolong lifespan.
