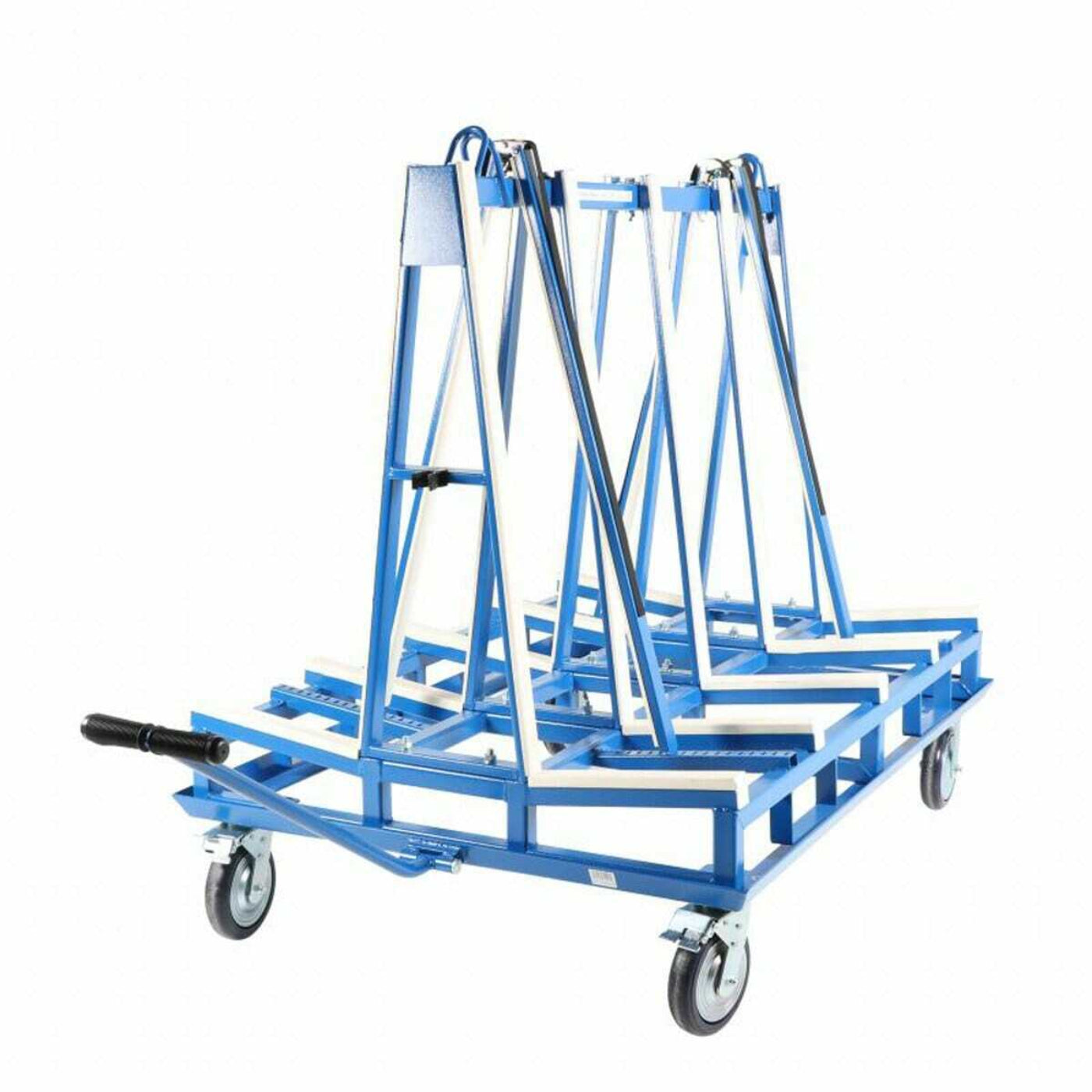

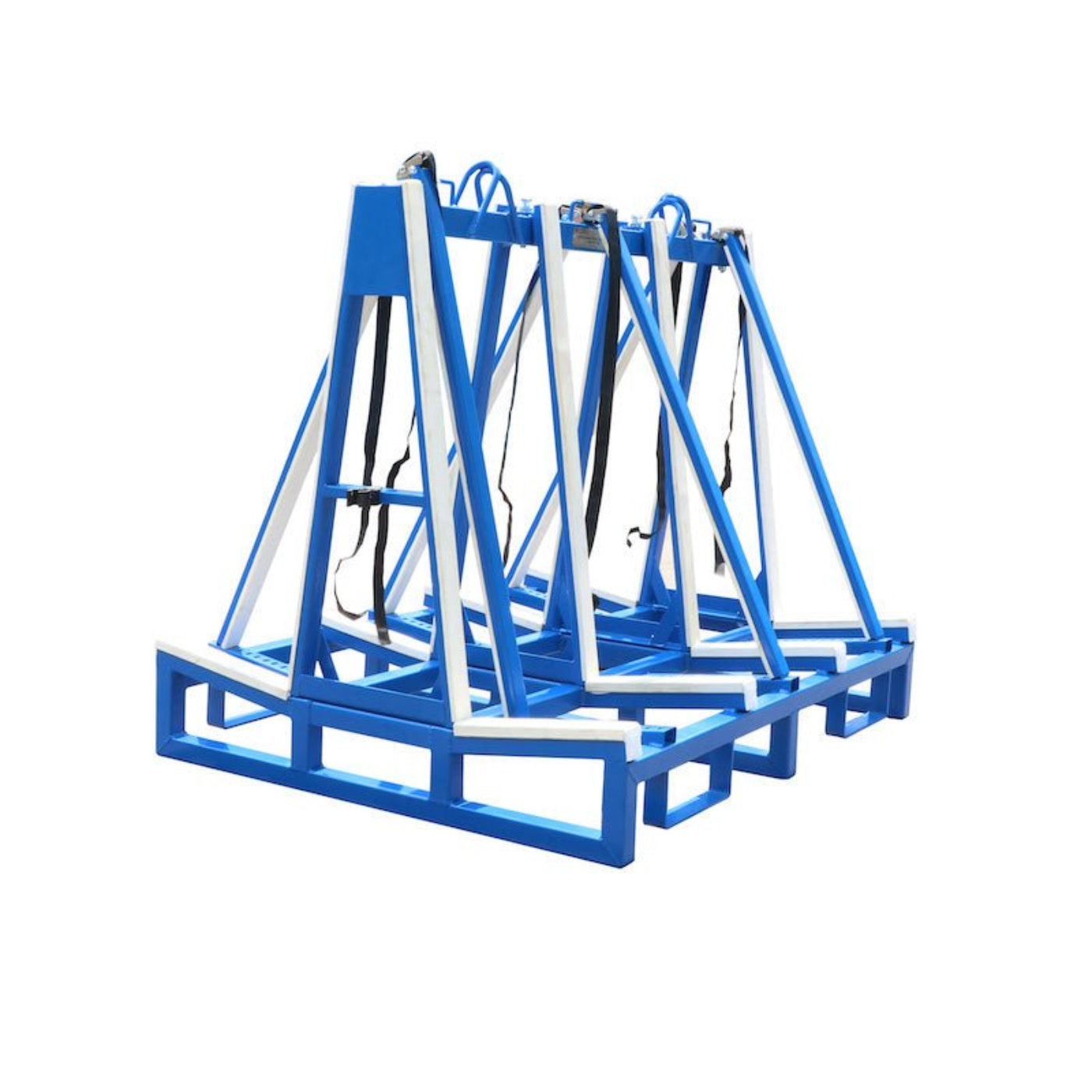

Aardwolf Demountable Frame - DFF200

Aardwolf Demountable Frame - DFF200

For storing and transporting finished work. It is ideal for transporting and storing material within the factory or transporting material to building sites.

 Often people like to have two A’ frames for one base. They will have one frame on their truck and one in the factory on the base. When the truck comes back from one job, they will remove the empty frame from the truck, place a full-frame on the truck and place the empty frame on the base ready to be reloaded. It makes sense. Frames can be loaded onto the truck with a forklift or crane.

Features

Specifications

What our Experts Think

• Heavy-Duty Capacity: Supports up to 1,000 kg (2,204 lbs), suitable for transporting and storing heavy materials.

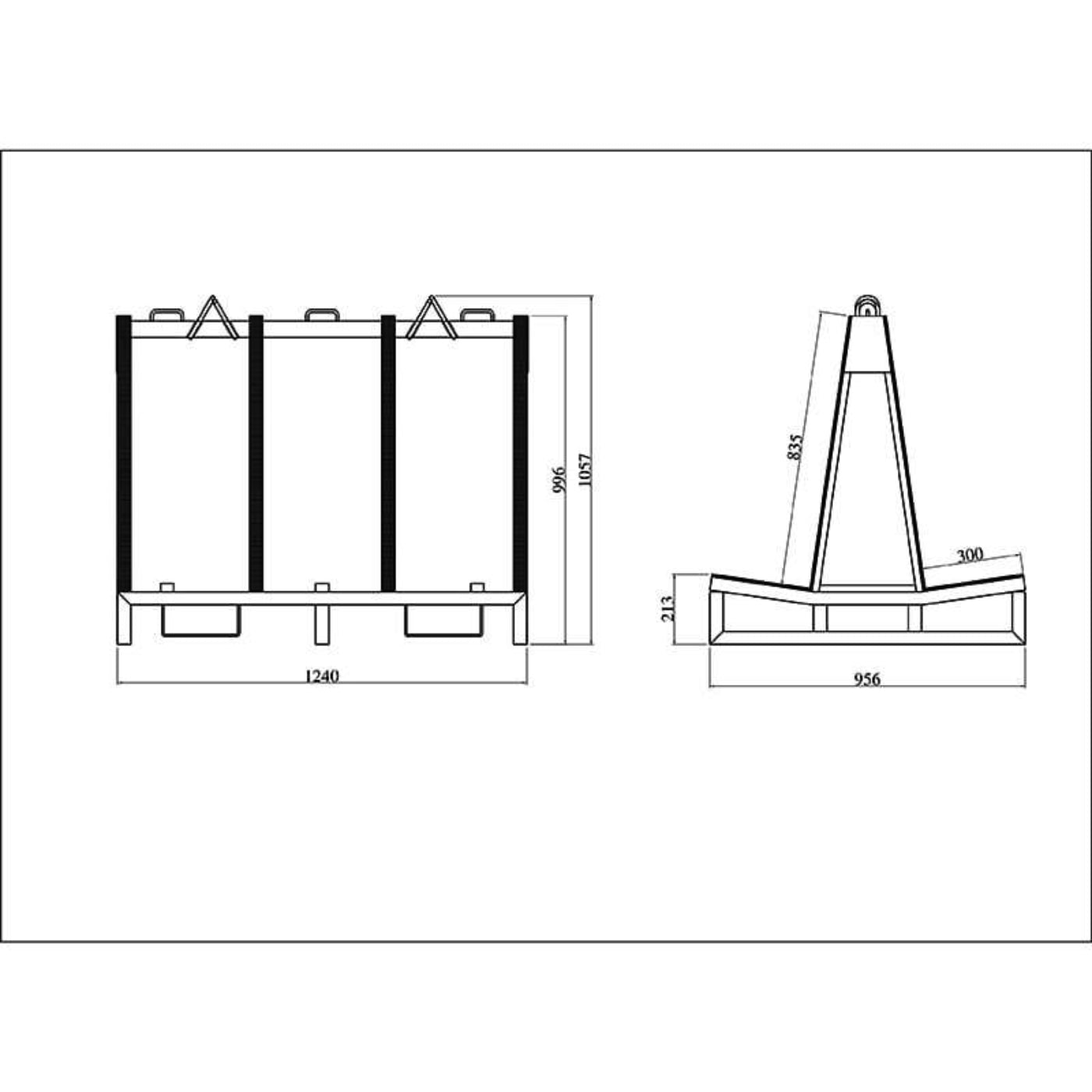

• Compact Design: Measures 1,373 mm (54.0") in length, 980 mm (38.6") in width, and 1,310 mm (51.6") in height, making it ideal for confined spaces.

• Rubber-Coated Surface: Equipped with a rubber layer to protect materials from surface damage during storage and transit.

• Dual Hooking Points: Features two hooking points for easy attachment to an overhead crane, facilitating safe lifting.

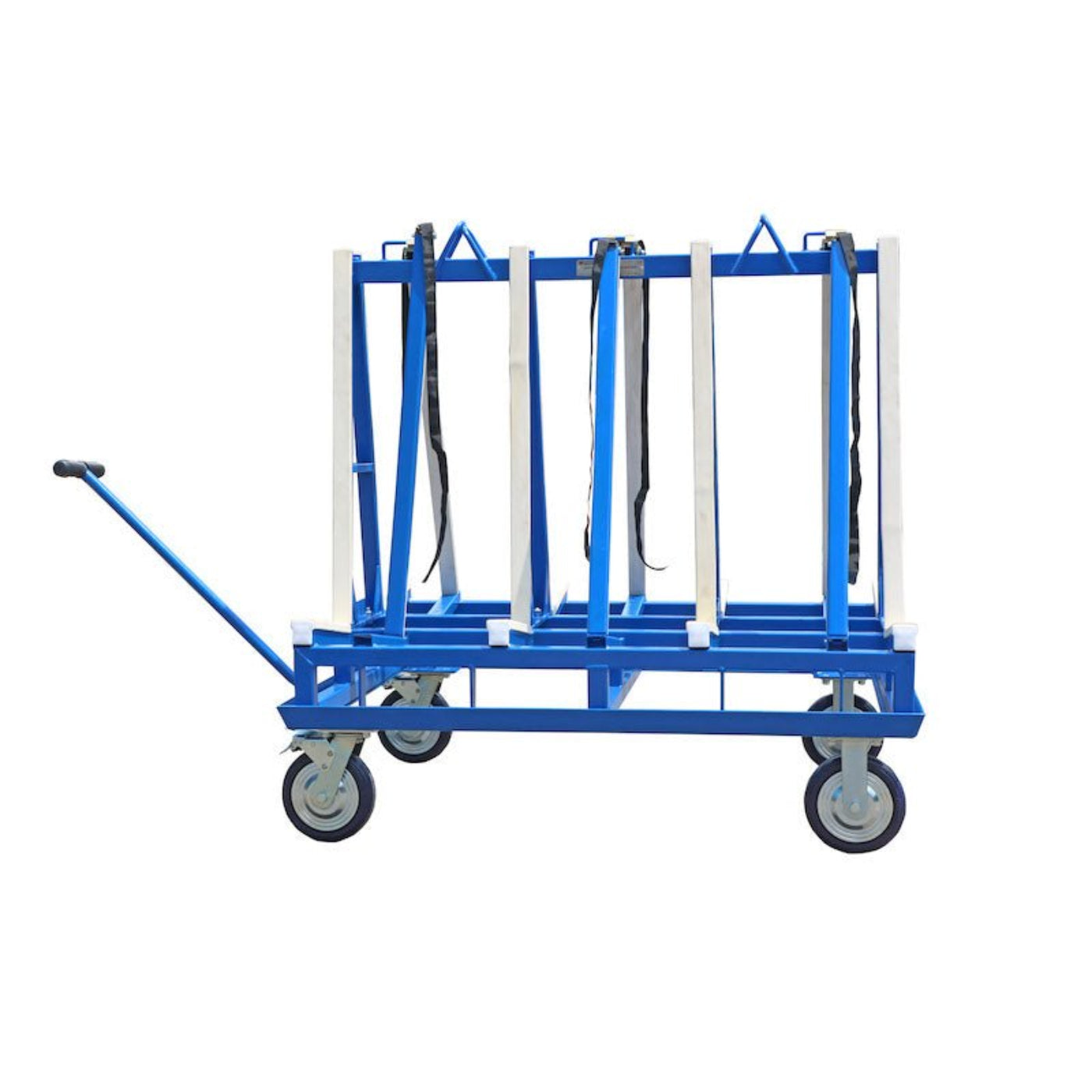

• Versatile Handling: Includes a stick-out handle for convenient transportation of materials.

• Modular System: Designed to accommodate two 'A' frames for one base, allowing for efficient loading and unloading.

Q&A

Q: What is the Aardwolf DFF200 used for?
A: The DFF200 is designed for storing and transporting finished work, making it ideal for transporting and storing material within the factory or transporting material to building sites.

Q: What is its weight capacity?
A: The total working load limit is 1,000 kg (2,204 lbs), with 500 kg (1,102 lbs) per side.

Q: What are its ?
A: The width of the slab storage base area on each side is 300 mm (11.8 inches). The packaging dimensions are 1,300 mm (L) × 1,020 mm (W) × 240 mm (H) (51.2" × 40.2" × 9.4").

Q: What is its weight?
A: The net weight is 102 kg (225 lbs), and the gross weight is 103 kg (227 lbs).

Maintenance Tips

• Regular Inspections: Examine the frame for signs of wear, cracks, or deformation. Pay special attention to the rubber layer for any damage or wear.

• Cleaning: After each use, clean the frame to remove dust, debris, and moisture. This helps prevent buildup and ensures smooth operation.

• Lubrication: Apply appropriate lubricant to any moving parts to ensure smooth operation and prevent rust.

• Check Hooking Points: Inspect the two hooking points for any signs of wear or damage. Ensure they are functioning correctly before each use.

• Handle Maintenance: Check the stick-out handle for stability and functionality. Ensure it is securely attached and in good condition.

• Storage: When not in use, store the frame in a dry, sheltered area to protect it from environmental damage.
