Aardwolf DC Powered Vacuum Lifter (Dual System) ARGL-500DS - ARGL-500DS

Aardwolf DC Powered Vacuum Lifter (Dual System) ARGL-500DS - ARGL-500DS

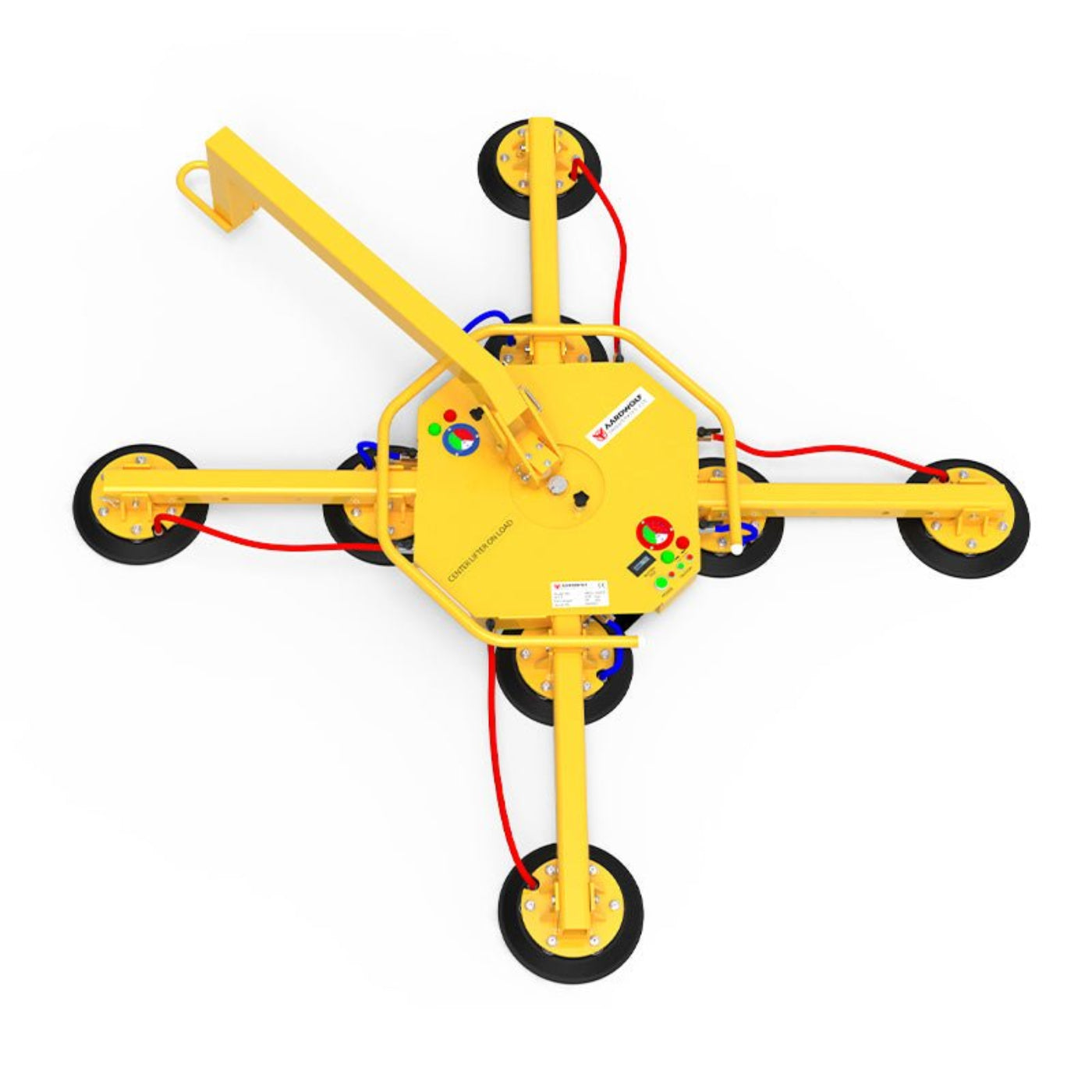

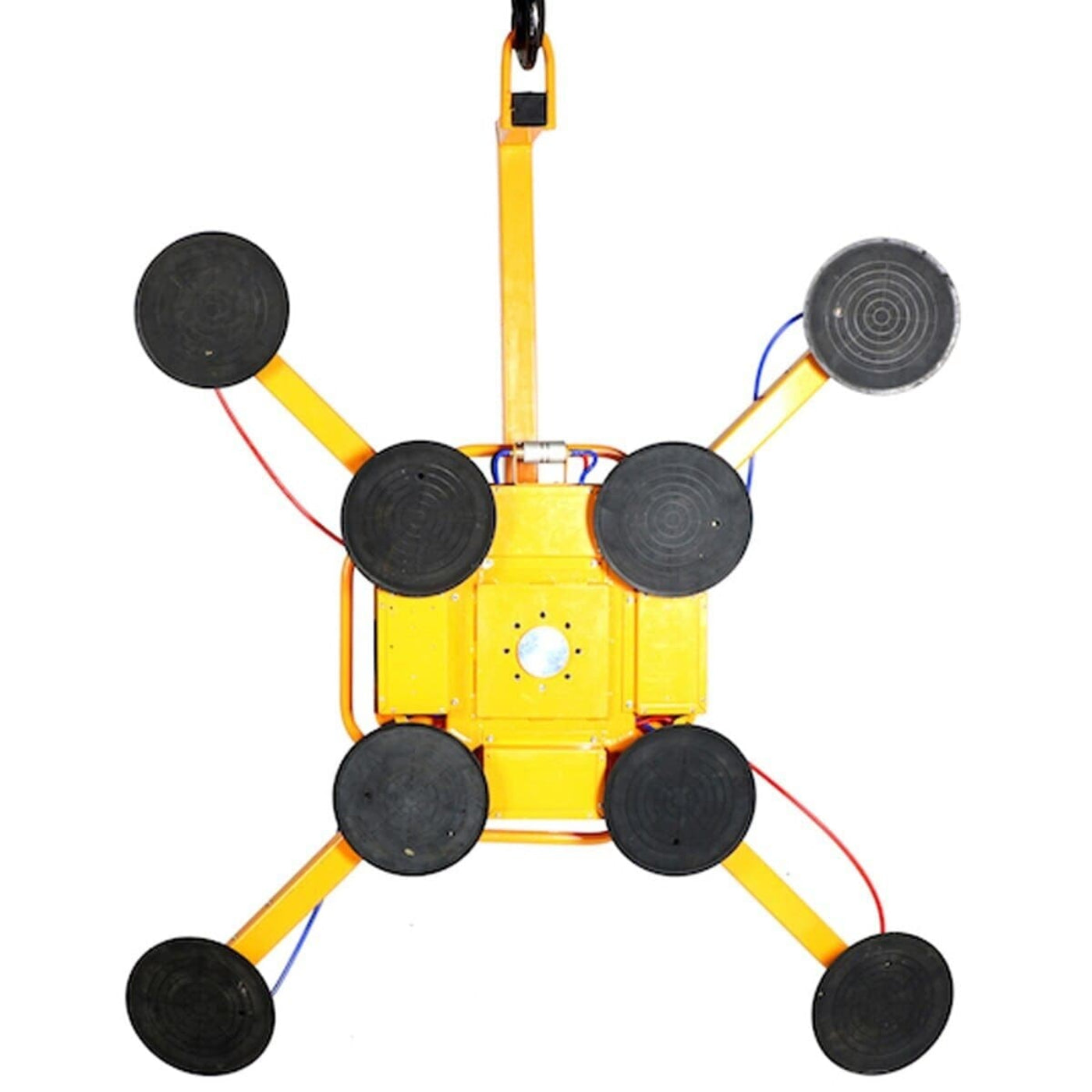

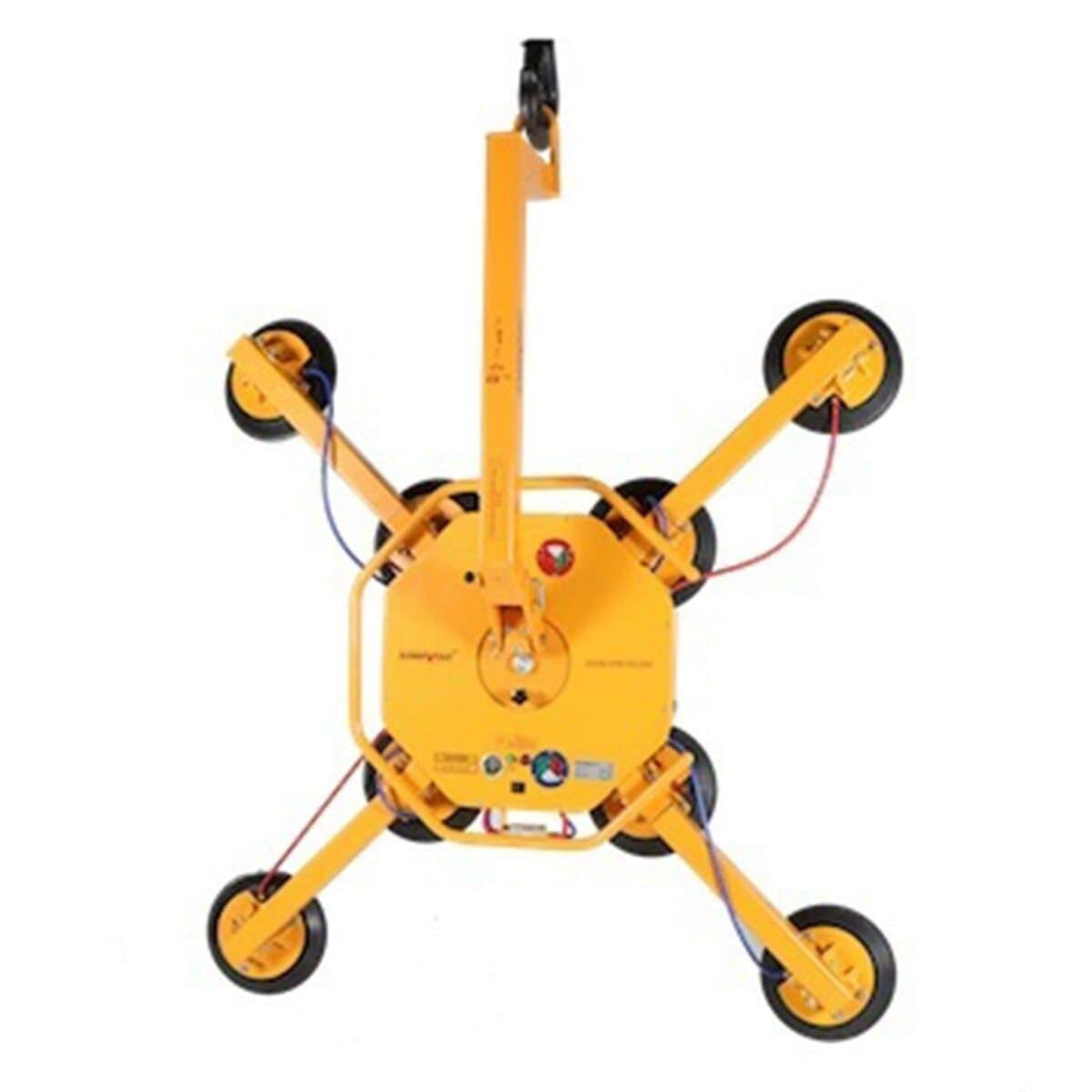

The DC Powered Vacuum Lifter (Dual System) ARGL-500DS is an electrical vacuum lifter with a 4-bar tilting mechanism. Integrated with a multi-angle rotation feature, the ARGL-500DS ensures flexibility when vertically rotating and tilting large glass sheets. The ARGL-500DS is equipped with two independent vacuum circuits, which support each other in the event of a system failure to ensure user safety during the working process.

Features

• Double redundancy with a load capacity of 500kg
• Spring-loaded suction pads
• 360 degree rotation with 45 degree steps
• Four extension arms with the ability to extend and retract
• Two independent vacuum circuits provide mutual aid in the event of a system error
• Automatic vacuum pumping system
• Audio and visual warning system
• 12V power supply by a high-capacity battery

Specifications

What our Experts Think

• Dual Vacuum System: Equipped with two independent vacuum circuits, this lifter ensures maximum safety and reliability when lifting glass, stone, and other non-porous materials up to 500 kg (1102 lbs.).

• Powerful DC Operation: The DC-powered system allows for portable use without the need for external power sources, making it ideal for use in remote job sites or areas lacking electricity.

• Enhanced Safety Features: Dual vacuum pumps and built-in safety alarms ensure a secure grip and continuous monitoring, providing peace of mind during material handling.

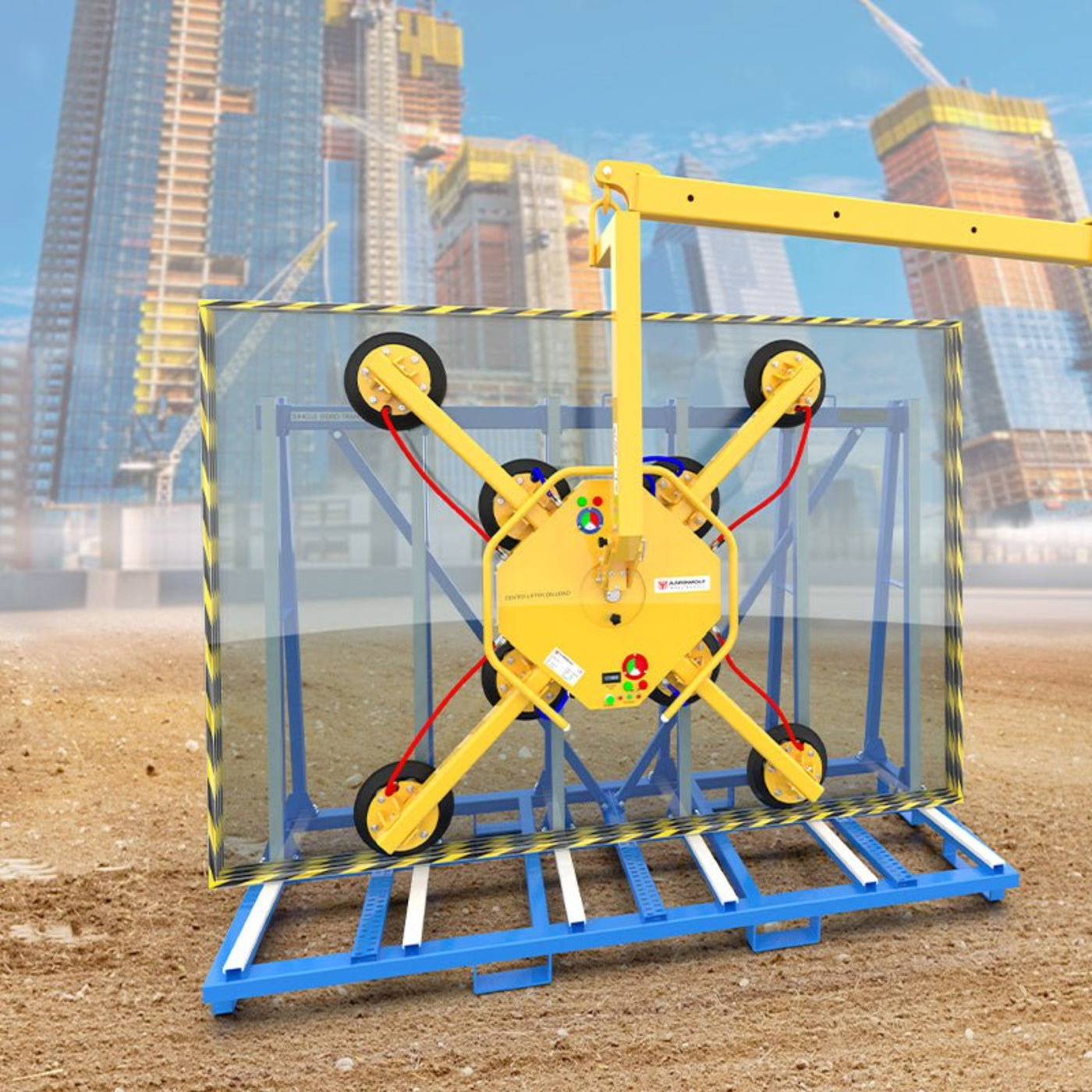

• Versatile Lifting: Suitable for both vertical and horizontal lifting of glass, stone, and other materials, offering flexibility for various installation and construction tasks.

• User-Friendly: Simple controls and intuitive operation ensure efficient and smooth handling, reducing operator fatigue and improving productivity.

• Durable Construction: Built with high-quality materials, the ARGL-500DS is designed for long-lasting performance in demanding environments, with low maintenance requirements.

Q&A

Q: What is the Aardwolf DC Powered Vacuum Lifter (Dual System) ARGL-500DS used for?
A: The ARGL-500DS is a DC-powered vacuum lifter with a dual system, designed for lifting and handling large glass panels and other non-porous materials, making it ideal for glass installation, construction, and material handling in various industries.

Q: What is the lifting capacity of the Aardwolf ARGL-500DS?
A: The ARGL-500DS has a lifting capacity of up to 500 kg (1100 lbs), allowing it to safely lift large and heavy glass panels or other materials.

Q: How does the Aardwolf ARGL-500DS Vacuum Glass Lifter work?
A: It features a dual vacuum system powered by DC electricity, providing enhanced lifting stability and control. The system uses multiple suction pads to securely grip glass panels and other smooth, non-porous surfaces for safe handling.

Q: What types of materials can the ARGL-500DS lift?
A: The ARGL-500DS is designed to lift large glass panels, mirrors, and other smooth, non-porous materials, making it ideal for glass handling, installation, and transportation tasks.

Maintenance Tips

• Inspect Vacuum Pads Regularly:
  Check the vacuum pads for cracks, wear, or contamination. Clean them with a mild soap solution and a soft cloth to ensure strong, secure suction. Replace any damaged pads immediately to maintain optimal performance.

• Test Vacuum Functionality Before Each Use:
  Perform a vacuum test to ensure the system builds and holds pressure properly. Both the dual vacuum systems should engage and hold securely. If there's any loss of suction, check for leaks or faults in the system.

• Inspect Seals and Hoses for Leaks:
  Check the vacuum hoses, seals, and connections for any signs of wear or leaks. Ensure all connections are tight and that no air is escaping, which would reduce suction efficiency.

• Lubricate Moving Parts:
  Lubricate all moving components such as joints, hinges, and lifting arms according to the manufacturer's recommendations. Proper lubrication ensures smooth operation and reduces wear over time.

• Monitor Battery and Electrical Components:
  Since this lifter is DC-powered, regularly check the battery charge level. Inspect all electrical components for corrosion or loose connections, and clean or tighten as needed to maintain power reliability.

• Check the Frame and Structural Integrity:
  Examine the frame, lifting mechanism, and mounting components for signs of damage, cracks, or stress. Tighten any loose bolts or screws and replace any damaged parts to ensure safe and stable operation.

• Clean After Every Use:
  Wipe down the vacuum pads and frame after each use to remove dust, dirt, or debris that could affect the lifter's functionality. Keeping the unit clean ensures long-lasting performance and prevents material buildup.

• Adhere to Load Capacity (500 kg):
  Always ensure the load does not exceed the 500 kg capacity. Overloading the vacuum lifter can cause mechanical damage and pose a safety hazard.

• Store Properly:
  When not in use, store the vacuum lifter in a dry, cool area, away from direct sunlight, moisture, and extreme temperatures. This prevents damage to both the vacuum system and the battery.
